| Price: | US $ 35000SET |
|---|---|
| Min Order: | 1SET |
| Pay Type: | L/C,T/T |
| Prod Model: | CBL-HK1225 |
|---|
About the product
| Model | flat head | flat needle | head interval | embroidery aera |
| CBL-HK1225 | 25 | 12 | 330mm | 330*750mm |
♥ We can make the embroidery aera according to customer's detailed requirement !
Technicial parameter
| Tension Base | Intelligent thread break detect | X,Y-axis Motor | 1.5KW servo motor*2PCS |
| Control System | Dahao computer | Power Consumption | 1.5KW-5KW |
| Design Input | By U disk | Embroidery Head | high speed big design head |
| Memory | 2000,000 stitches, 200pcs designs | X,Y Driving | Reinforced high speed liner guide rail |
| Design Format | Compatible with designs of Tajima(DST),DSB,BARUDA,ZSK,binary system,ternary system | Input Voltage | Single phase 220V (50/60HZ) Three phase 380V (50/60HZ) |
| Stitch Length | 0.1-12.7mm | Thread Trimming | Automatic |

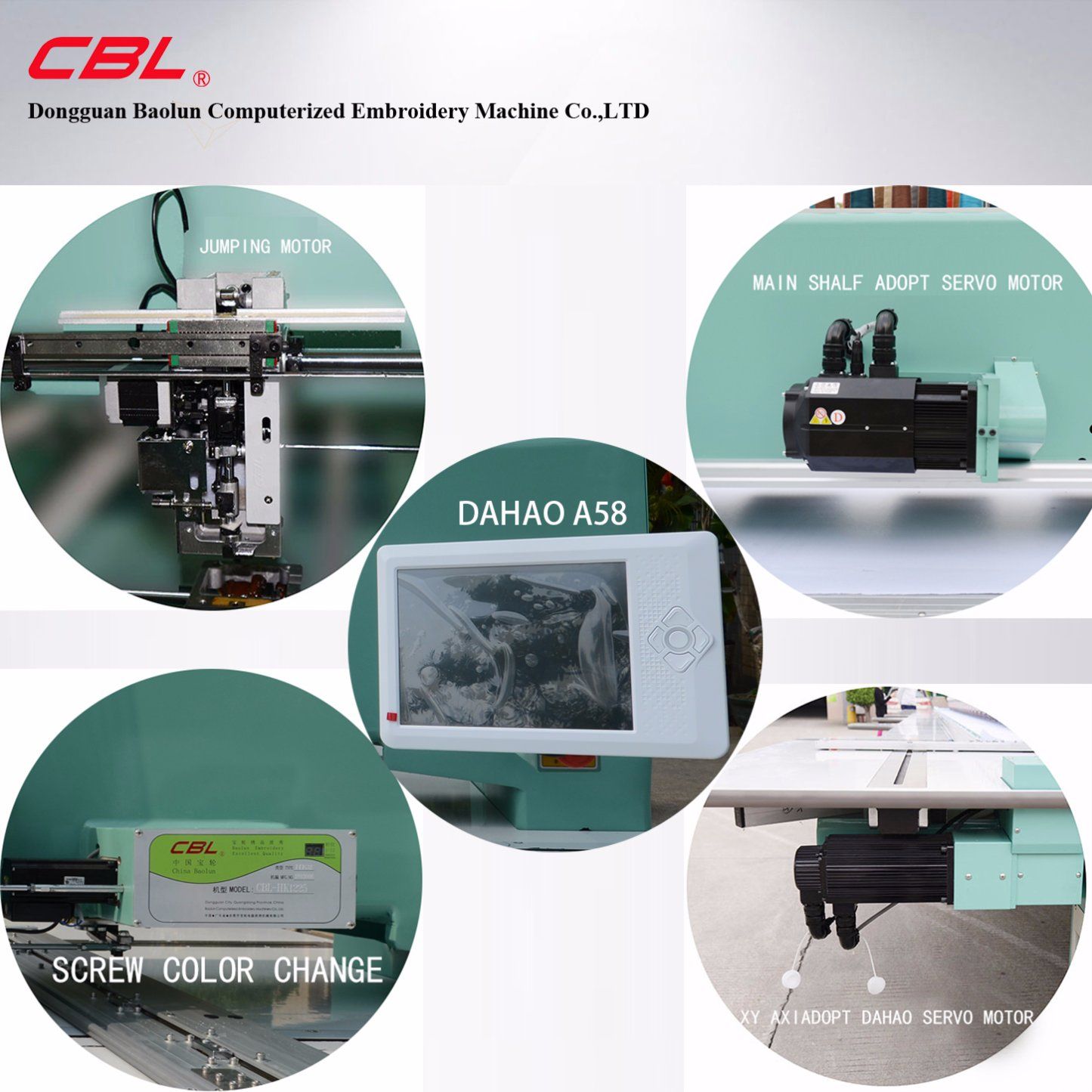

| Main Shaft Motor | 2KW servo motor*1PC | Color Changing | Automatic |
| Upper thread holding device | For Option | Auto lubrication | For Option |
| Embroidery Speed | 250-850rpm | laser tube | enhanced laser tube 35w/set |
All model is automatic thread cutting and automatic color changing

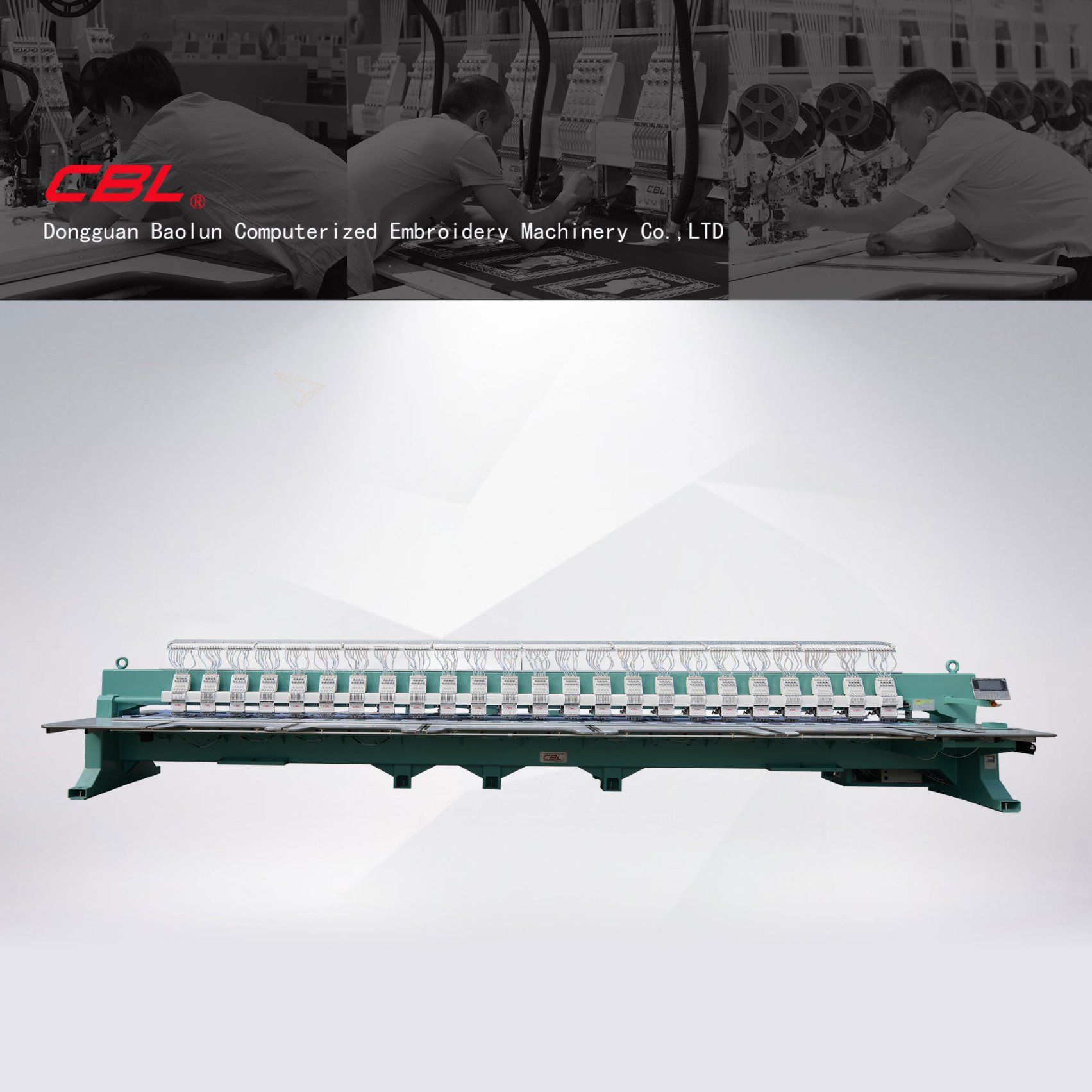

high speed flat computerized embroidery machine.
We can make the embroidery area according to customer's detail requirements.
This model is suitable for knitting, tating, cotton, leather,fiber,fabrics,
top brand embroidery and so on.
Dongguan Baolun Embroidery company was set up in 1997 in Dongguan,
Guangdong, China. The environment of our company is very beautiful.
And the staffs have experienced professional training,
so their skill is very exquisite. The quality of the embroidery
machine is worth trusting.
We adopt vaccum bag inside and wood pallet outside, which can protect the machine very well. And the delivery time is 45 days,
we promise that we can delivery the machine on time. If you have any questions , don't hesitate to ask me!
