| Prod Model: |
HO1501 |
| Name: |
Embroidery Sewing Machine with Multi Function Ce S |
| Name 2: |
Embroidery Sewing Machine with Multi Function Ce S |
| Worktable Size: |
360*510mm |
| Computer System: |
Newest 8' Dahao Computer |
| Warranty: |
2 Years |
| Application: |
Cap /Flat /T-Shirt/Cloth/Leather/Tower, etc |
| Language: |
12 Languages |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Rotary: |
Japanese Koban Brand |
| Motor: |
Servo Motor |
Product Description

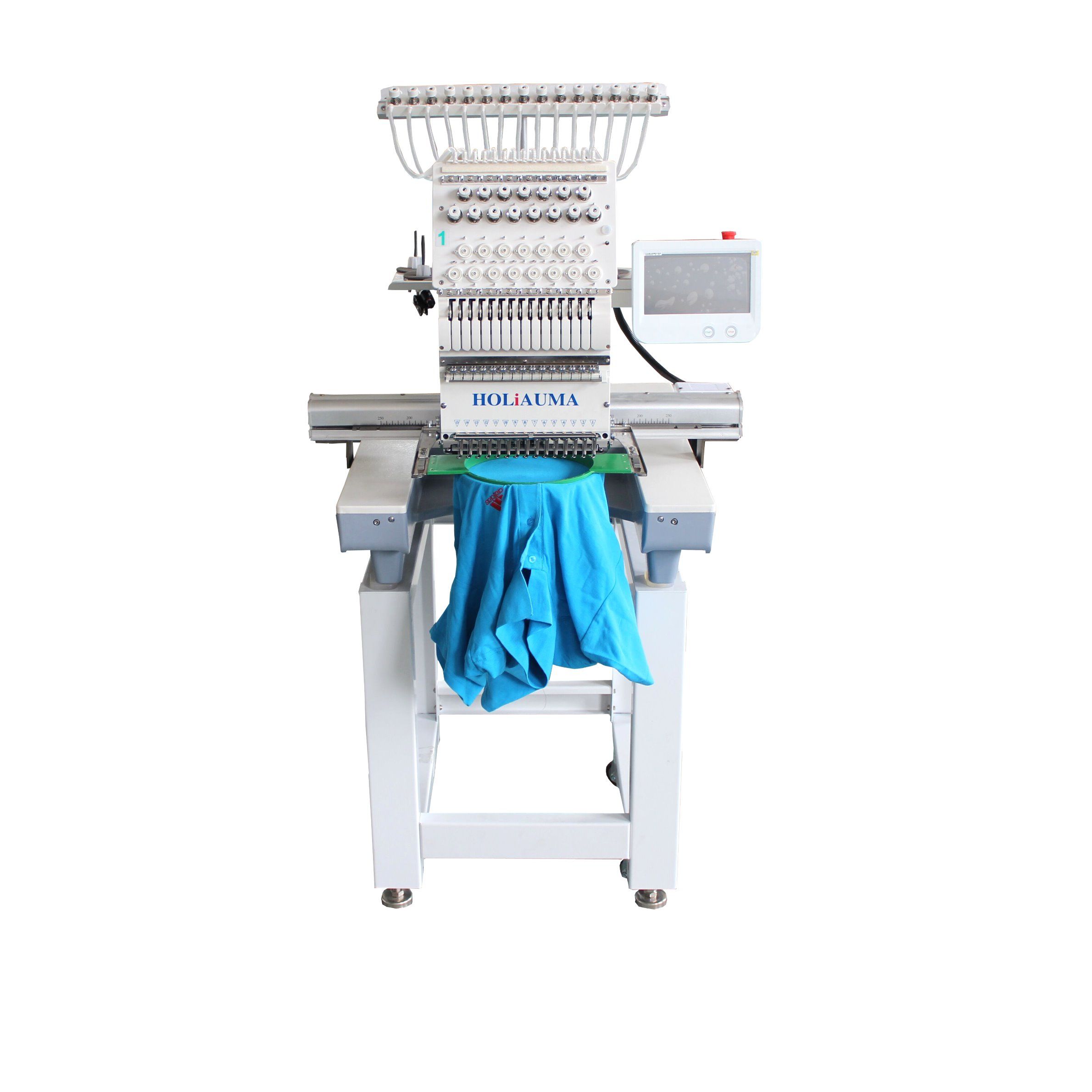

HOLIAUMA Single head computerized Swf embroidery machine with main parts are Japan made
HOLIAUMA computer embroidery sewing machine with multi function CE SGS
| Product Name | Model | Needles
(colors) | Head | Emb. Area
(each head) | Size(L*W*H) | Weight |
|
| 1 head Embroidery machine | HO1501C | 15 | 1 | 360*510mm | 800*800*1600mm | 180KGS |
Look for agent all over the world!
Sales contact: Rita Zheng (0086 158 137 25205 )
Brand: HOLIAUMA
OEM/ODM accepted
Digitizing software/Free training/1 years' warranty/24 hours service available
HOLIAUMA Single head computerized Swf embroidery machine with main parts are Japan made
HOLIAUMA computer embroidery sewing machine with multi function CE SGS
Main feature for the embroidery machine
1.Single head embroidery machine with 15 needles
2.Automatic thread trimmer
3.Maximum speed 1200 SPM
4.270° Wide cap frame unit
5.8" newest touch screen display showing real time stitching
6.USB input port
7.Automatic color change
8.Thread break detection
9.Pre-sew design trace capable
10.Memory size 2, 000, 000 stitches
11.Emergency stop
12.Electricity:110V/60Hz or 220V/50Hz available
14.Low power consumption 100W to 150W
15.Built-in bobbin winder
Newest 8" Dahao Computerized Control System With Touch Screen
A.8" touch screen showing real time stitching
B.Manual, Semi-auto, Auto Color Change
C.Function keys including Menu, Speed up and slow
D.Multi languages available like English, French, Spanish etc.
E.Frame-moving keys, Manual Trimming
F .DOT ket to return to 100 degree
G.Start, Stop, and emergency Stop
H.Embroidery Status (Page Up/Page Down), USB Input,
I.Parameter Settings, Clear, ESC, Enter, etc
Hoops for the embroidery machine
A.2 X Shirt Front Round Hoop 9 cm (3.5")
B.2 X Shirt Front Round Hoop 23 cm (9")
C.2 X Shirt Front Round Hoop 12 cm (4.7")
D.2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
E.2 X Shirt Front Round Hoop 15 cm (5.9")
F.1 X Sash Frame Hoop 56 X 38 cm (22" X 15")
G.1X Square Aluminum Hoop 56 X 38 cm (22" X 15")
Cap attachment of each head
1pc cap driver,
1pc cap hoop station,
2pcs cap hoops
The Main Parts of Embroidery machine
1. Japan Rotary Hook
2. Japan Bobbin case
3. Italy Belt
4. Japan NSK bearing
5. Japan Cherry Gear
6.Japan Nemicon Encoder
7.German Needles
Accessories parts
1, Extended table top for Flat embroidery.
2, Standing table with Wheels ;
3, Operation Manual;
4, Tool Kit;
5, 8GB USB driver;
6, Bobbin Winder And so on
Laser poiter device
Factory detailed Image
HOLIAUMA Single head computerized Swf embroidery machine with main parts are Japan made with Cap Tshirt Flat Embroidery 3 Main Functions
HOLIAUMA computer embroidery sewing machine with multi function CE SGS
Embroidery Samples
Our Customers Feedbacks
After-Sales Service
Our company offer More than One-year warranty and lifetime maintenance for the buyer, during thewarrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts).After the warranty period, we will try to offer related machinery seriouc too.
Our advantage
1.Considerate pre-sale service ,patient answer ,offer details of machine and shipping information .
2.High quality ,import parts from janpan .
3.Quickly ship,when machine is in stock ,delivery 3-7days .
4.Comfortable price ,sincere partner .
HOLIAUMA Single head computerized Swf embroidery machine with main parts are Japan made Cap Tshirt Flat Embroidery 3 Main Functions
HOLIAUMA computer embroidery sewing machine with multi function CE SGS
HOLIAUMA computer embroidery sewing machine with multi function CE SGS
HOLIAUMA computer embroidery sewing machine with multi function CE SGS
Further details picture video online checking
please freely contact us : 0086 15813725205
Our company supplies high quality embroidery machines. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
