| Price: | Negotiableset |
|---|---|
| Min Order: | 1set |
| Pay Type: | T/T,Western Union |
| Prod Model: | HO1501 |
|---|---|
| Product Name: | Computerized Embroidery Machine |
| Worktable Size: | 360*1200cm |
| Computer System: | Newest 8' Dahao Control System |
| Warranty: | 2 Years |
| Application: | Cap /Flat /T-Shirt/Cloth/Leather/Tower, etc |
| Language: | 12 Languages |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| Power Supply: | 50-60Hz |
| Name: | Holiauma Computerized Embroidery Machine for T Shi |
| Motor: | Japen Servo Motor |
For more machine details picture online checking,
plee feel free to contact me on 0086 158 137 25205 Rita
| Model | Head | Needle | Emb.Area | Speed | Control Syetem | Function |
| HO1501L | Single | 15 | 510*400mm | 1200spm | Dahao system | 3D Cap TShirt Flat Bag Uniform Leather Embrodiery etc. |

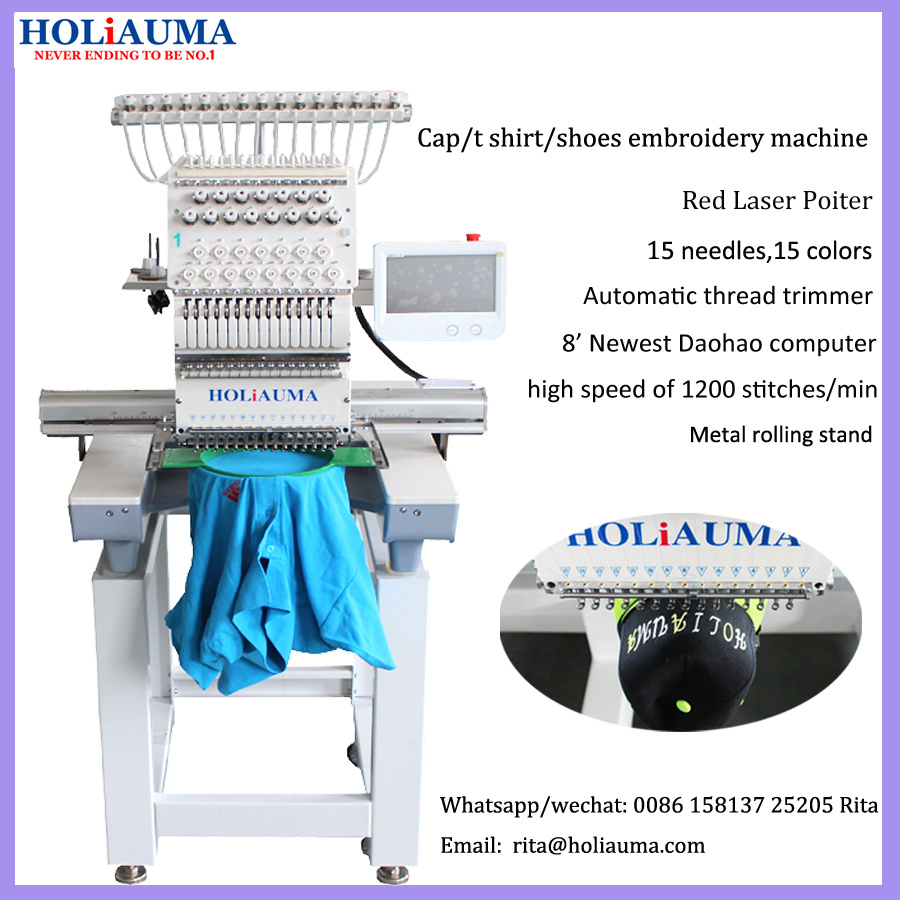

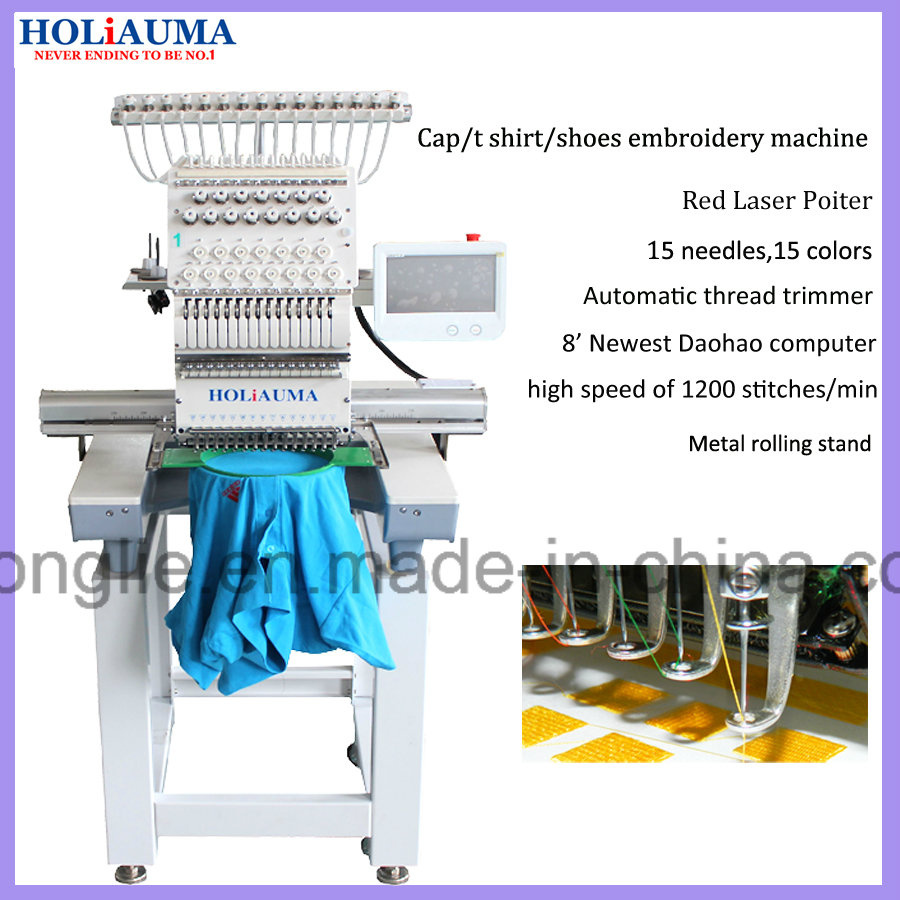

HOLIAUMA Computerized embroidery machine for t shirt cap embroidery
High quality one head 15 needle embroidery machine used for t-shirt /garments/cap /leather embroidery machine
Main Features for HOLIAUMA Economic Single head multi Colors industrial embroidery machine
A. Suitable for flat embroidery, cap emroidery and finished garments embroidery like T-shirt
B. Automatic thread trimmer
C. Maximum speed 1200 SPM
D. 270 degree Wide cap frame unit
E. Color LCD display showing real time stitching
F. USB input port
G. Automatic color change
H. Thread break detection
I. Pre-sew design trace capable
J. Memory size 2, 000, 000 stitches
K. Emergency stop
L. Electricity: 110V/60Hz or 220V/50Hz self-adaptable
M. Built-in bobbin winder
N. Keeping current data or work when emergency stop or power off
O. Mending function. (back and skip stitches under controller)
P. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
Q. USB port with fast data transmission and good compatibility
X. Mainboard intergated into control panel protecting from dust or external force.
Y. Lay-out of keys on panel is user-friendly.
Z. Built-in Network

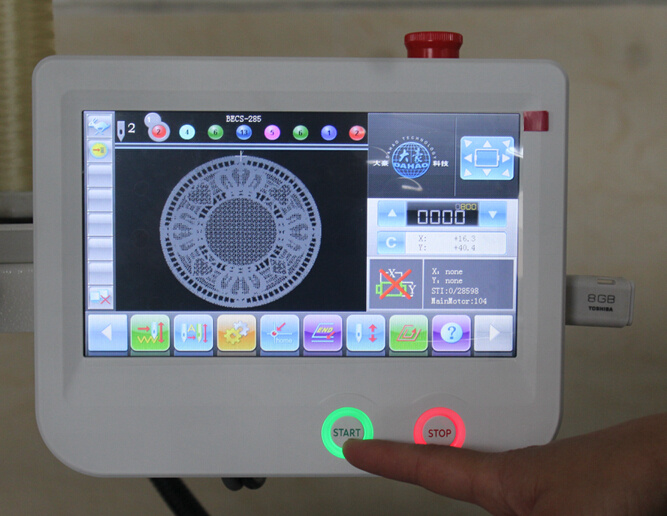

Compact control panal
A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available like English, French, Spanish etc.
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles

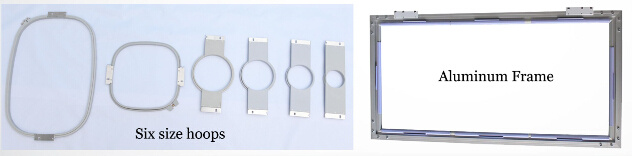

Hoops/frames inclued
2 X Shirt Front Round Hoop 9 cm (3.5")
2 X Shirt Front Round Hoop 12 cm (4.7")
2 X Shirt Front Round Hoop 15 cm (5.9")
2 X Shirt Front Round Hoop 19 cm (7.8")
2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
1 X Sash Frame 56 X 38 cm (22" X 15")

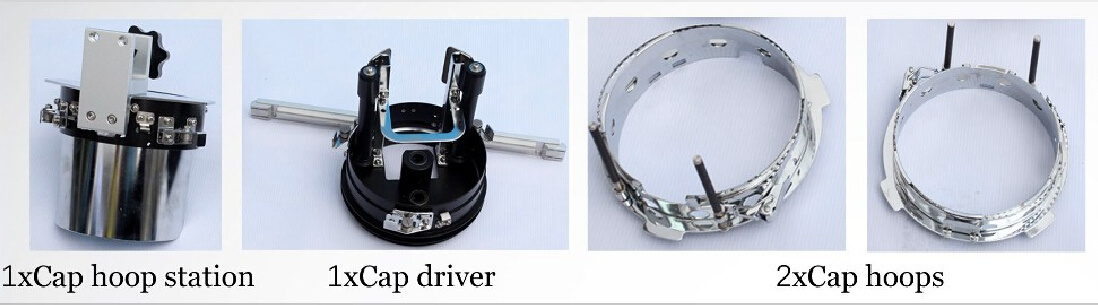

Cap attachment of each head
1pc cap driver,
1pc cap hoop station,
2pcs cap hoops
The Main Parts of Embroidery machine
1. Japan Rotary Hook
2. Japan Bobbin case
3. Italy Belt
4. Japan NSK bearing
5. Japan Cherry Gear
6.Japan Nemicon Encoder
7.German Needles
Accessories parts
1, Extended table top for Flat embroidery.
2, Standing table with Wheels ;
3, Operation Manual;
4, Tool Kit;
5, 8GB USB driver;
6, Bobbin Winder And so on
Laser poiter device
Our company offer More than One-year warranty and lifetime maintenance for the buyer, during thewarrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts).After the warranty period, we will try to offer related machinery seriouc too.
Our advantage
1.Considerate pre-sale service ,patient answer ,offer details of machine and shipping information .
2.High quality ,import parts from janpan .
3.Quickly ship,when machine is in stock ,delivery 20 days .
4.Comfortable price ,sincere partner .
5.12 months warranty, flexile after-sale service .
Further details picture video online checking
please freely contact us : 0086 158 137 25205 Rita!!
