Prod Model: |
WY1202C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Memory Size: |
20million Stitch with 200 Patterns |
Trimming: |
Auto Trimming |
Thread Broken Checking: |
Auto |
Computer Screen: |
Topwisdom Newest 10" Touch Screen(Optional 10") |
Language: |
12 Languages |
Embroidery Area: |
400*450mm |
Main Motor: |
Panasonic Servo Motor |
Warranty: |
24 Months |
Speed: |
850/1000 Rpm |
Power: |
100V/60Hz - 240V/50Hz |
Product Description

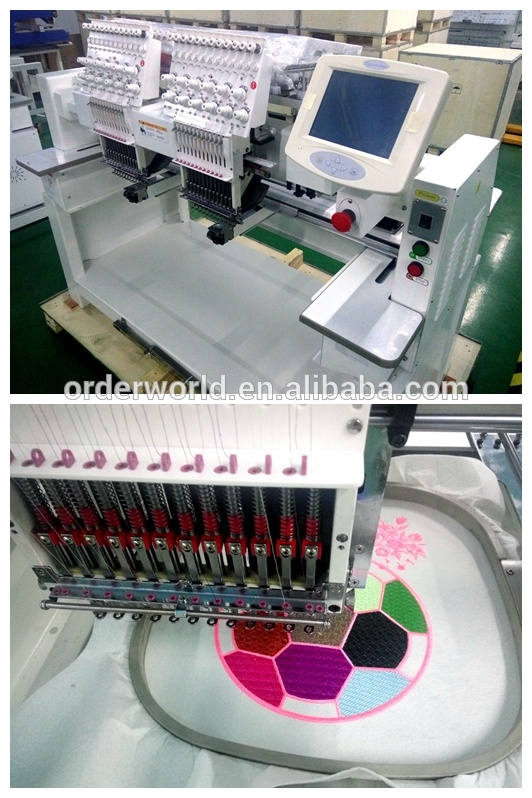

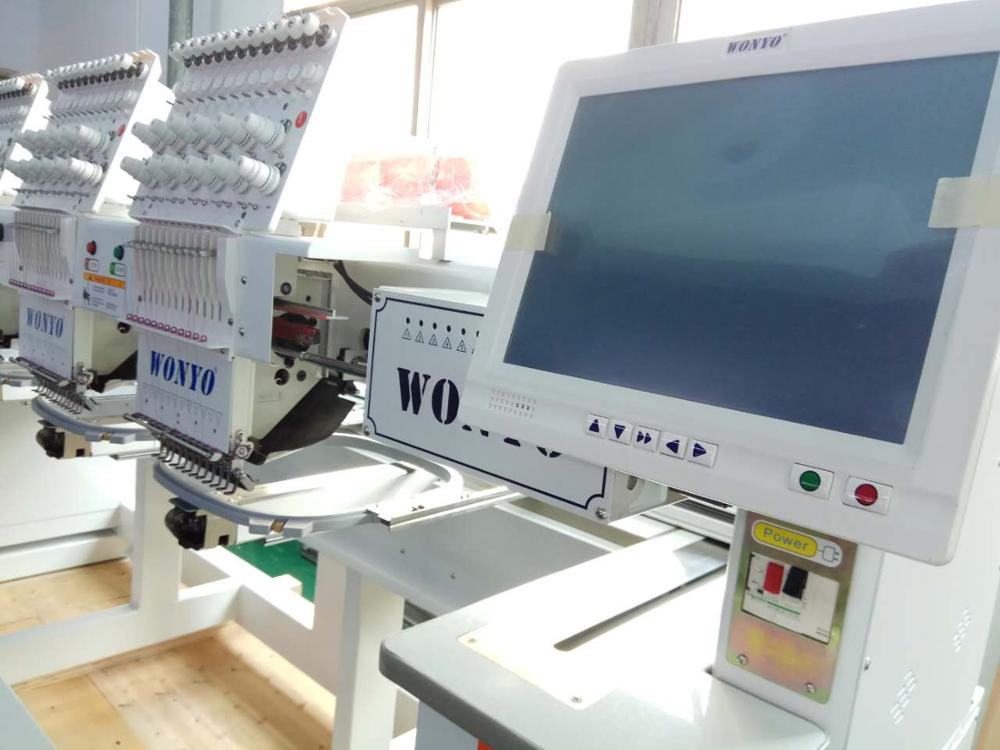

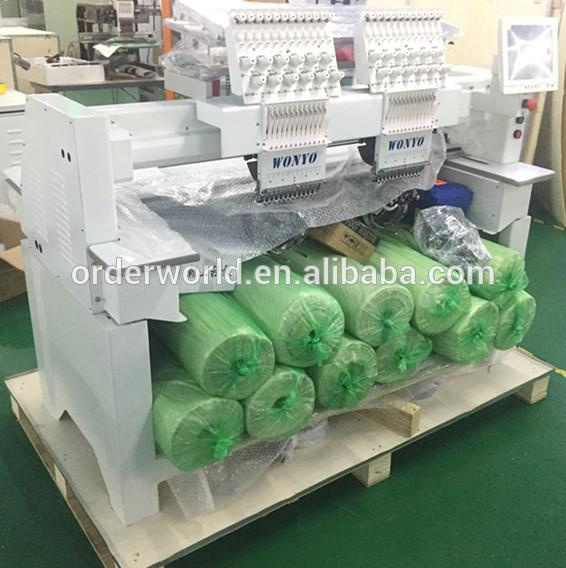

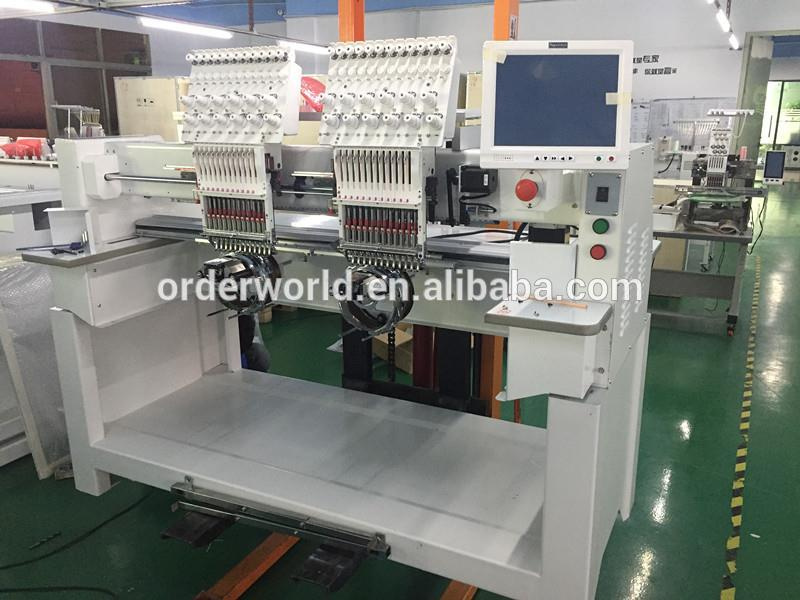

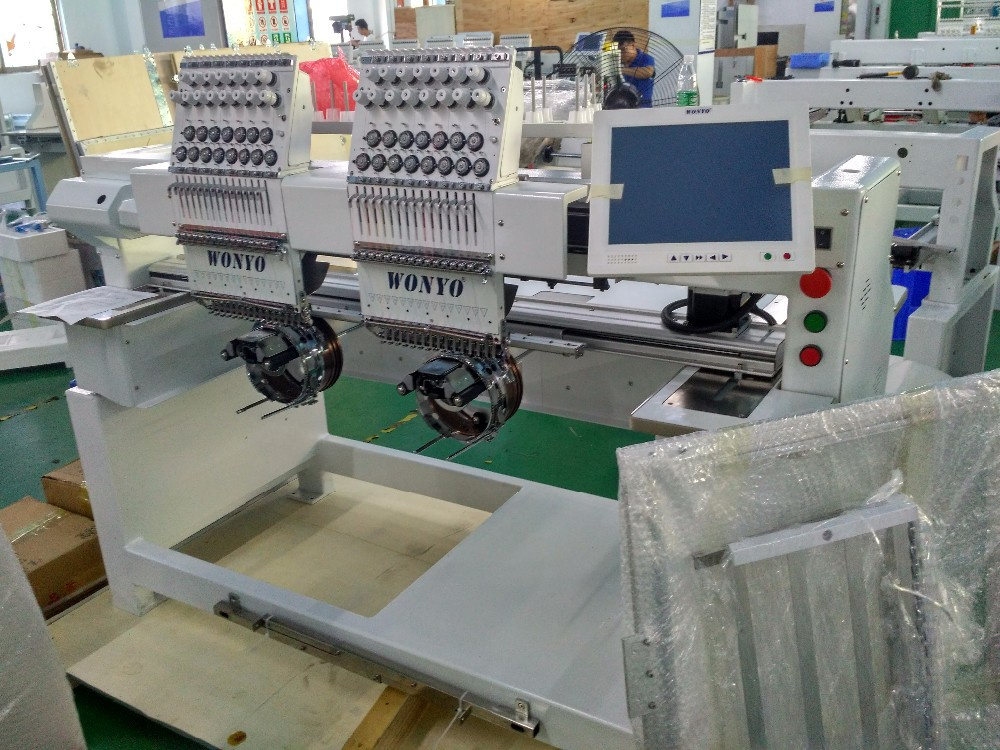

Hot sale china Two Heads computerized Embroidery Machine with 6/9/12/15 needles. Model | Needle | Head | N.w G.w | Emb.area | Meas Outer CBM |
WY1201CS/WY1501CS | 12/15 | 1 | 120kg 138kg | 360*510mm | 750*740*850mm 840*830*930mm 0.648CBM |
WY1201CL/WY1501CL | 12/15 | 1 | 201kg 238kg | 360*1200mm | 1490*980*1000mm 1580*1030*1090mm 1.774CBM |
WY1202CS/WY902CS | 12/9 | 2 | 390KG 429KG | 400*450MM | 1520*970*1400mm 1710*1060*1470mm 2.665CBM |
WY1204CS/WY904CS | 12/9 | 4 | 720KG 900KG | 400*450MM | 2700*1140*1660mm 5.110CBM |
WY1206CS/WY906CS | 12/9 | 6 | 1100KG 1210KG | 400*450MM | 3438*1160*1500mm 3460*1200*1670mm 6.934CBM |
WY1208CS/WY908CS | 12/9 | 8 | 1200KG 1335KG | 400*450MM | 4238*1090*1500mm 4510*1130*1670mm 8.511CBM |
WY1212CS/WY912CS | 12/9 | 12 | 1800KG 1960KG | 400*450MM | 5838*1490*1610MM 6000*1500*1680MM 15.120CBM |
I. Main features of the Hot sale China Two Heads computerized Embroidery Machine with 9 12 15 needles embroidery machines.1. Suitable for flat, cap and finished garments embroidery
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 SPM
5.270 degree wide cap frame unit
6.5", 8" or 10" color LCD display showing real time stitching
7. USB port or computer connection
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
II. Full color control panel touch computer embroidery machine.1.10" High Definition color LCD display showing
Real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available
III. Frames/hoops zise of 2 heads embrodiery machine.1 Sash Frame: 40.5cm x 48cm (16" x 19") for single head, 81cm x 48cm (32" x 19") for 2 head
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
IV. AccessoriesTable top
Operation Manual
Tool Kit
Bobbin Winder
