| Prod Model: |
TIMING BELT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industrial Timming Belt: |
Htd/Std/Rpp/T/at/ 2m 3m 4.5m 5m 8m 10m 12m |
| Dedicated Chain Type: |
Industrial Timing Belt |
| Structure (for Chain): |
Roller Chain |
| Leaf Chains Type: |
Reload Bit-Block Drag Chain |
| Detachable Chain Type: |
Works with Steel Sleeve Chains |
| Material Feature: |
Heat Resistant |
| Usage: |
Transmission Chain, Industrial Timing Belt |
| Chain Size: |
Hts/Std/Rpp/T/at/ 2m 3m 4.5m 5m 8m 10m 12m |
Product Description
Company IntroductionFounded in 1984, FULONG is a national high-tech enterprise now and ISO9001, TS16949 certified. With national lab and municipal innovation center, we made over ten national and trading standards. What's more, 30,000 square meters were expanded to build several automatic production lines in automotive timing belt and PK belt, which guarantee the OEM quality.
Raw MaterialsBelt: High-quality neoprene (CR)as the main raw materials( imported from Japan)
Skeleton materials: Glass Fiber(imported from Janpan)
Tooth surface: Nylon 66 high
Product Description | TYPE | SUPPLY CHARACTERISTIC |
MXL XXL XL L H XH XXHT2.5
T5 T10 T20 AT5 AT10 AT20
HTD:2M 3M 5M 8M 14M 20M
STS:S2M S3M S4.5M S5M S8M S14M
RPP:RP2M RP3M RP5M RP8M RP14M | 1.Company leading products with more than 4000 moulds.
2.Cutting or provide sleeve according to customer's requirement.
3.Anti-static,oil, heat-resistant,low temperature resistance ect. |

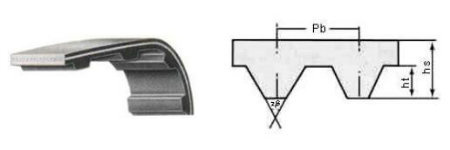

Trapezoidal Tooth Profile
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° | Details |
| MXL | 2.032 | 0.51 | 1.14 | 40 | Details |
| XXL | 3.175 | 0.76 | 1.52 | 50 | Details |
| XL | 5.080 | 1.27 | 2.30 | 50 | Details |
| L | 9.525 | 1.91 | 3.60 | 40 | Details |
| H | 12.70 | 2.29 | 4.30 | 40 | Details |
| XH | 22.225 | 6.35 | 11.20 | 40 | Details |
| XXH | 31.750 | 9.53 | 15.70 | 40 | Details |
| T2.5 | 2.50 | 0.70 | 1.30 | 40 | Details |
| T5 | 5.00 | 1.20 | 2.20 | 40 | Details |
| T10 | 10.00 | 2.50 | 4.50 | 40 | Details |
| T20 | 20.00 | 5.00 | 8.00 | 40 | Details |
| AT5 | 5.00 | 1.20 | 2.70 | 50 | Details |
| AT10 | 10.00 | 2.50 | 5.00 | 50 | Details |
| AT20 | 20.00 | 5.00 | 9.00 | 50 | Details |

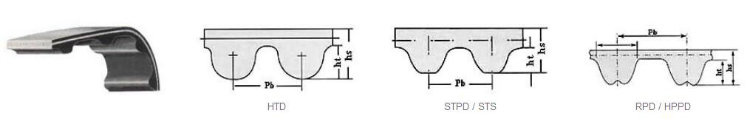

Curvilinear Tooth Profile
| Type | Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Details |
HTD | 2M | 2.00 | 0.75 | 1.36 | Details |
| 3M | 3.00 | 1.17 | 2.40 | Details |
| 5M | 5.00 | 2.06 | 3.80 | Details |
| 8M | 8.00 | 3.36 | 6.00 | Details |
| 14M | 14.00 | 6.02 | 10.00 | Details |
| 20M | 20.00 | 8.40 | 13.20 | Details |
STPD/STS | S2M | 2.00 | 0.76 | 1.36 | Details |
| S3M | 3.00 | 1.14 | 2.20 | Details |
| S4.5M | 4.50 | 1.71 | 2.81 | Details |
| S5M | 5.00 | 1.91 | 3.40 | Details |
| S8M | 8.00 | 3.05 | 5.30 | Details |
| S14M | 14.00 | 5.30 | 10.20 | Details |
RPP/HPPD | 2M | 2.00 | 0.76 | 1.36 | Details |
| 3M | 3.00 | 1.15 | 1.90 | Details |
| 5M | 5.00 | 1.95 | 3.50 | Details |
| 8M | 8.00 | 3.20 | 5.50 | Details |
| 14M | 14.00 | 6.00 | 10.00 | Details |

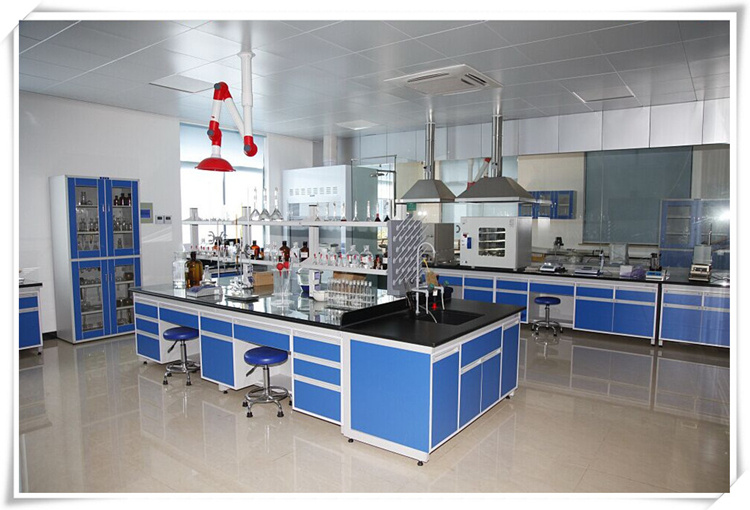

National Lab:
Workshop:
Packing and Shipment Service
Contact
Export Department
Sales Manager
Mr. Mervyn CHOU
Web: http://www.cnfulo.com
Tel:0086 (0)574-6378-7729
Fax:0086 (0)574-6378-0109
Ph:0086 135-6606-2254
Add: NO.300, Cilong West rd. Longshan Town, Cixi, Ningbo City, Zhejiang Province, China,315311

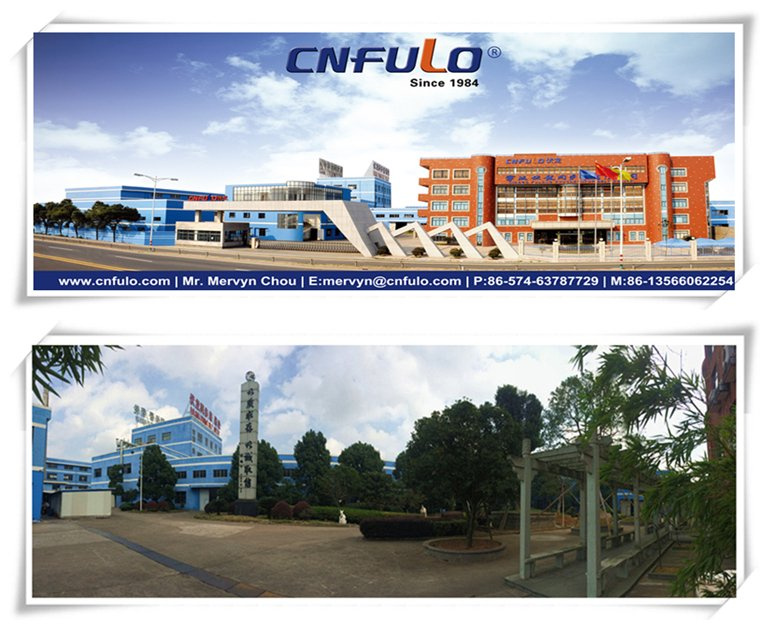

Our company was founded in 1984. We have specialized in industrial rubber timing belts, automotive timing belts, variable-speed belts, poly-V belts,
Double-sided timing belts, cutting V-belts, flat belts and pulley with Fulong
Brand. And timing belt and pulley have passed national technical appraisal since 1987. It is currently specialized enterprise in manufacturing timing belt
Series with widest scope, most complete variety and best quality in China.
And yearly production capacity is 8 million all kinds of driving belts and 400 thousand pulley. The products are sold to 30 provinces and thousands of
Companies in domestic, and export to Southeast Asia, Middle East, America,
Japan and other regions. In order to extend our sales and open the marke,
Ningbo Fulong have opened the sales center at Shanghai (Shanghai Fulong Synchronous Belt Co., Ltd) and branched companies at Beijing & Guangzhou
City. We will use Shanghai big city visualize to meet different parts customers
The company covers an area of 45, 000 square meters and the fixed asset is RMB 120million. We have about 500 employee, included 80 technologies and 18 technical experts hired from abroad The company has advanced production equipments, some kinds of testing equipments and instruments. In recent years, we have invested 50 million RMB on a large scale of technical renovation, purchase a number of advanced production and testing equipments and all of
Our main materials are imported from abroad, in order to improve the production capacity, technical level and quality of products.
The company is the national medium-sized enterprise and wins provincial "High-tech Enterprise", "Excellent Enterprise of Technological Progress", "Spark Model Enterprise" and "Management Model Enterprise". Our measuring and archives management are Secondary to the nation, and our credit rating is AAA enterprise.
According to the customers' product technical requirements, our technologies,
On the premise to provide clients with high quality products, we have
Formed a set of perfect and controllable management system from raw materials to finished product output. In order to ensure product quality and long-term stability, we have done the follow works.
