| Prod Model: |
TSHY-320800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Source Type: |
Glass CO2 Laser Tube |
| Output Laser Power: |
100W |
| Working Area: |
3200mm*8000mm |
| Working Table: |
Conveyor Working Table |
| Movement System: |
Offline Servo System |
| Supported File Formate: |
Ai, BMP, Plt, Dxf, Dst and etc |
| Option: |
CCD, Auto Feeding System |

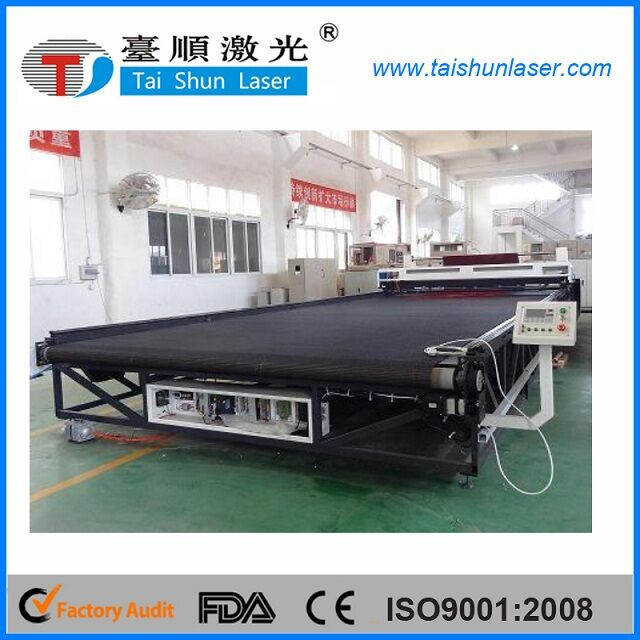

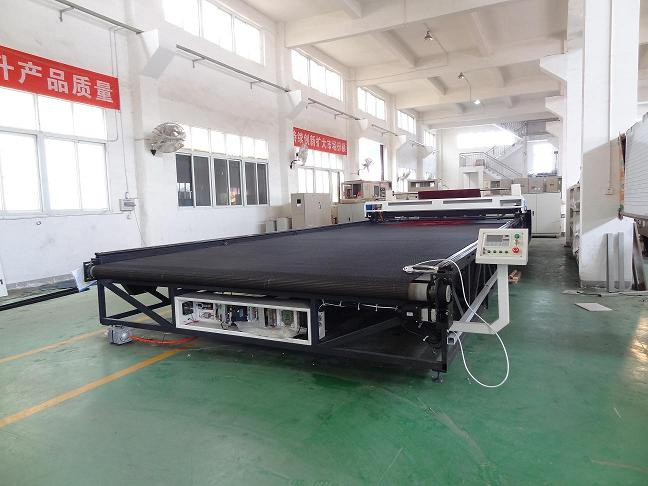

Product Description
Characteristic:1. Laser source: Impulse CO2 laser tube with stable and high quality spot size. Life cycle approximate 6000 hours.
2. Transmission system: High-precision ball screw transmission system plus linear guide rail system.
3. Working table is supported by welded steel beams to ensure steady and high precision movement.
4. Electronic control system: design according to European and American safety standard, high reliability and acceleration characteristics.
5. Ventilation and smoke dust filter system: powerful centrifugal fan plus top down dual suction design. All the smoke is completely extracted, only leaving clean working environment.
6. Software control system: professional laser cutting software, friendly interface, fully compatible with Coreldraw, AutoCAD, Photoshop. Support PLT, DXF, BMP, AI, DST, DSB file format.
Applied Materials and Industries:
--it's suitable for fabrics, acrylic, wood and other materials.
--it's applied for clothing accessories, clothing, footwear, advertising, gifts, packaging decoration industry.

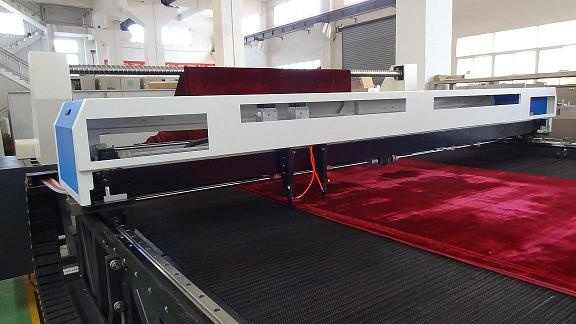

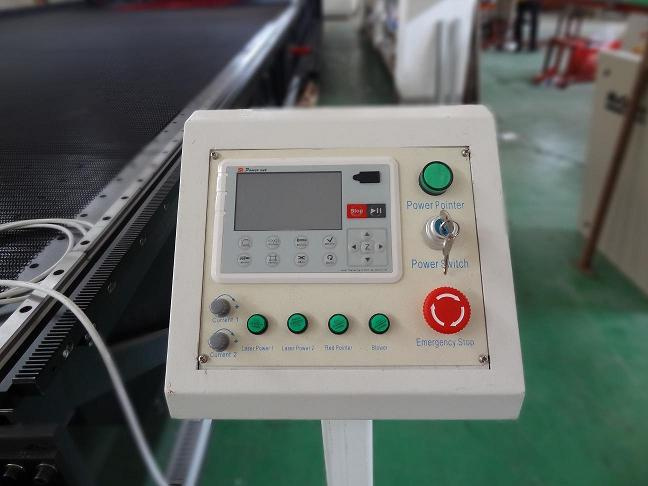

Close up
Parameter:| Model | TSHY-320800 | Option |
| Working Area | 3200mmx8000mm | According to Demands |
| Laser Power | 80w/100w/130w/150w |
| Laser Type | CO2 Sealed Laser Tube , 10.6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-36000mm/min |
| Laser Output Control | 0-100% Set by Software |
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
| Locating Accuracy | ≤±0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V+10%,50HZ/60HZ |
| Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
| Option | Water chiller,CCD or Red Dot Position System |
|

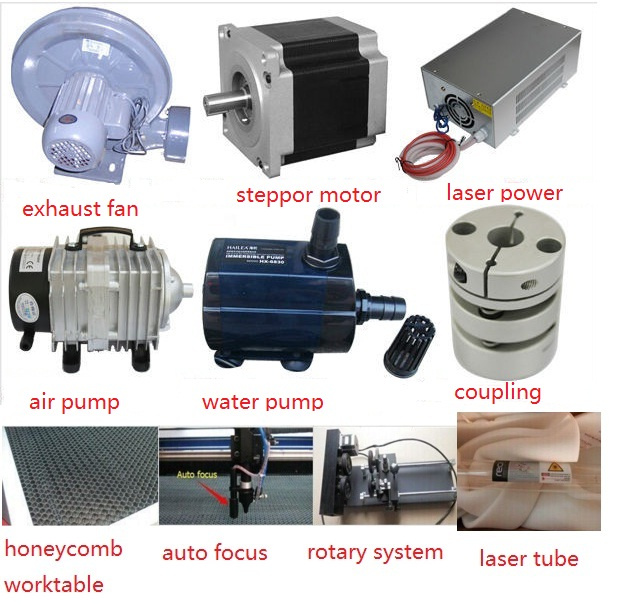

Configuration
Our product range
Working area:9050,10060,13070,13090,15090,160100,180100,140100,180140,160300,130250,210300,320600
Laser power:40w,50w,60w,80w,100w,110w,130w,150w,lifetime 4000h
Please note the same format(working area)machine can be stored with different powered laser tube,the price is based on working format and laser power at the same configuration
Full services
1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arisen
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
