| Prod Model: |
MSDK |
| Base Material: |
6063-T5 Aluminum Alloy |
| Feature: |
Snap-Fit Design |
| Joint Width: |
50-200mm |
| Exposed Surface: |
128-278mm |
| Total Movement: |
54mm |
| Accessories: |
Waterstop and Fire Barrier |
| Application Field: |
Floor to Floor |
| Standard Length: |
3m |
| OEM: |
Offered |
| Sample: |
Free |
| Application: |
Heavy Duty |
| Shape: |
Flat |
| Grade: |
6000 Series |
| Temper: |
T3-T8 |
| Window & Door Aluminium Profile: |
60 Series |
| Alloy: |
Alloy |
| Surface Finishing: |
Anodic Oxidation |
| Alloying Ingredient: |
6063 |
| Certification: |
SGS |
| Polished Aluminum Profile: |
Mechanical Polishing |
Product Description

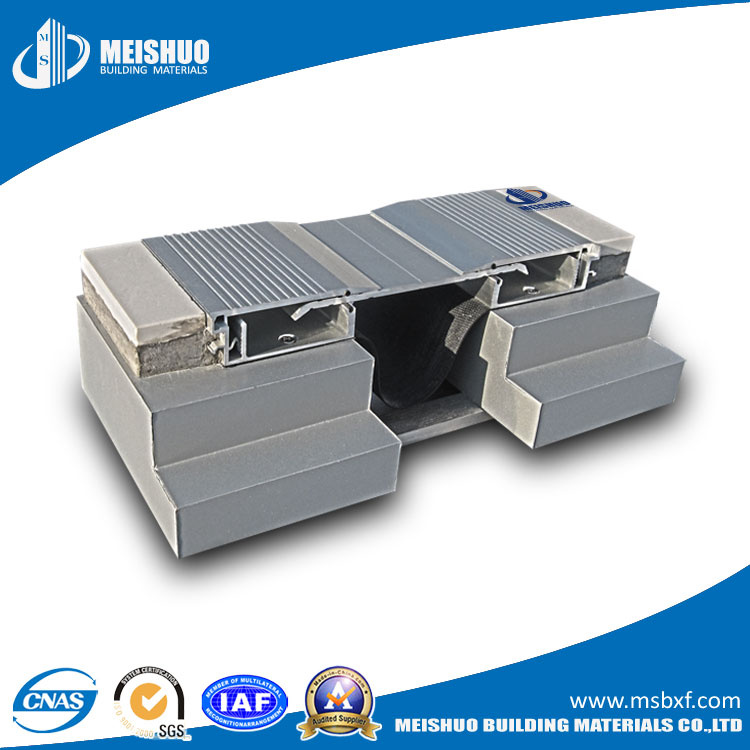

Basic Information MSDK is a floor to floor aluminum expansion joint cover.
Brief Introduction
• Capable of accommodating parallel lateral shear movement.
• Flush mount, adaptable with many floor finishes like marble, granite, limestone etc.
• Grooved surface provides pedestrian safety.
• Snap-fit design for easy on-site installation.
• No blockout design is ideal for retrofit.
• Variable cover plate materials: Aluminum, stainless steel, hot deep galvanized versions are available for cover plate.
• Cost-effective option for light commercial loads.
• Waterstop and fire barrier are optional.
| Product Name | Lock Type Glide Aluminum Expansion Joint Systems for Carpet Flooring |
| Material | 6063-T5 Aluminum Alloy |
| Joint Width | 50-200mm |
| Exposed Surface | 128-278mm |
| Total Movement | 54mm |
| Sample | Free |
| Business Type | Factory Direct Sale |
| Warranty | 5 years |

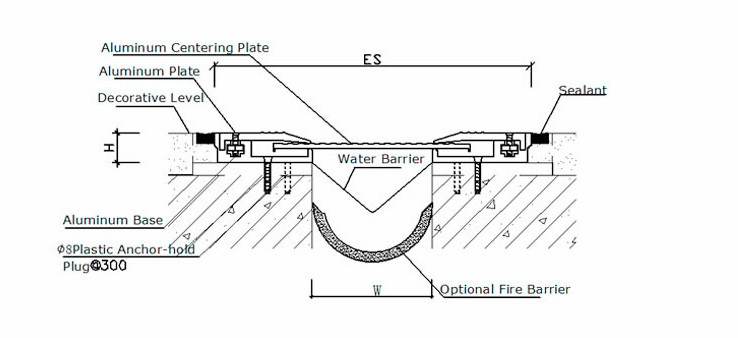

Product Drawing
General Technical Data
Features
·Accommodating heavy duty without degradation of the material.
· Symmetrical outlook infuse modern architectural beauty.
·Anodized surface with high anti-corrosion and abrasive resistance·Available for both interior and exterior use.
·With high aesthetic value.
·Ideal for carpets, vinyl, ceramic tiles and other sorts of floor finishes.
Product Show
Delivery1.Safety package, Three steps of packages,pearl cotton,carton and plywood for the transportation
2.100% test before delivering (ensure the quality)
3.Item shipped in about 15 working days against payment depends on the quantity
4.Tracking number will be sent to you as soon as we ship the product Company InformationNanjing MEISHUO Building Materials Co., Ltd, founded in 2000 in China, has more than 14 years' experience in designing, manufacturing and installation of expansion joint covers systems (floor, wall and ceiling roof),Movement joint,Aluminum Entrance Mat,Anti Slip Stair Tread Nosing, Landscape Grids, Grates, and so on.FAQ1. Q:Are you a trade company or a manufacturer?
R: We are a manufacturer who has been specialized in manufacturing stair nosing,
expansion joint covers etc. for over 10 years.
2. Q: Can you accept OEM service?
R: Yes, we believe we can provide best OEM service for you.
3. Q: Can i get samples from you?
R: Yes, free samples are avaliable as your requirements.
4, Q: What is the advantage of your product and factory?
R: Simple to installation and we have professional engineers to design unique products to meet your request.
