Mattress Tape Edge Sewing Machine (Fb4a)
| Price: |
US $ 5000-13200/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
FB4A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sewing Head Lifting Range: |
0-250mm |
| Working Angle Of The Sewing Head: |
30-58 Degree |
| Available Mattress Height: |
50 - 700 mm |
| Lift Of Table: |
0-250 mm (Adjustable) |
| Table Size: |
1600X2000mm, 1800X2000mm |
| Sewing Head Speed: |
1500-3000 R/Min |
| Carriage Walking Speed: |
7-13.8m/Min |
| Efficiency: |
10-15PCS/Hour |
| Motor Power: |
2kw |
Product Description

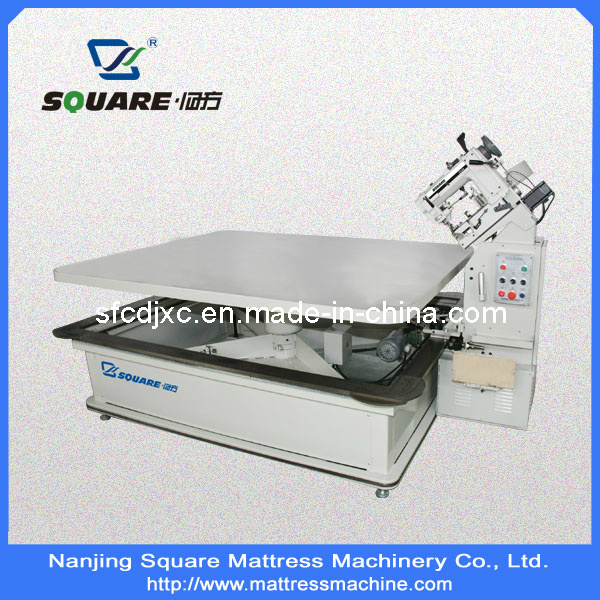

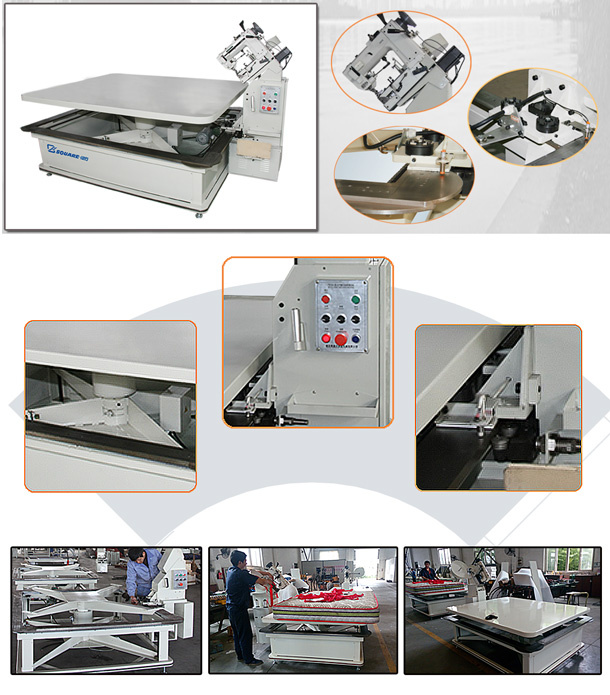

Mattress Tape Edge Sewing Machine (Fb4a)Main application and performance:For Model FB-4A, the sewing head and carriage is drived separately by AC servomotors, controlled by a PLC. The machine provides manifold groups common combination of three sewing head rotary speeds and carriage speeds. Each group of combination provides one stitch. The sewing head lifting and carriage speed can be adjusted, turning speeds auto slowdown at corners. Man-machine control is more rationalization.
Technical Feature:1.With all the feature of Model FB6 tape edge machine.2.The sewing head and walking carriage is driven by servo motors and controlled by PLC.3.Wider range for height of mattress, it can sewing 50-700mm thick mattress.4.The machine can provide manifold groups common combination of three sewing head rotary speeds and carriage speeds.5.The adoption of servo can make the control more precisely.
Technical Data:| Sewing head: | Chain stitch |
| Sewing head lifting range: | 0-250mm |
| Working angle of the sewing head: | 30-58 degree |
| Available mattress height: | 50 - 700 mm |
| Lift of table: | 0-250 mm (adjustable) |
| Table size: | 1600X2000mm, 1800X2000mm |
| Sewing head speed: | 1500-3000 r/min |
| Carriage walking speed: | 7-13.8m/min |
| Efficiency: | 10-15pcs/hour |
| Motor power: | 2KW |
You May also like:
|
|
|
http://sfcdjxc.en.made-in-china.com/
product/WoCJVvMcSFhg/
China-Auto-Flipping-Tape-Edge-Mattress-Machine-FB5A-.html
| http://sfcdjxc.en.made-in-china.com/
product/boCmsQFdiMWZ/China-Mattress-Tape-Edge-Sewing-Machine-FB6-.html
|
http://sfcdjxc.en.made-in-china.com/
product/FSCxdYmOkIVl/
China-Lock-Stitch-and-Chain-Stitch-Tape-Edge-Machine-Mattress-Sewing-Machine.html
|
Our Services:
1. After-sale service:
Installation & Commissioning: The seller can provide the installation, commissioning and training
service in buyer's factory, while the buyer needs to pay for VISA application, air ticket, accommodation,
(if necessary) interpreting fee for seller's technician.
2. Warranty:For the machine above,the seller provides one year warranty starting from the moment
the seller dispatches the machines. For the detailed guarantee period of each part, please refer to the operation manual.Wearing parts,consumption material and the damage incurred by the buyer's incorrect operation are out of warranty range.
FAQ:
Voltage: Please pay attention to your country's voltage,
China is 220v 1phase 50Hz / 380v 3phase 60Hz. If different, please inform us in advance.
