| Prod Model: |
JZ-P9004 |
| Color: |
as Your Demand |
| Finishing After Polishing: |
Mirror or Ready for Electricplating |
| Use For: |
Round Shape Metal Items1 |
Product Description

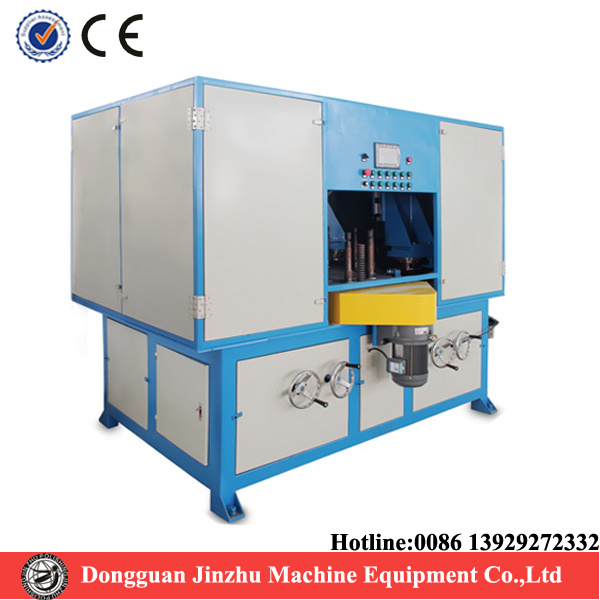

Metal rotary table polishing machine developed by us is designed for polishing and finishing circular, regular or irregular parts like: water fittings, lamps, gears, wheels, aluminum and stainless steel cookware, automobile parts, containers,etc.The features of auto rotary table buffing machine are below:
- controlled by PLC program, also have CNC controlled according to the items which need polished
- suitable for polishing circular or irregular parts, such as sanitary goods, some metal hardware
- one rotary table.4 work piece spindle(self-rotation), the rotary table speed can be adjusted to meet work piece types
- equipped with automatic spray gun, in case cloth wheel is worm out, it may automatically compensate pressure as desired.
- high production, requires only one operator to operate the machine(one machine can save 10 labors)
Specification of Metal rotary table polishing machine
| Metal rotary table polishing machine |
| Motor | 4KW*4 |
| Voltage | 380V,50/60HZ, 3Phase |
| Spindle Speed | 2300r/min |
| Rotary table OD | 1000mm |
| Control system | PLC program( if need CNC type, Please contact us for details discuss) |
| Workpiece size | 0-300 mm( for OD more than 300 mm, machine will change accordingly to meet your items) |
| Consumables | Flap wheel, Nylon wheel, Sisal wheel, Cloth wheel, Cotton wheel |
| ROHS | Environment protection completely with dust cover |

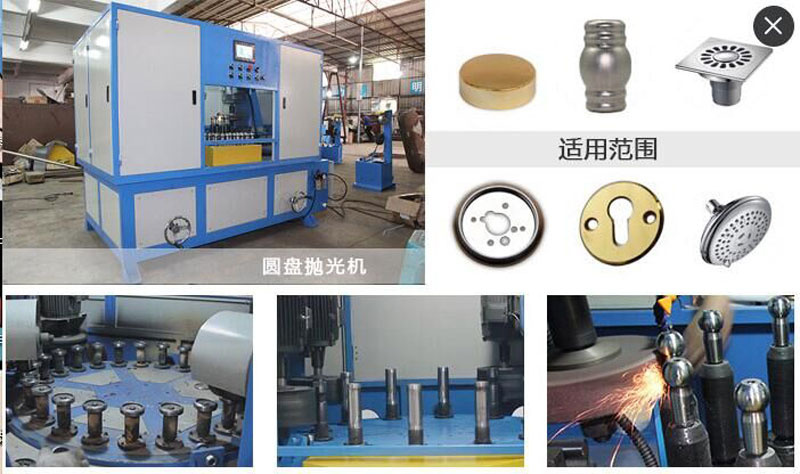

Details section of auto rotary table buffing machine
Consumables usage
How to use consumables to get needed finish by this type auto rotary table buffing machine?
Manufacturing costs, timelines and right polished finishing are always under tight scrutiny from last 20 years. Here, we can give you options at every point of polishing process that ultimately determine your success with right polishing method. Most important point for finishing as below:
- The linear speed of polishing wheels (adjust by inverter)
- Rotary table revolution turning speed (adjust by inverter)
- Workpiece rotation speed (adjustable by inverter)

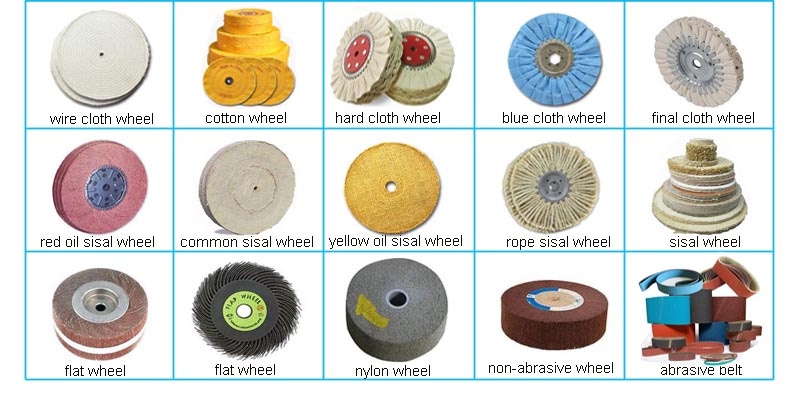

- Details for polishing consumables picture as below( you can choose right consumables according to the finishing you need)
Dongguan Jinzhu Machinery Equipment Co., Ltd. is specialized in the design, production, sale, and professional manufacture of metal surface treatment machines, polishing machines, abrasive belt machines, wire drawing machines, cut ditch machines, sandblasting machines, CD profiling machines, spot welding machines and other equipment.
For meeting the needs of different parts processing, we have developed a full range of types of machines, from manual to automatic model-based. We can produce as per customer's unique needs and capacity requirements. "Survive by technology, get credibility through quality" is our tenet.
We provide high quality, reasonable prices, and after-sales services to meet customers' needs
