Prod Model: |
TC4328-S |
Warranty: |
One Year |
Resolution: |
640*512 |
Environment: |
Outdoor |
Technology: |
Pan / Tilt / Zoom |
Style: |
Box Camera |
Type: |
CCTV Camera |
Sensor: |
CCD |
HDMI Format: |
720P |
Horizontal Resolution: |
650tvl |
Kind: |
Manual Focus Lens |
Certification: |
SGS |
Feature: |
Auto BLC |
Sensor Size: |
1/3 inch |
Remote Control: |
With Remote Control |
Effective Distance: |
6.3km-16.4km for Vehicle |
Product Description
Feature.
NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
Unique AS+DOE optical design and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W switch.
Digital control PT, 360° continuously rotation observation, no dead corner, stable operation, small dithering.
One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.
Application.
Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.
Technical specification.
(Please contact us for more details of parameters)

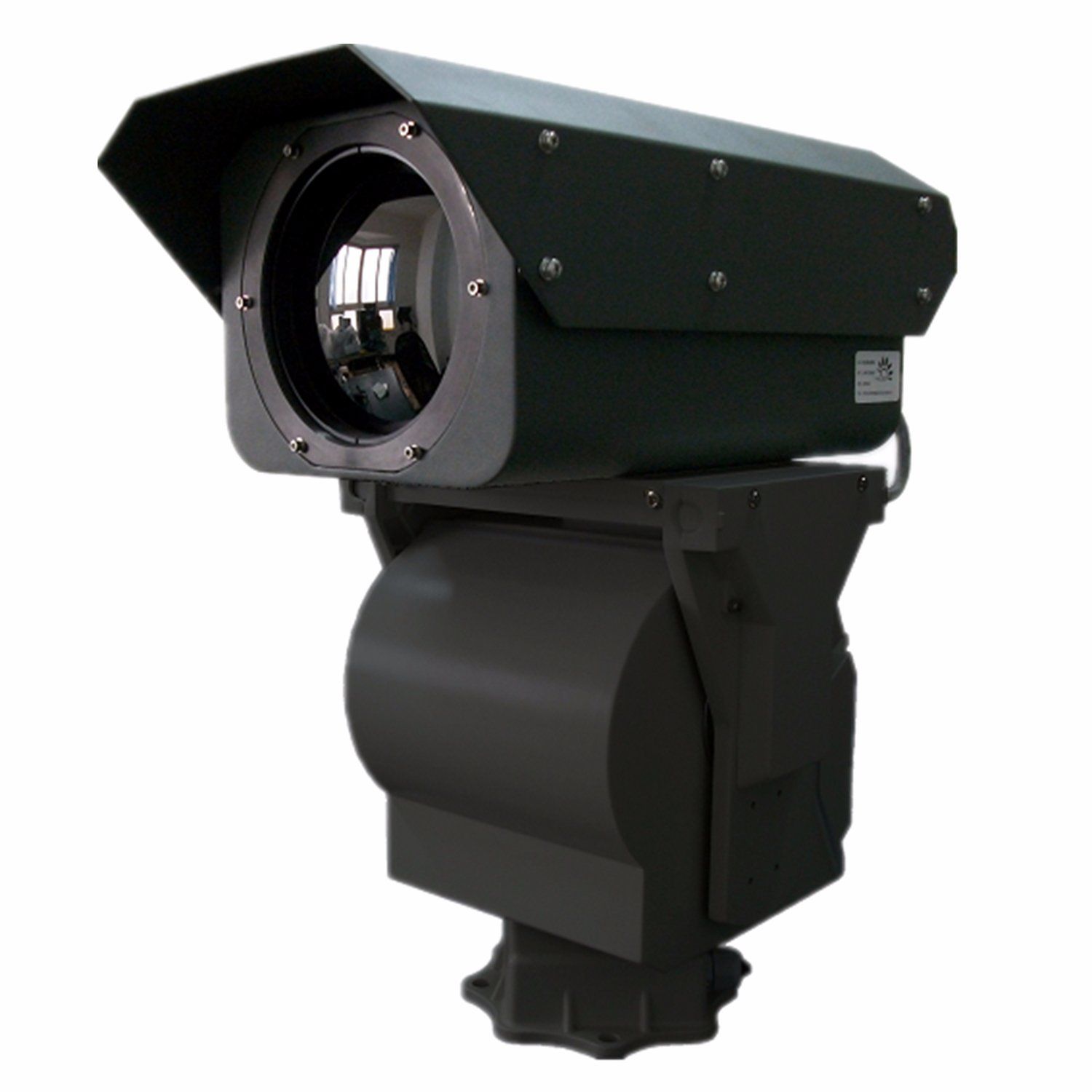

Model | TC4328- S |
Detection | Vehicle: 18000m |
| Human: 8000m |
Recognition | Vehicle: 6000m |
| Human: 2600m |
Sensor | 1,Detector:5th generation UFPA Vox Detector ;
2,Resolution:336×256,(640X512 optional)
3,NETD:50mK(@25ºC F1.0)
4,Spectral range:7.5~14μm |
NETD | 50mK(@25ºC F1.0) |
Focal length | 1,Length: 95/285mm
2,FOV:3.4°×2.4°/1.1°×0.8°
3,Motorized zoom, auto focus ;
4,AS+DOE advanced optical design, high infrared transmission;
5,Applied 3CAM high precision design; Dual focal fast switch. |
IFOV | 0.06~0.18mrad |
