| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hole Shape: |
Square |
| Application: |
Protecting Mesh |
| Standard Length: |
30m |
| Feature: |
Anti-Corrosion |
| Customized: |
Customized |
| Certification: |
ISO9001 |
| Material: |
Fiberglass |
| Surface Treatment: |
Fiberglass |
| Weave Technique: |
Weaving |
| Color: |
Customer's Requirement |
Product Description

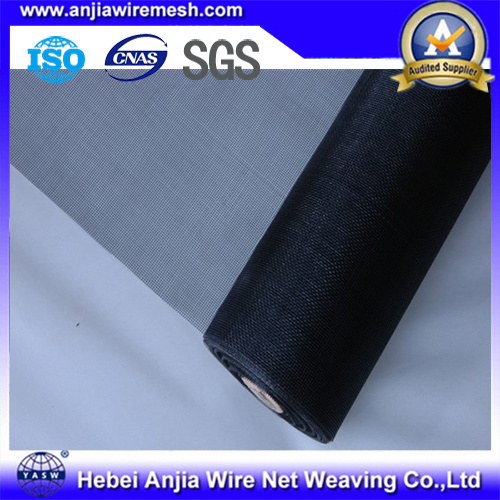

Fiberglass insect mesh( also called fly screen, mosquito net) is made of glass fiber by the means of single filament plastic coating process, plain weaving and thermal finalizing.
The fiberglass insect mesh(also called fly screen, mosquito net) has the following execellent properties
* Excellent Ventilation
* Sunshade
* Ultraviolet Radiation Proof
* Corrosion Resistance
* Resistance to Burn
* Easily cleaning
* Stable Shape
* Straight in Handle
* Long Service Life
Application:
Fiberglass insect mesh is the best protective product to keep out a wide range of pests and insects. It is widely used for air exchange and insects proof in high-grade office building, residence and various buildings. It is also for field, garden, vegetable shed, etc.
Specification:
Density(Counts/25MM)|Yarn Diameter|Composition|Woven Structure|Tensile Strength(N/25MM)|
Warp Weft (MM) Warp Weft
18± 0.5 16± 0.5 0.28 PVC 68% Fiberglass 32% Plain 180 160
18± 0.5 14± 0.5 0.28 PVC 68% Fiberglass 32% Plain 180 150
Packing and Storage
Packing:
Width(cm): 60 - 240
Length(m): 30 -300 (other size available upon request)
Each rollof Coated Pladtic Fiberglass Windoe Screening is wound on a paper
Tube, urapped in a plastic bag, then to be packed in carton box
Storage:
Store in cool and dry location, the best condition for storage is under a
Temperature between 15 and 35, and at a relative humidity between 35 and 65.
Store out of direct sunlight
Protect rolls from weather and other damage
Mesh count per inch
|
Wire diameter inches
|
Absotu filer rating microns μm
|
Nominal filter rating microns μm
|
8X85
|
.014X.0126
|
318 - 340
|
250 - 255
|
12X64
|
.024X.0165
|
270 - 285
|
200 - 205
|
14X88
|
.020X.013
|
225 - 245
|
150 - 155
|
20X150
|
s.0098X.007
|
155 - 165
|
100 - 105
|
24X100
|
.015X.010
|
115 - 125
|
80 - 85
|
30X150
|
.009X.007
|
95 - 100
|
65 - 70
|
40X200
|
.007X.0055
|
65 - 70
|
55 - 60
|
50X250
|
.0055X.0045
|
55 - 60
|
40 - 45
|
80X400
|
.0049X.0028
|
43 - 48
|
35 - 40 |
