| Prod Model: |
KXD-CHT010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5800*2440*2570mm |
| MOQ: |
4-8 Sets |
| Color: |
White Grey |
| Roof & Wall Material: |
Corrugated Steel Sheet/Sandwich Panel |
| Window: |
PVC Sliding Window |
| Door: |
Steel Door |
| Installation: |
Easy and Fast |
| Packing: |
Flat Pack or Fold |
| Delivery Time: |
20 Days |
| Quality Control: |
Daily |
| Material: |
Container |
| Usage: |
Temporary Offices |
| Certification: |
CE |
| Customized: |
Customized |
Product Description

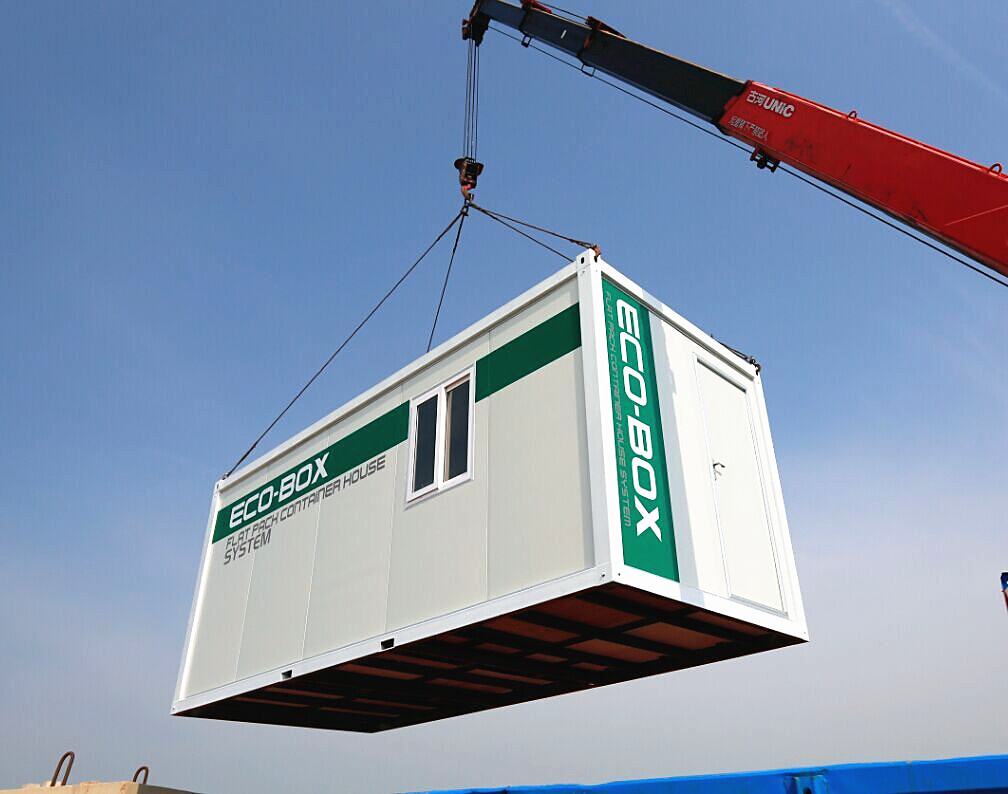

Movable Prefabricated Modular container houses
Prefabricated container houses are generally made into six sided boxes constructed in a factory, then delivered to site and using a crane, the modules are set onto the building's foundation and joined together to make a single building. The container modules can be placed side-by-side, end-to-end, or stacked, allowing a wide variety of configurations and styles in the building layout which lead to multi-bay or multi-story solution."
Compared with conventional construction method,container house are argued to have many advantages considering its wide applications.Container house can be used for long-term, temporary or permanent facilities, such as construction camps, schools and classrooms, civilian and military housing, and industrial facilities.Container buildings are used in remote and rural areas where conventional construction may not be reasonable or possible.Other uses have included churches, health care facilities, sales and retail offices, fast food restaurants and cruise ship construction. They can also be used in areas that have weather concerns, such as hurricanes.
Specs:
Outside size: 5800mm*2440mm*2570mm
Door: 800mm*2000mm
Window: 800mm*1000mm
Frame: Q235
Wall board: 50mm EPS sandwich panel
Roof board: corrugated steel plate
Floor:18mm waterproofMDF +2mmLG floor leather
Ceiling lamp: 2
Double open switch: 1
Socket: 2
Air-conditioning socket: 1
Technical data
* Roof load: 0.5KN/sqm
* Floor load: 1.5KN/sqm
* Wind load: Against wind speed 180km/h (Chinese standard)
* Seismic fortification intensity: Magnitudes 8
* Suitable temperature scope. -50° C~+50° C
(If the criteria were exceeded, it can also load by reinforcing the structure)
* 4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet house
Feature
* Long life span more than 20 years
* Modular part, 90% work finish in factory, simple tools such as spanner, bolt driver and so on needed
* Easy and fast to install, 4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet house
* Be combined freely to a big space in horizontal and vertical
* Re-location wholely available
* Environment friendly, no building rubble
* Flat package, be wrapped separately
* Stable house with solid frame
* Waterproof and good insulation for heat and sound
* Low demand of ground work, suit for different ground
* Multi layer is available
* 10', 20', 40' size available
* Many plan for 1 bedroom with toilet, 2 bedroom unit, kitchen container, toilet container, office etc on option
Application
Modular office, labor dorm, hotel, suit apartment, guard box and so on.
Turn key house is available
More information, pls feel free to contact us.
| Item | Specification | Details |
| Structure | Standard ISO Container | 20' ft: 5800 x 2440 x 2570mm |
| 40' ft: 11600 x 2440x 2570mm |
| Size can be adjusted basing on the standard. |
| Combination is available. |
| Ceiling& Wall | Customized | Color bond (color steel) / FRP (fiberglass reinforced plastic) |
| Insulation (PU, EPS, Rock-wool can be chosen), Thickness (50, 70, 75, 100mm can be chosen) |
| Floor | Customized | 50mm insulation (PU, EPS, Rock-wool can be chosen) |
| wood floor /carpet / PVC etc. can be chosen |
| Window | Customized (size, type, spot and quantity) | Sliding window / European style window etc (normal size: 875*1000mm) |
| Door | Sliding door / Solid-wood door etc (normal size: 900*2100mm) |
| Electricity | Design can be provided according to the related law of the country | Distribution boxes with breakersLights, sockets & switches Wire (concealed wiring for high class decoration) |
| Water plumbing | Flush toilet, shower, pipe etc |

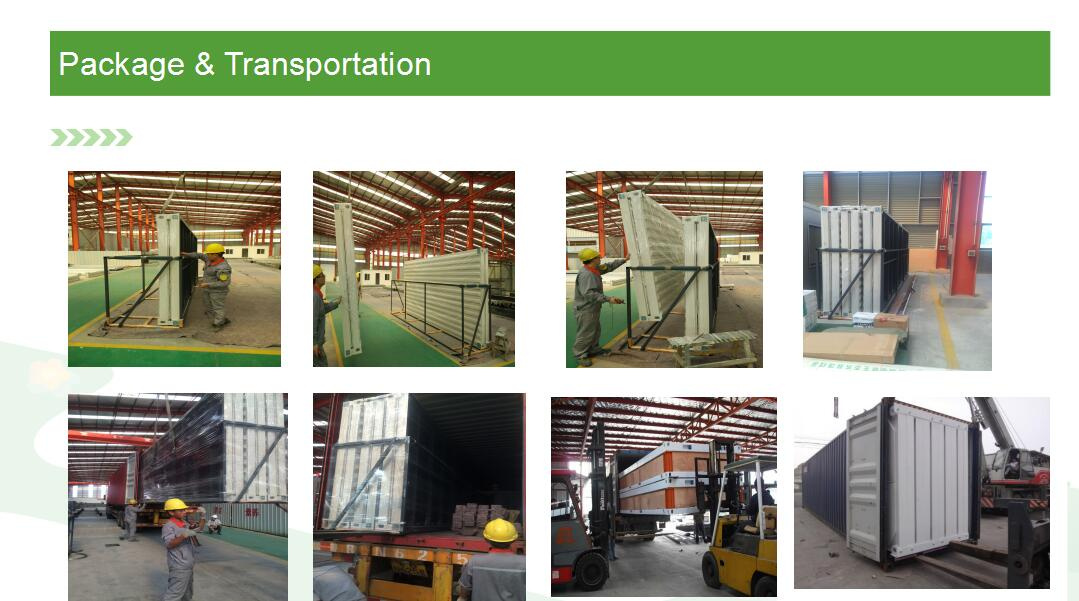

| Transportation | Bare transport | Containers are shipped as SOC (shipper owned container), plywood to seal the wall holes, and the whole container to be wrapped by PVC film |
Please contact me: Ms tracy
Cell: +86 15908956920
Website: HTTP: //www. Chinasteelstructure. Cn
Qingdao KXD steel structure Co., Ltd, is a professional enterprise specializing in designing, developing, manufacturing, marketing and constructing high quality steel structures, prefabricated houses and container houses. We have professional steel structure engineering contracting first class qualification and ISO9001: 2000 quality system certification.
Our company was established in 1996. There are 1000 employees, including 5 registered engineers, 36 senior engineers and 120 professional technicians. Up to now, we have successfully undertaken and operated hundreds of international projects in more than 76 countries and regions around the world.
Our products are exported to North America, South America, Europe, Africa, Oceania and many Asian countries and regions. With the idea of "Credit builds brand", we have already established good relationships with many overseas clients.
Based on the spirit of "Credit, Professionalism, Cooperation, Mutual benefits", our company is building a comprehensive industrial chain system gradually and making great efforts to supply our quality products and perfect after-sales services to worldwide clients.
