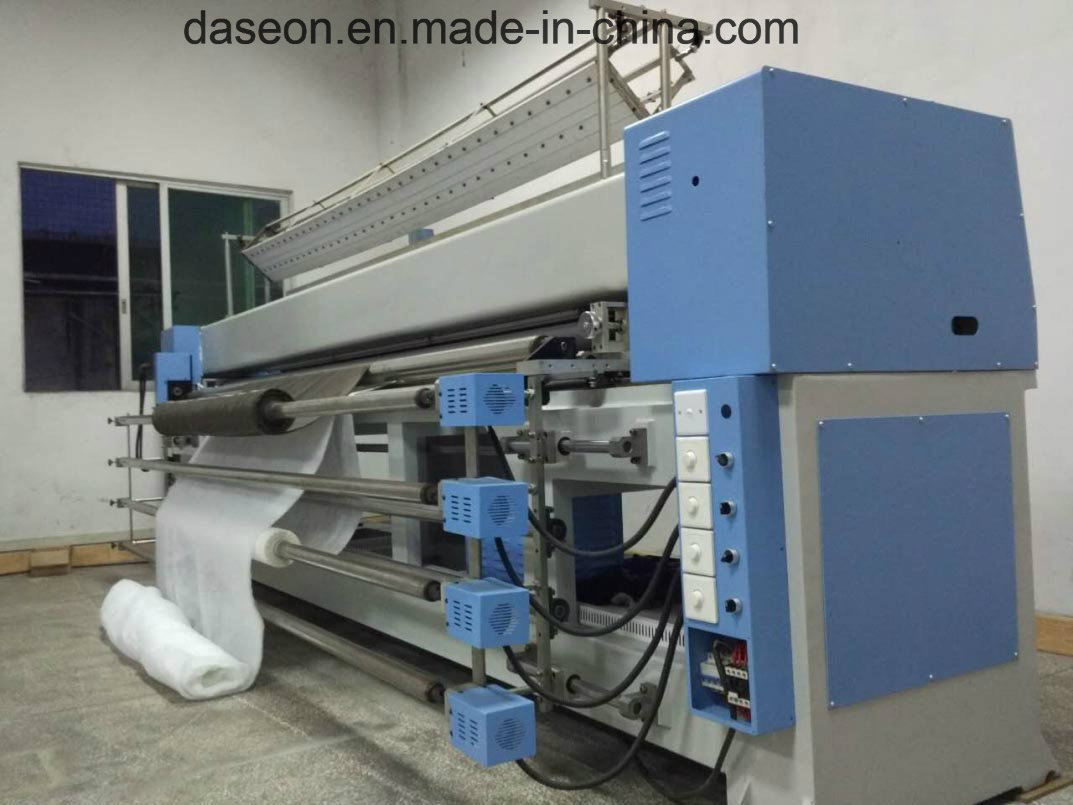

Multi-Function Computerized Quilting and Embroidery Machine
| Price: |
Negotiableset |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
DSN-128-50.8B |
| Computerized: |
Computerized |
| Precision: |
Precision |
| Warranty: |
1 Year |
| Customized: |
Customized |
Product Description
Computerized Quilting and Embroidery MachineDSN-128-50.8B Features:1.The machine is mainly quilting for garments,quilts,bedspread etc.2.The machine has 33 heads with 66 needles, each needle controlled by one switch.3.The machine adopts pressure die-casting machine head,it's more stable and durable.4. Processed width: 3.35m, highest rolling speed: 1000rpm, needle type: #165. Machine auto stop when thread is broken, with inverted fabric device.6.The program can compatible with other brand embroidery patterns (only need to copy in the program with movable U disk)7. Low noise. Products specification| Machine Type | Model | Head
Quantity | Needle Space | Needle Quantity of Head | Embroidery Area | Size |
| Max. Processing Area | Length | Width | Height |
| Single needle control | DSN-128-50.8B | 33 | 50.8 | 1 | 3454 | 5400 | 1400 | 2000 |
Parameter:| Product Name | Computer Quilting and Embroidery Machine |
| Model | DSN-128-50.8B |
| Size(L*W*H) | 5400*1400*2000mm |
| Weight | 3000kg |
| Quilting width | 3352mm |
| Needle space | 50.8 |
| X-axis movement | 260 |
| Head quantity | 33 pieces |
| Rotating shuttle | Big rotating shuttle |
| Quilting thickness | 20-600g |
| Stitch | Binary system:0.15-12.7mm |
| Needle storage capacity | 120,000 |
| Pattern storage capacity | 960 |
| Needle type | #14,#16 |
| Principal drive | Servo motor drive |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 5KW |
Functions:1.Quilting and embroidery is completed together.2.Y axis is driven by roller system.3.Keep fabric smooth by tension motor when fabric feed-in and feed-out.4.X,Y,Z direction adopt the servo control system,to ensure the accuracy of embroidery.5.Auto-stop device.6.Auto-return for patch-up embroidery function.7.Automatic lubrication system.8.Easy headselectin for quilting function.9.Continuously quilting independent patterns function,jumping quilting function.10.Tajima,Barudan,ZSK and SWF formats can be read.11.The unique mechanical structure can reduce the vibration,thereby its better to control the vibration and reduce noise. Patterns:
We are professional in PV system design and panel/ inverter/ battery manufacturer, EV charging system and LED lights. We have 3 sub-factories to do panels / inverters and batteries. We have a talented team of experienced technologists and marketing personnel with international visual view.
LED lights and solar products are our leading products. With high quality and excellent service, we have enjoyed a good reputation in domestic and overseas markets. Many products already own numerous patents in the realm of LED illumination system and solar, and it has been able to solve technical problems of that.
An integrated global solar energy solution provider in R&D, manufacturing and selling and has formed a relatively complete solar power industrial chain of 300MW yearly output.
Solar products passed management system certification: ISO9001, ISO14001 and OHSAS18001, also accredited with TUV, VDE, UL, MCS, CE, CEC, INMETRO, PV Cycle and SONCAP certificates,
Cooperated with CHUBB insurance. Markets cover UK, Germany, France, Italy, Spain, the South America, Japan, Korea, India, the Middle East and so on.
In the year 2015, we decided to invest the industrial automation, robots industry. We invested a good factory that produces the textile automatic machinery over 10 years. Now the industry is very prosperous, because of the human cost more and more higher.
