| Price: | US $ 7000-8000/Piece |
|---|---|
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | 3HAL-D |
|---|---|
| Warranty: | 12months |
| Delivery Details: | Within 20 Working Days |
| Packing Details: | 2PCS/40hc |
| Customers Design: | Accept |
| Model: | 3hal-D |
| Loading Type: | Angel |
| Max Payload: | 2600kg |
| Size: | 6325*2280*2590mm |
| Horse Divider: | Adjustable |
3 Horse Trailer Angel Load Deluxe Version
Why Choose Our Custom-Made Horse Floats?
• Built to your specification
• Tack boxes and kitchens available
• Available in angle loads 2,3 & 4 horses
• Extended straight & angel load available
• Box trailer with a stock crate & portable yard available (set-up your instant market)
• High-grade materials for trailers that are built to last
Our specialists can help you design the perfect trailer
Safe ----- comfortable ----- customization -------- worthy
We make sure every spare parts and details perfect. our building standards accord with Australia standands.
As professinal horse float factory. our horse floats are built with the utmost precision and attention to detail. ensuring horses will have plenty of space.remain comfortable and won't feel stressed or harmed in any way.
DELUXE HORSE TRAILER WITH FEATURES AS LISTED BELOW:
| MODEL:3HAL- D | |
| 1.TRAILER MATERIALS | |
| 1.1CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm) | |
| 1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm) | |
| 1.3 BODY PANEL galvanized (1.2mm | |
| 1.4 ROOF special molded FRP 5475*1890*450mm | |
| 1.5 NUTS & BOLTS stainless steel | |
| 2.WHEELS & TYRES | |
| 2.1 WHEEL RIM 14' aluminium alloy rims | |
| 2.2 TYRES 185R14C | |
| 2.3 SPARE WHEEL one | |
| 3.AXLES & SUSPENSIONS | |
| 3.1 AXLES two special trailer axles | |
| 3.2 LEAF SPRINGS roll rocker tandem spring suspension 6 plates | |
| 3.3 BRAKE SYSTEM 4 wheel electric brakes with break-away systems | |
| 4.WINDOWS & DOORS | |
| 4.1 FRONT WINDOW 1220*610 | |
| 4.2 SIDE WINDOWS 3 pop-up rectangle windows,3 sliding rectangular windows | |
| 4.3 VENTS three sash casement vent | |
| 4.4 SIZE OF SIDE DOOR 1755*615 | |
| 4.5 REAR UPPER DOOR 2020*1065 | |
| 4.6 RAMP DOOR 2020*1210 | |
| 4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut | |
| 4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges | |
| 5.DRAWBAR | |
| 5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium | |
| 5.2 DRAWBAR SAFETY CHAIN two | |
| 5.3 BRACING WHEEL one | |
| 6.LIGHTS & RETRO REFLECTORS | |
| 6.1 TRAILER PLUGS square 7 wick plug | |
| 6.2 SIDE LAMPS 6 | |
| 6.3 REAR LAMPS LED group 6.4 REAR LAMPS STAND aluminium | |
| 6.5 RETRO REFLECTORS 6 | |
| 7.MUDGUARD | |
| 7.1 MUDGUARD TYPE compact mudguard | |
| 7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard | |
| 7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board | |
| 8.INTERIOR & EXTERIOR | |
| 8.1 A KITCHEN with a cupboard and all appliance from yourself | |
| 8.2 HORSE PROTECTION FRAME full padded | |
| 8.3 HORSE RING six | |
| 8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting | |
| 8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting | |
| 8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting | |
| 8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood Optional flooring: Aluminium flooring/ Honey comb fibreglass flooring | |
| 8.8 RUG RACK side | |
| 8.9 SADDLE RACK in saddle box | |
| 8.10 SADDLE BOX 1500mm height for 3 saddles | |
| 8.11 PAINTING single or customized | |
| 9.DIMENSIONS | |
| 9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 6325*2280*2590 | |
| 9.2 BODY DIMENSIONS ( L x W x H: mm ) 5475*1980 *2230 | |
| 9.3 MAXIMUM INTERNAL DEMENSION: 5450*1930*2155 | |
| optional | |
| Name | Unit price(USD/PC) |
| Kitchen(cupboards made of all-veneer plywood), | free |
| Kitchen(cupboards made of plastic uptake veneer plywood) | 300 |
| Overhead cupboards and high clothes cupboards | 100 |
| Microwave | 80 |
| Sink , water tank, pump, water filling nozzle | 200 |
| fridge | 300 |
| Vehicle-bone gas tank and gas oven with glass cover | 900 |
| TV | 300 |
| Battery and charger | 200 |
| Caravan door | 500 |
| Roof lining | 250 |
| External light near the door | 50 |
| External power output | 50 |
| Front tack box with outside door | 200 |
| Drawbar tack box | 350 |
| Fold up bed in horse area | 100/unit |
| Rug rack with lock and gas struts | 50 |
| Portable yards- hot dip galvanized (set of 6) | 240 |
| Logos(one added at up font and one added rear up door) | 150 |
| Special design paint | 200 |
| Awning | 1000 |
| Air-condition | 1000 |

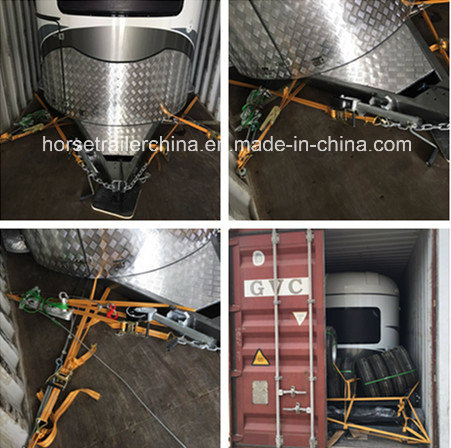

Packing&Shipping
1.To be loaded into 40'HC.
2.Delivery time:Within 30working days after receive deposit.
2 Horse Straight Load Economy Float(3pcs/40HC)
2 Horse Straight Load Standard Float (3pcs/40HC)
2 Horse Straight Load Deluxe Float (3pcs/40HC)
2 Horse Angle Load Standard Float (3pcs/40HC)
2 Horse Angle Load Deluxe Float (2pcs/40HC)
3 Horse Angle Load Standard Float(2pcs/40HC)
3 Horse Angle Load Deluxe Float(2pcs/40HC)
FAQ
Q1: How can i get the price and consult for product details?
A1: Send enquiry through Made-in-China or email directly.
Q2: How you control the product quality?
A2: Our products are manufactured directly by factory,products were strictly tested before shipping.
Q3: What is the delivery time?
A3: Normally within 30days after received your payment.
Q4: Do your company accept customers special design request?
A4: Yes.we accept it.
Q5: Can i order one set for testing?
A6: Yes.of course you can.
Transport your horses in a safer way with our horse floats. With the help of hete trailer . you won't have to worry about how you're going to transport your horses to another location because we have the perfect solution.
We ensure product quality. Welcome to pay a visit to our company anytime!
Feel free to contact us with your requirements and we will do our best to assist you!
