| Price: | US $ 0.1-0.12/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | NFC Ntag 213, Ntag216 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Logic Encryption Card |
| Structure: | Read-Write Card |
| Read-Write Method: | Non-Contact Type |
| Function: | Identification, Payment, Encrypt/Decrypt |
| Data Transmission Mode: | Parallel |

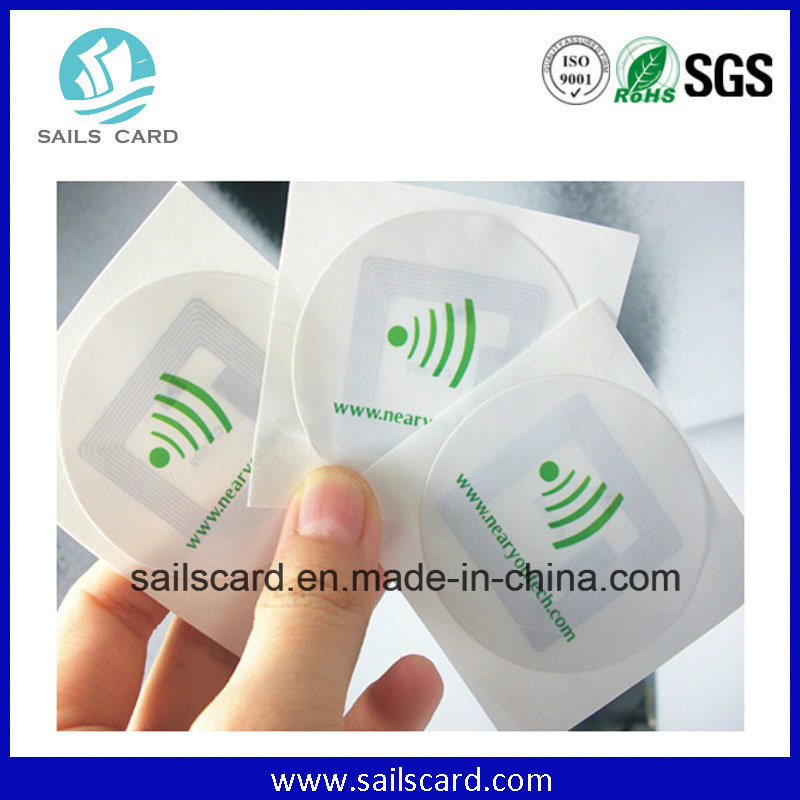

RFID Mobile tag was designed for mobile-phone, with the functions of anti-knock,diamagnetic, anticorrosion and carries conveniently. The tag did not affect and nterfere with the mobile's communication and working life. The tag size can customize according to clients' different products required. The mobile-phone tag mainly applied at NFC, mobile-phone payment, Urban traffic, attendance recognition and member certificate etc.
Applications: ID tracking,logistic control,e-payment,assets management,and etc
Item Name: | NFC tag213 |
Tag size: | customized size according to your needs |
Antenna: | Aluminum Foil |
Chip: | Ntag213 |
Surface Material: | paper, PP, PET,PVC, anti-metal foil |
Backing material: | paper, PP, PET,PVC, anti-metal foil |
protocol | ISO14443A |
Reading distance: | Max 10cm (depends on the card reader and antenna) |
Date transfer Rate | 106kbit/s |
Frequency: | 13.56Mhz |
Size | 22mm, 25mm,30mm, 22*22mm, 45*25mm or on demand |
Thickness | 0.3~0.5mm |
Operating Temperature: | -40 °C~ 65 °C |
Store temperature | -25 °C ~50 °C |
Available crafts | can Printing and Laser Logo, Bar code and Serial numbers, etc |
Read/write Times | 100000 times |
Data Storage Time: | 10 years |
Application: | Cashless/ Contactless Payment |
Short Range Access Control | |
Mobile Devices Startup | |
Event Ticketing | |
Smart Poster | |
V card | |
Smart dust (for massively distributed sensor networks) | |
Tracking sports memorabilia to verify authenticity | |
Airport baggage tracking logistics |
| Chip | Memory Size 1 (bytes) | User Memory 2 (bytes) | Max URL3 (characters) | Best Use |
| Ultralight | 64 | 48 | 41 | Cost effective chip for short URLs in products (wristbands, keyfobs, etc). |
| NTAG203 | 168 | 144 | 132 | Popular, established all-round NFC chip. Cost-effective with good memory capacity. |
| NTAG210 | 80 | 48 | 41 | Cheap, general NFC use with short URLs. Limited availability |
| NTAG213 | 180 | 144 | 132 | Next generation chip, will eventually replace NTAG203.Great ScanStrength. |
| NTAG215 | 540 | 504 | 492 | The 'one in the middle'. Good memory but limited availability compared to the NTAG216. |
| NTAG216 | 924 | 888 | 854 | Large memory and full feature set. Higher price makes it suitable for vCard and larger memory use only. |
| Ultralight C | 192 | 148 | 132 | Specialist applications requiring encryption only. Poor scan distance with mobile phones. |
| Mifare 1k | 1024 | 716 | 710 | Legacy applications only. Not recommended for general mobile phone NFC usage. |
| Desfire 4k | 4K | 4094 | 2000 | Specialist applications requiring strong data encryption only. |
| Topaz 512 | 512 | 454 | 449 | Universally compatible chip available in only a limited number of products. Useful for vCards or small data storage. |
