One Head Small Computer Embroidery Machine Wy1201CS Wy1501c

Prod Model:	WY1201CS/WY1501CS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Winding Device:	Automatic Winding Device
Thread Frame:	up-Down Thread Frame
Warranty:	12 Months
Package:	Wooden Case
Rail:	Linear Rail
Motor:	Stepper Xy Motor/Servo Motor
Computer:	Topwisdom
Structure:	Casting
Cover:	Powder
Main Motor:	Japanese Servo Motor
Knitting Style:	Flat
Knitting Method:	Single
Computerized:	Computerized
Certification:	SGS
Condition:	New
Type:	Embroidery Machine
Knitting Machine Cut:	Wy1201CS/Wy1501CS
Knitting Product Type:	Cap/T-Shirt/Flat-Bed/Finished Garment

Product Description

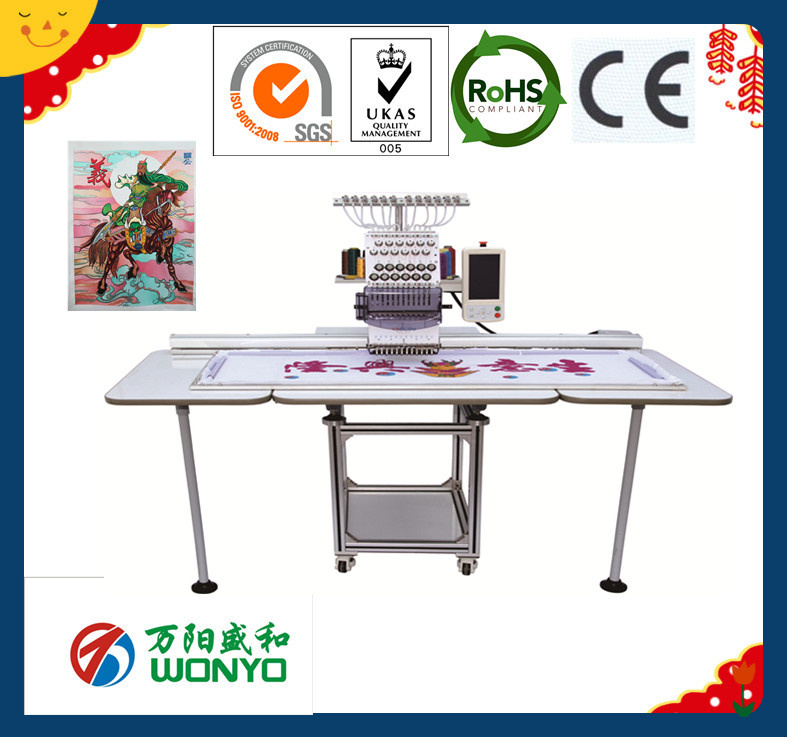

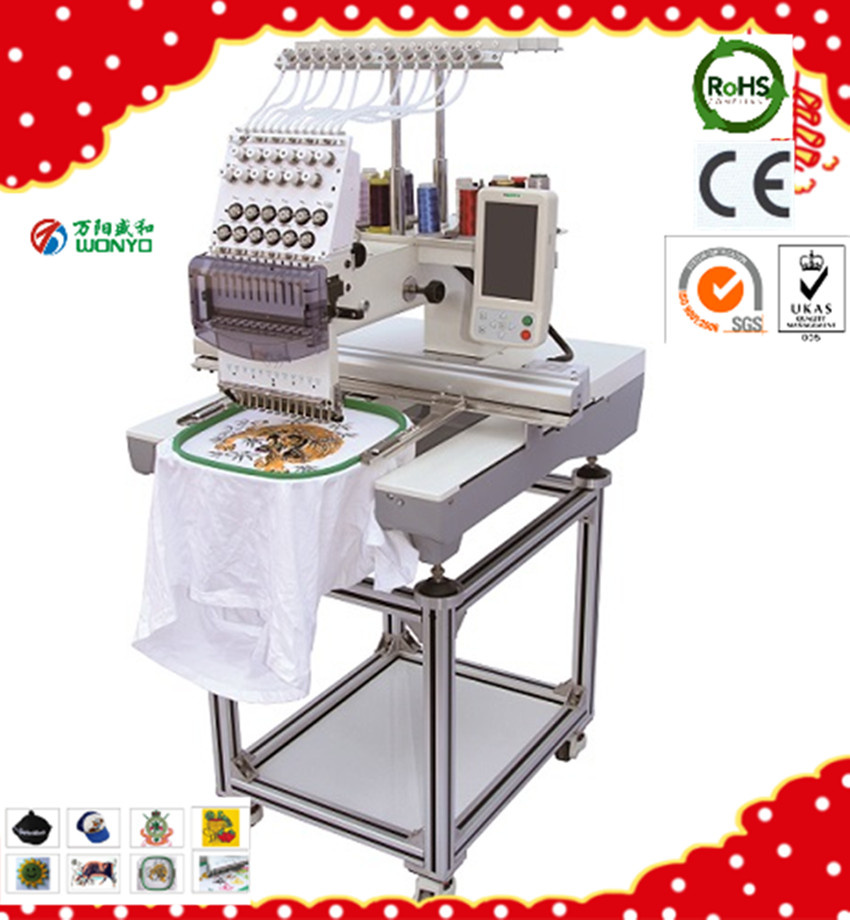

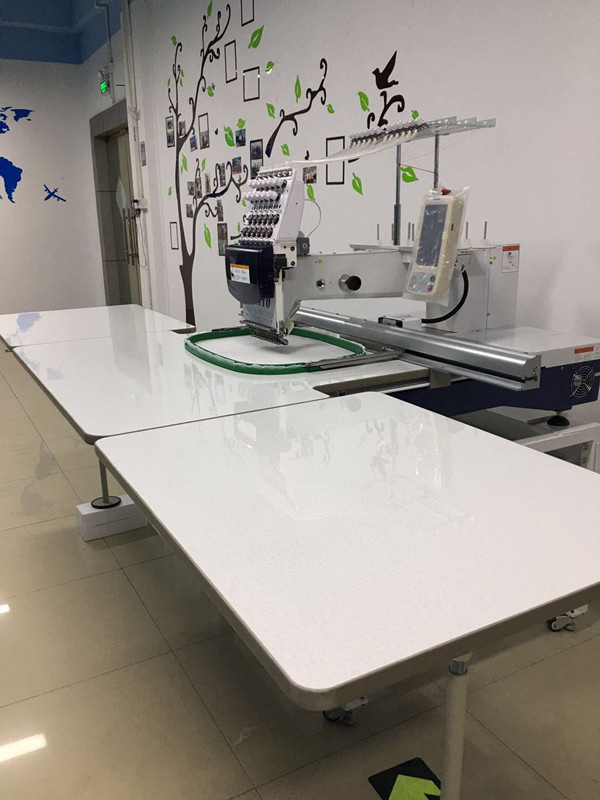

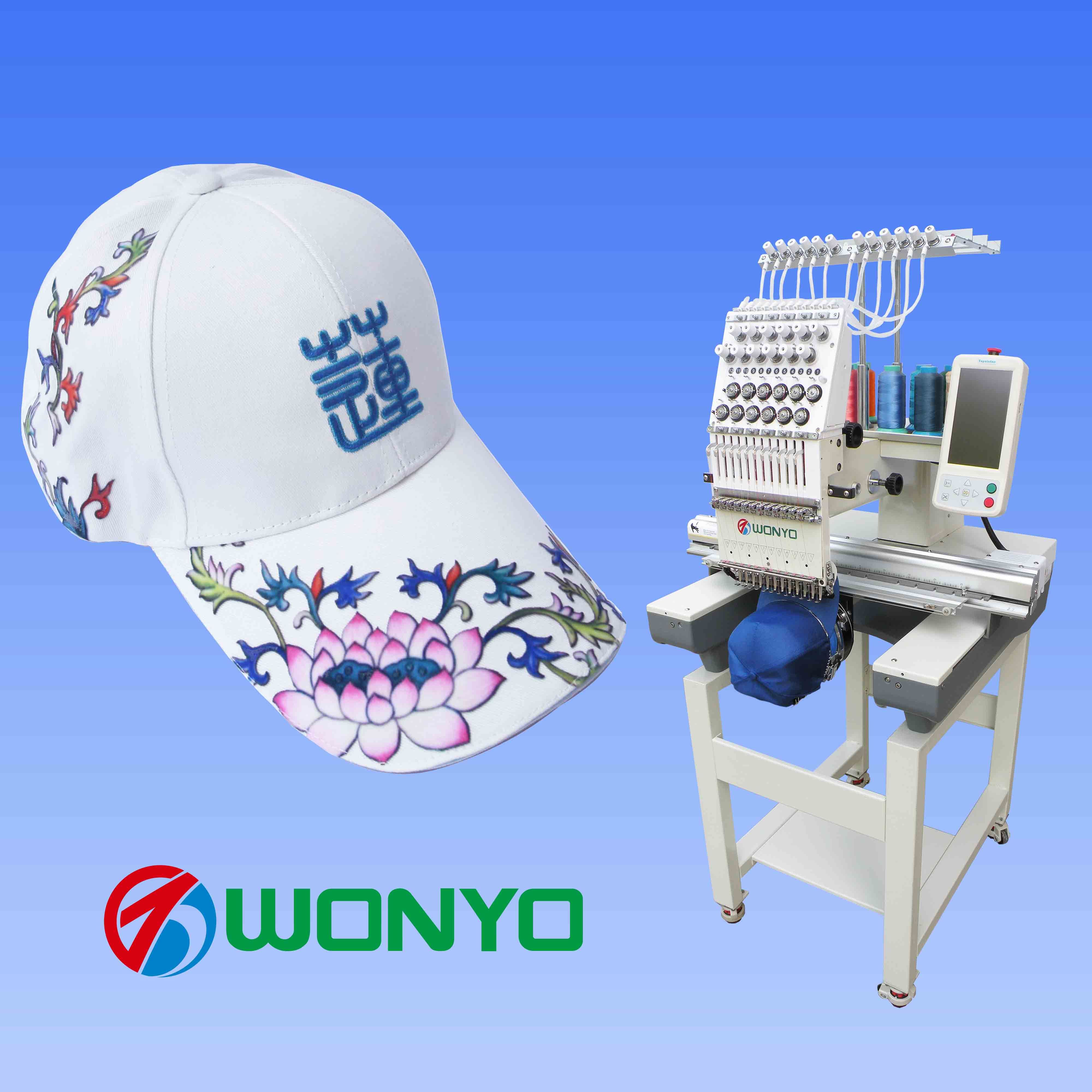

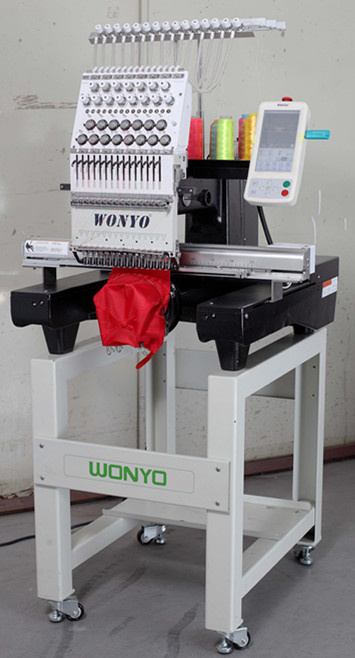

One Head Small Computer Embroidery Machine WY1201CS WY1501CS
Single head embroidery machine with 3 different models:
360*510mm, 360*1200mm, 500*1200mm
Suitable for cap embroidery, tshirt embroidery and flat embroidery, mixed sequin embroidery, cording/coiling embroidery, taping embroidery, bead embroidery ...
7" LCD touch screen with 12 languages including English, Spanish, Portuguese, French and etc

Model1: 360*510mm

Model2:360*1200mm

Model3:500*1200mm


I. Main features
1. Suitable for flat embroidery, cap embroidery, T-shirt embroidery, sequin embroidery and finished garments embroidery
2. Automatic thread trimmer
3. Maximum speed 850 SPM

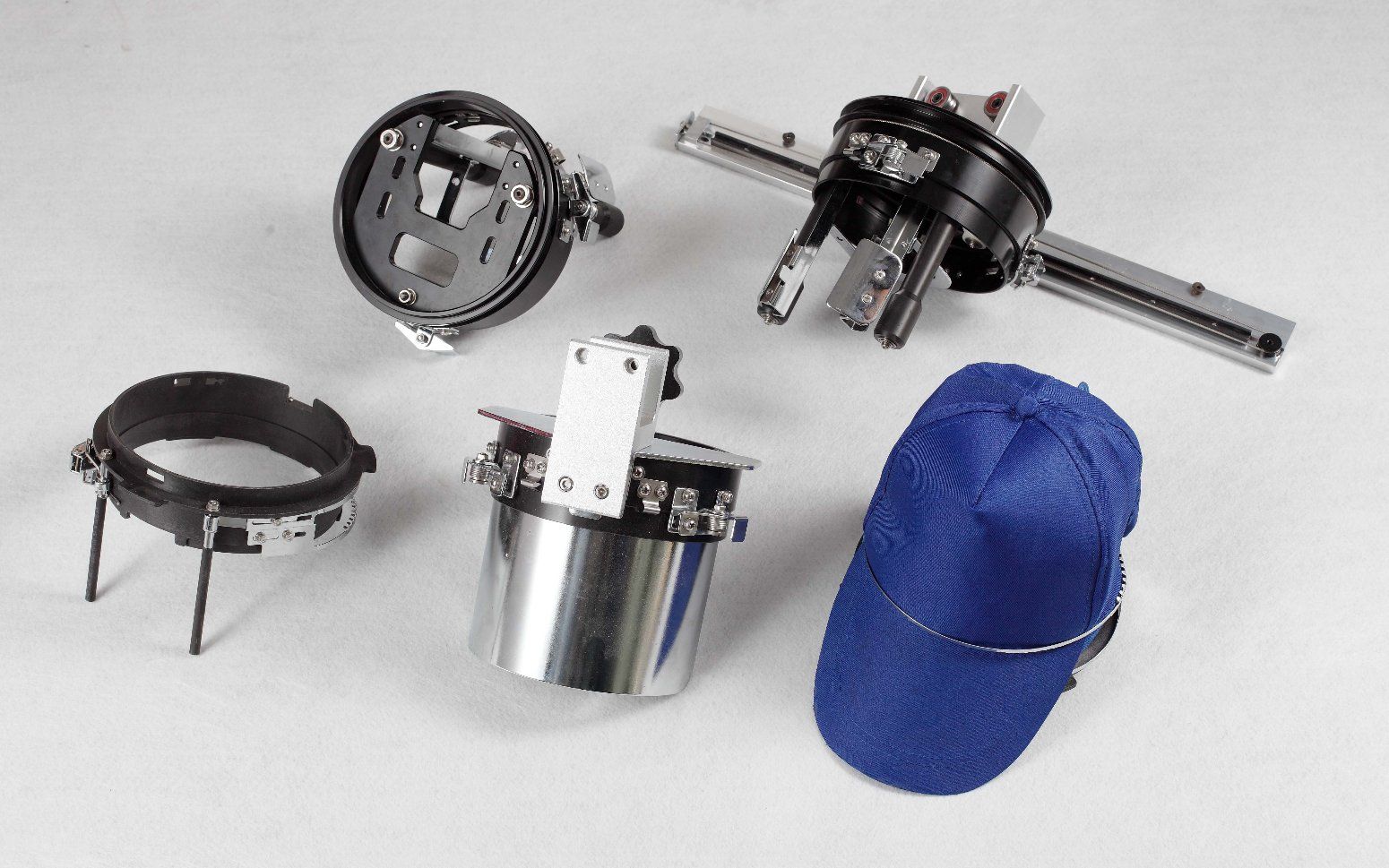

4. 270° Wide cap frame unit
5. Color LCD display showing real time stitching
6. USB input port
7. Automatic color change
8. Thread break detection
9. Pre-sew design trace capable
10. Memory size 2, 000, 000 stitches
11. Emergency stop
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Machine Size: 75X74X85CM and NW90KG/200Lbs
14. Built-in bobbin winder

II. New Features
1. 110V or 220V self-adaptable power supply. No more external power box needed.
2. Only 150W power consumption.
3. Mainboard is built into the control panel, which reduces the possibility of damage by dust or external force.
4. Support large capacity of USB flash drive from 2GS and upwith faster data transmission and more compatibility
5. Proper shut-down function powers off only moving parts such as X&Y axis and needle bar, but still keeps the data on screen when the emergency button is pushed.
6. Precise digital degree on stop point: Main shaft can be turned to any angle digitally with the number of degrees shown on the screen.
7. Cap to flat (or vise versa) embroidery mode switch eliminating the possibility of hitting the frame.
8. Keeping original file names in memory makes it easy to manage designs.
9. Lay-out of keys on panel is more user-friendly.
10. Real time and date is showing on screen.
11. High speed up to 850 SPM.
12. Memory size up to 2 million stitches and 200 designs

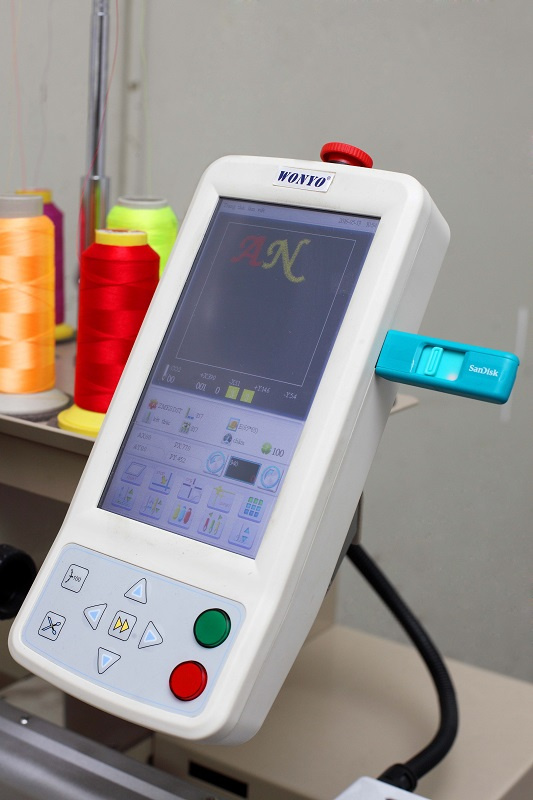

III. Compact control panal
1. Color LCD display showing real time stitching
2. Manual Color Change
3. Function keys including Menu, Speed up and slow
4. Multi languages available
5. Frame-moving keys
6. Manual Trimming
7. Start, Stop, and emergency Stop
8. Embroidery Status down (Page Up and Page Down), USB Input,
9. DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
10. On-board lettering
11. Numeric keys for selection of needles

IV. Hoops/frames inclued
A. 2 X Shirt Front Round Hoop 9 cm (3.5")
B. 2.2 X Shirt Front Round Hoop 23 cm (9")
C. 2 X Shirt Front Round Hoop 12 cm (4.7")
D. 2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
E. 2 X Shirt Front Round Hoop 15 cm (5.9")
F. 1 X Sash Frame 56 X 38 cm (22" X 15")
V. Built-in Network

Optional Device:

Single sequin device	Simple cording device
Eight in one device	Simple Taping device
Boring device	Laser position device



Model	Needle	Head	N.weight	Embroidery area	overall size
WY1201CS/WY1501CS	12/15	1	150kg	360*510mm	850*850*950mm
WY1201CSL/WY1501CSL	12/15	1	200kg	360*1200mm	850*850*950mm
