| Price: | US $ 1600-1700/Square Meter |
|---|---|
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | MT-2 |
|---|---|
| Resolution: | 128*64 |
| Application Environment: | Outdoor |
| LED Configuration: | Eb4308 |
| Brightness: | 5,000nits/Sqm |
| Refresh Rate: | >960Hz |
| Cabinet Weight: | 13kgs |
| Maintenance: | Front Access Strip |
| Control System: | Nova |
| Transparency: | 80% |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Market Display |
| Pixel Density: | 10000 dot / m² |
| Scanning Mode: | 1/4 Scan |
| Display Type: | LED Video Display |
| Application: | Advertising |
| Certification: | ETL |
| Pixel Pitch: | P10 |
| Average Power Consumption: | 260W/M2 |
| Specifications | Parameters | ||
| Model | MT-2 | MT-2 | MT-2 |
| Pixel pitch | 6 | 8 | 10 |
| Application | Outdoor | Outdoor | Outdoor |
| Screen size | 1,124*768*94mm | 1,024*512*94mm | 1,280*640*94mm |
| Resolution | 192(W) *128(H) | 128(W) *64(H) | 128(W) *64(H) |
| Pixel Destiny | 27,778/sqm | 15,625/sqm | 10,000/sqm |
| Weight | 13kgs/sqm | 13kgs/sqm | 13kgs/sqm |
| Brightness | 5,500cd/ | 5,500cd/ | 5,500cd/ |
| Grey grade | 16bit | 16bit | 16bit |
| Refresh rate | ≥2,560Hz | ≥2,560Hz | ≥2,560Hz |
| Maintenance | Front accessible strips | Front accessible strips | Front accessible strips |
| Max./Ave Power | Max. 900w/sqm; Average 300w/sqm | Max. 800w/sqm; Average 260w/sqm | Max. 800w/sqm; Average 260w/sqm |
| Working voltage | 53.5VDC/110-240VAC | 53.5VDC/110-240VAC | 53.5VDC/110-240VAC |
| LED Configuration | EB4308 | EB4308 | EB4308 |
| Transparency | 70% | 75% | 80% |
| Working temperature | -10ºC~+45ºC | -10ºC~+45ºC | -10ºC~+45ºC |
| Working humidity | 10%~90%RH | 10%~90%RH | 10%~90%RH |
| Control system | Nova/Linsn | Nova/Linsn | Nova/Linsn |
* 2 years warranty;
* MdiVisual provides prompt response to your ANY requirements within 24 hours;
* A Patient supports team to teach you product knowledge, guide you for installation, train your engineers how to configure software and solve Any issued;
* Local supports service is available.

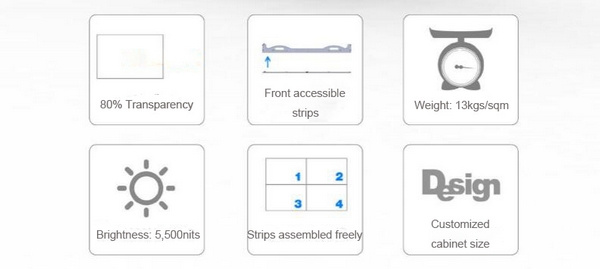

More details for Outdoor Transparent LED Screen for Glass Building wall:
