| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
60 Sq.M |
| Panel Size: |
800*800mm |
| Refresh Rate: |
2, 000 Hz /S |
| Inputting Voltage: |
90 -264 VAC 47-63 Hz/S |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
CCC |
| System Operating Platform: |
Windows XP, Win7, Win8, Win8.1, Win10 |
| IP Rating: |
IP31 |
Product Description

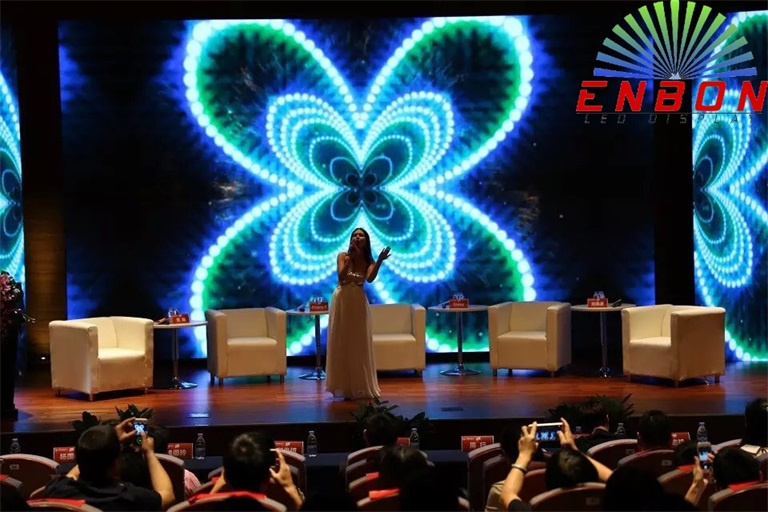

P10 indoor LED Mesh curtain can create colorful background for stage. It is transparent, low power cost, thin, light weight. We are pushing the sales of this LED curtain, welcome to send an inquiry or talk to me onine, you can add my skype for quick service.
Applications:
This LED curtain is specifically designed for music festivals, theatre, concert, large tradeshow booths, etc.
Features:
--Highly transparent, better color performance
--Simple and easy to operate, install and transport
--Lightweight, quick-connect hanging brackets guarantee fast build-up and tear-down
--Silent system by fan-less design
--Cost-effective, create visual effects at special events on a limited budget
Perfect for entertainment venues, events, exhibitions and architectures with long viewing distances.
| Technical Parameters |
| Model | P10 LED mesh curtain |
| Pixel pitch | 10mm |
| Pixel density | 10000 Pixels/sqm |
| Module size(W*H) | 200 W(mm) | 400 H(mm) |
| Module pixels(W*H) | 20 Pixels(W) | 40 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/8 scan |
| LED lamp type | SMD3528 |
| Cabinet size(W*H*D) | 800 W(mm) | 800 H(mm) |
| Cabinet resolution | 80 Pixels(W) | 80 Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥1300cd/sqm. |
| Power consumption(one cabinet) | Max:375W/sqm. Average:125W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 47---63HZ |
| Net weight | 22 Kg/M 2 for Aluminum cabinet |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.3mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 47--63Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7, win8, win8.1 , win10 |
| Protections for outdoor display | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 8, 000 square meters, with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
AlllouruproductsthavevpassedeCECEFCCCandnRoHSHcertificateses70%0ofoouruproductstarerforoexportrandngoodsdarerexportedetotovere808countriesesWeWareranaLEDEcompanynyouocanacountnonoforogoodoqualitytandncompetitivevpricingngBesidesesyouocanaalsosexpectcexcellentnprersalelesellingnandnafteresalelservicesehererewhichccontainsnprofessionalaconsultationonfreeetrainingngfreeedrawingsgsinstallationoandn2 yearsrwarrantytyWeWwilllinspectcouruproductstinstalledeinidomesticimarketeperiodicallyly.
EnbonoisiequipedewithtadvancedemachinesesuchcasaAutomatedePickc& PlacecmachineneHighgSpeedeSMTMTWavevPeakaSolderingnmachineneReflowoSolderingnMachineneHighg& lowoTemperaturerAgingnroomomVibrationotestererWaterproofotestererAntitstatici& dustsfreeeworkshopoetctcModernrautomaticiequipmentntogetherewithtouruinnovativevengineersrsdedicatedeworkersrandnexperiencedesaleseandnserviceseteamamwe'rerthehrighthsuppliereyouocanatrustsforogoodosolutionsnforoalllyouruLEDEdisplayaprojectsts.
Contactcusuforoanaofferetoday!yOuruteamawilllrespondnini1 workingndayayWeWlookoforwardrtotbebyourugoodopartnereandngrowotogether!r
