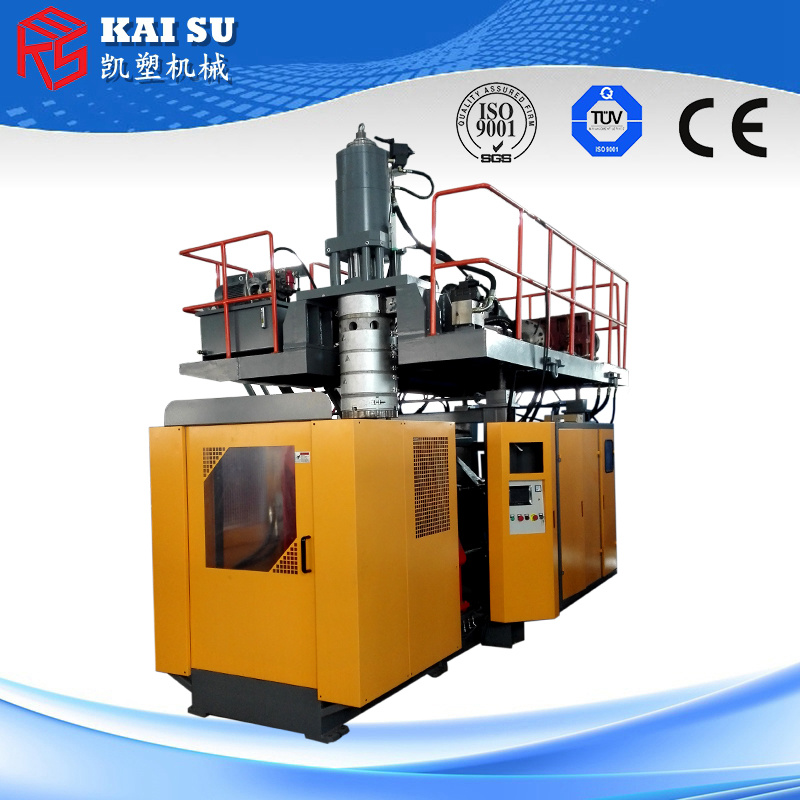

Plastic Model Making Machine Blow Moulding Machine
| Price: |
US $ 20000-50000SET |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
KSC-30L |
| Machine Name: |
Plastic Mannequin Blow Molding Machine |
| Guarantee: |
One Year |
| After Service: |
All Machine Lifetime |
| Machine Voltage: |
220V/380V/415V/480V |
| Energy Saving: |
Servo Motor |
| Mold: |
Aaviable with Machine |
| Spare Parts: |
Free Spare Part with Machine |
| Max Container Capacity: |
60L |
| Robot: |
Avaiable |
| Parsion Thickness Controller: |
Moog Japan |
| Type: |
Extrusion Blow Molding Machine |
| Raw Material: |
HDPE |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
ISO9001:2008 |
Product Description
Company Intruduce : We are a professional manufacturer of full automatic extrusion blowing molding machine more than 10 years experience . We can make all kinds of products from 5ml -3000L .And various special-shaped products such as : bottles , pots , cans , chemical drums , bed board , desktop board , seats , auto duct , automotive

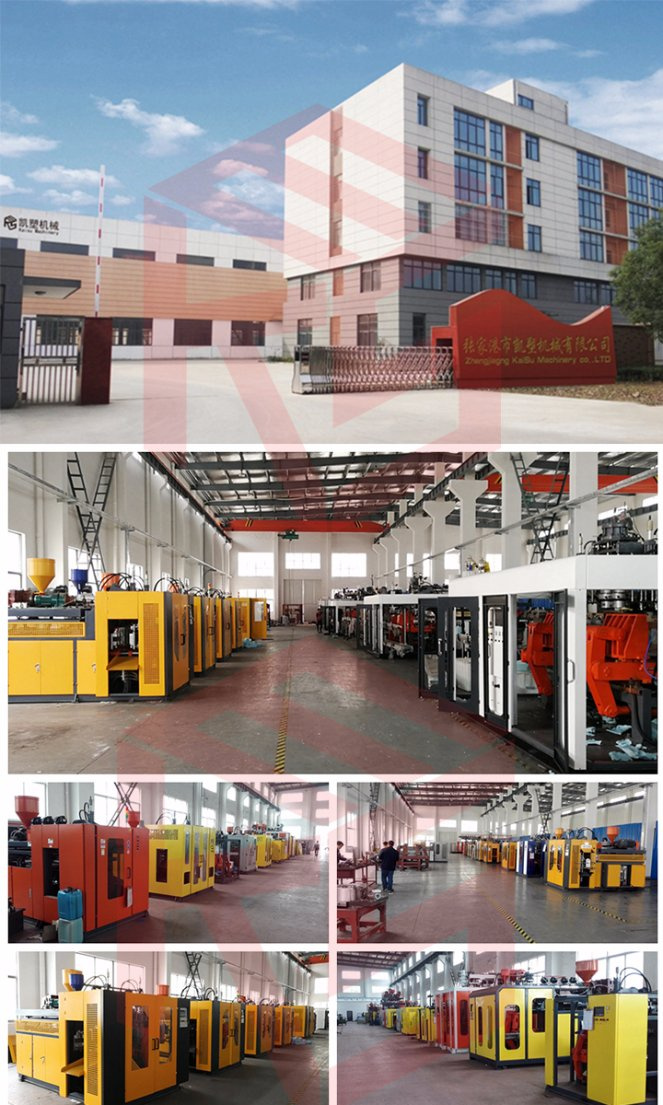

interior trim panels roadblocks code( water ) , guradrail( barriers ) , 220L ( signle and double L ring drums), blowing molding try , IBC container drums , large water storage tank , surfboard , canoeing and lage double color molding parts etc. Workshop :
Machine Parameter : | Specification | Unit | KSA80-30L |
| Max Product Volume | L | 30 |
| Dry Cycle | Pcs/h | 650 |
| Screw Diameter | mm | 80 |
| Screw L/D | L/D | 25 |
| Screw Driver Power | Kw | 30 |
| Screw Heating Power | Kw | 16 |
| Screw Heating Zone | Zone | 4 |
| HDPE Output | Kg/h | 100 |
| Oil Pump Motor | Kw | 15 |
| Clamping Force | Kn | 180 |
| Mold Stroke | mm | 400-900 |
| Template Size(W*H) | mm | 760*660 |
| Storage Capacity | L | 4 |
| Max Single Die Diameter | mm | 300 |
| Single Die Heating Power | Kw | 12 |
| No of Heating Zone | Zone | 4 |
| Double Die Center Distance | mm | |
| Triple Die Center Distance | mm | |
| Quadruple Die Center Distance | mm | |
| Blowing Pressure | Mpa | 0.8 |
| Air Consumption | M3/min | 0.8 |
| Cooling Water Pressure | Mpa | 0.3 |
| Water Consumption | L/min | 60 |
| Machine Size | L*W*H | 4.5*2.4*3.5 |
| Machine Weight | Tons | 11.5 |

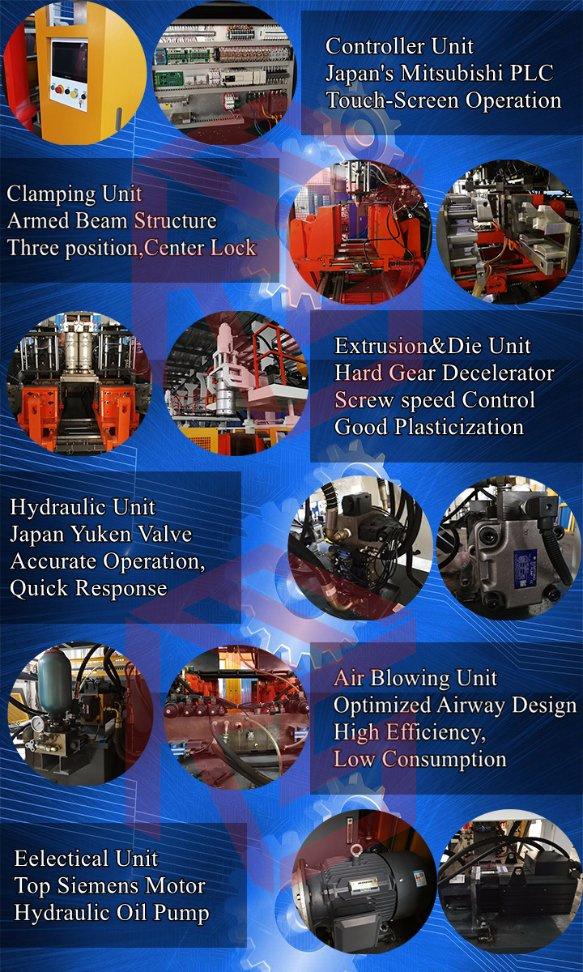

Machine Component :

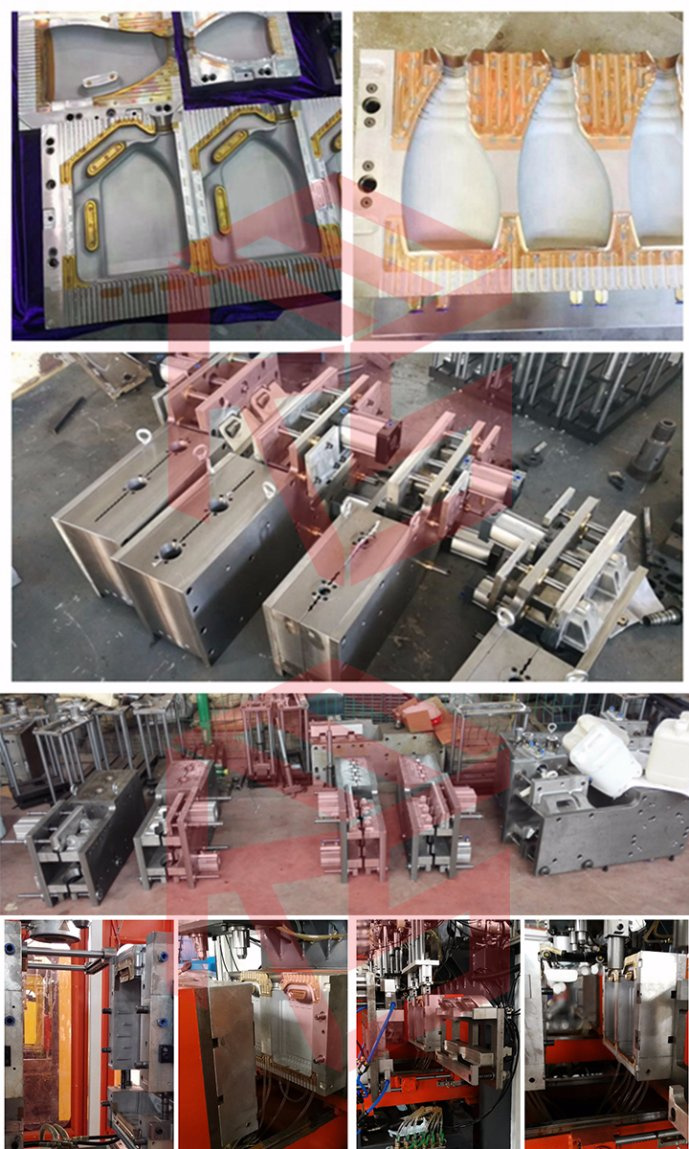

Mold and Accessories :
Our service : 1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Can trainning clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal

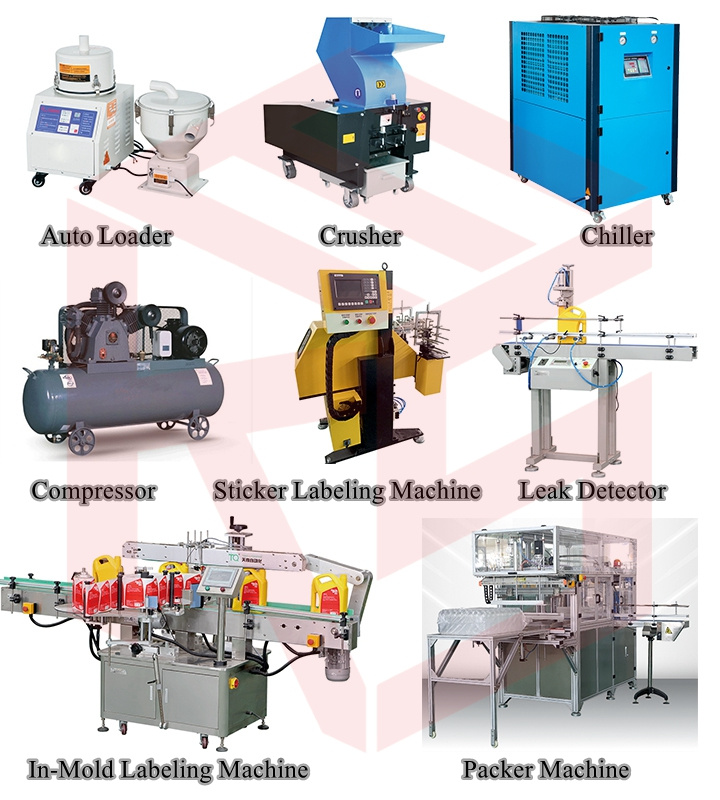

6. Auxiliary machines for complate line.
7.Custimized design as requirements.Contact us :
KAISU Machinery
Zhangjiagang City Kay Plastic Machinery Co., Ltd. is a production of automatic hollow blow molding equipment, high-tech enterprises. Suitable for PE, PP, PVC, PETG, PS, EVA, ABS, TPU and other hollow-class plastic; Can produce 5mL-5000L plastic bucket. KS series and KSA storage material series are nearly 60 specifications., Plastic bottles, such as hollow plastic containers and tools luggage, with heavy plate, transport facilities, medical equipment, automobile tail, duct, plastic tray, desktop board, air seats and other hollow plastic products.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
We are looking forward to cooperation with all worldwidely customers, to get win-win befinets for both parts.
We promise we would give the best price, top quality, speedy after service.
We are looking for good parters, to be our agent, to grow up together, for a better futurn.
