Plastic Square Net Mesh Make Making Machine

Name: Plastic Square Net Mesh Make Making Machine
Brand: FullPackage
SKU: 621966692
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 89000/Piece
Trade Terms:	by sea or train
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JG-FW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Piston Extruder
Plastic Processed:	PE
Product Type:	Granulating Extruder
Feeding Mode:	One Feed
Assembly Structure:	Integral Type Extruder
Screw:	Twin-Screw
Engagement System:	Full Intermeshing
Screw Channel Structure:	Deep Screw
Exhaust:	Exhaust
Automation:	Automatic
Computerized:	Non-Computerized

Product Description

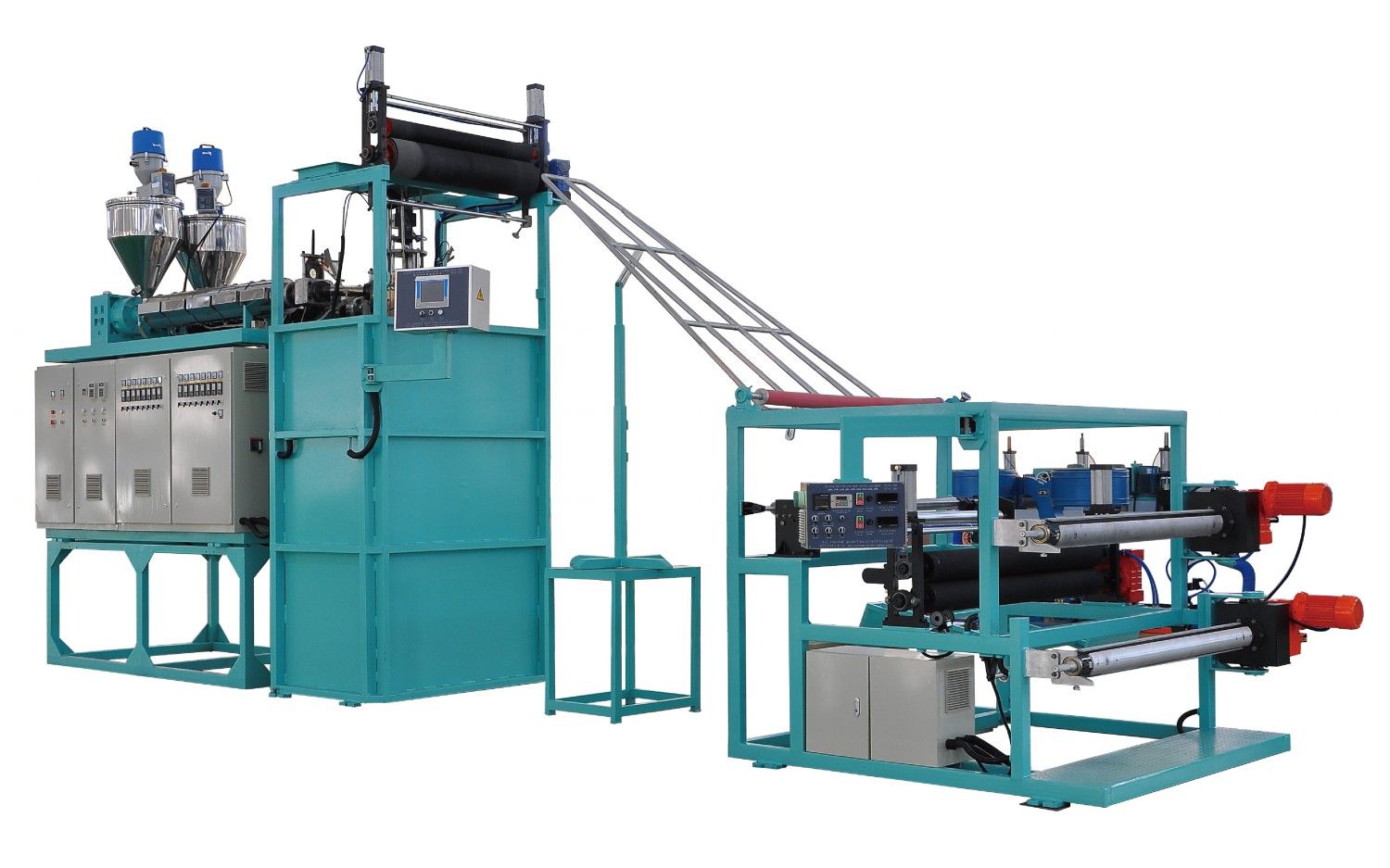

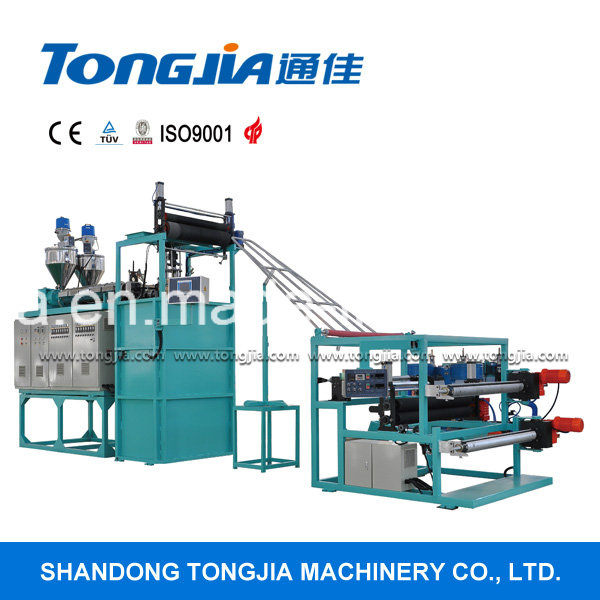

Plastic Square Net Machine

Product Introduction

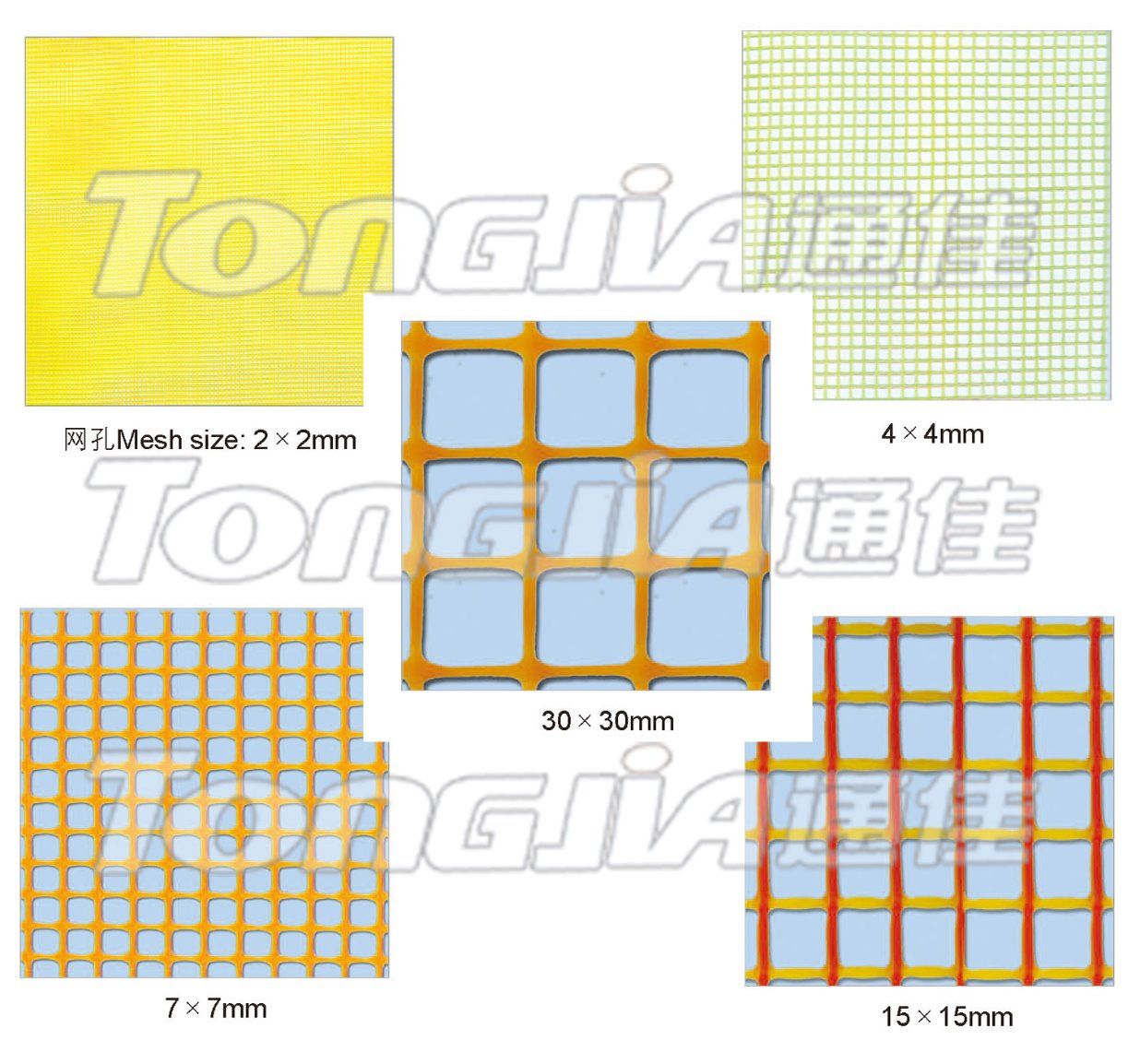

Plastic square net Machine has been adopted the most advanced technical in the world, and mixed our experiences in the net production. The machine has double extruders, and they control the warp and weft strand separately. The final production has features of smooth surface and equality mesh. By twice transverse and lengthways hot stretching it turns to be the square stretching net. The mechanical property has been obviously promoted. It is widely used in the decoration, safety net, insect prevention, high grade rail and many other fields.

Product Models

Model		JG/FW45	JG/FW65
Screw dia.	mm	Φ 45× 2	Φ 65× 2
LD/ ratio	L/D	30: 1	30: 1
Screw speed	r/min	5-50	5-40
Motor power	KW	7.5×2	22×2
Heating power	KW	20	35
Width of product	mm	1000-1500	1000-2000
Installed capacity (approx)	KW	55	90
Dimensions (L× W× H) (approx)	m	9 × 2.8× 2.6	12× 3× 2.8

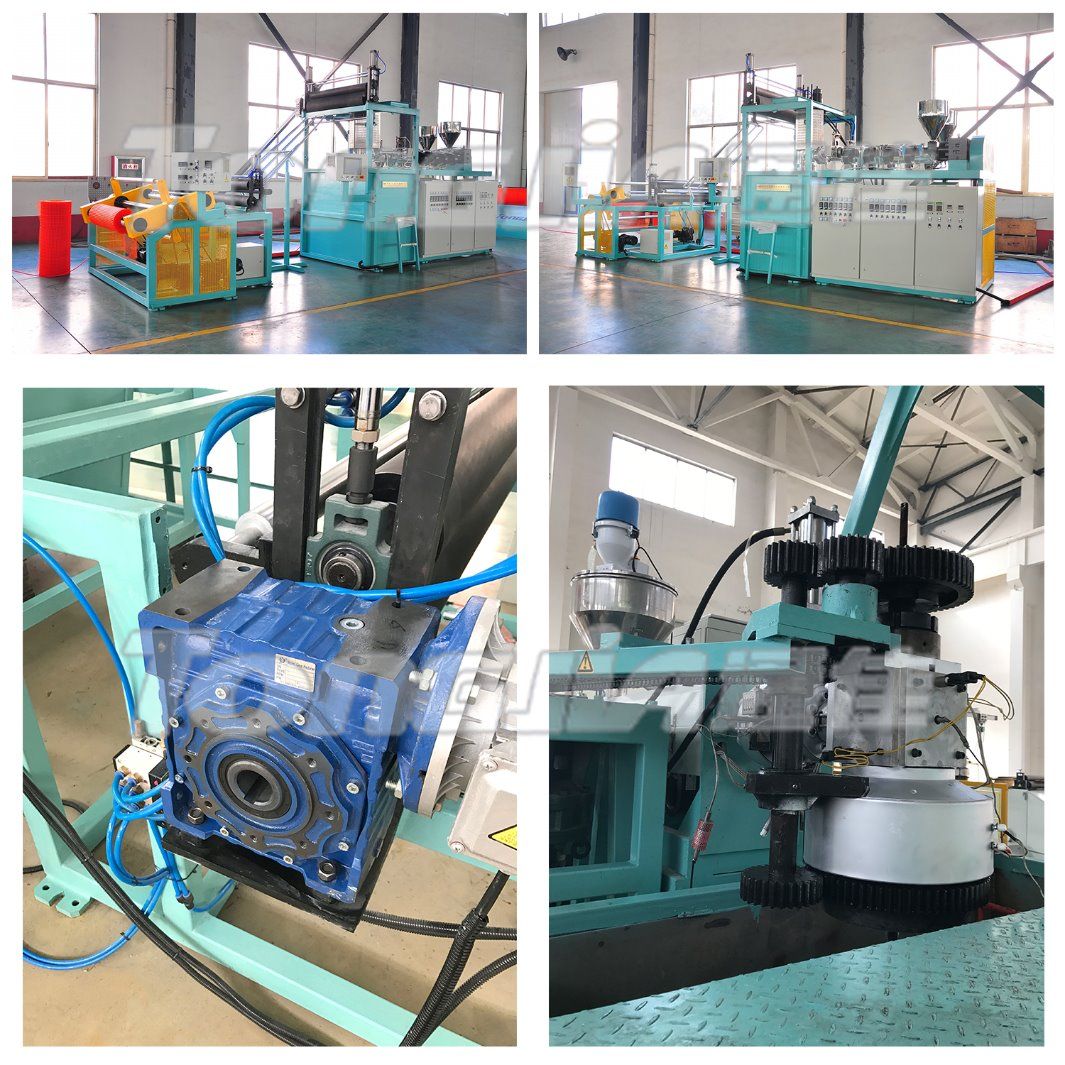

Machine Dedails

Product Photos

About Company
Shandong Tongjia Machinery Co., Ltd. specializes in producing high quality plastic machinery. We are one of the top manufacturers of plastic machinery in China. As the Vice Chairman of China Plastic Processing Machine Industry Association and the member of China Light Industry Machinery Association, all of our products have passed ISO9001,SGS Certificate and CE Certificate from TUV.Many of our products have exported to America,Canada,Greece, Russia, Belarus,UAE, Iran, Singapore, Vietnam,Japan,Korea, Malaysia, Spain, Argentina, Brazil, more than 80 countries in the world.

Our Service
1.12 Hours----Your reply will be replied within 12 hours.
2.Service----We offer your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional designers, free designs.
5.Certificates----Third-party verification service provider.
6.Service----OEM service offered; Design service offered; Buyer label offered.

Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in China.
2.In the plastic machinery field, we have more than 20 years of relevant experience.
3.Our products extend all over the national and over 80 countries and areas of the world.
4. Our spare parts are international famous brand components.
5. Engineering team provide you with the most suitable model towards your products.
6.We will send our engineers to your factory installation the machine and train your worker after the machine arrive your factory.
7.We will offer our best price and quality and hope have a good cooperation with you.
8.Our machines run stable, high output and our technology from German.

FAQ

Q1:What's your warranty policy?
A1:We will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's factory) or the Seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.

Q2:What's your minimum order quantity?
A2: Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3:Painted with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C.

Q8:What's your contact way?
A8: Tel:+86-537-2279166 , +86-537-2986622

Q9:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A9:Please click the "send" at the bottom of this page or contact our sales on Trade Mange online

Shandong Tongjia Machinery Co., Ltd, located in High-New Technology Industry Development Zone of Jining City, Shandong Province. We are a science, industry and trade integration modern large enterprise group, one of the largest professional manufacturer of plastic machinery in China, Top 3 enterprise of China plastic extrusion machinery industry in 2014, Vice President of China Plastics Machinery Industry Association, Vice President of China plastics Processing Industry Association, the National Key High-Tech Enterprises and China's Patent Star Enterprise.

Tongjia Machinery has fully been approved by the international management certification system, like ISO 9001: 2008, ISO 14000, ISO 18000, and has the "National polymer composites process technology and equipment research and development center" and "Physical foaming plastic mechanical engineering technology research center", constantly develop both the international and domestic advanced plastics machinery and new equipment of 9 series and more than 200 kinds of our own intellectual-property rights, and passed the European CE certification. They involve more than 370 patents that covers more than 100 patent for invention, are awarded for science and technology advancement in both Province class and national class, The Torch Plan Item of State, the Technological Innovation Foundation Item of State. Several products filled the domestic blank, and separately listed as national key new products. Products extend all over across China and more than 80 countries, register"TONGJIA" brand in 46 countries and areas, setting up "Tongjia" business office and technology service station in more than 20 countries and areas.

With the mind of "Trust comes from quality", Tongjia group with strong comprehensive strength, exquisite technology, perfect after-sale service system, as always, is willing to make progress together with customers from domestic and overseas to create new glories.
