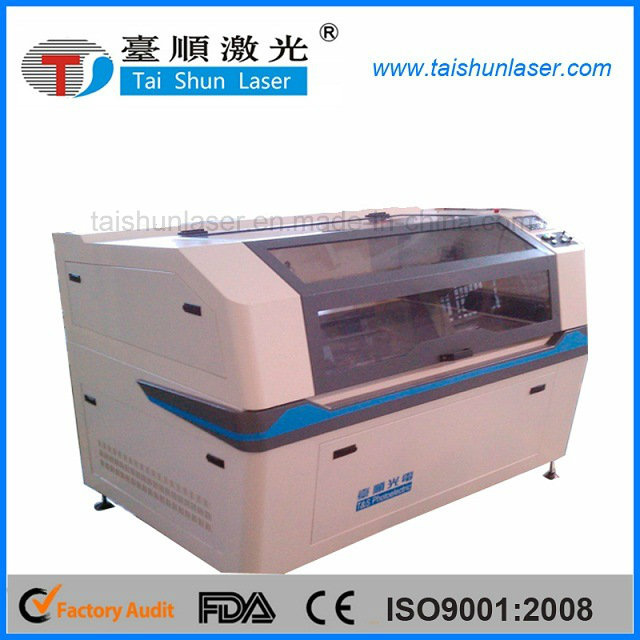

| Prod Model: |
TSHY-180100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 Glass Laser Tube |
| Application Area: |
Laser Cutting |
| Application Material: |
Fabric, Filtering, Cloth |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Power Supply: |
AC220V+-5%50Hz |
| Certification: |
Ce, ISO, FDA |
| Cutting Area: |
1800mmx1000m |
| Output Power: |
80W×2 |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description

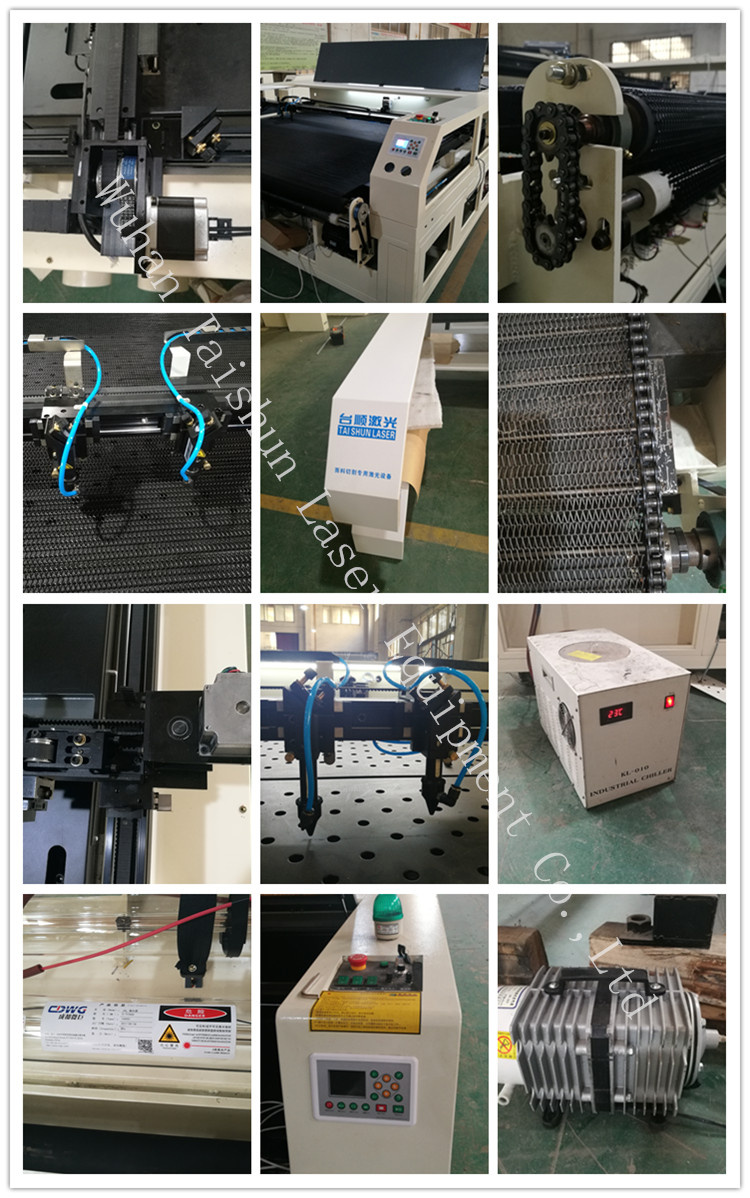

Configuration:
Working table:1800mmx1000mm conveyor table
Laser Type:Co2 glass laser tube
Laser head:dual head to cut faster,single head to cut for large format,available to choose accoring to the production demand
Type setting softable:intelligent Taishun typesetting software to achieve continuous feeding material
Water Chiller:standard industried water cooling system CW3000/make sure the laser tube work in ambient temperature.
Fume extractor: 2 sets 550W exhaust fan
Linear guide Rail:imported brand of Hiwin or others,
Technic parameter:
| Model | TSC160300LD | TSC210300LD | TSC320600 | TS160100LD | TSHY180100LD | TSHY180140 | TSZD9050 | TSZD15090 |
| Working Area | 1600x3000mm | 2100x3000mm | 3200x6000mm | 1600x1000 | 1800x1000mm | 1800x1400mm | 900x500mm | 1500x900mm |
| Laser power | 80w | 80w. | 80w | 80wx2 | 80wx2 | 80w | 60W | 60W |
| Cutting Depth | Rubber 0-25mm |
| Engraving speed | 0-1000mm/s adjustable |
| Cutting speed | 0-600mm/s adjustable |
| Worktable | Fiex or conveyor or honeycomb work table |
| Resetting Positioning Accuracy | ≤±0.01mm |
| Graphic format supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF,AI etc. |
| Software supported | Coreldraw, Photoshop, AutoCAD |
| Motor type | Stepper Motor |
| Cooling System | Water pumb/Water chiller |
| Laser tube lifetime | EFR/SPT/SP laser tube :3500h Reci laser tube:10000h |
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
| Main configuration | 1x Laser tube |
| 1set x Reflector and lens |
| 1xWater chiller 1x air compressor 1x exhaust fan ,1x water pipe |
| 1x USB cable 1xcommunication cable 1x U disk |
| Optional Devices | Rotary device :engraving Cylinder, Pen ,Glass Cup |
| Red dot pointer, Auto Focus system |
| Auto-feeding system |
| Water chiller system |
| Consumable Parts | Laser Tube 80w/100w/130w ,reflectors and lens |
Laser cutter application:
Suitable for cutting a variety of textile and industrial fabrics.
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
Full services
1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arisen
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
