| Prod Model: |
YKO15 |
| Light Transmission: |
88% |
| UV Protection: |
50micron |
| Brand Of Material: |
100%Bayer or Sabic |
| Standard Color: |
Clear,Opal,Bronze,Blue,Lake Blue,Grass Green |
| Service Temperature: |
-40c-120c |
| Material: |
PC |
Product Description

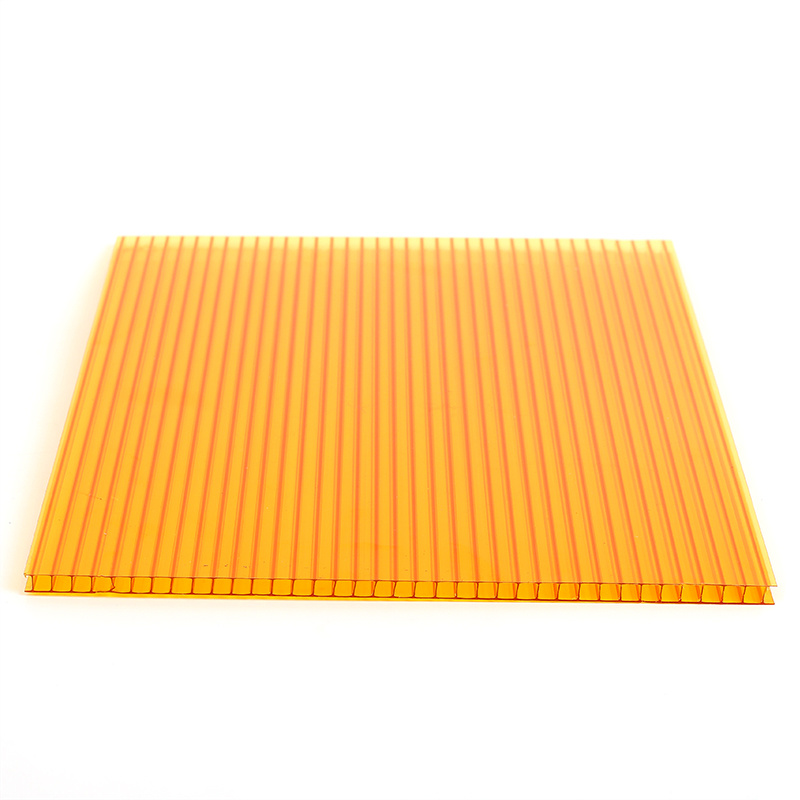

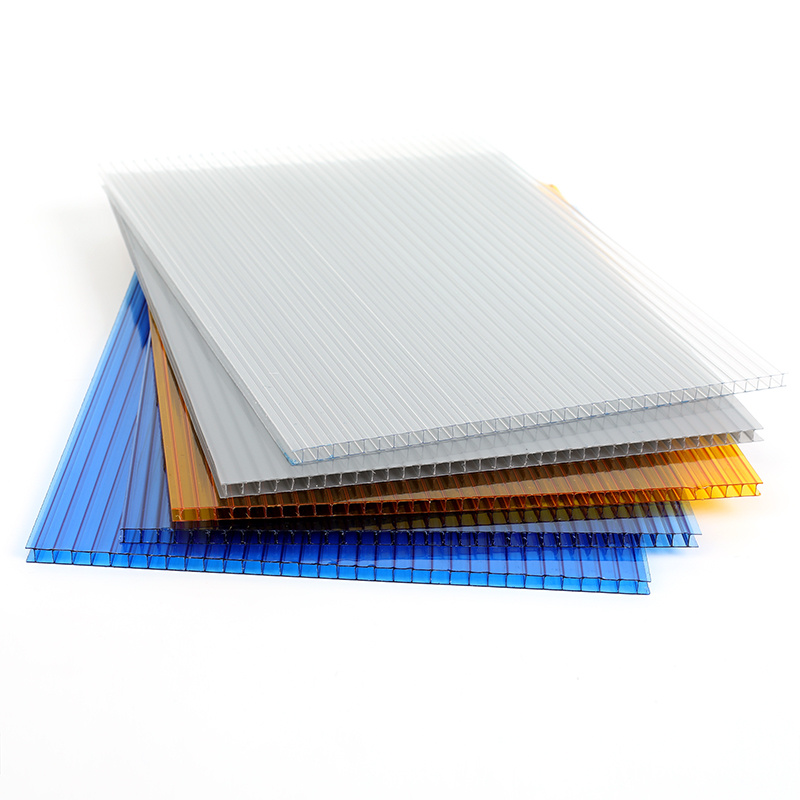

Polycarbonate Hollow Sheet 10 years warranty 100%bayer or sabic material 50-80UV coating color no limited.
SPEC:1) Thickness: 3mm-10mm(Mainly 4mm/6mm/8mm/10mm)
2) Standard width and length: 2100*6000mm & 2100*5800mm
3) Dimensions and Colors both can be customized.
4) Both sides covered with PE protective film.The Printing on PE film can be customized.
| Thickness | Structure | Weight | Min.Bend Radius(mm) | K value | UV-protection layer |
| (mm) | (kg/sqm) | (W/M2K) | (μm) |
| 3 | 2-layer
(rectangle) | 0.9 | 525 | 4.22 | ≥50 |
| 4 | 1.0 | 700 | 4.00 | ≥50 |
| 5 | 1.1 | 875 | 3.80 | ≥50 |
| 6 | 1.3 | 1050 | 3.60 | ≥50 |
| 8 | 1.5 | 1400 | 3.30 | ≥50 |
| 10 | 1.7 | 1750 | 3.00 | ≥50 |
| 8 | 3-layer
(rectangle) | 1.6 | 1400 | 2.92 | ≥50 |
| 10 | 1.8 | 1750 | 2.70 | ≥50 |
| 12 | 2.0 | 2100 | 2.60 | ≥50 |
| 14 | 2.4 | 2450 | 2.40 | ≥50 |
| 16 | 2.7 | 2800 | 2.27 | ≥50 |
Feature:1) Light weight: only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass,15 times that of acrylic sheet
3) Fire retardancy: rated class B1
4) Good Light transmission: up to 85%
5) With UV protection and thermal insulation
6) Excellent physical, mechanical, and electrical properties
7) Temperature resistance range: -40 ~ +120°C
Application1) Roofing light sheet and sunshade for office building, department store, hotel, stadium, school, amusement center, hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
5)Sound barriers,insulation board
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing
9) Swimming Pools roofing/cover/sheet
Why to choose our polycarbonate sheets?1) Quality is reliable, you could check by yourself
Our polycarbonate sheets are 10 years quality guarantee, All of them are made of 100% virgin material, with UV coated, Grade A quality.
2) our price is competitive
We buy a large number of polycarbonate material every time from our material supplier--GE sabc company, they will quote competitive prces to us for our big order, our cost is save, so the prices are competitive.
3) Our good service
Delivery time is 7 days,
Supply free samples to you for developing your market,
Supply suggestion freely
Reply you in 10 hours
4) Our factory with rich experience
We know how to produce good quality sheets, and we know the market well. The most important is we know the quality and honest is the life of factory.
Other information: - HS Code: 3920610000
- Payment term: T/T, L/C
- Delivery time: 7-10 days
- Origin: Shanghai, China
- Packaging: Both sides covered with PE film
- Sample policy : Small samples can be provided with courier charge collect
website:http:www.techvary.com
Shanghai techvary Co., Ltd was established in Shanghai in 2005, the area is about 7000 square meters. We have about 400 workers. Providing our clients all kinds of construction materials. We have introduced advanced Italian OMIPA co-extrusion equipments, has an existing annual production capacity of 9000 tons. Have got the certificate of SGS, ISO9001, ISO14001 and so on.
Main products include PC SOLID SHEET, PC HOLLOW SHEET, PC CORRGATED SHEET, PC U-LOCKED SHEET, PC THERMOCLICK SHEET, SMART GLASS, PDLC FILM(Polymer Dispersed Liquid Crystal) and all kinds of welding rod.
The products of polycarbonate, feature super weather and impact resistance, and good light transmission. Light in weight, and easy to install, they are widely used in construction projects, for decorative use, in advertising displays and an extremely varied and wide range of other uses. It is able to meet the different requirements of our customers. With products ranging in high and medium quality, we can also process large orders to our customers' specifications and samples
For the products of smart glass and PDLC film, can realize the conversion of glass between transparent and opaque through Adjusting the voltage. The power on condition is transparent, and the power off state is frosted. The utility model can be used for making laminated finished glass or used for making projection back pasted liquid crystal film. With the electric field principle of dimmable liquid crystal glass, it can protect the privacy while maintaining the permeability of the space.
The business volum is 50million each year. We will try our best to kept expand our business area all the time.
Our company constantly adheres to the quality, price and service to win the market, develop innovative products, exploare new field of application and exploits Evropean and American and new international economic market
As a result of our products' high quality, competitive price and large selection, our products sell well both at home and abroad. We sincerely invite interested parties to contact us and all enquiries will receive our closest attention.
