Prod Model: |
T100 Xunda |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pipe Wrap Tape, Inner Tape ,T100: |
0.5mm 0.635mm 0.76mm Thickness |
Bonding Function: |
Pressure sensitive Adhesive |
Morphology: |
Solid-State |
Application: |
Corrosion Control |
Material: |
Polyester |
Classification: |
Pressure-Sensitive |
Main Agent Composition: |
Rubber |
Characteristic: |
Waterproof |
Promoter Composition: |
Filler |
Composition: |
Organic Material |
Color: |
Black |
Product Description
I Description:

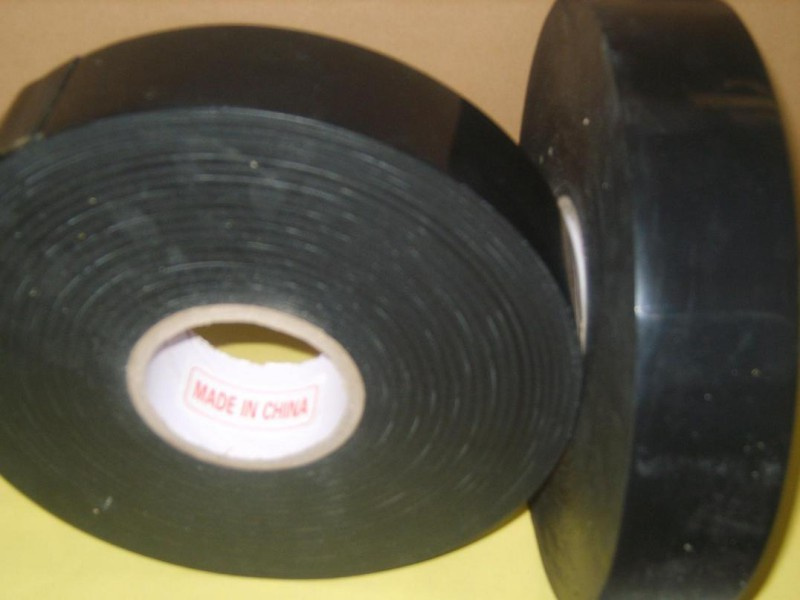

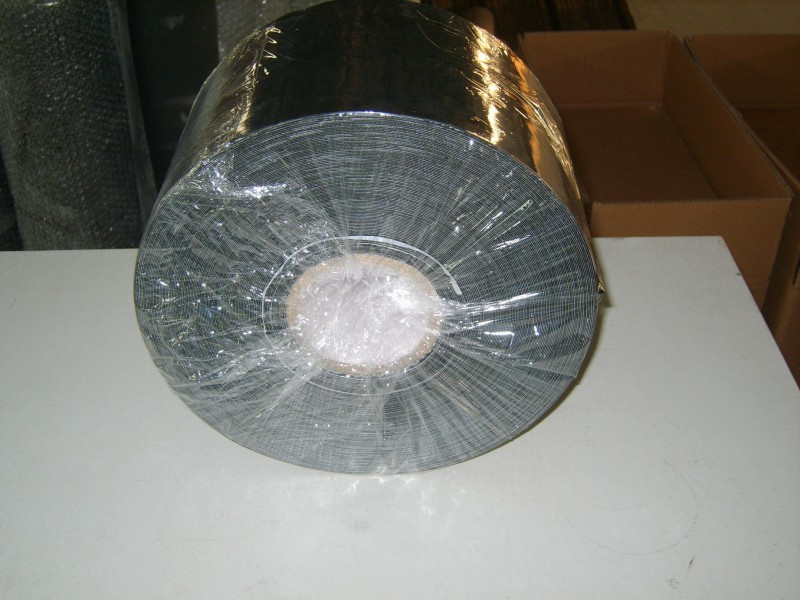

The Polyethylene anticorrosion inner pipe Wrap Tape is cold applied tape coating system for corrosion protection of Oil, Gas, Petrochemical, and Waste Water underground or overhead pipelines.
![](/proimages/44f3j00pagEZDltIrcn/polyethylene-anticorrosion-inner-pipe-wrap-butyl-tape-pe-underground-anticorrosion-pipe-wrap-tape-wrapping-adhesive-duct-tape.jpg)
IIStructure
The specification of the tape consists of two layers, adhesive layer and film backing
Adhesive: butyl rubber
Outer layer: Special blend of stabilized polyethylene
III Features
Excellent adhesion to pipe and self
Resistant to UV
Can be applied over a wide temperature range
Good conformability and consistent uniform thickness
Easily applied with no special equipment
Compatible with common pipe coatings
Excellent resistance to cathodic disbonding
Meets ASTM D 1000 Standard
Cold applied
IVTechnical datas:
INNER WRAP TAPE: XUNDA-T 100 Series
Type | 0.5mm thickness | 0.64mm thickness | 0.76mm thickness |
Total thickness | 0.50 mm | 0.64 mm | 0.76 mm |
Polyethylene Film | 0.30 mm | 0.34 mm | 0.36 mm |
Synthetic Adhesive | 0.20 mm | 0.30 mm | 0.40 mm |
Elongation at Break | 400% |
Tensile Strength | 60 N/cm | 60 N/cm | 62 N/cm |
Yield Strength | 35.5 N/cm | 42.3 N/cm | 45.5 N/cm |
Peel Adhesion to Primed Pipe | 21.2 N/cm | 26.5 N/cm | 33.2 N/cm |
Dielectric Strength | 35 KV/mm | 45.8 KV/mm | 48 KV/mm |
Cathodic Disbandment | 0.24 in radius 6.4 mm |
Volume Resistivity | 2.5 x 1012 ohm.m |
Water Vapor Transmission Rate | 0.1gm/M2/24h |
Water Absorption Rate | < 0.06% |
Recommended Application Temperature | -5 to +600 C |
Max Serve Temperature | -40 to + 800 C |
Color | Black |
Available Roll Size (width x length) | 2" to 9" X 50 to 800 feet |
