PVC High Speed Roller Shutter Door

Name: PVC High Speed Roller Shutter Door
Brand: FullPackage
SKU: 816859815
Availability: InStock
Rating: 4.5 (90 reviews)

Price:	US $ 1200-2500/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Door Type:	Automatic Rolling Door
Door Frame Material:	Stainless Steel or Aluminum Alloy
Door Curtain Material:	French High Density Industrial Fabric
Control System:	1.Japan Mitsubishi 2.China Holip
Drive System:	1.German Sew 2.China Sej / Snma
Door Curtain Thickness:	0.8/1.0/1.2/1.5mm
Opening Speed:	0.6-1.5m/S
Opening Frequency:	1000-1500times/Day
Motor Power:	0.75kw-2.2k/50-60Hz
Quality Warranty:	12 Months
Type:	Rolling
Open Style:	Rolling
Opening Type:	With Remote Control
Certification:	SGS
Position:	Industrial
Surface Finishing:	Finished
Material:	Fabric+PVC/Aluminium Alloy
Special Function:	Insect-Proofing, Dust-Proof, Heat Retaining
Color:	Red/Blue/Yellow/Green/Gray/Ornage/Transparent

Product Description

High Speed Roll up Industrial Door with Ce Certification (HF-K01)

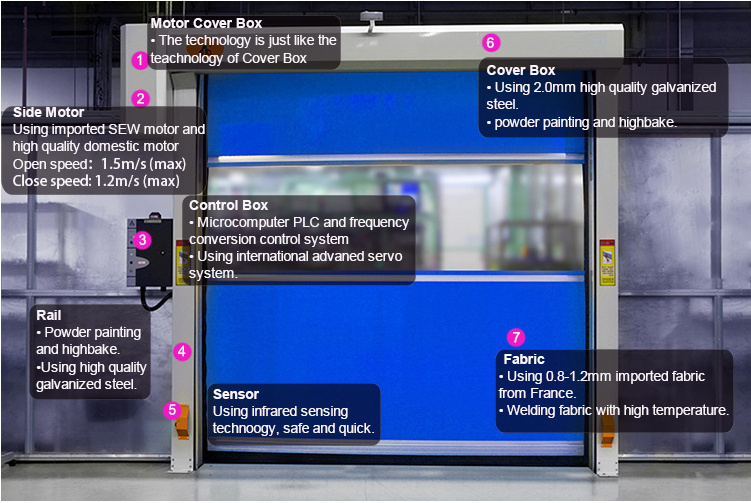

Specification

Size	6000mm(Max W)*8000(Max H)
Speed	Opening 0.8~ 1.5m/sec (adjustable); closing 0.5~ 0.8m/sec(adjustable)
Motor	Turbine decelerator + brake, three-phase 220V
Power	Three-phase 220V AC, 15A
PVC Material	PVC Resin 1000 den textile, 0.8mm thickness; low flammability,dust-proof, and UV-proof
Door Frame Material	Galvanized steel, thickness: 2.0mm
Control Panel	PLC, transducer, switching power supply, breaker(With emergency rising and lowering bottoms)
Positioning System	Limit Switch/Encoder
Safety Device	1. Korea Photocell Sensor installed on the side tracks 2. Airbag installed on the bottom edge of the door with sensor to react contacts to obstacles. 3. Control: Switches with emergency stopping reacting function.
Command System	Five options: radar sensor, magnetic loop, push button, pull rope, remote control.

Benefits of High Speed Door

1)Saves energy and time by opening and closing the door's opening up to 12 times faster than a traditional sectional overhead door.

2)Allows the same exterior door to be used in both warm & cold weather situations. Allow air to flow through in summer and keep heat in during cooler months.

3)Significantly reduces heat loss while allowing light into work areas.

4)Keeps out unwanted pests, birds and intruders.

5)Controls airborne contaminants.

6)Improves building appearance.

Feature of HongFa High Speed Door Include:
High speed Doors require little maintenance and automatically reset after impact or blowout.High speed Door also has easily replaceable, exchangeable heat sealed PVC panels

High Speed - Up to 60 inch" per second(adjustable)
Low Maintenance - Aluminium alloy reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
Windproof - Aluminum alloy reinforce bar won't bend or break. Automatically resets after impact or blow-out,Wind load ratings by door size
Durable - Resistance to all rot, tear and mildew resistant,
Quick & Easy Installation - Installation video and instruction for you
Very Safe-Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
Curtain replacement function-Easily replaceable, exchangeable heat sealed PVC panels.
Warranty-12 Months warranty on all door and accessaries

Applications Include:

1)Loading Docks

2)Fork Truck Traffic Areas

3)Garages

4)Interior & Exterior Door Openings

5)Food Processing Facilities

6)Process Areas

7)Waste Areas

8)Plant Overhead Doors
