| Prod Model: |
PVC products |
| Type: |
Sheet Extruder |
| Plastic Processed: |
PVC |
| Product Type: |
Extrusion Molding Machine |
| Feeding Mode: |
One Feed |
| Assembly Structure: |
Integral Type Extruder |
| Screw: |
Single-Screw |
| Engagement System: |
Full Intermeshing |
| Screw Channel Structure: |
Deep Screw |
| Exhaust: |
Exhaust |
| Automation: |
Automatic |
| Computerized: |
Non-Computerized |
Product Description
Production IntroductionDescription :PVC Hotel aisle elevator carpet extrusion machine
PVC top grade bicolor carpet production line can also be called PVC car foot mat machine,PVC mat machine.It's new machine product which is researched and developped by our factory,for producing PVC coil foot mat/carpet.Final product is mainly used as foot mat in car,hotel,public bathroom and home front gate.Compared with ordinary carpet,it has distinct decorative effect and warm comfort,with long-life and easy-cleaning features.We can supply customize and design machine as buyers' request
Production Line Process flow
Plastic raw material and additive → mixing → spring feeding → single screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Applications
PVC floor mat is useful for any home environment, bedroom, living room, bathroom, swimming pool, and at the front of gate, and people can choose your own style for decoration.
| Model | SPVC-KCM1500 | SPVC-KCM2200 | SPVC-KCM2600 | SPVC-KCMD1500 | SPVC-KCMD2200 |
| Width of products (mm) | Single Color 1200 | Single Color 2000 | Single Color 2400 | Double Color 1200 | Double Color 2000 |
| Extruder | SJ 120/25 | SJ 150/25 | SJ 180/25 | SJ 90/25 | SJ 150/25 |
| T-Die (mm) | 1320 | 2120 | 2520 | 1320 | 2120 |
| Water tank | 1500 | 2200 | 2600 | 1500 | 2200 |
| Dewater device | 1500 | 1500 | 2600 | 1500 | 1500 |
| Binder Spray | 1500 | 2200 | 1500 | 1500 | 2200 |
| Cooling off | 1500 | 2200 | 2600 | 1500 | 2200 |
| Traction trimming | 1200 | 2000 | 2400 | 1200 | 2000 |
| Winding | 1200 | 2000 | 2400 | 1200 | 2000 |
| Cooling water (m) | 20 | 30 | 50 | 20 | 30 |
| Power | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| Compression air (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Max. speed (m/min) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Total power(Kw) | 600 | 650 | 750 | 650 | 650 |
| Equipment size(m) | 42X3.0X6.0 | 42X4.5X6.0 | 42X5.0X6.0 | 42X3.0X6.0 | 42X4.5X6.0 |

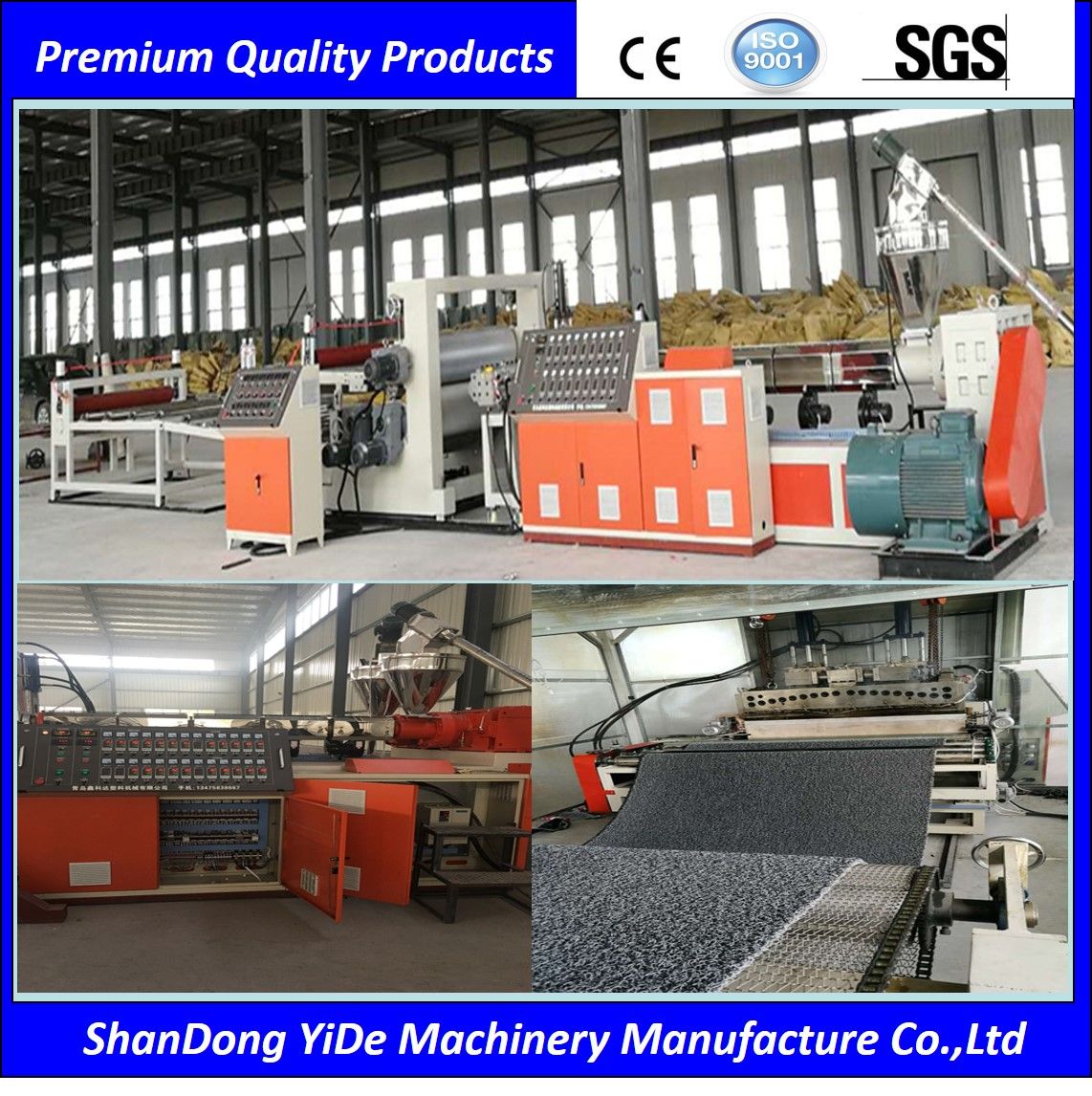

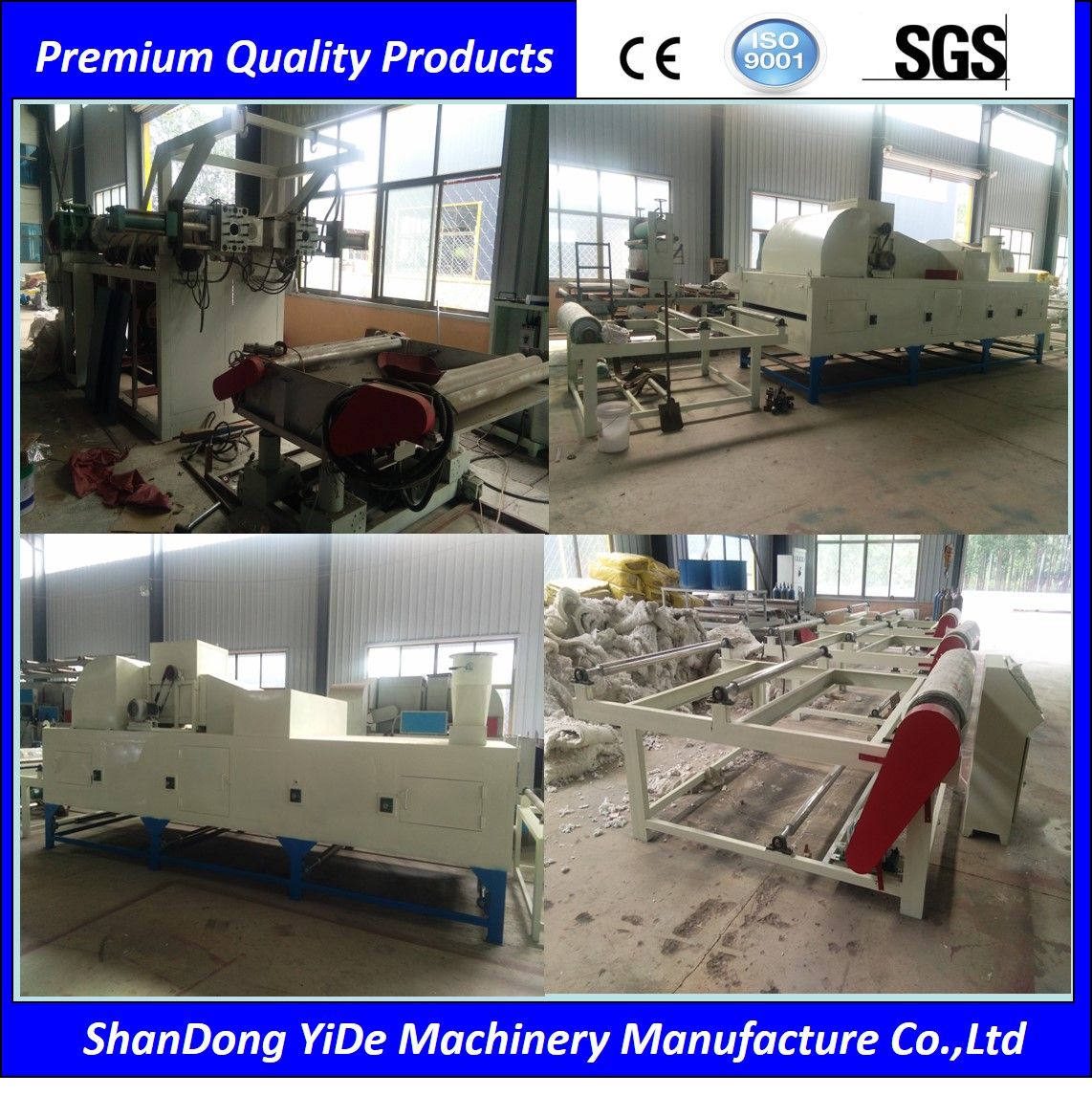

Detailed Images

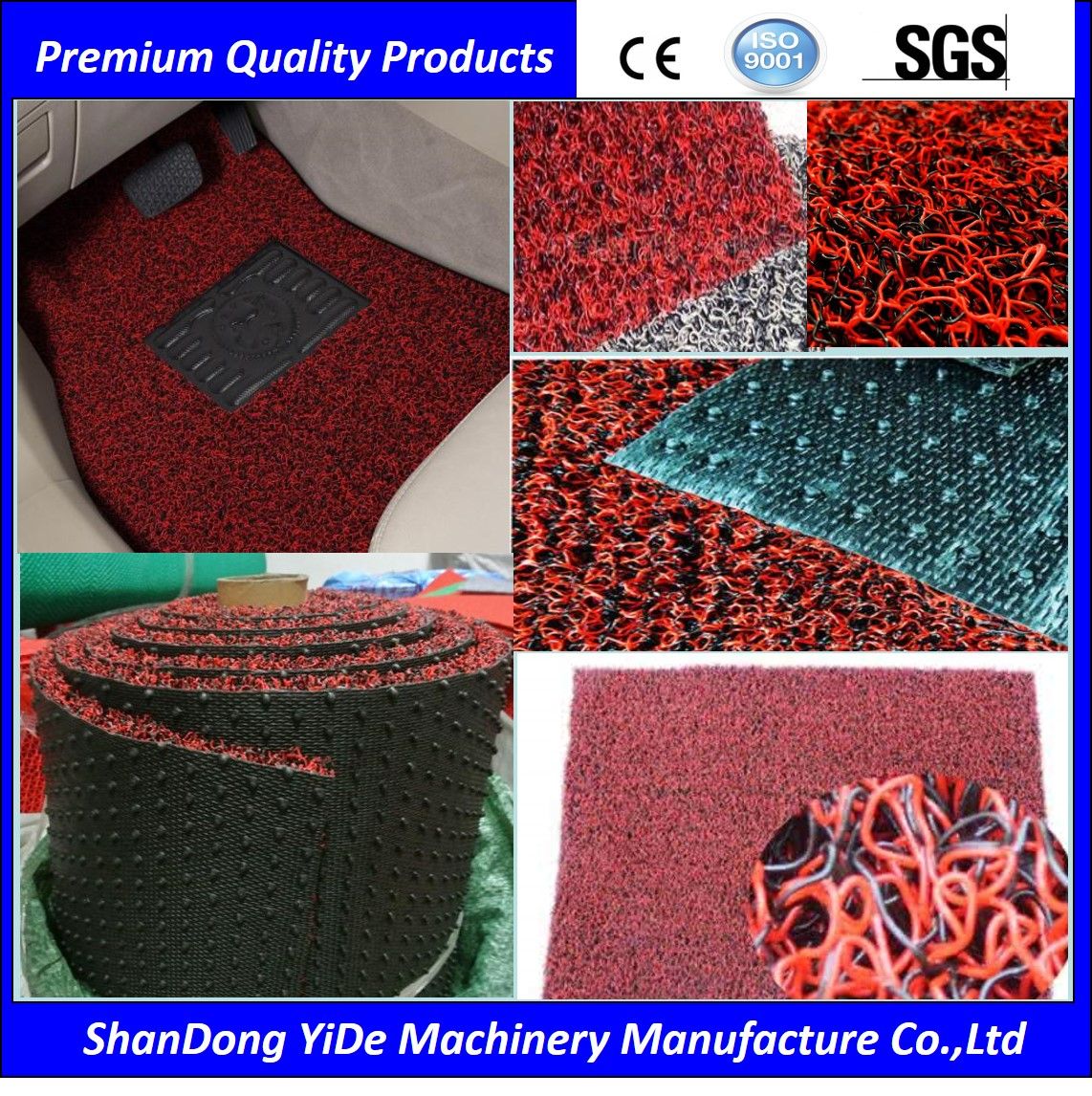

Final Products

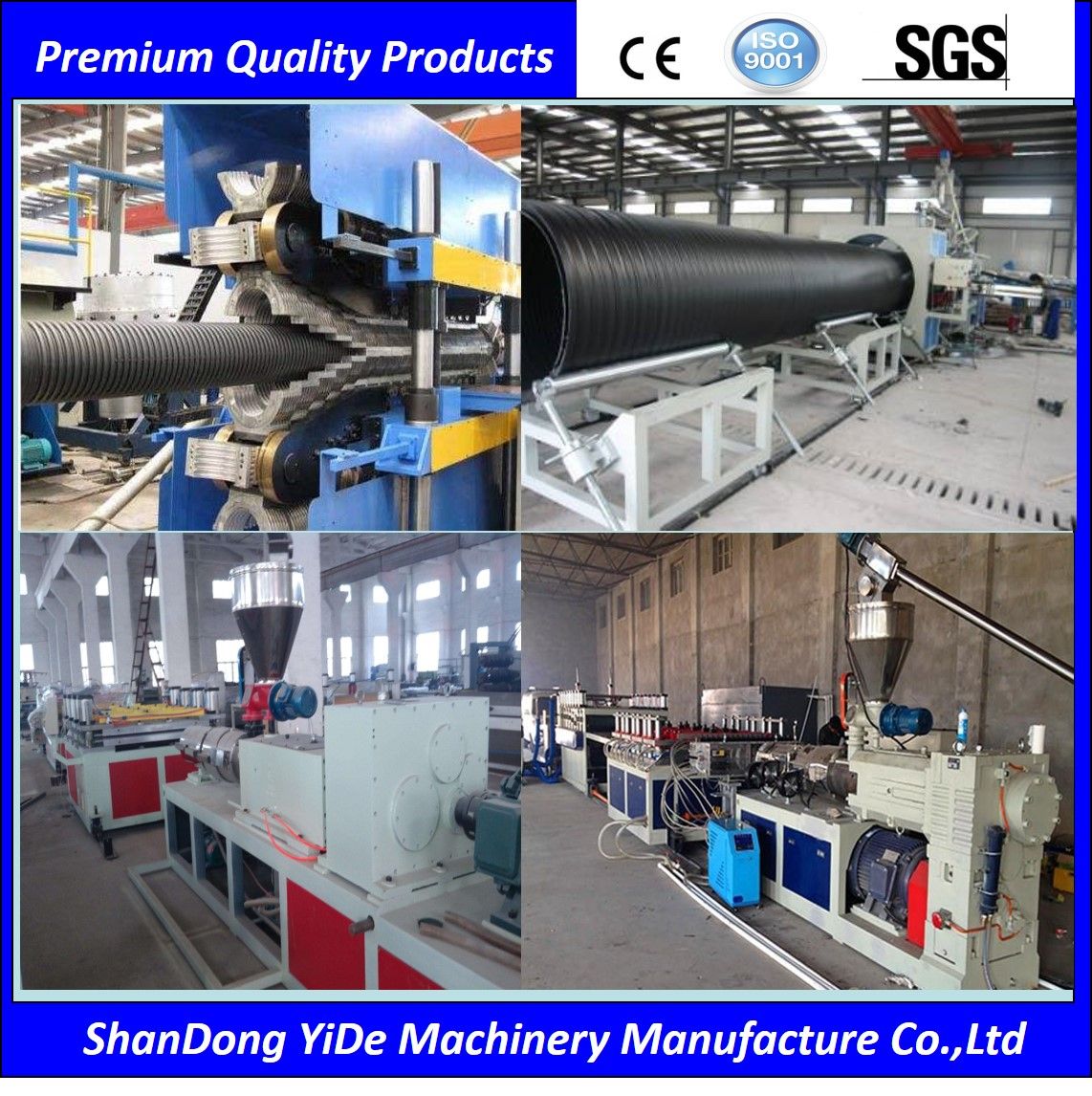

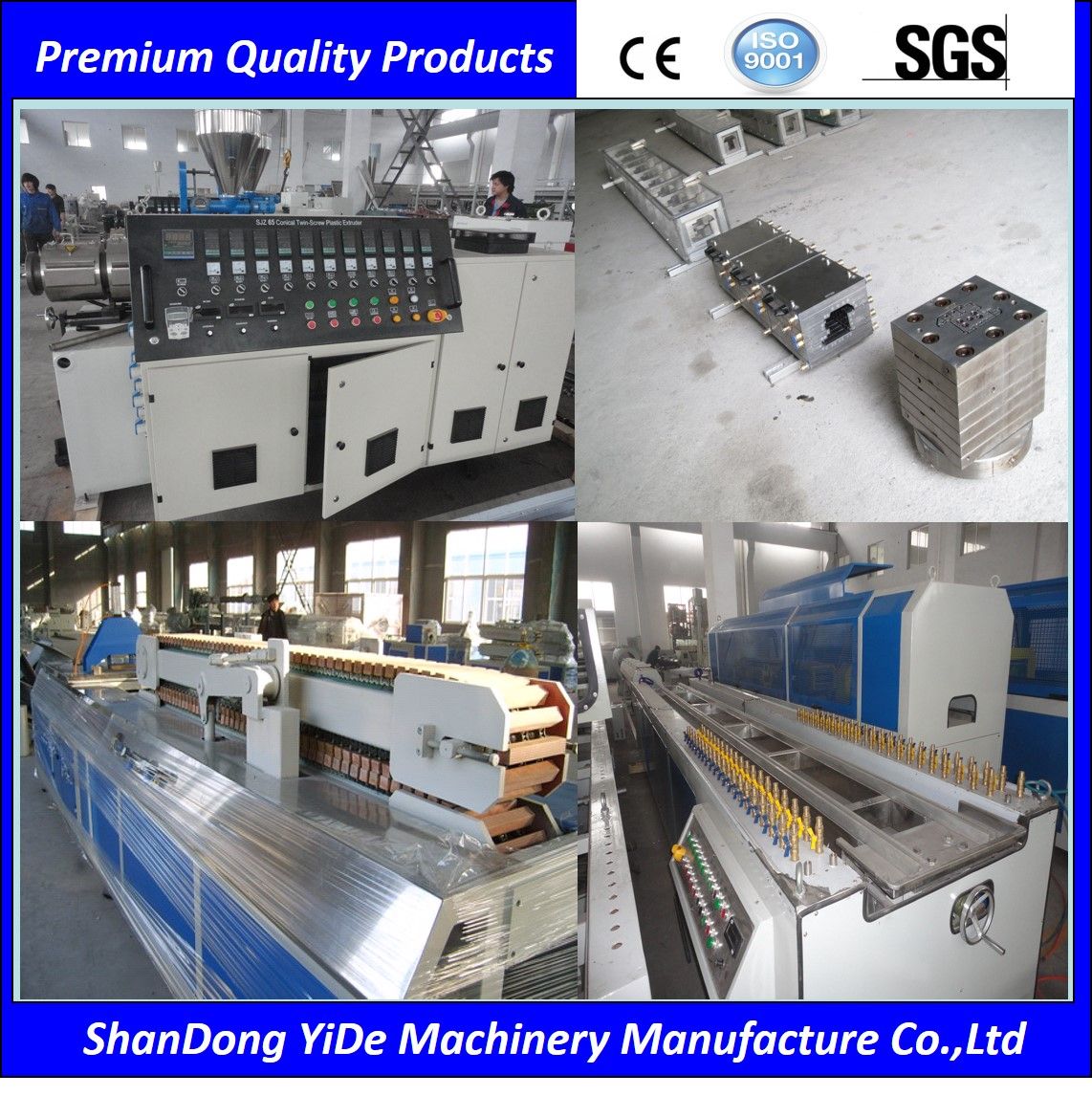

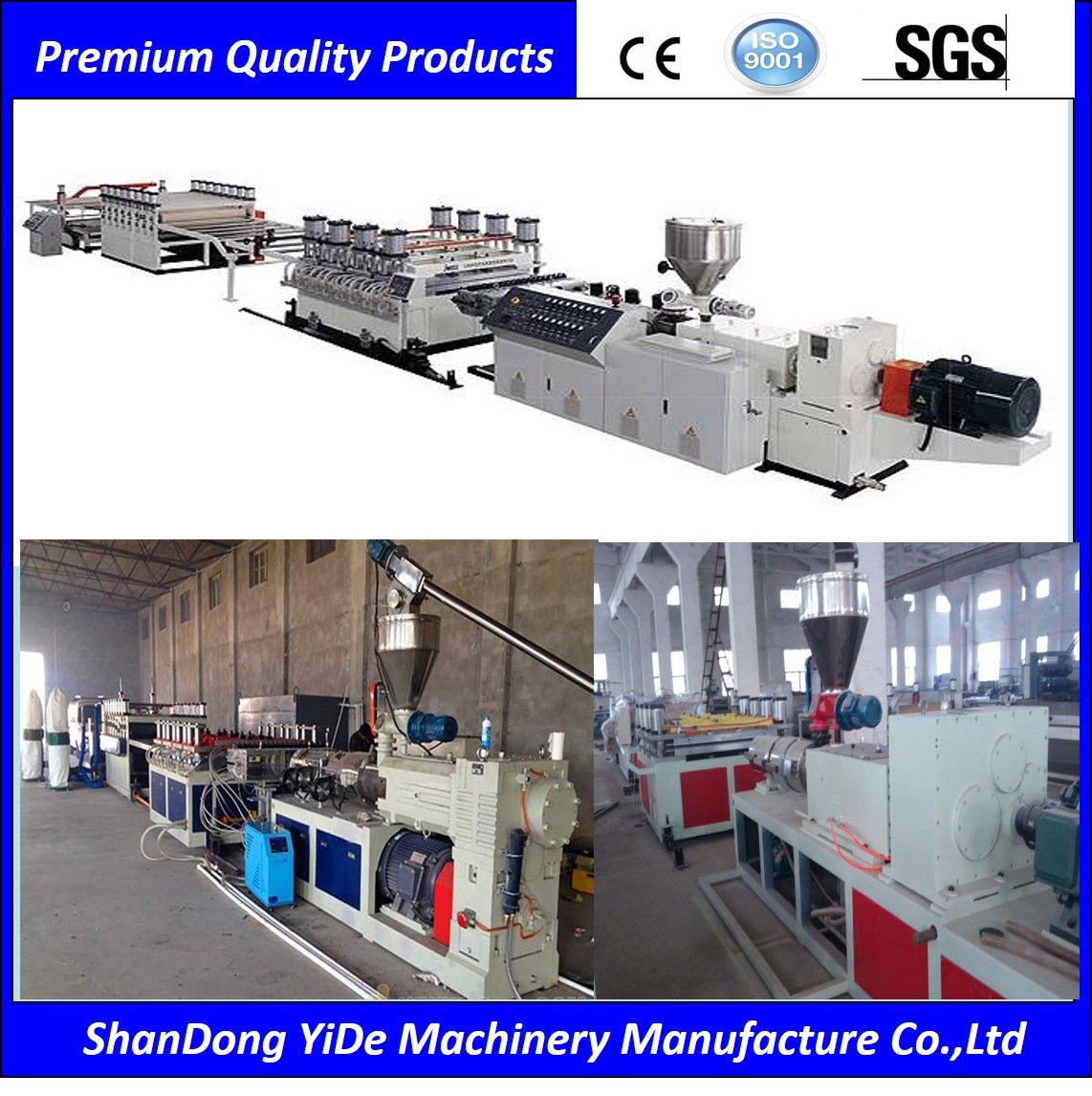

Company Main Products
Our services1. We will take responsibility to technical training to the users so that they could understand the machine features and could operate the machine by themselves.
2. The machine warranty is one year.
3. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
4. Customized servicesDelivery Time120 days after the down paymentPackingFilm and Wooden or According to customers' requestCompany IntroductionShandong YiDe machinery manufacturing co., LTD. Is a research, development, manufacturing, sales and service in one of the professional engaged in plastic machinery production and processing complete sets of equipment and various plastic pipe mold production of science and technology enterprises.
The company has always been implementing "High Quality products, fast and sincere service"Business philosophy, pay attention to the cultivation of talents, scientific research institutes in close cooperation, with strong technical force and perfect detection meas and experienced engineers and technicians and technical workers.
PLS Contact US
Shandong YiDe machinery manufacturing Co., Ltd. is a research, development, manufacturing, sales and service in one of the professional engaged in plastic machinery production and processing complete sets of equipment and various plastic pipe mold production of science and technology enterprises.
The company has always been implementing "High Quality products, fast and sincere service"Business philosophy, pay attention to the cultivation of talents, scientific research institutes in close cooperation, with strong technical force and perfect detection meas and experienced engineers and technicians and technical workers.
Main Products
1. PVC double color car floor mat extrusion line, wire coil car floor mat extrusion line, single and double color beauty spray silk carpet extrusion line, PVC non-slip mat extrusion line, PVC non-slip mat extrusion line.
2. The operating range of the company has a grinding ring machine, rolling ring machine products are D51 vertical, D52 horizontal radial, D53K horizontal axis of the three series of CNC.
3. PVC foam building board.
4. PET/PP packing belt extrusion line.
5. HDPE large diameter hollow winding pipe equipment.
6. Double wall corrugated pipe production line and other kinds of plastic extrusion profiles, pipes, plates, wood etc, unit and auxiliary equipment.
Our service
1. We will take responsibility to technical training to the users so that they could understand the machine features and could operate the machine by themselves.
2. The machine warranty is one year.
3. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
4. Customized services
