| Prod Model: |
CSP-SP1055 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

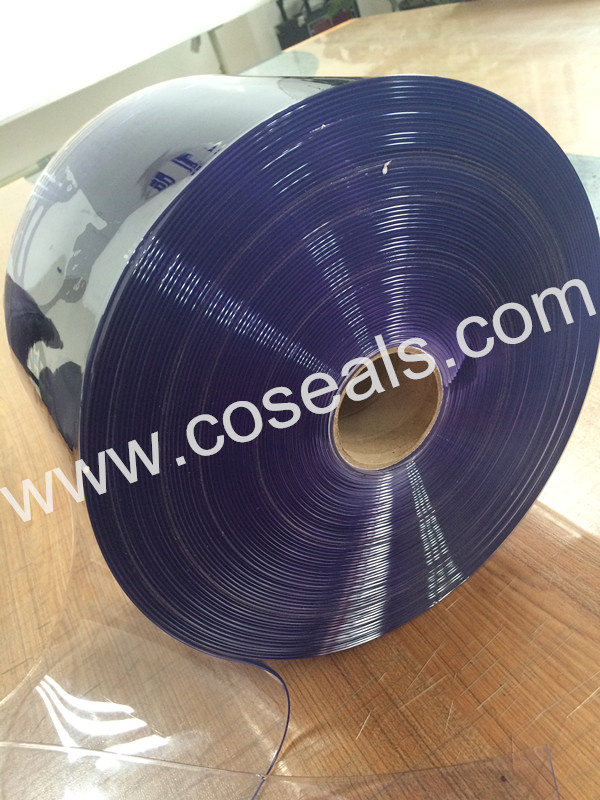

Standard PVC Strip Curtain |
| Width: |
100-400 |
| Thickness: |
1-4mm |
| Transmissivity: |
87% |
| Tensile Strength: |
19.4/18.7MPa |
| Elongation At Break: |
617% / 727% |
| Water Absorptivity: |
0.13G/Cm2 |
| Tear Strength: |
65.3kn/M; 65.10kn/M |
| Vicat Softening Temperature: |
53.0 C |
| Breakdown Voltage Short Time: |
41.5kv |
| Material: |
PVC |
Product Description
Qingdao Coseal Industry Co., Ltd. Is located in the beautiful City Qingdao China, which is one of the biggest PVC strip curtain exporter in Mainland China, is founded in 2002 with total investment of RMB20 million, the company covers a land area of 15000m2 and has 14 sheet extruding production lines. It boasts complete testing equipment, rational formulas for products and advanced technology.
Right now we are professional in following products
PVC strip curtains:
1. Standard PVC strip curtain
2. Polar PVC strip curtain
3. Anti-Static PVC curtain; Anti-Insect PVC curtain
4. Welding Screen
5. Flexible PVC sheet
1) Windows in commercial food preparation areas need to comply with the latest food and Hygiene Regulations by fitting a screen which prevents the entry of insects, birds and other infestations. Insect-Proof PVC strip curtain is an ideal solution for anywhere that insects aren't welcome. Insect proof PVC strip curtain made with a specially formulated repellent material that wards off insects. Sanitation authorities are highly concerned with the hygiene conditions of food and drug handling areas.
2) Colors
Green
3) Style
Smooth, Single Ribbed and Double Ribbed
4) Standard Sizes
2mmX200mmX50m; 2mmX300mmX50m;
3mmX200mmX50m; 3mmX300mmX50m; 3mmX400mmX50m
4mmX300mmX50m; 4mmX400mmX50m
| Performance Text | Standard Clear Formula | Cold Formula | Super Polar Curtain | Unit |
| Softness A Hardness | 75+-5 | 65+-5 | 65+-5 | / |
| Brittle Point | Approx -35 | Approx -45 | Approx -45 | Degress C |
| Falling Ball Test | -20 No Break | -40 No Break | -50 No Break | Degress C |
| Flexibility | -20 No Break | -40 Bo Break | -50 No Break | Degress C |
| Water Absorption | 0.20% | 0.20% | 0.20% | % |
| Tensile Stress | 340 | 420 | 420 | % |
| Rupture Resistance | >5 | >2 | >2 | N/mm |
| Reaction to fire | Self-Extinguishing | Self-Extinguishing | Self-Extinguishing | 0 |
| Flammability | Inflammable | Inflammable | Inflammable | 0 |
| Airborne Insulation | ~35dB | ~35dB | ~35dB | 0 |
| Light Transmission | >80 | >80 | >80 | |
