| Prod Model: |
Q326EA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Productivity: |
0.6-1.2 T/H |
| Outline Dimesion: |
1500*1880*3900 Mm |
| Feeding Amount: |
200 Kg |
| Maximum Weight Of Single Piece: |
10 Kg |
| Diameter Of End Disk: |
650 Mm |
| Effective Volume: |
0.15 M³ |
| Abrasive Flow Rate: |
120 Kg/Min |
| Ventilation Capacity: |
2000 M³/H |
| Power Consumption: |
12.6 Kw |
| Machine Type: |
Abrator |
| Certification: |
SGS and BV, ISO |
Product Description
FEATURES:

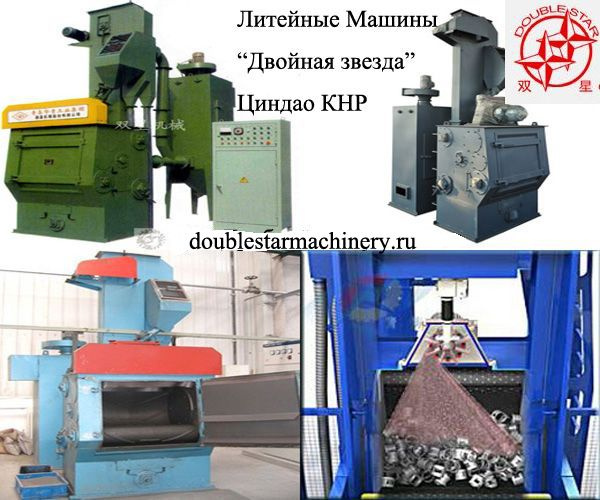

The machine adopts the endless rubber belt or metal belt apron to from a special barrel, to make the work pieces tumble continuously during shot blasting process. It is mainly used in forging work pieces and metal work pieces. The machine can be used not only as as single machine, but also as a part of a line.
WORK PRINCIPLE:
1. Take advantage of the high-speEd rotating impeller, throw steel shot/pill on metal parts surface to achieve derusting, to get metal parts internal molecular arrangement dislocation, reinforce metal parts resistance to fatigue strength.
2. The machine adopts the endless rubber track/metal track apron, three root to form a special barrel, can roll, to make the metal parts tumble continuously during shot blasting process. The machine has auto-loading device. Cleaing over, the barrel can reversal, the meta parts were unloaded.
COMPONENT:
Auto-loading device, Shot blasting system, Bucket elevator, Seperator, Screw conveyor, Dust collect, Electrical control system
COMPANY ADVANTAGE:
1. Listed company.
2. State-owned holding company.
3. There are more than 1, 000 employees, 398 technical personnel.
4. Annual production is capacity can reach $100 million
5. Largest production&export base for foundry machinery in China, varieties of machines, advanced technology and goo quality.
OUR PRODUCT:
We offer all kinds of
1. Shot blasting equipments;
2. Green sand preparation equipments;
3. Selfhardening sand preparation equipments;
V-process molding equipments.
|
No. |
item\type |
Q326EA |
Q3210C |
QR3210 |
Q3220 |
Q15GL |
Q18GL |
|
1 |
productivity |
t/h |
0.6-1.2 |
3.0-5 |
2-2.2 |
4.0-5 |
5.0-8 |
1214 |
|
2 |
feeding amount |
kg |
200 |
800 |
600 |
1200 |
1350 |
3500 |
|
3 |
maximum weight of single piece |
kg |
10 |
150 |
30 |
50 |
250 |
360 |
|
4 |
diameter of end disk |
mm |
Φ650 |
Φ1000 |
Φ1000 |
Φ1000 |
Φ1092 |
Φ1245 |
|
5 |
effective volume |
m³ |
0.15 |
0.4 |
0.3 |
0.6 |
0.43 |
0.79 |
|
6 |
abrasive flow rate |
kg/min |
120 |
250 |
250 |
2*250 |
480 |
2*350 |
|
7 |
ventilation capacity |
m³/h |
2000 |
6000 |
3500 |
8000 |
5000 |
6000 |
|
8 |
power consumption |
kw |
12.6 |
32.6 |
24.3 |
53 |
52 |
44 |
|
9 |
outline dimesion |
mm |
1500*1880*3900 |
3644*2926*5856 |
3976*2600*4768 |
7200*3500*5800 |
3844*2928*5856 |
3500*4700*6200 |
|
10 |
track type |
|
rubber |
metal |
rubber |
rubber |
metal |
metal |
|
The above parameters for reference only, can according to the customer request configuration. |
Qingdao Doublestar Intelligent Foundry Equipment Co., Ltd. (previous Qingdao Doublestar Foundry Machinery Co., Ltd) is a subsidiary company of Doublestar Group. We are the manufature & export base for foundry machinery, which owns varieties of machines, advanced technology.
Our company has totally over 1000 employees, and 398 of them are professional engineers and technicians. Annual production capacity is about 600 million RMB. Our company has become a comprehensive machinery enterprise, professionalizing in research and design, manufacturing, installation, commissioning and consulting service.
