| Prod Model: |
W-0007636 |
| Colour: |
Red Black Primary Colour |
| Apertue: |
0.7mm-100mm |
| Width: |
0.5m-5m |
| Length: |
1m-50m |
| Material: |
Steel Wire |
| Application: |
Cages |
| Hole Shape: |
Square |
| Weave Technique: |
Plain Weave |
| Weave Method: |
Flat-Topped Curved |
| Packing: |
Pallet |
| Certification: |
CE |
| Wire Diameter: |
0.2mm-30mm |
| Color: |
Black, Red, White, etc. |
Product Description

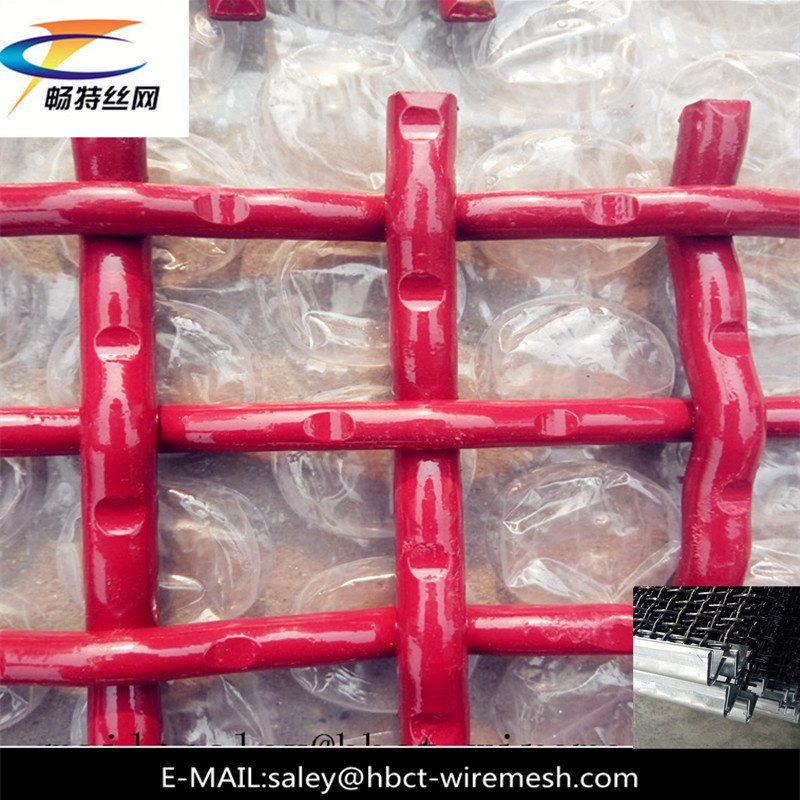

Crimped wire mesh is widely used in industry for filtration, separation, crushing, grading, sizing and shifting. It is applicable for a variety of materials, ranging from minerals, stones and ores. Due to its rigid design and excellent protection against abrasions, it is highly suitable for processing heavy abrasive materials like crushed stones, sand and gravel coal.
Material:
- Carbon steel wire(high carbon steel,middle carbon steel,low-carbon steel)
- Stainless steel wire (302,304,304L,316,316L)
- Galvanized wire copper
- Copper wire
Features:
- Heavy duty design-
- Tough structure
- Corrosion resistant
- Abrasion resistant
- Wear proof
Applications:
- Mining industry
- coal factory
- quarry
- sieving
- grading
- separating screening materals
Used for:

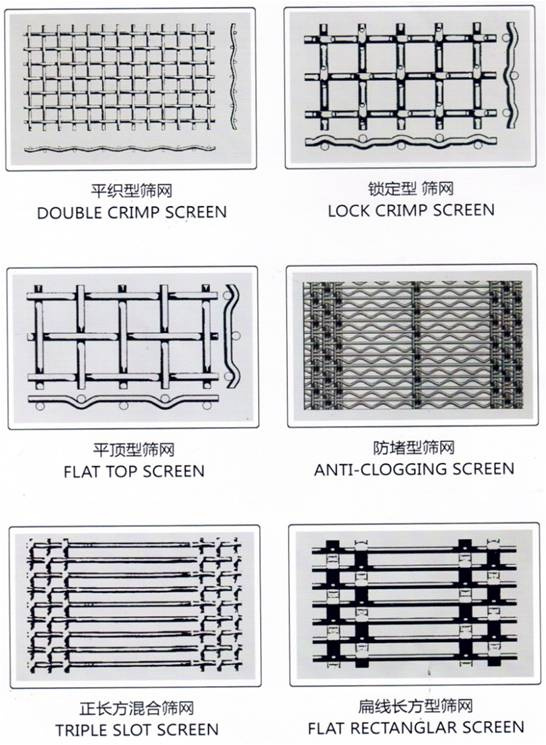

Weaving Types:

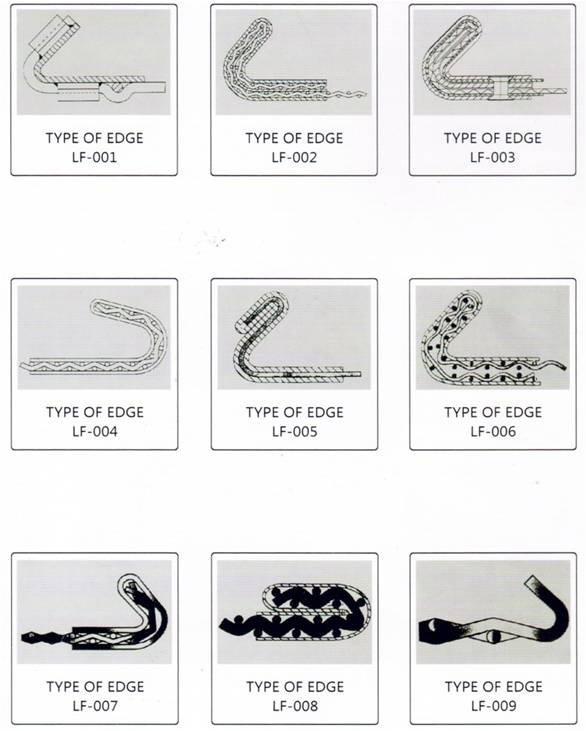

Egdy Types:
Packing:
- rolls/panels wrapped with waterproof paper then covered with hessian-cloth .
- water-proof paper and wooden pallet/box
- according to request.
| Item | Wire diameter
Mm | Open size
Mm | Width
M | Length
M | Weight
Kg |
| 1 | 2 | 3 | 1.5 | 2 | 32 |
| 2 | 3 | 5 | 1.5 | 2 | 42.6 |
| 3 | 4 | 8 | 1.5 | 2 | 51.13 |
| 4 | 4.5 | 12 | 1.5 | 2 | 46.77 |
| 5 | 5 | 16 | 1.5 | 2 | 45.52 |
| 6 | 5.5 | 18 | 1.5 | 2 | 49.37 |
| 7 | 6 | 20 | 1.5 | 2 | 52.7 |
| 8 | 6 | 22 | 1.5 | 2 | 48.96 |
| 9 | 6.5 | 24 | 1.5 | 2 | 52.87 |
| 10 | 6.5 | 27 | 1.5 | 2 | 48.12 |
| 11 | 7 | 30 | 1.5 | 2 | 50.63 |
| 12 | 8 | 50 | 1.5 | 2 | 42.29 |
| 13 | 12 | 75 | 1.5 | 2 | 64 |
Our woven wire mesh is manufactured with a stringent wire opening tolerance of ±3%.Wire diameter is available in the industrys largest variety of wire diameters from .047 inches(1.2mm) to .750 inches(19 mm) and open size from .125 inches (3.18mm)to 5 inches (127mm)
The weaving process is also crucial .Each screen is woven with an extremely tight tolerance to any type of movenment within the crimp or weave, preventing the wires from rubbing against each other and wearing prematurely during use.Thus a tight weave is produced every time,and the tighter the weave,the more durable the woven wire. So you get the strongest screen media poaaible every time you order.
Hebei Changte Wire Mesh Manufacturing Co., Ltd is located in Anping, the famous Wire Mesh Land of China. Established in 2000, today Changte has developed to be a major company who equipped with more than 200 sets wire mesh production machines, and engaged in various of wire mesh products'sale and production.
Our factory has advanced equipments, skilled workers, complete quality management system, strong R&D capability. With choice materials, we are mainly manufacture Crimped wire mesh, Woven wire mesh, Filter screen mesh, Self cleaning screen mesh, Square wire mesh, Gabion wire mesh, Wire mesh fence, Razor barbed wire etc.
As our company is growing day by day, the list of clients is also increasing and today; We have marked a niche in not only domestic but also in international market. With our internationally certified products, we have revolutionized the global market place.
Our clients are spread across the corners of world, recommending our products for their durability, designing accuracy, dimensional tolerance and adaptability to work under adverse conditions.
For export, utmost attention is paid towards packaging of the products in order to protect them from damage, scratches and dents during the transit.
Today, we are exporting our products to some of the major international markets that are as follows:
UAE
Bahrain
Kuwait
USA
Australia
New Zealand
Jordan
Dubai
South
Zambia
Ivory Coast
Japan
Russia
South Africa
Germany
We adopt to the win-win cooperation model and Set up customer-oriented concept.
If there is anything we can do for you, please send your inquiry. We will try our best to help you. Welcome to visit our factory.
