| Prod Model: |
RFC |
| Certificate: |
ISO9001 |
| Warranty: |
1 Year |
| Driving System: |
Pneumatic |
| Capacity: |
30-40bpm |
| Function: |
Filling and Capping |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Automatic |
| Material Type: |
Liquid |
| Filling Valve Head: |
Multi-Head |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Dosing Device: |
Surface Type |
| Filling Principle: |
Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Rotary |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
Product Description

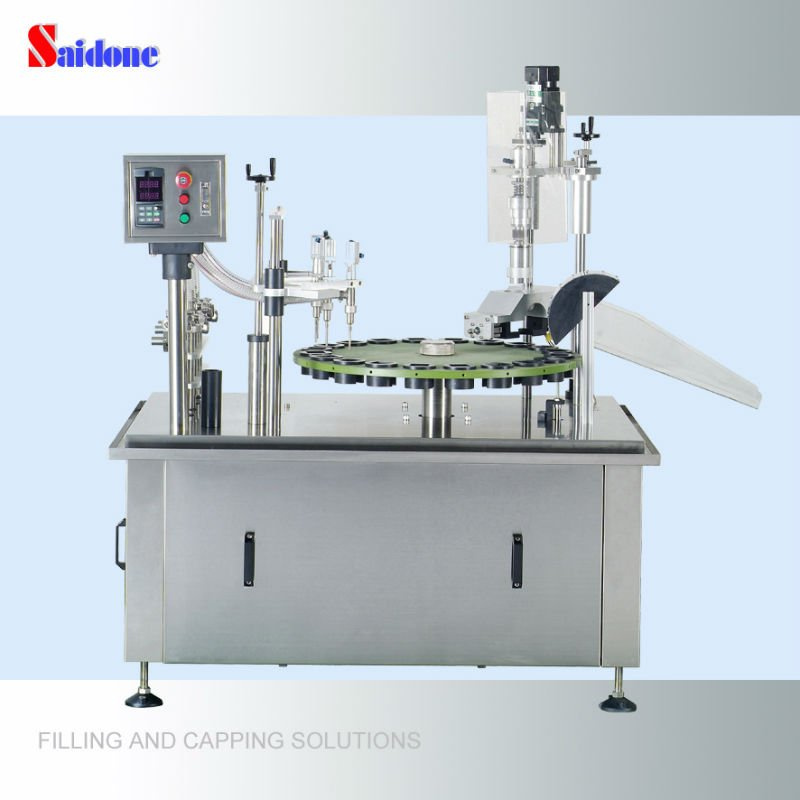

Our automatic rotary turnplate filling & capping machines are suitable for filling water-thin to medium thick products, such as liquid medicine, toner, perm lotion, air freshener, skin care, etc. They are featured with compact configuration, small area occupied, nice appearance, easy adjustment and wide applicability, which make them can be widely used in the pharmaceutical, pesticide, daily chemical, food or other industries.
In these series, the filling and capping actions are driven by accurate mechanical transmission, which can guarantee the quality of the products effectively. All the work stations, including filling, capping are equipped around one turnplate, thus both the working space and the operators needed can be greatly reduced. The automatic and uninterrupted producing mode can help to guarantee the production volume you need. We choose good material and parts to assemble our machines. All the parts come in touch with the products are made of food grade stainless steel imported, and all the pneumatic and electrical parts are known brand products from Germany, Japan or Taiwan. It is the innovation design and the good quality parts that ensure these series of machines occupy the leading position absolutely in the domestic market of liquid packaging.
Our Rotary Turnplate Filling and Capping Machine especially suits for producing various kinds of products in small batches of production.
--Diving nozzles for bottom up filling of foaming products;
--CIP system for clean on line;
--Turn valve for thick products;
Technical Specifications:
Filling volume: Maximum 1000ml
Filling accuracy: ± 0.5%
Capacity: 40-60 bottle per minute
Type: Capping Machine, General, Packing Machine
Condition: New
Application: daily chemical
Driven Type: Mechanical
Automatic Grade: Automatic
Packaging Type: Bottles
Packaging Material: Wooden Box
Place of Origin: Shanghai, China (Mainland)
Brand Name: Saidone
Model Number: RFC Series
Quality Management System:ISO9001:2008
On-site Management System: 5S
Packaging & Delivery
| Packaging Details: | Wooden Box |
|---|
| Delivery Detail: | 40 |
|---|
We can also customize machinery according to your requirements.
Our company established in 1999, is specialized in manufacturing and trading packaging machines. Saidone's products, including fillers, cappers, foil cap sealers, ink-jets, labelers, turn tables and conveyors, etc., can be found in cosmetic, pesticide, chemical, oil, food, pharmaceutical industries.
We have rich experience in fluid packaging. No matter your product is liquid or cream, rich foaming or corrosive, we will supply you the most reasonable solutions.
We've been in constant quest of innovation and improvement since our establishment and try to make all our machines featured with advanced techniques and new functions. All Saidone's machines are processed and assembled with very good components and materials purchased from known manufacturers worldwide. We adopt ISO9001: 2008 quality management system and 5S on-site management, therefore, the performance and lead time of our machines could be effectively guaranteed.
With more than 10 years of development, Saidone has accumulated thousands of clients, earned very good public praise in the relevant industries, and been awarded 'Excellent Machinery Supplier', 'Packaging Innovation' Prizes for several times. We are serving for a lot of famous companies, including P&G, Unilever, Shanghai Johnson, CPCC, Bayer, BASF, 3M, Shanghai Pharmaceutical Group, etc. Our machines are exported to mores than 50 countries all over the world and are well reputed.
Our products featuring advanced quality, affordable price would be your ideal choice and we sincerely hope to serve and help the clients worldwide.
