| Prod Model: |
BRH |
| Material: |
Satinless Steel 304 or 316 |
| Capacity: |
50L-5000L |
| Certificate: |
Ce |
| Power: |
1.1-75kw |
| Voltage: |
Can Be Design |
| Mixer Type: |
Homogenizer |
| Working: |
Diffusion Mixer |
| Application: |
Liquid |
| Additional Capabilities: |
Granulating |
Product Description
Specifications
High shear Mixer for sanitary and industrial use

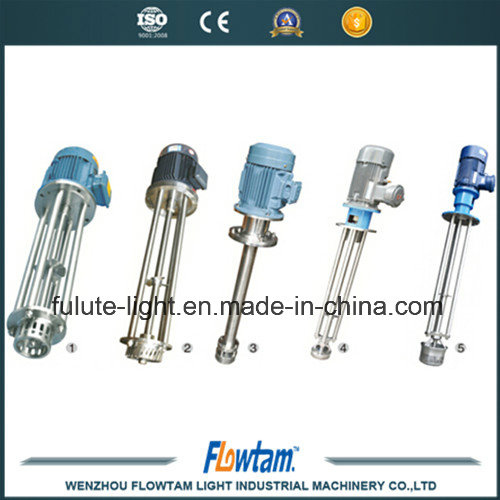

Various High shear Mixer head available
Workmethod: Shear mixer in high speed
Product Name:
High shear Mixer (Batch type)
Working Method:
High shear Mixer (Batch type) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. High shear Mixer could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The mixer consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different High shear Mixer stators to suit different working condition.
Features of High shear Mixer
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase
| Model | Power(kw) | Speed(RPM) | Length(mm) | Capacity(L) |
| BRH-80 | 1.1 | 2800 | 350 | 10-40 |
| BRH-90 | 1.5 | 2800 | 350 | 10-50 |
| BRH-100 | 2.2 | 2800 | 650 | 50-100 |
| BRH-120 | 3 | 2800 | 750 | 100-200 |
| BRH-120A | 4 | 2800 | 750 | 100-300 |
| BRH-140 | 5.5 | 2800 | 900 | 200-600 |
| BRH-140A | 7.5 | 2800 | 900 | 200-800 |
| BRH-160 | 11 | 2800 | 1050 | 500-1500 |
| BRH-180 | 18.5 | 2800 | 1200 | 600-2000 |
| BRH-200 | 22 | 2800 | 1200 | 800-2500 |
| BRH-220 | 30 | 1400 | 1355 | 1000-3500 |
| BRH-240 | 45 | 1400 | 1395 | 1500-5000 |
| BRH-270 | 55 | 1400 | 1600 | 2000-8000 |
| BRH-290 | 75 | 1400 | 1650 | 3000-10000 |
Wenzhou Flowtam Light Industry Machinery Co., Ltd. Established in 1995, Located in BinHai Industrial Zone. With 17 year manufacturing experience. We have a product range incluing Stainless steel tank, Stainless steel pumps, Stainless steel valves and pipe fitting.
Our products are mainly applied in the fields like dairy, food, beer, medicine, biology, chemical, beverage, food and cosmetics industries etc.
In 2012, Our mixing pump have been approved by CE certificate. Form our frist export transaction in 2006, We have sold our products in many foreign countries, such as USA, Newzealand, Australia, Indonesia etc.
