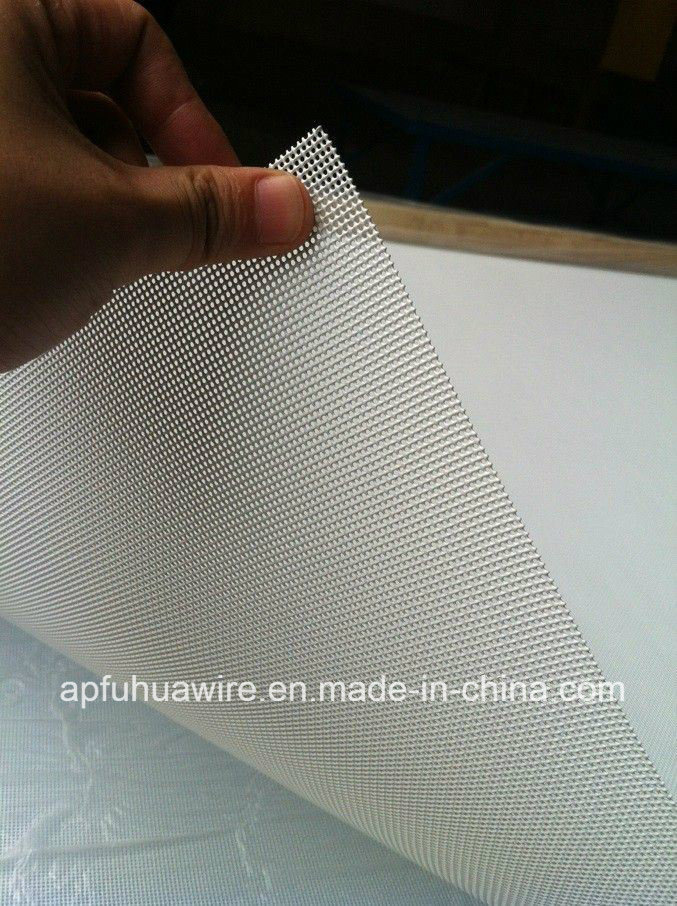

Name: Screen Mesh Window Screen Netting Curtain Mesh Anti Mosquitos Netting
Brand: FullPackage
SKU: 709201452
Availability: InStock
Rating: 4.6 (120 reviews)

Price:	US $ 30-60/Square Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Square Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	11mesh
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
750mm*2000mm:	1500mm*3000mm
Material:	SUS316
Hole Shape:	Square
Application:	Window Curtain
Type:	Stainless Steel Plain Wire Mesh
Material Type:	Stainless Steel Wire
Weave Technique:	Plain Weave
Wire Mesh Width:	1m
Technique:	Woven
Nickels:	8%
Certification:	ISO9001

Product Description

Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common, but other are used in specific applications to take advantage of each grade's unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.
Wire Materials: SUS302, 304, 316, 304L, 316L.
Characteristics: Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .
Typical Weaving Patterns: Plain weave, twill weave, dutch weave.
General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Stainless Steel Wire Mesh and Wire Cloth, Plain Weave
Mesh	Wire Dia. (MM)	Opening (MM)	Material (AISI)
7meshx7mesh	1.00	2.63	304 or316
10meshx10mesh	0.60	1.94	304 or316
12meshx12mesh	0.50	1.62	304 or316
16meshx16mesh	0.40	1.19	304 or316
16meshx16mesh	0.35	1.24	304 or316
18meshx18mesh	0.35	1.06	304 or316
20meshx20mesh	0.40	0.87	304 or316
24meshx24mesh	0.26	0.80	304 or316
30meshx30mesh	0.30	0.55	304 or316
35meshx35mesh	0.17	0.56	304 or316
40meshx40mesh	0.23	0.40	304 or316
50meshx50mesh	0.20	0.31	304 or316
60meshx60mesh	0.15	0.27	304 or316
70meshx70mesh	0.12	0.24	304 or316
80meshx80mesh	0.13	0.19	304 or316
90meshx90mesh	0.12	0.16	304 or316
100meshx100mesh	0.10	0.15	304 or316
120meshx120mesh	0.09	0.12	304 or316
150meshx150mesh	0.063	0.11	304 or316
180meshx180mesh	0.053	0.09	304 or316
200meshx200mesh	0.053	0.07	304 or316

Stainless Steel Wire Mesh and Wire Cloth, Twill Weave
Mesh	Wire Dia. (MM)	Opening (MM)	Material (AISI)
250meshx250mesh	0.040	0.063	316
300meshx300mesh	0.040	0.044	316
325meshx325mesh	0.035	0.043	316L
350meshx350mesh	0.030	0.042	316L
400meshx400mesh	0.030	0.033	316L
450meshx450mesh	0.028	0.028	316L
500meshx500mesh	0.025	0.026	316L

Stainless Steel Wire Cloth, Dutch Weave
Mesh	Wire Dia. (MM)	Material (AISI)
12mesh x 64mesh	0.58 x 0.40	304 or 316
24mesh x 110mesh	0.36 x 0.25	304 or 316
14mesh x 88mesh	0.50 x 0.33	304 or 316
30mesh x 150mesh	0.23 x 0.18	304 or 316
40mesh x 200mesh	0.18 x 0.13	304 or 316
50mesh x 250mesh	0.14 x 0.11	304 or 316
80mesh x 700mesh	0.10 x 0.08	304 or 316
165mesh x 800mesh	0.071 x 0.040	304 or 316
165mesh x 1400mesh	0.06 x 0.04	304 or 316
200mesh x 1800mesh	0.05 x 0.032	304 or 316
825mesh x 2300mesh	0.035 x 0.025	316L
400mesh x 2800mesh	0.030 x 0.02	316L

Width of Stainless Steel Wire Mesh: 0.6m-1.5m

Anping fuhua wire mesh making Co., Ltd was established in 1988, It is on northeast of jingsan road, east zone of industrial, anping county, the traffic hereis very convenient, from our establishing 20 years, wedeveloped to a groupe, one after the other, established hebei fuhua wan-shixing hardware and wire mesh products Co., Ltd, shijiazhuang fuhua shengda trade company Ltd, and running a office in foreign country, directly meet with customer, giving customer best help.

Our company owns 100 sets of weaving machines and razou barbed wire making machines, we produce various sizes of razor barbed wire, aluminum alloy wire netting, galvanized iron wire netting, stainless steel wire netting, fiberglass wire netting, welded wire netting etc. Our product mainly export to many countrirs and districts of Europe, America, aiddle east, southeast Asia, Africa and so on, these products enjoy the nice and trust from all of our customers wordwidely.

Anping fuhua wire mesh making Co., Ltd sincerely hope to make nice business cooperation with new and existing customers based on mutual benefits and develop our nice future together.
