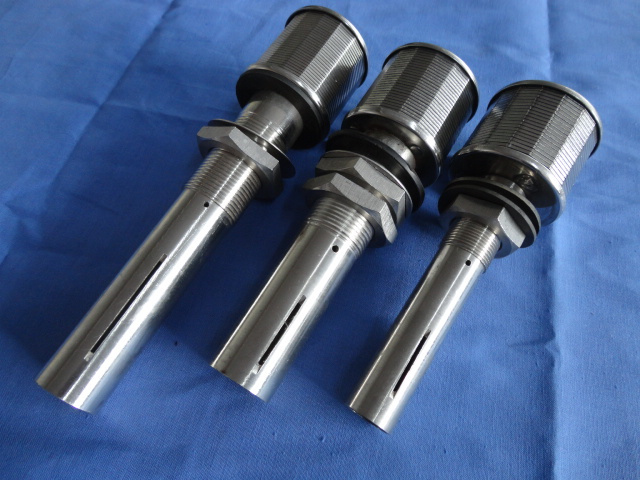

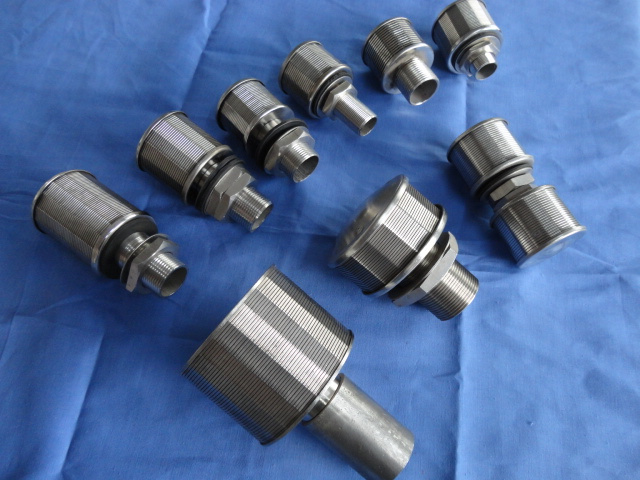

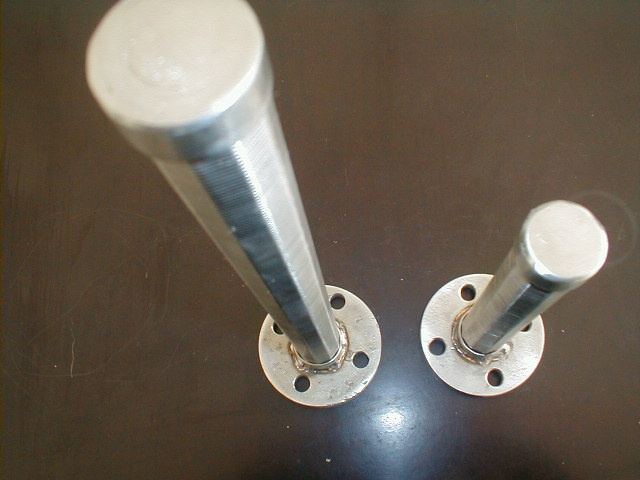

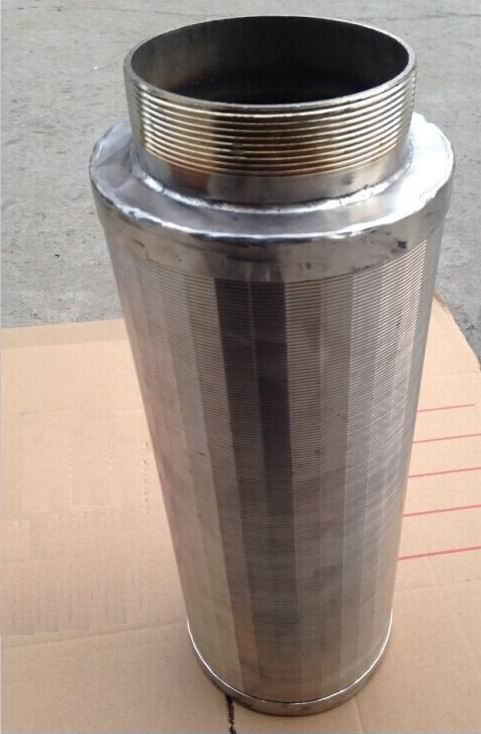

Screen Nozzle / Water and Gas Strainer
| Price: |
US $ 4/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
XL-FY052 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
Dn 45-108m |
| Slot: |
0.2-0.25 |
| End Connection: |
Welded Ring, M&F, Flange |
| Flow: |
Fito, Foti |
| Usage: |
Solid Filter |
| Type: |
Filter Cylinder |
| Material: |
Metal |
| Hole Shape: |
Square |
Product Description
XINLU WIRE MESH PRODUCTS CO.,LTD RESIN TRAPS
Xinlu Wire Mesh Products Co,.Ltd Screens resin traps feature a continuous slot design that prevents the loss of ion exchange resin, activated carbon media, filter media, greensand media, sand and other media. Not only is this essential to prevent the loss of expensive material, but it's also critical to avoid damaging downstream equipment.
However, this safety precaution will not diminish flow. Xinlu Wire Mesh Products Co,.Ltd Screens can manufacture resin traps to guard against your exact media particle size while also providing the flow rate your system requires.
Reliable, durable and extremely low maintenance, the non-clogging, continuous slot design allows for a large amount of open area with extremely consistent spacing. Xinlu Wire Mesh Products Co,.Ltd Screens can manufacture resin traps in a wide variety of materials and sizes to suit your application needs.
|
Type |
DiameterD |
L |
L1 |
Slot |
Thread |
Open area |
|
FYN1 |
45 |
98 |
34 |
0.2-0.25 |
M20 |
380-493 |
|
FYN2 |
45 |
100 |
34 |
0.2-0.25 |
M24 |
551-690 |
|
FYN3 |
53 |
100 |
34 |
0.2-0.25 |
M24 |
453-597 |
|
FYN4 |
53 |
100 |
50 |
0.2-0.25 |
M27 |
680-710 |
|
FYN5 |
53 |
105 |
34 |
0.2-0.25 |
M32 |
800-920 |
|
FYN6 |
57 |
115 |
35 |
0.2-0.25 |
M30 |
560-670 |
|
FYN7 |
57 |
120 |
55 |
0.2-0.25 |
M32 |
780-905 |
|
FYN8 |
60 |
120 |
55 |
0.2-0.25 |
G1″ |
905-1100 |
|
FYN9 |
82 |
130 |
50 |
0.2-0.25 |
M33 |
1170-1280 |
|
FYN10 |
108 |
200 |
100 |
0.2-0.25 |
G2″ |
3050-4600 |
Anping County Xinlu Wire Mesh Products Co., Ltd, . Is located in Anping county which well known of "The hometown of wire mesh in China", emerged from Anping mine screen mesh factory in 1994 with a founding of 1.5 million RMB. It has a comparatively long history, a large scale production rate, and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.
Our company produce and sell as following: Johnson specialty screens, Water well screen, Wedge wire screen, Wedge wire slot tube, Wire wrap screens, Strainer pipe, Spiral screen tube, Rod based continuous slot screen pipe, Wire-wrap screen pipe, Mine screen mesh, Screen cylinders, Oil screen tube, Drilling well screen, Reverse rolled screen tube, V-ee wire screen, screen cylinders, sand control well screen, water filter, screen nozzle, water & gas strainer, filter element, stainless steel screen, low carbon steel screens, welded wedge wire screens, screen filter, rotary filter, various kinds of ore screen meshes, sieve bend, arc screen, wire wrapped panel, flat wedge wire panel, vibrating sieve screen plate, wire wrapped liner, johnson scren plate, continuous slot screens, Gabions, chain link fence, fence netting, welded wire mesh, stainless steel wire mesh, Galvanized wire, Galvanized wire mesh, crimped wire mesh and wire mesh, Mesh belt conveyor, Window Screening Series, Metal jewelry products and so on. The products are used in drilling well / pump, the trades, such as ore choosing, petroleum, chemical industry, electron, transportation, plastics, food, architecture, traffic, Musical Instruments, safety, etc. Our products can be seen everywhere in China, as well as African countries, Middle East and the regions of Southeast Asia.
