Seamless Underwear Circular Marking Machine

Name: Seamless Underwear Circular Marking Machine
Brand: FullPackage
SKU: 752040285
Availability: InStock
Rating: 4.3 (94 reviews)

Price:	US $ 45000/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-X12
Markets:	South America,Africa,Mid East
Cylinder Diameter:	13" 14" 15" 16" 17"
Type:	Circular
Knitting Product Type:	Underwear
Knitting Style:	Warp
Knitting Method:	Single
Computerized:	Computerized
Certification:	ISO9001: 2000
Condition:	New
Needle Style:	Jacquard

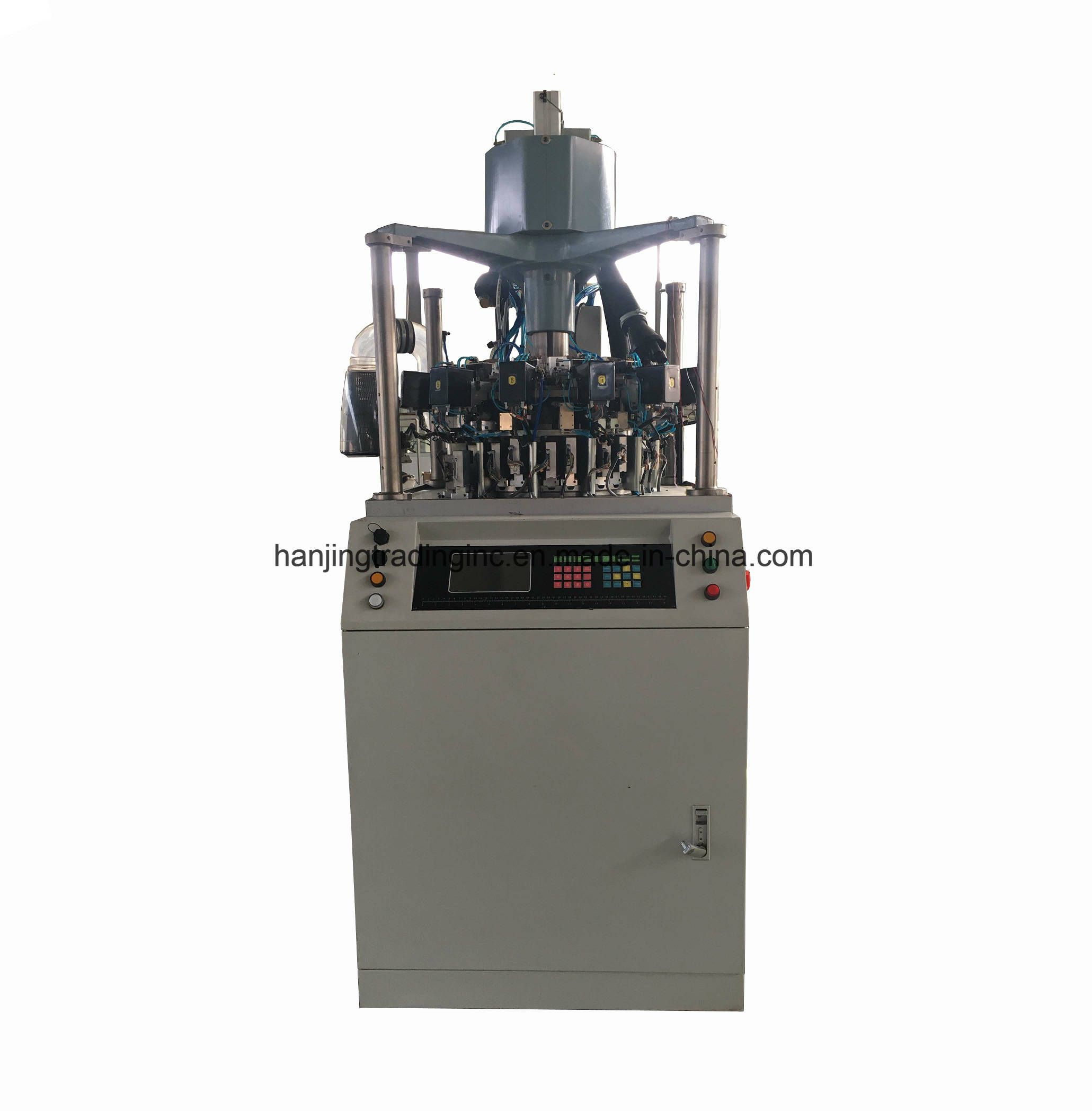

Product Description

Product Type: FS-X8(8FEED) FS-X12(12FEED)

FS-X8 Seamless underwear machine,Each is equipped with 16pcs Needle selector ; FS-X12 seamless underwear machines , each with 24pcs Needle selector ; can use natural fibers, synthetic fibers, rayon, nude spandex ,covered yarn etc,,,raw materials production single face garment, The main production of underwear , outerwear , sportswear, medical uses , such as clothing , if necessary, can also produce terry products.

FS-X8 FS-X12 series of seamless underwear machine designed from the beginning to fully study the various advantages and disadvantages of imported equipment , the integration of the characteristics of imported machinery , fully consider the needs of the market as well as on-site sampling conditions , improved conditions and optimized design features to improve product applicability , reliability and usability within .

Caliber ,machine number, parameter

Syringe Caliber Needles parameter	12"	13"	14"	15"	16"	17"
28	1056	1152	1248	1344	1440	1536
26	960	1056	1152	1248	1344	1440

Function parameters

machine number	FS-X8	FS-X12
Syringe Caliber	12" 13" 14" 15" 16" 17"
feed	8feed	12feed
speed	80rpm
needle pitch	12-32G
Needle selector	Each feed 2pcs,16pcs	24pcs
yarn feeder	Each feed 9pcs yarn feeder, Can any jacquard , can complete single multicolor knit
Yarn Clamps	4,8feed double yarn clamps, other single yarn clamps
The nose lifting	Pneumatic and jog lift
Fabric density	Stepper motor control can be realized 3D knit
Traction system	Using ventilation system conducted stretch
Yarn break induction	Using infrared sensor alarm
Yarn racks	Floor racks and top racks two parts
Lubricating	Automatic timing , quantitative refueling
Power outages technology	Support for power protection, maintaining the status quo shutdown , power continued weaving, lower defect rate
Tying technology	Using Huff knitting needles can choose single or multiple double- lined elastic waist edge organization
Terry	According to the customer's needs to increase terry function configuration ( optional )

Zhuji hanjing Trade Co., Ltd was incorporated in 2014 in Zhuji, Zhejiang, is approved by the State Administration for Industry and export-oriented enterprises.

Hanjing trade Co., Ltd., owns several knitting machinery factory, the factory main production socks knitting machinery, stocking knitting machine, seamless underwear knitting machine and machine computer control system, Needle selection device etc...At the same time, we mainly provide export agent and consulting services.

At present, our customers are all over the world. The Americas region includes Argentina, Brazil, Ecuador, and Mexico. Asia has Vietnam, India, Russia, Kazakhstan and so on. Europe Middle East, Egypt, Syria, Lebanon, Turkey and so on.
