| Prod Model: |
0.1mm-0.5mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
0.1mm-0.5mm |
| Width: |
8mm-1250mm |
| Length: |
3m-50m |
| Storage Life: |
1 Year |
| Delivery Time: |
20days |
| Application: |
Switch Baseplate |
| Type: |
Insulation Tape |
| Chemistry: |
Hybrid Insulation |
| Thermal Rating: |
Y 90 |
| Maximum Voltage: |
<10KV |
| Material: |
PVC |
| Color: |
Black Red Yellow Blue Green White |
| Brand: |
Chr |
Product Description

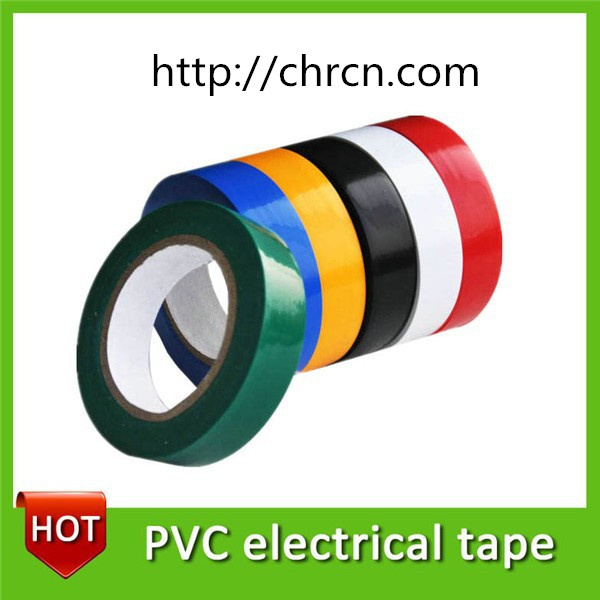

PVC adhesive tape is made by smearing rubber like pressure-sensitive adhesive on PVC film (its backing material )and mangling them ,it has the feathers of insulation ,fire-resistance, high-voltage- resistance and cold resistance. It can be used in many electronic spare parts ,automobile wires, winding wires and insulation protection.
Feature:
Excellent insulation
Good flame retardant
Excellent resistance to voltage and low temperature
Specification:
Size: 19mm X 9.14m
Log Roll: 1250mm width, length can be cut as customers' request.
Thickness: 0.13-0.2mm
Colour: Black, red, blue, grey, yellow, etc( any color can be requested)
Adhesive: 1.5(N/cm)
Tensile: 25(N/cm)
Elongation: 200%
Temperature: 80
Voltage break dowm: ≥ 40° C
Application: Used for wrapping electrical wires and cables etc.
| Code | Backing | Adhesive | Thickness (mm) | Adhesion (N/cm) | Tensile (N/cm) | Elongation (%) | Temperature (°C) | Voltage Breakdown (KV/mm) |
|
|
| 100D | PVC | rubber | 0.1 | 1.5 | 14 | 160 | 80 | ≥40 |
| 110D | PVC | rubber | 0.11 | 1.5 | 15 | 160 | 80 | ≥40 |
| 130D | PVC | rubber | 0.13 | 1.5 | 17 | 160 | 80 | ≥40 |
| 150D | PVC | rubber | 0.15 | 1.5 | 22 | 200 | 80 | ≥40 |
| 165D | PVC | rubber | 0.165 | 1.5 | 25 | 200 | 80 | ≥40 |
| 180D | PVC | rubber | 0.18 | 1.5 | 28 | 200 | 80 | ≥40 |
| 190D | PVC | rubber | 0.19 | 1.5 | 28 | 200 | 80 | ≥40 |
| 200D | PVC | rubber | 0.2 | 1.5 | 30 | 220 | 80 | ≥40 |
| 100Z | PVC | rubber | 0.1 | 1.5 | 14 | 160 | 80 | ≥40 |
| 110Z | PVC | rubber | 0.11 | 1.5 | 15 | 160 | 80 | ≥40 |
| 130Z | PVC | rubber | 0.13 | 1.5 | 17 | 160 | 80 | ≥40 |
| 150Z | PVC | rubber | 0.15 | 1.5 | 22 | 200 | 80 | ≥40 |
| 165Z | PVC | rubber | 0.165 | 1.5 | 25 | 200 | 80 | ≥40 |
| 180Z | PVC | rubber | 0.18 | 1.5 | 28 | 200 | 80 | ≥40 |
| 190Z | PVC | rubber | 0.19 | 1.5 | 28 | 200 | 80 | ≥40 |
| 200Z | PVC | rubber | 0.2 | 1.5 | 30 | 220 | 80 | ≥40
|
