Self-Locking Cable Tie (NYLON,)
| Price: |
US $ 0.0001/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10000/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
CHS-3*100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Plastic |
| Certification: |
RoHS, ISO, SGS, TUV |
| Type: |
Cable Tie |
| Flame Retardant: |
High |
| Customized: |
Customized |
| Condition: |
New |
| Manufacture: |
Changhong Plastics Group |
Product Description

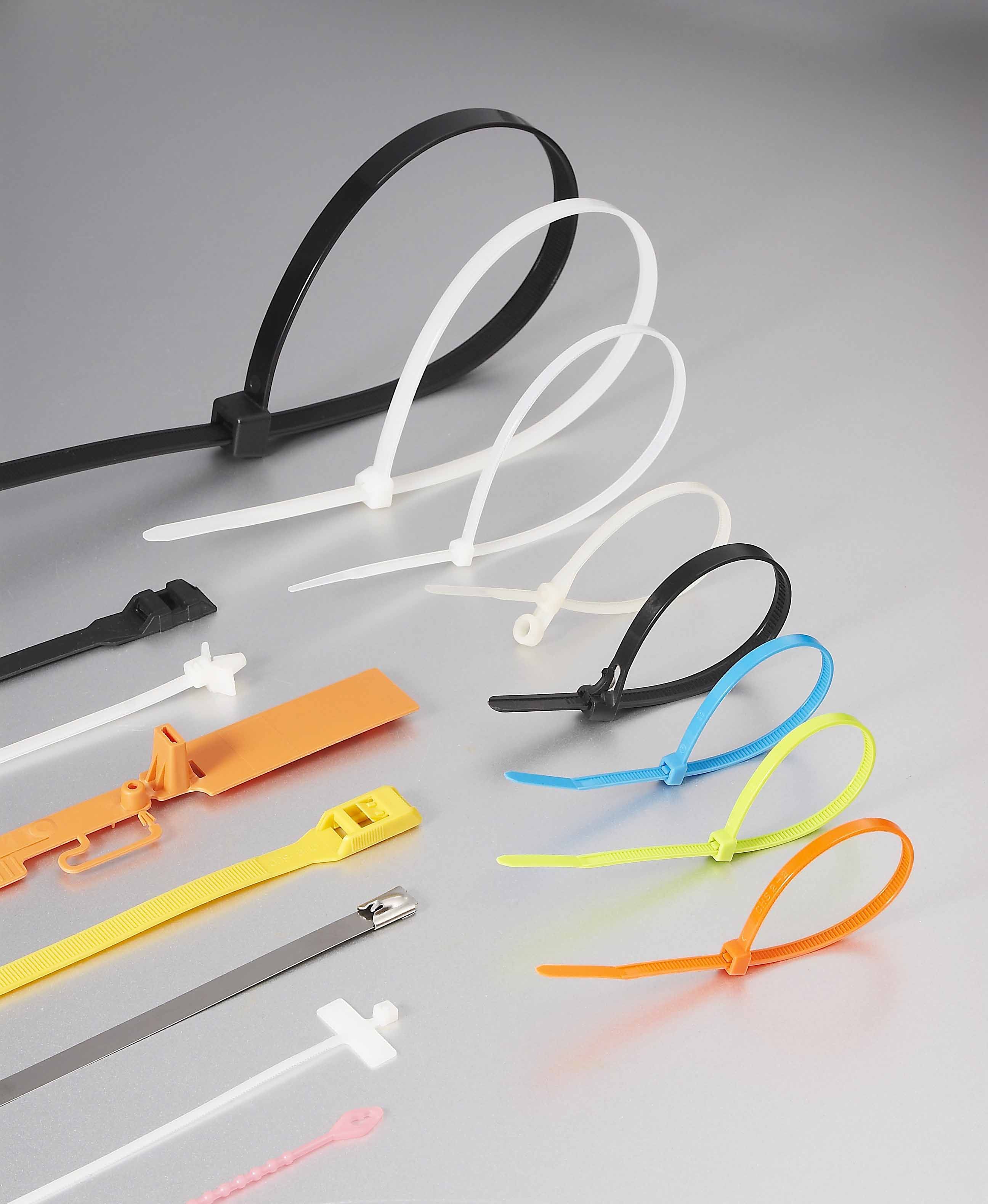

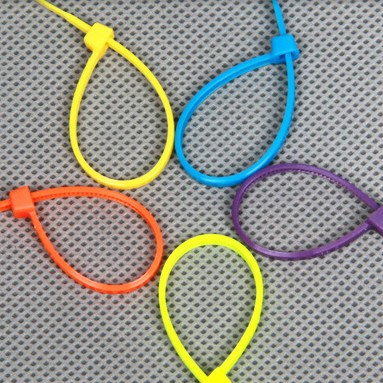

CHS NYLON SELF-LOCKING CABLE TIES
· Material:Nylon 66, 94V-2 certificated by UL.Heat-resisting,Acid & erosion control, insulate well and not apt to age. · Operating temperature:-35C to 85C. · Color:Natural(or white, standard color),UV black and other colors are available as requested.
CHS produce many tyes of cable ties including self-locking cable ties,double-locking cable ties,mark cable ties,releasable cable ties, push mount cable tie and other special cable ties.
1.Cable tie Application: For indoor and ouitdoor use. A variety of materals and colors is available for specific applications. 2. Cable tie Using Instruction: One-piece construction for consistent performance and reliability. Lowest threading force of any one-piece cable tie in the industry. Curved tip is easy to pich up form flat surfaces and allows faster initial threading to speed installation. 3.Cable tie Features: Working temperature: -35º C— 85º C Material: Heat resistace, UL listed Nylon 66 Color: Natural and black, others is optional Cable tie Certificates: DNV, ABS, CCS, SGS, RoHS, ISO9001: 2008
| ITEM.NO. | L | W (mm) | Bundle Diameter
E( mm) | Min.loop Tensile Strength | | INCH | MM | LBS | KGS | | CHS-3×60 | 2 3/8" | 60 | 2.5 | 2-11 | 18 | 8 | | CHS-3×80 | 3 3/16" | 80 | 2.5 | 2-16 | 18 | 8 | | CHS-3×90 | 3 5/8" | 90 | 2.5 | 2-18 | 18 | 8 | | CHS-3×100 | 4" | 100 | 2.5 | 2-22 | 18 | 8 | | CHS-3×120 | 4 3/4" | 120 | 2.5 | 2-30 | 18 | 8 | | CHS-3×140 | 5 1/2" | 140 | 2.5 | 2-33 | 18 | 8 | | CHS-3×150 | 6" | 150 | 2.5 | 2-35 | 18 | 8 | | CHS-3×160 | 6 1/4" | 160 | 2.5 | 2-40 | 18 | 8 | | CHS-3×200 | 8" | 200 | 2.5 | 3-50 | 18 | 8 | | CHS-4×100 | 4" | 100 | 3.5 | 3-22 | 40 | 18 | | CHS-4×120 | 4 3/4" | 120 | 3.5 | 3-30 | 40 | 18 | | CHS-4×140 | 5 1/2" | 140 | 3.5 | 3-33 | 40 | 18 | | CHS-4×150 | 6" | 150 | 3.5 | 3-35 | 40 | 18 | | CHS-4×180 | 7" | 180 | 3.5 | 3-42 | 40 | 18 | | CHS-4×200 | 8" | 200 | 3.5 | 3-50 | 40 | 18 | | CHS-4×220 | 8 5/8" | 220 | 3.5 | 3-58 | 40 | 18 | | CHS-4×250 | 10" | 250 | 3.5 | 3-65 | 40 | 18 | | CHS-4×280 | 11" | 280 | 3.5 | 3-70 | 40 | 18 | | CHS-4×300 | 11 5/8" | 300 | 3.5 | 3-80 | 40 | 18 | | CHS-4×370 | 14 1/2" | 370 | 3.5 | 3-102 | 40 | 18 | | CHS-5×120 | 4 3/4" | 120 | 4.7 | 3-24 | 50 | 22 | | CHS-5×180 | 7" | 180 | 4.7 | 3-42 | 50 | 22 | | CHS-5×190 | 7 1/2" | 190 | 4.7 | 3-46 | 50 | 22 | | CHS-5×200 | 8" | 200 | 4.7 | 3-50 | 50 | 22 | | CHS-5×250 | 10" | 250 | 4.7 | 3-65 | 50 | 22 | | CHS-5×280 | 11" | 280 | 4.7 | 3-70 | 50 | 22 | | CHS-5×300 | 11 8/5" | 300 | 4.7 | 3-82 | 50 | 22 | | CHS-5×350 | 13 3/4" | 350 | 4.7 | 3-90 | 50 | 22 | | CHS-5×380 | 15" | 380 | 4.7 | 3-102 | 50 | 22 | | CHS-5×400 | 15 3/4" | 400 | 4.7 | 3-105 | 50 | 22 | | CHS-5×430 | 17" | 430 | 4.7 | 3-110 | 50 | 22 | | CHS-5×450 | 17 3/4" | 450 | 4.7 | 3-130 | 50 | 22 | | CHS-5×500 | 19 11/16" | 500 | 4.7 | 3-150 | 50 | 22 | | CHS-8×150 | 6" | 150 | 6.8 | 3-33 | 85 | 38 | | CHS-8×180 | 7" | 180 | 6.8 | 3-42 | 85 | 38 | | CHS-8×200 | 8" | 200 | 6.8 | 3-50 | 85 | 38 | | CHS-8×250 | 10" | 250 | 7.5 | 4-63 | 120 | 55 | | CHS-8×300 | 11 5/8" | 300 | 7.5 | 4-82 | 120 | 55 | | CHS-8×350 | 13 3/4" | 350 | 7.5 | 4-90 | 120 | 55 | | CHS-8×370 | 14 1/4" | 370 | 7.5 | 4-98 | 120 | 55 | | CHS-8×400 | 15 3/4" | 400 | 7.5 | 4-105 | 120 | 55 | | CHS-8×450 | 17 3/4" | 450 | 7.5 | 4-118 | 120 | 55 | | CHS-8×500 | 19 11/16" | 500 | 7.5 | 4-150 | 120 | 55 | | *new CHS-8×550 | 21 1/16" | 550 | 7.5 | 4-160 | 120 | 55 | | *new CHS-8×600 | 23 5/8" | 600 | 7.5 | 4-170 | 120 | 55 | | CHS-8×750 | 29 9/16" | 750 | 7.5 | 4-220 | 120 | 55 | | CHS-9×450 | 17 3/4" | 450 | 9.0 | 4-118 | 175 | 80 | | CHS-9×530 | 20 3/4" | 530 | 9.0 | 8-155 | 175 | 80 | | CHS-9×550 | 21 1/16" | 550 | 9.0 | 8-160 | 175 | 80 | | CHS-9×650 | 25 9/16" | 650 | 9.0 | 8-190 | 175 | 80 | | CHS-9×700 | 27 1/2" | 700 | 9.0 | 10-205 | 175 | 80 | | CHS-9×760 | 30" | 760 | 9.0 | 10-225 | 175 | 80 | | CHS-9×920 | 36 1/4" | 920 | 9.0 | 10-265 | 175 | 80 | | CHS-9×1020 |
40 1/6"
| 1020 | 9.0 | 10-295 | 175 | 80 | | CHS-9×1150 | 45 1/4" | 1150 | 9.0 | 10-310 | 175 | 80 | | CHS-9×1220 | 48" | 1210 | 9.0 | 10-340 | 175 | 80 | | CHS-9×1350 | 53" | 1350 | 9.0 | 10-380 | 175 | 80 | | CHS-10×450 | 17 3/4" | 450 | 10.0 | 10-125 | 200 | 91 | | CHS-10×500 | 19 11/16" | 500 | 10.0 | 12-150 | 200 | 91 | | CHS-12×300 | 11 5/8" | 300 | 12.7 | 12-82 | 250 | 114 | | CHS-12×400 | 15 3/4" | 400 | 12.7 | 12-105 | 250 | 114 | | CHS-12×540 | 21 1/4" | 540 | 12.7 | 14-155 | 250 | 114 | | CHS-12×650 | 25 9/16" | 650 | 12.0 | 14-190 | 250 | 114 | | CHS-12×750 | 29 9/16" | 750 | 12.0 | 10-220 | 250 | 114 | | CHS-12×780 | 30 3/4" | 780 | 12.7 | 14-230 | 250 | 114 | | CHS-13×540 | 21 1/4" | 540 | 13.0 | 14-155 | 250 | 114 | | CHS-1.8×100 | 4" | 100 | 1.8 | 2-22 | 14 | 6.5 | | CHS-1.9×120 | 4 3/4" | 120 | 1.9 | 2-30 | 14 | 6.5 | | CHS-1.9×150 | 6" | 150 | 1.9 | 2-35 | 14 | 6.5 | | CHS-2.2×60 | 2 3/8" | 60 | 2.2 | 2-11 | 18 | 8 | | CHS-2.2×80 | 3 3/16" | 80 | 2.2 | 2-18 | 18 | 8 | | CHS-2.2×100 | 4" | 100 | 2.2 | 2-22 | 18 | 8 | | CHS-2.2×120 | 4 3/4" | 120 | 2.2 | 2-30 | 18 | 8 | | CHS-2.2×150 | 6" | 150 | 2.2 | 2-35 | 18 | 8 | | CHS-2.2×200 | 8" | 200 | 2.2 | 3-50 | 18 | 8 | | CHS-2.9×150 | 6" | 150 | 2.9 | 3-35 | 33 | 15 | | CHS-2.9×200 | 8" | 200 | 2.9 | 3-50 | 33 | 15 | | CHS-2.9×250 | 10" | 250 | 2.9 | 3-65 | 33 | 15 | | CHS-2.9×300 | 11 5/8" | 300 | 2.9 | 3-80 | 33 | 15 | | CHS-3.2×150 | 6" | 150 | 3.2 | 3-35 | 40 | 18 | | CHS-3.2×180 | 7" | 180 | 3.2 | 3-42 | 40 | 18 | | CHS-3.2×200 | 8" | 200 | 3.2 | 3-50 | 40 | 18 | | CHS-3.2×250 | 10" | 250 | 3.2 | 3-65 | 40 | 18 | | CHS-3.2×300 | 11 5/8" | 300 | 3.2 | 3-80 | 40 | 18 | | CHS-3.7×350 | 13 3/4" | 350 | 3.7 | 3-90 | 40 | 18 | | CHS-3.7×400 | 15 3/4" | 400 | 3.7 | 3-105 | 40 | 18 | | CHS-4.2×180 | 7" | 180 | 4.2 | 3-42 | 50 | 22 | | CHS-4.2×200 | 8" | 200 | 4.2 | 3-50 | 50 | 22 | | CHS-4.2×250 | 10" | 250 | 4.2 | 3-65 | 50 | 22 | | CHS-4.2×300 | 11 5/8" | 300 | 4.2 | 3-80 | 50 | 22 | | CHS-4.2×350 | 13 3/4" | 350 | 4.2 | 3-90 | 50 | 22 | | CHS-4.2×380 | 15" | 380 | 4.2 | 3-102 | 50 | 22 | | CHS-4.2×400 | 15 3/4" | 400 | 4.2 | 3-105 | 50 | 22 | | CHS-5.2×180 | 7" | 180 | 5.2 | 3-42 | 65 | 30 | | CHS-5.2×200 | 8" | 200 | 5.2 | 3-50 | 65 | 30 | | CHS-5.2×250 | 10" | 250 | 5.2 | 3-65 | 65 | 30 | | CHS-5.2×300 | 11 5/8" | 300 | 5.2 | 3-80 | 65 | 30 | | CHS-5.5×350 | 13 3/4" | 350 | 5.5 | 3-90 | 65 | 30 | | CHS-5.5×400 | 15 3/4" | 400 | 5.5 | 3-105 | 65 | 30 | | CHS-5.5×500 | 19 11/16" | 500 | 5.5 | 3-150 | 65 | 30 | | CHS-6.0×270 | 10 5/8" | 270 | 6.0 | 4-65 | 65 | 30 | | CHS-6.5×250 | 10" | 250 | 6.5 | 4-65 | 85 | 38 | | CHS-6.5×300 | 11 5/8" | 300 | 6.5 | 4-80 | 85 | 38 | | CHS-6.5×350 | 13 3/4" | 350 | 6.5 | 4-90 | 85 | 38 | | CHS-6.5×400 | 15 3/4" | 400 | 6.5 | 4-105 | 85 | 38 | | CHS-6.5×450 | 17 3/4" | 450 | 6.5 | 4-130 | 85 | 38 | | CHS-6.5×500 | 19 11/16" | 500 | 6.5 | 4-150 | 85 | 38 |
|
Headquarters: Xinguang Industrial Zone, Liushi, Yueqing, Zhejiang, China. President: Zheng Yuanhe
Production Base: Xinwu Economic development Zone, Wuhu, Anhui.
Date of Establishment: July 7, 1989. Registration Fund: RMB50, 500, 000
Floor Space: 150000m2 Building area: 230000m2 Employees: 1100(Mar, 15, 2012)
Main Product: self-locking nylon cable ties and other kind of nylon cable ties, stainless steel cable ties, cable clips, terminal blocks,
insulated terminals, wire joints, tie mounts, spiral wrapping bands, wiring ducts, cable glands, and other wire accessories.
Philosophy of CHS: Living on quality, developing on credit.
Approval Certificates:
In 1998, CHS was approved by ISO9001 International Quality System.
In 1999, Cable ties were certified by UL.
In 2000, Terminal blocks were awarded CE certificate.
In 2002, Cable glands got CE approval and passed IP 68 test by England UKAS Inspection Institution.
In 2004, Insulated terminals got the CE approval.
In 2005, Cable ties were awarded DNV certificate by Norway Ship Classification Society.
In 2006, CHS products passed SGS tests, conforming to the environment-protection standard of EU.
In 2007, CHS is chosen as "Chinese Famous Brand"
In 2008, Terminal blocks were certified by NF.
Wire ioints were certified by UL.
CHS was approved by ISO14001-Environmental Management system.
In 2009, CHS was named "Zhejiang Brand Product".
In 2010, CHS was named "Wenzhou Top Export Brand".
In 2010, CHS was named "Zhejiang Top Export Brand".
CHS was approved by OHSAS18001.
CHS was upgraded to group "Changhong Plastics Group".
CHS's production base-Wuhu in Anhui now is put into operation formally
