Sf/Scv Plastic Optical Sparkle Lighting Fiber
| Price: |
US $ 25-40/Roll |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Roll |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SF, SCV series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coil Length: |
450m/Coil & 2700m/Spool |
| Application: |
Decorative Lighting |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Light Engine,Illumination |
| Allowed Lateral Pressure: |
≥32n |
| Core: |
Sigle,Double,or Multi Core |
| Brand: |
Hypof |
Product Description
1.Applications
The sparkle fiber cable are widely used for decorating. It is commonly used in KTV, pubs, coffee houses,airport, garden, hotels and restaurants......
It can be made into waterfall curtain, chandeliers, DIY lights,or other artistic creation
2.Features
Good light transmitting ability
Energy saving and enviromental friendly.
With special light source, it will creat a kind of star-twinkling effect3.Specifications | Type | Fiber Cores | Fiber/Cable Diameter(mm) | Coil Length(m) | Dot Pitch(mm) |
| SF-750 | 1 | 0.75 | 2700 | 15/30/40/60 |
| SCV-750-3 | 3 | 0.75/3.0 | 450 |
| SCV-750-4 | 4 | 0.75/3.5 | 450 |
| SCV-750-7 | 7 | 0.75/4.0 | 450 |
| SCV2-750-3 | 3 | 0.75/3.0 | 450 |
| SCV2-750-4 | 4 | 0.75/3.5 | 450 |
| SCV2-750-7 | 7 | 0.75/4.0 | 450 |
| Note: The fiber cores and Dot pitch can be customized. |
4.Technical Parameters
Fiber core/clad material |
Polymethylmethacrylate(PMMA)/Fluroresin |
Numerical aperture |
0.5 |
Cable appearance |
Smooth surface, no visible crackles, defects or mechanical damage |
Cable diameter fluctuation |
± 5% |
Using temperature range of the cable |
-20~+70 |

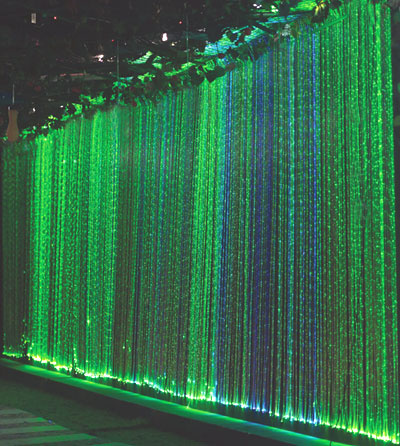

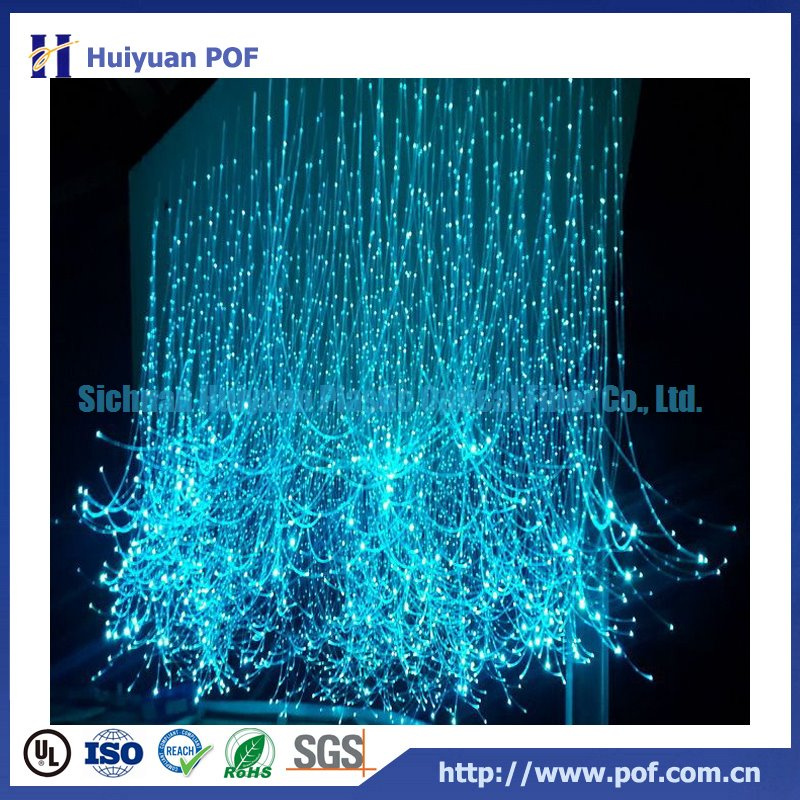

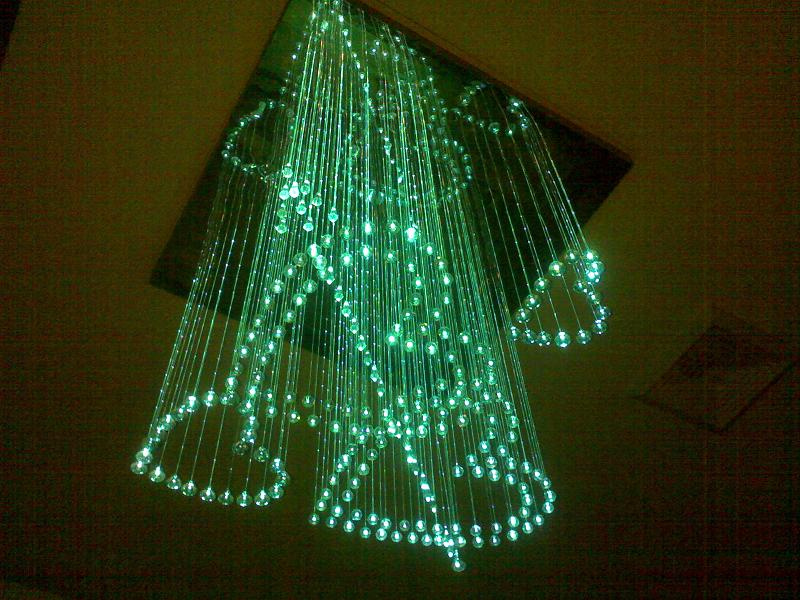

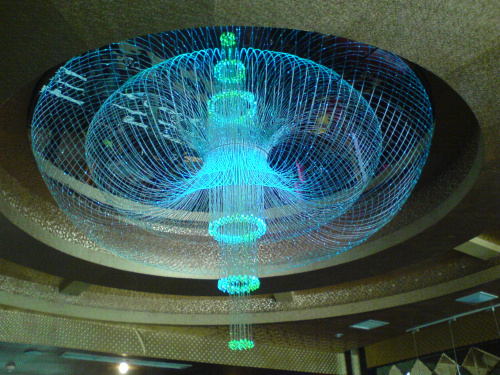

4.Product Application Pictures
Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.
Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.
It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.
We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
