Solid Tungsten Carbide Mining Buttons

Name: Solid Tungsten Carbide Mining Buttons
Brand: FullPackage
SKU: 809880335
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 45-5816
Min Order:	216
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	All Sizes
Grade:	Yk05,Yk15,Yg15c,Yg20c and Customized
Delivery Time:	20-25 Days

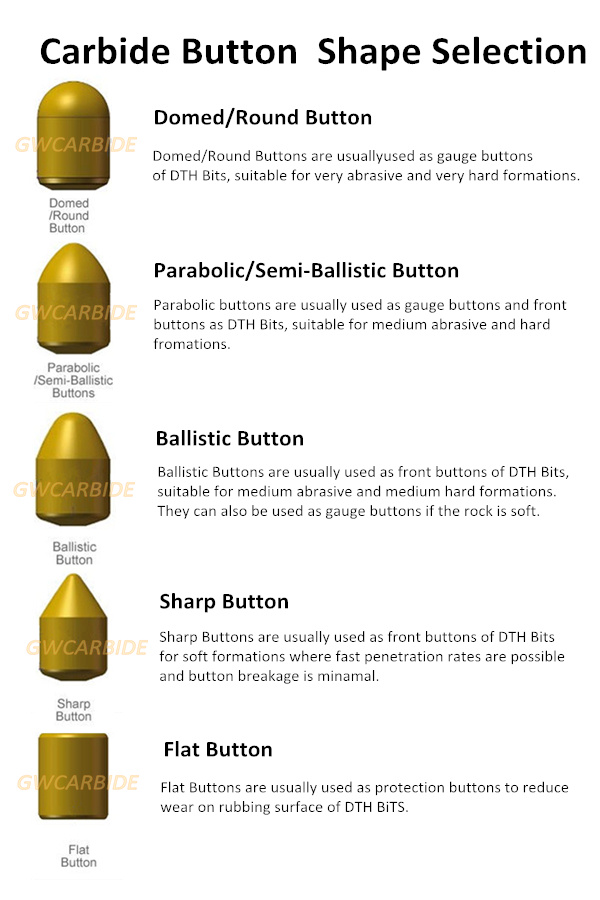

Shape:	Spherical,Conical,Ballistic,Flattop,Crested Chisel

Product Description

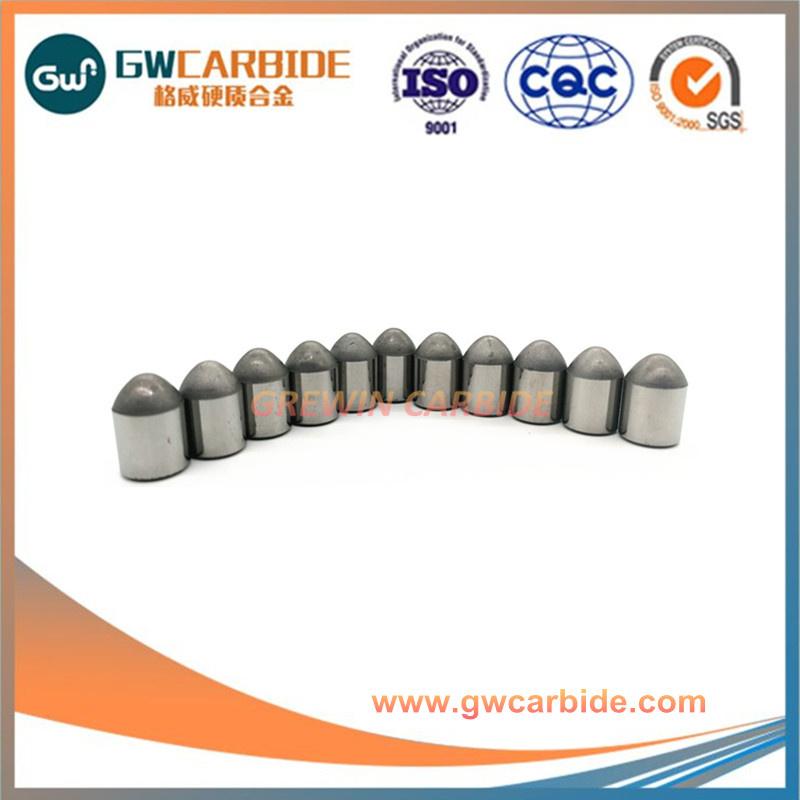

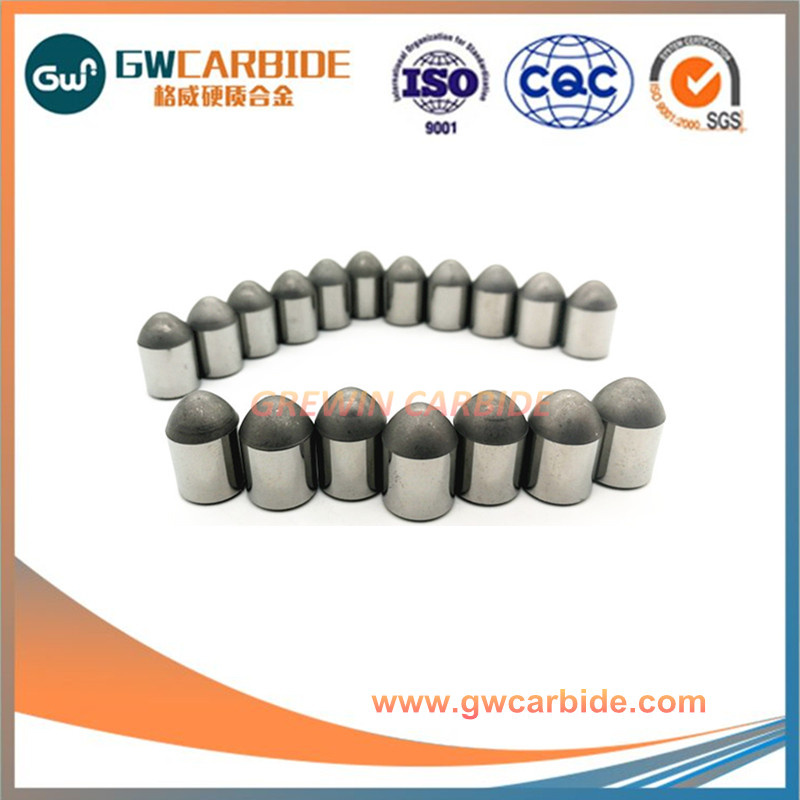

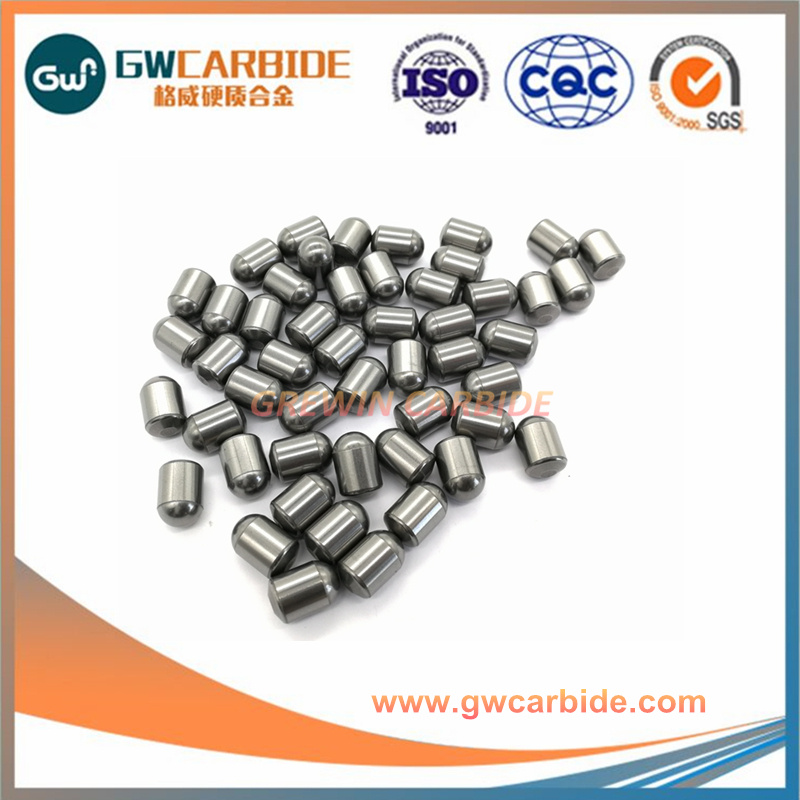

Solid Tungsten Carbide Mining Buttons

1.Product Name:tungsten carbide botton bits

TypesTapered chisel bits, Tapered cross bits, Tapered button bits

2.Application:Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, for drilling

3.Feature:Tapered drill bits connect tapered drill steel of rock drill for drilling holes

4.Material:High quality carbide and high quality steel

5.MOQ:No requirement

Grade for reference:

rade	Density g/cm3	TRS MPa	Hardness HRA	Performance & application recommended
YG4C	15.10	1800	90.0	Mainly used as small buttons for percussion bits to cut soft and medium hard formations.
YG6	14.95	1900	90.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG8	14.80	2200	89.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YK05	14.95	2500	90.5	Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG8C	14.80	2400	88.5
YK15	14.60	2450	87.6	Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations.
YK20	14.40	2500	86.8	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YK25	14.40	2550	87.2	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations.
YG11C	14.40	2700	86.5	Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C	14.2	2850	86.0	Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations.
YG15C	14.0	3000	85.5	For oil cone drill bits, for medium soft and medium-hard rocks.

From material to your hand

What we do is not a deal, but create mutual happy cooperation!

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc

The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.

With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.

The company is dedicated to " Do the best to customer". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
