| Prod Model: |
Window Screen |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certifications: |
SGS,Ce,ISO,Reach |
| Delivery Time: |
25days |
| Packaging: |
Water Proof Paper and Then Carton Box |
| Mesh: |
16*16mesh to 35*35mesh |
| Material: |
SUS304 |
| Hole Shape: |
Square |
| Application: |
Cages |
| Type: |
Stainless Steel Plain Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Wire Mesh Width: |
2m |
| Technique: |
Woven |
| Certification: |
SGS |
| Nickels: |
0%-12% |
Product Description
SS insect screen. stainless steel wire mesh, insect screen mesh, fly msh, mosquito screen, metal wire mesh

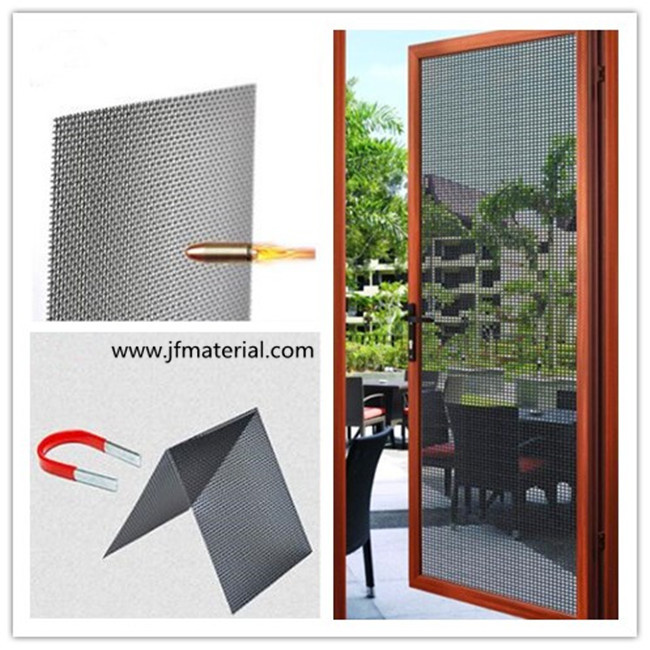

Stainless steel Window Screen
1. Material type: Stainless steel 302,304,304l,316,316l,
2. Weave type: plain weave style.
3.Width:0.6m to 1.5m
4.Lenth:1m,2m,2.4m, 30m 100m etc.as the customer requirements.
5..Mesh Opening:16*16mesh to 35*35mesh
6. Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire, 12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
7.Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm 900mm×2400mm 1200mm×2400mm
8. Color: yellow, black,white, dark gray, silver
Features:
1.) Against theft, bulletproof, super resistance to impact, insect and so on.
2.) mooth surface, mesh standard, latitude and longitude curve is consistent, its remarkable characteristic is BanShi hard like iron, is against theft, bulletproof, home of choice for workplace safety protection.
3.) Bulletproof Mesh Screen Features :
--very high bounce impact force,the most feature and application
--as window screen ,it has good view inside room,but hazy for person outside room
--very easy to clean
--flat surfac
--pover coated
Chemical composition:
| Chemical composition of stainless steel wire: |
| Grade | Chemical Composition(%) |
| C | Si | Mn | P | S | Ni | Cr | Mo |
| 304 | =0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =0.045 | =1.00 | =2.00 | =0.045 | =0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =0.12 | =0.75 | =1.00 | =0.040 | =0.030 | =0.60 | 16.00~18.00 | - |
| 430A | =0.06 | =0.50 | =0.50 | =0.030 | =0.50 | =0.25 | 14.00~17.00 | - |
Packaging&pament term:
Package: water-proof paper and then wood box outside.
Payment term:T/T 30%advance payment
Delivery Time:25days
Depending on good credit and the best service, JF BUILDING MATERIAL Co., Ltd has been growing up rapidly. Our products scope now includes:
*Plisse insect screen mesh in PP & fiberglass & polyester material;
*Flat insect screen mesh in fiberglass & plastic & PP & stainless steel & Aluminum material;
*Agriculture anti-insect net in different sizes;
*Mosquito nets for bed.
Having built up excellent marketing and management teams, we enjoy a high reputation among clients at home and abroad. Offering high quality low cost products, we are now exporting to North America, Europe, The Middle East and Asia.
JF BUILDING MATERIAL Co., Ltd is located near XINGANG, one of the most important port in China, enjoy the most convenience for shipping the goods worldwide.
If you are interested in any of our series, welcome to contact us. We are looking forward to establishing cooperative relationships with you in the near future.
