Stainless Steel Wire Mesh Window Screening Used to Villa, Bulletproof/Mosquito Screen

Name: Stainless Steel Wire Mesh Window Screening Used to Villa, Bulletproof/Mosquito Screen
Brand: FullPackage
SKU: 733374372
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	US $ 11/Square Meter
Min Order:	100/Square Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	weiyue stainless steel window screen mesh
Color:	Black,Gray,White,Yellow,etc.
Width Of Netting:	0.7m-1.5m
Size Of Netting:	7502000mm,9002000mm,12002400mm,15003000mm,etc.
Length:	30m,50m,100m
Surface Treatment:	Electrostatic Spraying
Wire Diameter:	0.6mm,0.7mm,0.8mm,etc.
Hole Shape:	Square
Application:	Window Curtain
Type:	Stainless Steel Plain Wire Mesh
Material Type:	Stainless Steel Wire
Weave Technique:	Plain Weave
Technique:	Woven
Nickels:	8%
Certification:	ISO9001
Material:	304,304L,316,316L
Wire Mesh Width:	1m,1.5m

Product Description

Product Description
This product is made of high strength stainless steel 304 wire loom manufactured by heavy precision, with pest control, bullet-proof, ventilation, beautiful, safe, explosion-proof, anti-aging and so on. Bring you super clear visual enjoyment and safest protection.

Product	Stainless Steel Security Window Screen
Material	SS302, 304, 304L, 316, 316L, etc
Weaving Pattern	Plain Weaving; Twill Weaving; Dutch Weaving; etc
Wire Dia.	0.18mm-1.2mm
Mesh Number	11mesh-30mesh
Width	0.6m-1.5m
Edge Processing	Closed Selvage; Flash; Perm Border
Color	White; Black; Green; Gray; etc
Characteristic	acid proof, alkali proof, high temperature resistant, wear-resisting
Application	1. stall in window or door as window screen or mosquito 2. used in greenhouse as anti-insect or anti trip net 3. used in fishing breed or poultry rasing as pool or garden guard 4. uesd in agricutlure product for food drying

Advantage

Product Specification

Product Name	Material	*MeshWire Dia.**	Width(m)
Stainless Steel Security Window Screen	304	*111mm**	0.7, 0.8, 0.9, 1, 1.2, 1.3, 1.5
		*110.9mm**
		*110.8mm**
		*110.78mm**
		*110.75mm**
		*130.7mm**
		*140.6mm**
		*140.55mm**
		*120.7mm**
		*120.67mm**
		*140.6mm**
		*140.5mm**
		*140.55mm**
	316	*110.8mm**
	Hot dip galvanized wire	*110.8mm**
		*120.7mm**
		*140.6mm**
		*140.5mm**

We can also supply the other specifications as customers' requirement.

Stainless steel wire mesh specification

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
	Inch	MM	Inch	MM
1x1	0.080	2.03	0.920	23.37	84.6	41.1
2X2	0.063	1.60	0.437	11.10	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.60	0.187	4.75	56.0	104.8
5X5	0.041	1.04	0.159	4.04	63.2	54.9
10X10	0.025	0.64	0.075	1.91	56.3	41.2
24X24	0.014	0.356	0.0277	0.70	44.2	31.8
80X80	0.0055	0.140	0.0070	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
120X120	0.0037	0.0940	0.0064	0.1168	30.7	11.6
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.0610	36.0	4.4
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30.0	4.40
400X400	0.0010	0.0254	0.0015	0.370	36.0	3.3
500X500	0.0010	0.0254	0.0010	0.0254	25.0	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25.0	2.63

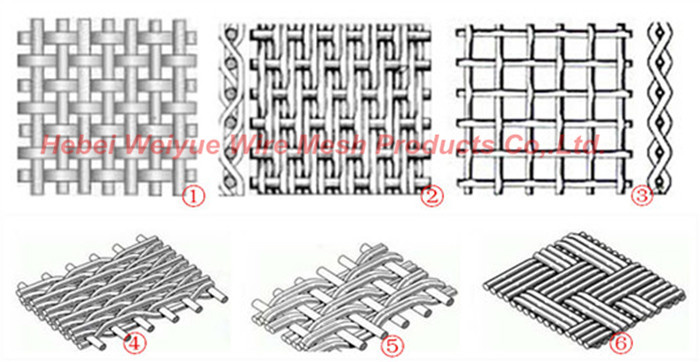

Product Weaving
1,Plain Weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
2,Twill: Wire Cloth in which each warp wire and each shute wire passes successively over and under the two adjacent wires -- in both the warp and shute directions. This over and under movement is shifted one wire with each pass of the shuttle. This pattern permits the weaving of heavier wires in varying meshes.
3,Plain Dutch Weave: Similar interlacing as in Plain Weave, except the warp wires are larger diameter than the shute wires. The lighter shute wires are driven up close thus forming a dense filtering medium. This weave displays a tapered or wedge-shaped opening.
4,Twill Dutch: This filter cloth specification technically combines the Twill Weave and Dutch Weave described above. The larger diameter warp wires successively pass over and under the lighter diameter shute wires. Each pass of the shute wires shifts the over and under movement one wire. The shute wires are driven up close, resulting in a tightly woven filter cloth with tapered or wedge shaped openings.
5,Twill Dutch Double: Very similar to Twill Dutch Weave, but by proper selection of the wire sizes, the shute wires actually overlap each other when driven up tight into position. This permits double the wires per inch in the shute direction. This type of wire cloth is usually considered a Micronic Grade filter cloth.
6,Stranded: In this type of weave, both the warp and shute wires are made up of separate wires, rather than a single wire. This weave is woven in the twill pattern, producing an exceptionally strong and tight mesh.

Product Detail

How to customize you own Stainless Steel Security Window Screen?
When you need a quotation, please send a picture you are required, and supply me with the fellow parameters:
1. The material of the wire
2. The wire diameter
3. The mesh hole
4. The mesh width and length
5. The treatment of the surface

Contact Us

Please feel free to contact us if you have any need.

Hebei Weiyue Wire Mesh Products Co., Ltd makes and sells primary wire mesh and wire products. It's located in "the hometown of wire mesh", Anping County of China.

Since its beginning, we have been working at four points, they are High Quality, Quick Delivery, Better Price and Thorough Service. Rely on the product quality and our credit standing, we have got favourable comments from the customers.

The company introduces precise making machines and technics, combining scientific inner managing method and quality control system. Since the year it was established, we developed our powder and credit standing and got reliances of our customers in home and abroad. Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole country and some abroad countries, such as Southeast Asia, Middle East, America, Japan, and some Africa countries.

Hebei Weiyue Wire Mesh Co. Ltd makes and sells kinds of wire products which are widely used in extensive areas, petrolem, chemical, architecture, foodstuffs and so on. Main selling products are stainless steel wire mesh, perforated metal, expanded metal, galvanized square mesh, window screen, crimped screen, fences, chain link mesh, barbed wire, razor barbed wire, filed fence, welded wire mesh, hexagonal wire netting, fiberglass wire mesh and so on. We also sellss relative further products with the wire meshes above.

Weiyue keeps product quality and credit standing to be the first degree. In virtue of wire mesh, we wish to develop good relationships with you, all around the world.
