| Prod Model: |
TSC-160300LD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 Glass Tube |
| Applicatioin: |
Home Textile,Garment Shoes,Textile,Crafts |
| Supported Format: |
Ai,BMP,Plt,Dxf,Dst,Ai,BMP,Plt,Dxf |
| Guarantee: |
1 Year Free Maintenance |
| Laser Power: |
80W |
| Worktable: |
Conveyor |
| Size: |
1600mmx3000mm |
| Applied Material: |
Textile,Fabric,Acrylic,Plexiglass,Paper,Leather |
| Certificate: |
CCC,BV,SGS,ISO,Ce, |
Product Description

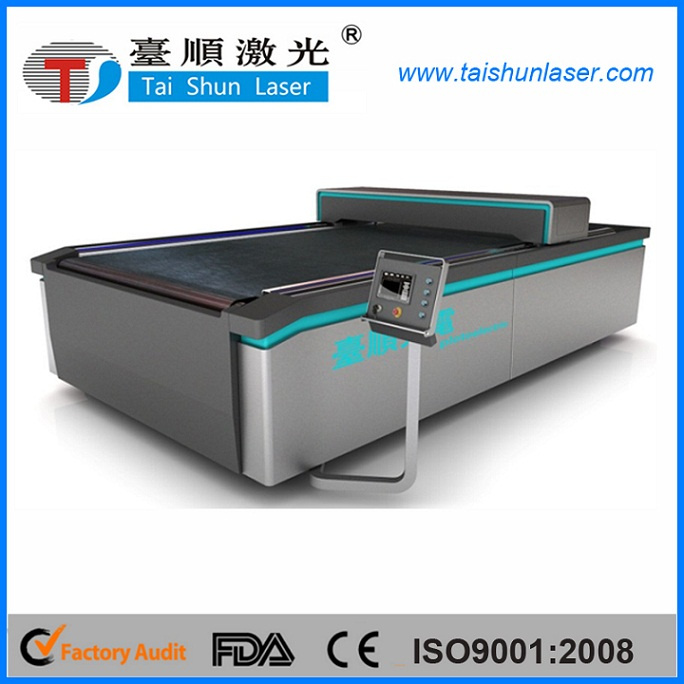

Characteristic:----it adopted conveyor working table with over-exceed long working area, which can realize one time cutting for more wider home textile and industrial products
---Through Multi-head intelligent typesetting software, it can realize double head divided automatically, and make cutting speed more faster, and increase higher utilization rate for fabric materials.
--various laser power and working area can be chose, customer can request for multi-head to increase production efficiency according to themself requirements.
Applied Materials and Industries:
---it''s suitable for applied for variety of textile and apparel fabrics, soft and solid materials.
--it's applied widely for textile, garment, industrial fabric and other materials.
Parameter| Laser type | Glass CO2 laser tube | Movement system | stepping motor system |
| Output power | 80W | Cooling system | Water cooling |
| Working area | 1600mmx3000mm | Electrical Voltage | AC220V+-5% 50/60hz |
| Working table | honeycomb working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Working speed | Adjustable | Standard accessories | 1 set 550W exhuast fans |
| Position accuracy | plus minus 0.1mm | Connect interface | USB,PC,U-disk |
| Software supported | Coreldraw, Photoshop, AutoCAD | Working environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
Samples
Our machine series: CO2 Laser Engraving and Cutting Machine for most of the non-metal materials.
Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.
Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
Our product rangeWorking area:9050,10060,13070,13090,15090,160100,180100,140100,180140,160300,130250,210300,320600
Laser power:40w,50w,60w,80w,100w,110w,130w,150w,lifetime 4000h
Please note the same format(working area)machine can be stored with different powered laser tube,the price is based on working format and laser power at the same configuration

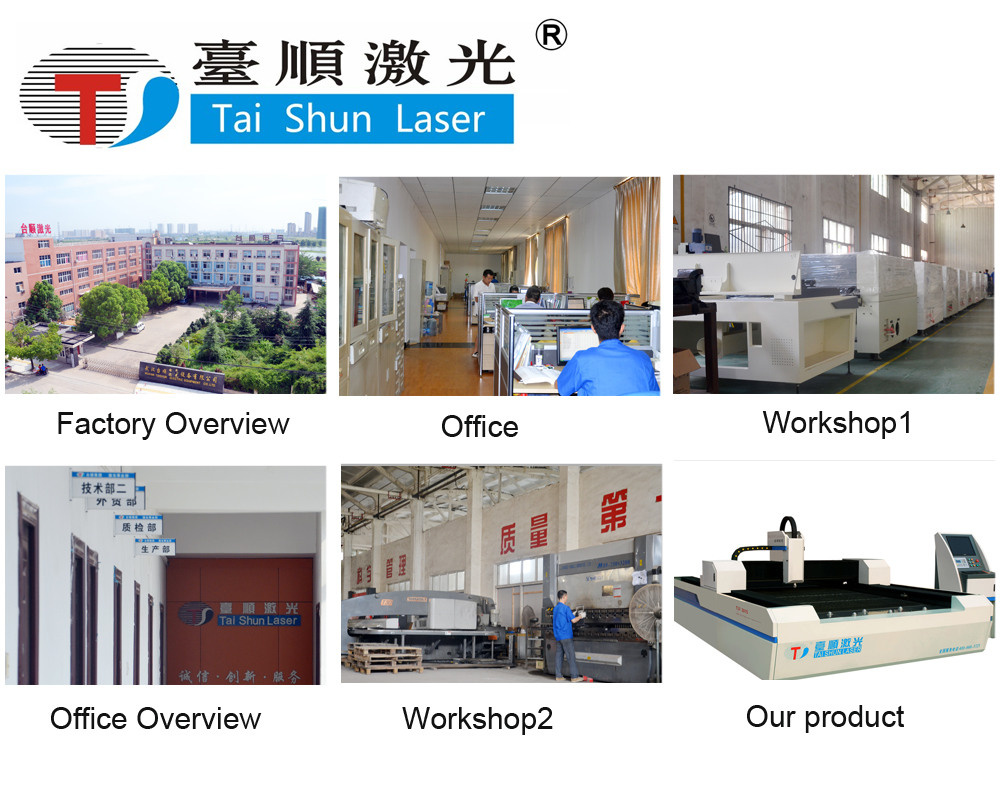

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
