| Prod Model: |
test finger probe |
| Nodular Finger Length: |
100mm |
| Curved Finger Length: |
30/30/40mm |
| Dam-Board Diameter: |
125mm |
| Category: |
Analysis Instruments |
| Warranty: |
1year |
| Delivery Time: |
3-7days |
| Standard: |
IEC61032 |
| Product Name: |

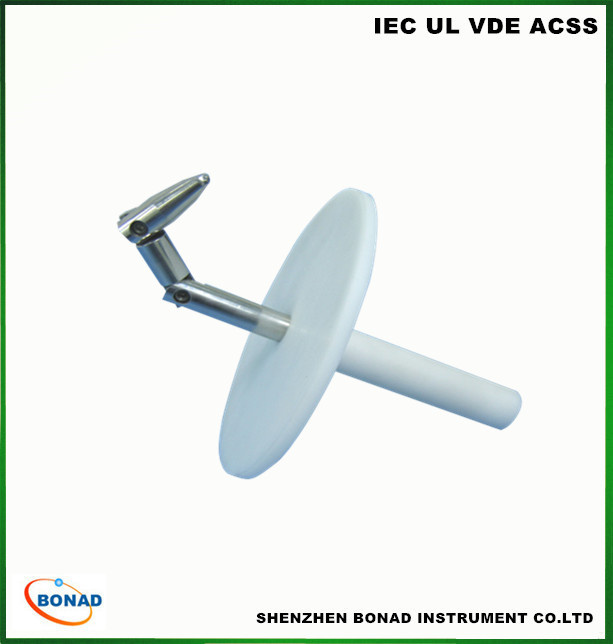

125mm Apron Jointed Test Finger Probe |
Product Description
Bending test ( IEC 61032 ) is the necessary implement in protection against electric shock test for household and other have similar matter electrical appliances
1. According To: IEC61032
2. The Standard Test Knurled Finger Probe is the necessary appliance to prevent electric
shock for household and similar electrical problem
3. This test probe similar to that of test probe B of IEC 61032 but having a circular stop
face with a diameter of 125 mm instead of the noncircular face, the distance between the
tip of the test finger and the stop face being 100 mm.
This is the "International" test finger required by most IEC61032 , EN and CSA Standards, in addition to many UL Standards. Built in strict accordance to the newest requirements with integral palm simulator. The handle and stop face are made of nylon. Finger is made of stainless steel. All parts precision machined.
Using methods:
1,The joint portion of Standard test finger can not touch the live parts or hazardous parts ,and it can't enter 20mm-50mm baffles
2,Prevent access to dangerous parts of the test requirements, Test B need to bring 30 ± 3N thrust. Usually use with force gauge
3,In the electric shock test, we need to wire and configure the power supply(mains), the lamp unit.
Note
Test probe is precision stainless steel products, please use of gently and pay attention to maintenance
Reference Standard
IEC61032 IEC60065 IEC60335-1 IEC60884-1
Specification
| Nodular Finger Length | 100mm |
| The First Finger Length | 30mm |
| The Middle Finger Length | 30mm |
| The Last Finger Length | 40mm |
| Dam-board Diameter | 125mm |
