Prod Model: |
Q326C QR3210 QR3220 15GN 28GN |
Application: |
Metal Cleaning |
Product Description
tumble/crawler/apon belt type shot blasting machine
1. Technique ParameterItem | Units | Q326 | QR3210 | 15GN | 28GN |
Productivity | T/h | 0.6-1.2 | 1.5-2.5 | 5-6 | 10-12 |
Feeding amount | kg | 200 | 600 | 1300 | 3500 |
Maximum weight of single piece | kg | 10 | 30 | 230 | 363 |
Diameter of end disk | mm | Ø650 | Ø1000 | Ø1092 | Ø1245 |
Effective volume | M3 | 0.15 | 0.3 | 0.43 | 0.79 |
Shot-blasting capacity | Kg/min | 100 | 250 | 480 | 700 |
Air volume for dedusting | M3/h | 2200 | 5000 | 5300 | 6500 |
Power consumption | kw | 12.6 | 24.3 | 49.3 | 64.5 |
Outline dimention | mm | 3681*1650*5800 | 3972*2600*4768 | 4597*3262*5709 | 5300*5432*6814 |
2. Tumble blasting machine Introduction:
It is a tumble belt conveyor machine designed and built as fully integrated blast cleaning system. It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and peening a wide variety of products including: Ferrous and non-ferrous castings, heat treated forgings, small automotive parts, die castings,fasteners...and much more.
3. Features:
★ It uses high speed cantilever centrifugal type turbine blast wheels, which highly improve cleaning effect and efficiency. All blast wheels are dynamic balance checked, which makes it has less vibration and noise.
★ Material of blades, abrasive distributor, and control cage is high chrome, which can be used over 500 hours. Another option is Taiwan made special material blades, which has 1000-1600 hours lifetime.

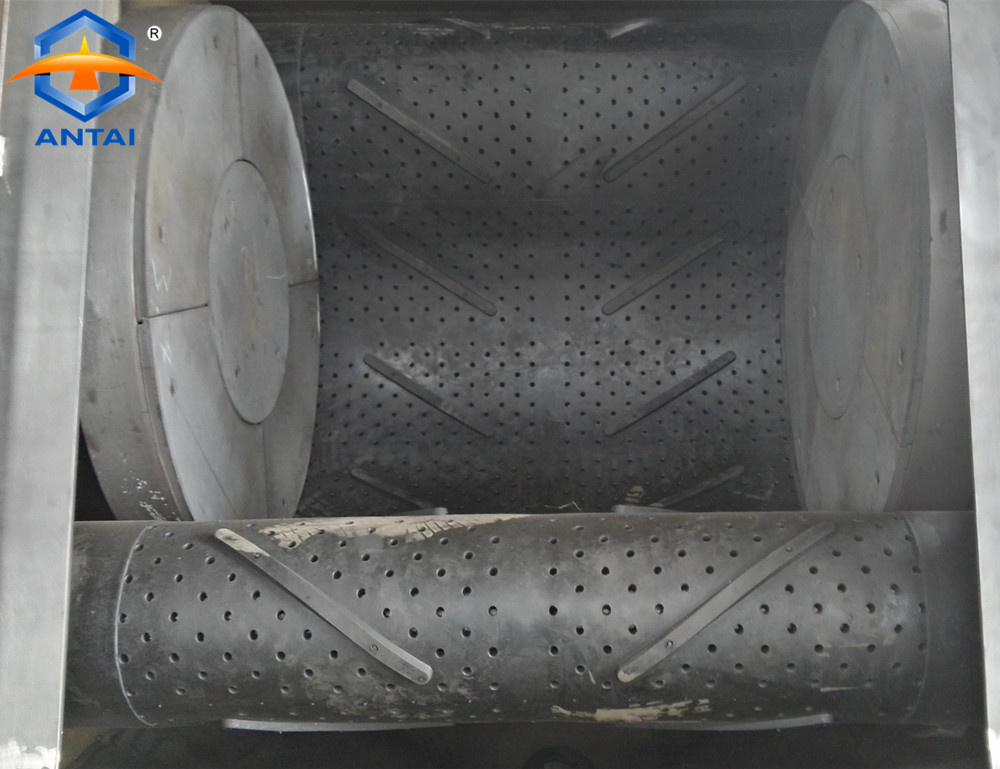

★ The tumble belt has rubber material and manganese steel.
★ Pulse jet bag type dust collector, dust remove efficiency is over 99%. Good for environmental protection. A cartridge type dust collector can control the dust concentration under 50 mg/m3.
★ Automatic loader for massive continuous production connected to a production line. (Optional)
★ Air cylinder driven door, easy operation and good sealing.

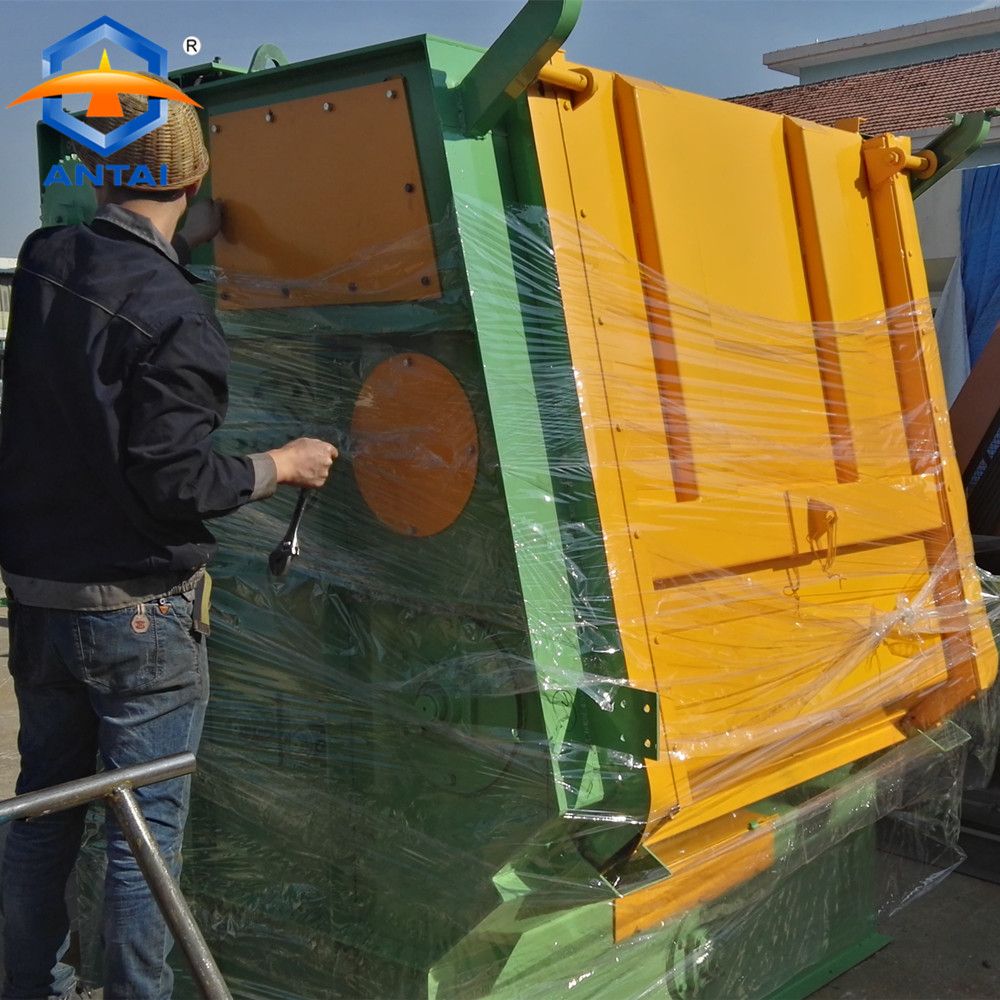

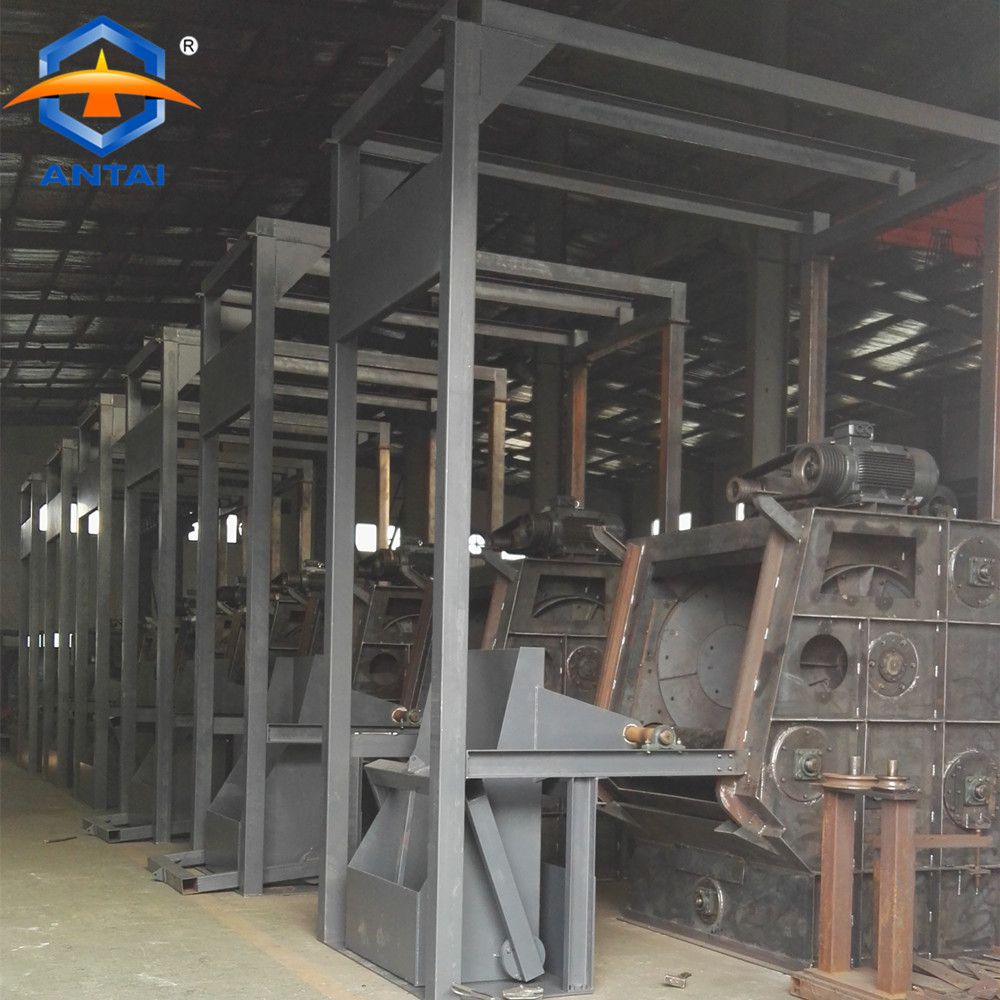

4. Details picture
5. Our main products6. Our delivery
7. ContactContact person | Adela Liu |
| |
Mobile | 86-13210069153/15275269059 |
| |
QQ | 1903317069 |
Tel | 86-532-88138566 |
Fax | 86-532-88138577 |
Qingdao Antai Heavy Industry Machinery has founded in 2003, formally changed to its current name in 2011. Located in the beautiful west coast of Qingdao, it is only 30 km to Qingdao seaport, convenient for export transportation. Our workshop area covers more than 15000 square meters, it is a research, design, manufacture, installation and consulting factory company for the surface finishing, environmental protection and foundry solution.
Company has extensive experience and brings the technical and professional workers together, mainly produces shot blasting machine, sand blasting machine, sand blasting room, dustless blasting, sand reclamation equipment, molding equipment, and dust collector. Qingdao Antai is strong at providing non-standard design and manufacture according to customer specific needs.
The company has passed ISO9 0 0 1: 2 0 0 8, ISO 1 4 0 0 1: 2 0 04, CE certificate, TUV. Our company management strictly according to international standards ISO9 0 0 0 quality system implementation operation.
We have established long term partnership with international brand suppliers, such as ABB motor; SEW gear box, Mitsubishi/OMRON/Siemens electric components, SMC cylinder, SKF & NSK bearing, and Asco pulse valves. With quality products, competitive price and attentive service, our products are widely sold in domestic market and exported to Germany, Russia, Australia, India, Thailand, Sri Lanka and Indonesia etc.
We always adhere to "honesty is the best selling, personalized service is the final product. Customer satisfaction is the greatest impetus to the development of enterprises. " Aim to establish a perfect quality management system and network information feedback system for filing separately for each customer, to provide customers with maximum caring and thoughtful, efficient and flexible full service.
We look forward to working with you and your company's sincere cooperation!
