| Price: | US $ 1-50/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Grades: | Yg8, Yg15, Yg20, Yg10.2, Yg2t, Yg6a |
|---|---|
| Length: | 1-320mm |
| Thickness: | Customized |
| Width: | 2-200mm |
| Hardness: | 65~92.7 Hra |
| Business Type: | Manufacturer |
| Tolerance: | +/-0.01mm |
| Color: | Grey |
| Surface: | Polished |
| Size: | 300*160*100mm |
| Type: | Tungsten Sheets |
Product Details
As a material with high hardness, good wear resistance, strong corrision resistance, tungsten carbide products are now widely used. We committed to the production and sale of all types of carbide tooling, precision parts, and we specialized in this area for over twenty years.
| Application | It's often used in Mining, quarrying, ground engineering, etc. |
| Material | 100% raw tungsten carbide |
| Grade | K05, K10, K20, K30, K40 |
| Design&Size | OEM or ODM |
| Properties | High hardness and strength, excellent wear resistance |
| Finish | Sintered, sandblasting or polish |
| Packing | Our standard packing (paper + carton box or inner box + outer box) or as request |
| Lead time | Sample date: 5-7 working days, mass date: 20-25 working days |
| Shippment | By express( such as DHL, FedEx, TNT, UPS), by air or by sea |
| Service | We will follow up goods for our customers and help them to solve problems after sales. |
| GRADE | COBALT CONTENT | DENSITY | HARDNESS | TRS | |
(%) | g/cm3 | HRA | N/mm2 | ||
K10T | K05-K10 | 4.5-6.0 | 14.95-15.05 | 92.7 | 1800 |
YG8 | K30 | 8 | 14.80 | 89.5 | 2200 |
YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
YL10.2 | K30 | 10 | 14.50 | 91.8 | 2400 |
YG13X | K30-K40 | 13 | 14.30 | 89.5 | 2600 |
YG15 | K40 | 15 | 14.00 | 87.5 | 2800 |
YL20.8 | K40 | 15 | 14.00 | 88.5 | 3800 |
The grades which used more frequently are YG8, YG15, YG20, YG10.2, YG2T, YG10X etc.
Other grades can be offered according to customers' requirements. Afterwards the board can be broken out from the panel.

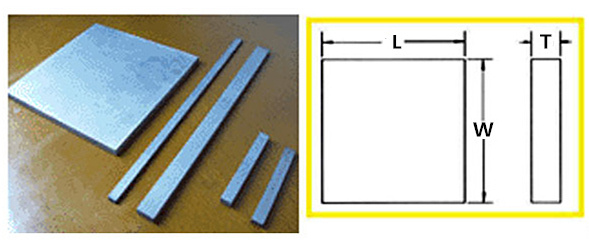

Unit: mm
TYPE | TOL | |||
Blank | Polished | |||
T | W | L | ||
100×100(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
105×105(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
150×150(5.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
200×200(5.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
200×100(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
320×200(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
120×120(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
150×120(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
170×80×(1.0~20) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
150×100(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
100×90(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
100×80(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
100×50(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
100×60(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |

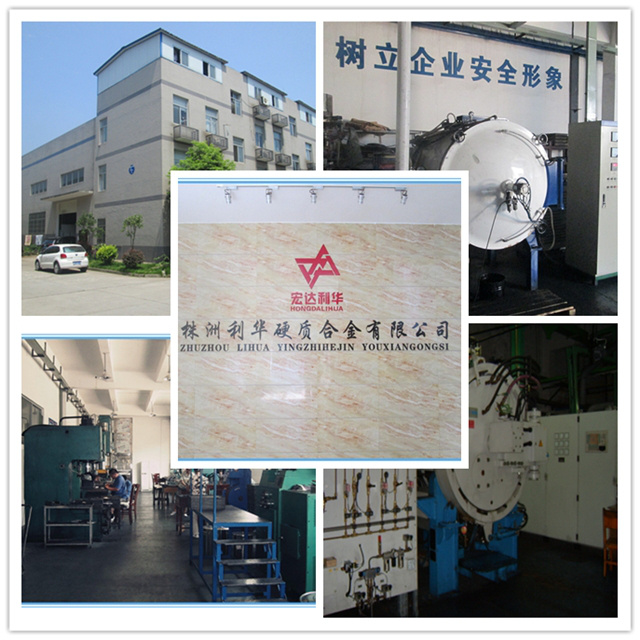

Company Introuduction
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
Focus on Cemented Carbide Industry for more than 20 years.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non- standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.

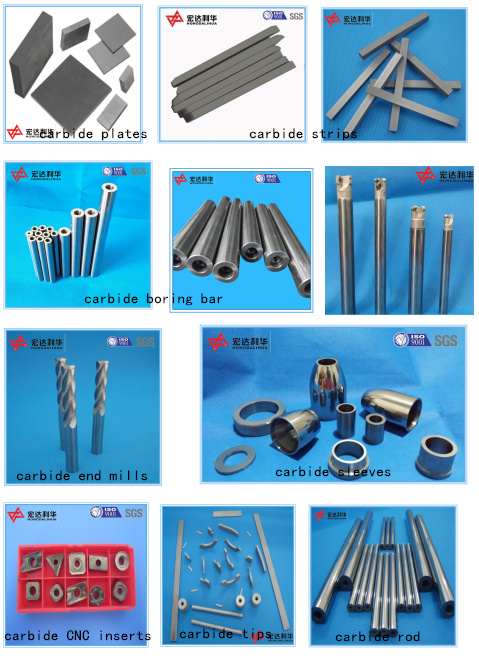

Main Products
