| Prod Model: |
1502C/1202C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Topwisdom |
| Display: |
8" Touch Screen(Optional 10 Inch) |
| Main Motor: |
Panasonic Servo Motor |
| Hook: |
Japan Koban Hook |
| Belts: |
Italy Belts |
| Warranty: |
12 Months |
| Package: |
Wooden Case |
| Weight: |
450kg |
| Volume: |
3 Cbm |
| Rail: |
Linear Rail |
Product Description

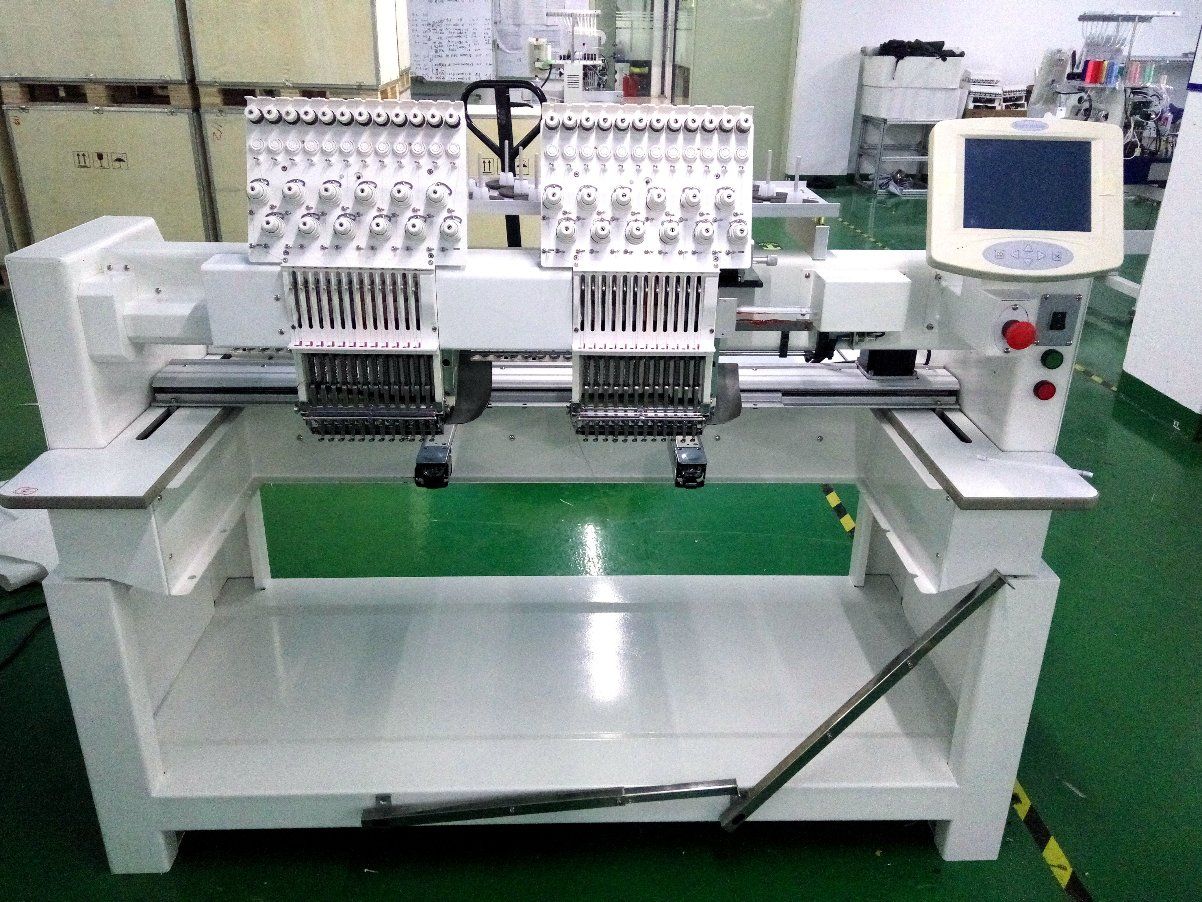

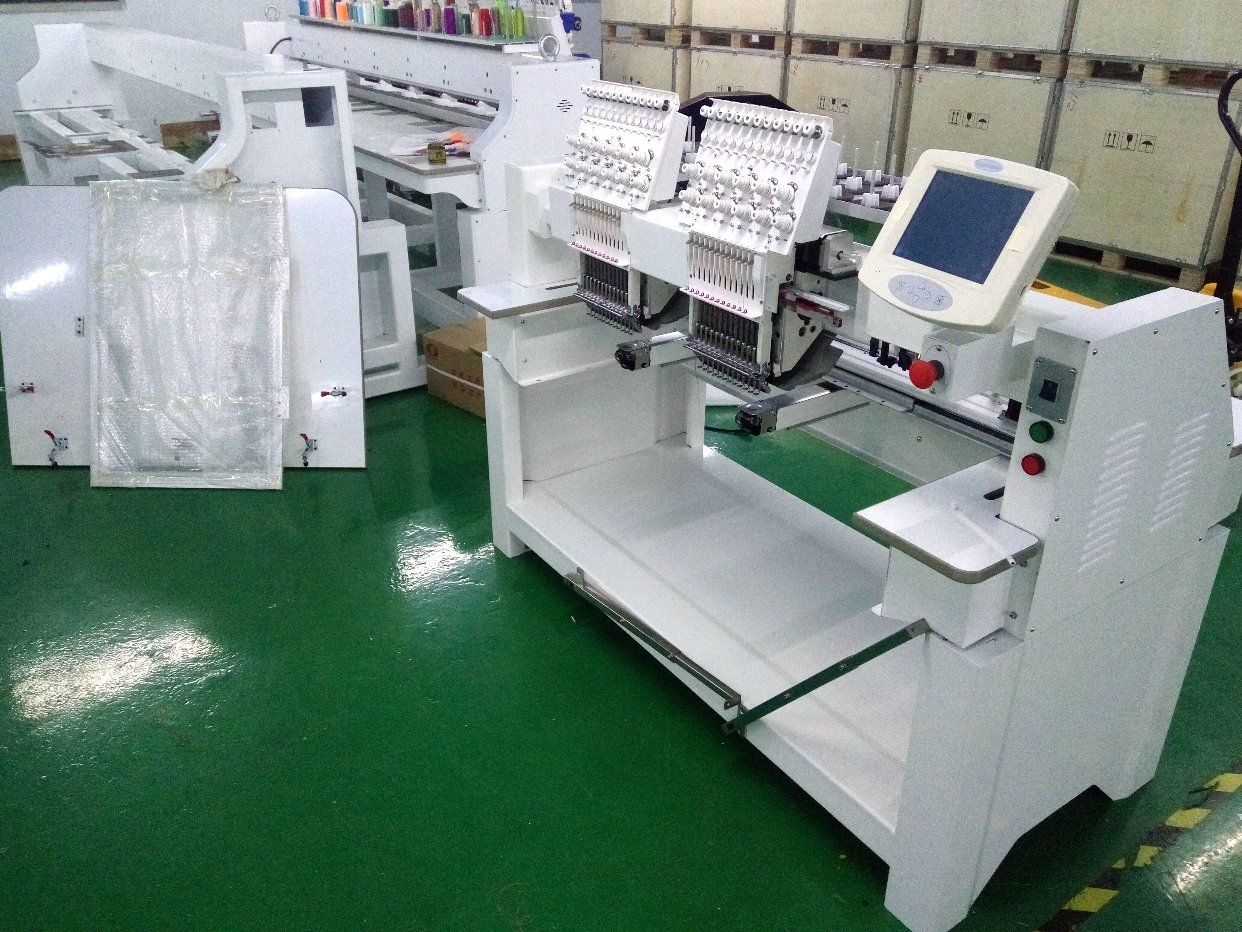

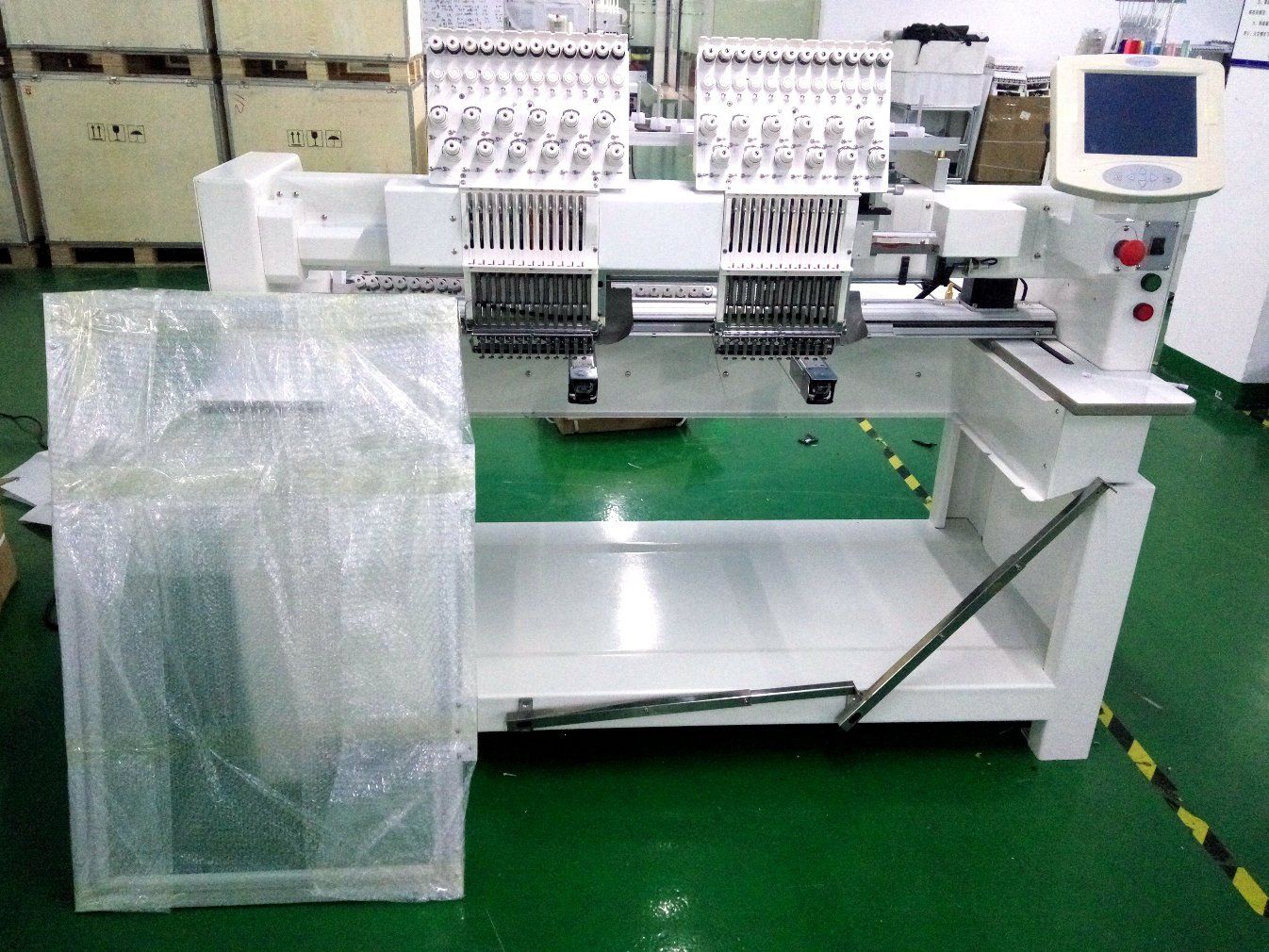

Two Head Embroidery Machine 902C and 1202C with 8" Touch Screen kurta designs for men.
2 head Computerized Cap embroidery machine with High Speed Good quality. 2 head Computerized Tubular embroidery machine(WY1202C) is a embroidery machine which can do cap, t shirts, and Flat embroidery with 8 inches Touch screen, 12 kinds of languages including English, Spanish, French and other 9 kinds of languages.
Product Description:1.2 Head Embroidery Machine
2. Cap embroidery machine
3. New embroidery machine
4.barudan embroidery machine price
5.
computerized embroidery machine
6.t-shirt embroidery machine priceMain parameters of wonyo two heads embroidery machine. | Main parameters |
| Function | cap embroidery, t shirt embroidery, flat embroidery... |
| Model# | WY902C, WY1202C |
| Speed | 850-1200 stitches per minute |
| Main Motor | Servo Motor |
| XY Motor | Stepper motor |
| Digitizing software | Dahao |
| Embroidery Design format | DST, DSB |
| Control Board | Topwisdom, 10" LCD touch screen |
| Language | English, French, Spanish, Portuguese, Arabic... total 12 languages |
| Voltage | AC110-220V, adaptable for any volatge |
| Power | 50-60HZ |
| Delivery time | 15-20days |
| Payment term | EXW, FOB, CFR, CIF...
30% before production, 70% before shipping |
| Loading port | Shenzhen, Ningbo, Guangzhou, Shanghai and customer demands |
wonyo 2 heads embroidery machine with 8/10 inch touch control system.| Control System |
| Automatic trimming | yes |
| Automatic cutting | yes |
| Automatic color change | yes |
| Thread broken detecting | yes |
| Memory size | 20,000,000 stitches/200 embroidery design patterns |
| Font/letter software | available |
| Error code | yes |
| Real-time stitching | yes |
| Different languages setting | yes |
| USB port, network transferring design | yes |
| Laser position with red light | yes |
| Led light | yes |

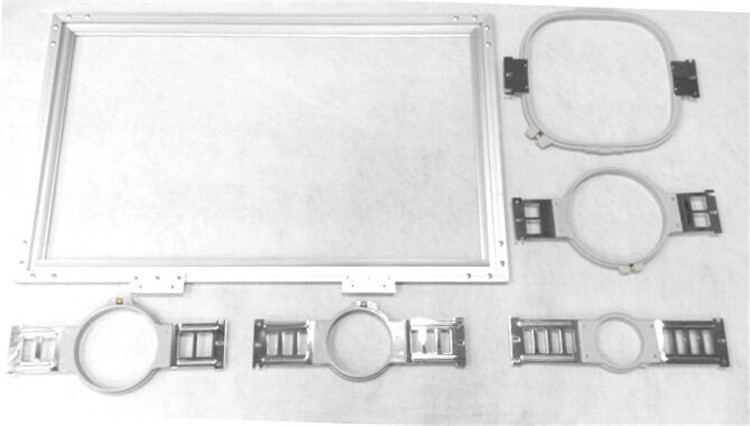

T-shirt and garment embroidery Frames/hoops.1 Sash Frame: 40.5cm X 48cm (16" X 19") for single head, 81cm X 48cm (32" X 19") for 2 head
2 sets of back hoops for 30cm X 30cm (11.80" X 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head

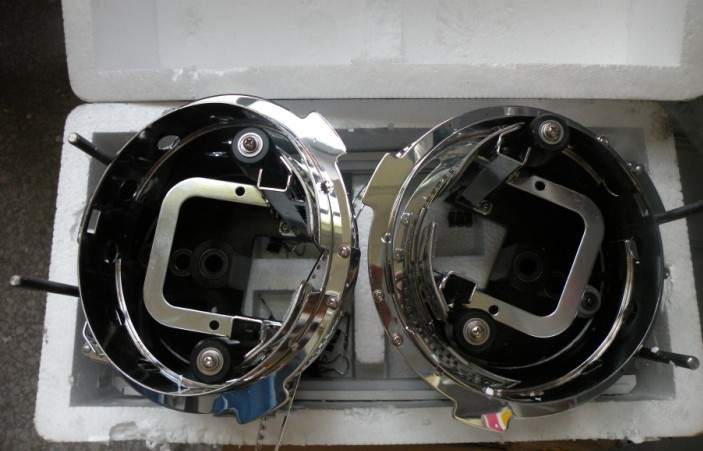

Cap attachment of each head cap embroidery 1pc cap driver,
1pc cap hoop station,
4pcs cap hoops
The Main Parts of Embroidery machine
1. Japan Rotary Hook
2. Japan Bobbin case
3. Italy Belt
4. Japan NSK bearing
5. Japan Cherry Gear
6.Japan Nemicon Encoder
7.German Needles
Other parts included:
Extended table top for Flat embroidery,
Standing table with Wheels ,
operation Manual,
Tool Kit,
8GB USB driver,
Bobbin Winder And so on
Service1. Pre-sale & in-sale service sOffer consulting service, sample's process experiment , equipment selection, training and the installation to the engineers and the user of the buyer. 1) Training : after the acceptance check by the buyer, the supplier offer the free training for 2-3 operators and maintenance persons of the buyer.2) Training and installation time is 3-5 days3) Installation & adjustment : When the buyer receives the equipment, the supplier install and adjusts the equipment with buyer's assistance on site then finally deliver it to the buyer. 2. After-sale services Our company offer One-year warranty and lifetime maintenance for the buyer , during the warrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts) . After the warranty period, we will charge appropriately according to the maintenance situation.Other Free gifts :
1) woonden case &vacuum package,
2) free digitziing software,
3) a whole set free easy damaged spare parts for your future replacement ,
4) 100 free designs for testing your machineFAQ Hot Questions Q: Is this a trustable long-term strategic partner?A: Just ask our customers, view our company profile, assessment of capability, factory glimpse, and the honor we had. And why not contact us or pay a visit to us?Q: What service will I get with this buying?A: Simply at your service: available consultancy before sales, easy communication during sales, easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.Q: What kind of embroidery work and embroidery machine do I need?A: Think: ready-made garment/cap/hat, or garment before sewing, or just flat fabric?Normal flat stitch, or special chenille/chain/loop stitch, or sequin/paillette, or cord/tape/ribbon to add value to your embroidery?Q: How many heads do I need and what embroidery area on each head?A: Think: how big is your factory and how much is your expected production?The embroidery area on each head depends on the maximum area of your embroidery design to run.Q: How many stitches do I get per minute (SPM) on each head?A: Super high speed model gives max. 1500SPM,High speed model gives max. 1200SPM,Normal speed model gives max. 1000SPM,Lower speed model gives max.850SPM.Q: Do I need the Elite model or economy model?A: Think: How much would you pay for a machine? What we offer is what you need!Q: Can I represent and sell ORDER machines in my market?A: Welcome to join ORDER family and grow to be a strong distributor.
