| Price: | US $ 300-350/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
| Prod Model: | KTEM02 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power(W): | 80-150W |
| Voltage: | 110/220V |
| Stone Size: | 1-10mm |
| Feature: | Hand-Held |
| Color: | Multicolor |
| Rhinestone: | Flat Back with Glue |
| Warranty: | One Year Warraty |
| Weight: | 7kg |
| Dimension(L*W*H): | 39*24*25.5cm |
| Gender: | Women's |
| Usage: | Hats, Bra, Coats, Shirts, Jewellery, Pants/Trousers, Garment, Bags, Shoes |
| Age Group: | Adults |
| Suitable For: | Daily Life |
| Type: | Hot Fix Rhinestone & Motifs |
| Model | DS-07102 | DS-09101 | DS-09101S |
| Product name | portable rhinestone machie | ultrasonic single disc rhinestone hotfix machine | ultrasonic double discs rhinestone hotfix machine |
| Voltage | 110/220V | 110/220V | 110/220V |
| Power | 80-150W | 0.3KW | 0.3KW |
| Diamond size | 1-10mm | 1-10mm | 1-10mm |
| Speed | 60-120pcs/min | 110-220pcs/min | 110-220pcs/min |
| Size | L268*W168*H198 | L650*W800*H1080 | L650*W800*H1080 |
| Weight | 7KG | 80KG | 88KG |

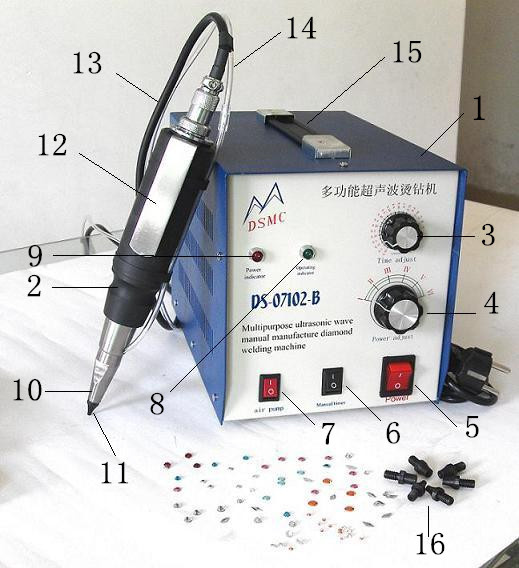

1.mainframe machine
2.transducers
3.timing(senconds)
4.power adjustable
5.power switch
6.timing switch
7.air pump switch
8.working indicator
9.power indicator
10.dismounting tips
11.tip
12.ultrasonic control switch
13.output wire of ultrasonic signal
14.air intake tube( 180cm )
15.handle
16.different size tips(Seven tips :#6/ # 10/ # 12/ # 16/ # 20/ # 30/ # 40)

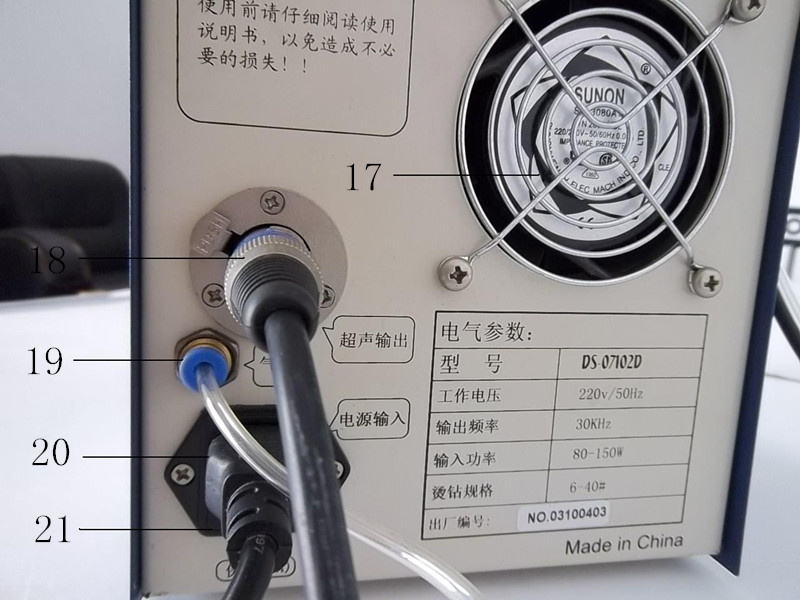

17. cooling fans
18.output interface of ultrasonic
19.interface of air intake tube
20.power interface
21.fuse box(1A)
Usage:
1.It can be iron on rhinestone,octagon and other hotfix items with any garments expecially cotton T-shirts.blouse,.denim jeans and knit-wear. bags.women shoes and other fashion products.
2.Ultrasonic hot-fix Rhinestone Setting machine from China For setting hot-fix rhinestone ,Copy Australia flatback rhinestone , other hot fix material and jointing.
Advantages:
1. High quality heat transfer machine,China factory wholesale price.
2. Various functions,size,color,model machine for your choice.
3. Size: suitable for ss6-ss40 rhinestones
4. Voltage: 110V and 220 are available
5. Acompany with CE certification
6. It's easy to operate hotfix machine.
7. Payment: T/T,Western Union,Paypal.
8. Delivery date: 1-2 days (exactly depend on your quantity)
9. MOQ:1 Set.
10. We have big discount from the DHL.UPS for shipping cost.
11. Good reputation & service.
12. You may save about 30% ordering from us.
| Trouble | Reason | Solve |
| Not power | 1.The power wires broken 2.Fuse working 3.The switch broken | 1.Fixed and change 2.Change 3.Change |
| No sucking or not enough air when sucking | 1.The pump can not work 2.The welding head blocked 3.The air tubing broken | 1.Repair and change 2.Dredging the tubing 3.Change the tubing |
| Can't weld well or no enough energy when welding | 1.The welding head broken 2.Not connecting well 3.Out put port broken 4.The out put wire broken | 1.Repair and change 2.Screw.it 3.Connecting it 4.Change the wire |
| Mucus on the welding head | The surface of the welding head is abrasive | Contact serivce to fix it |
