| Prod Model: |
ZRJ-100L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicable Industry: |
Chemical |
| Automatic Grade: |
Automatic |
| Application: |
Alcoholic Beverages |
| Working Principle: |
Vacuum |
| Driven Type: |
Electric |
Product Description

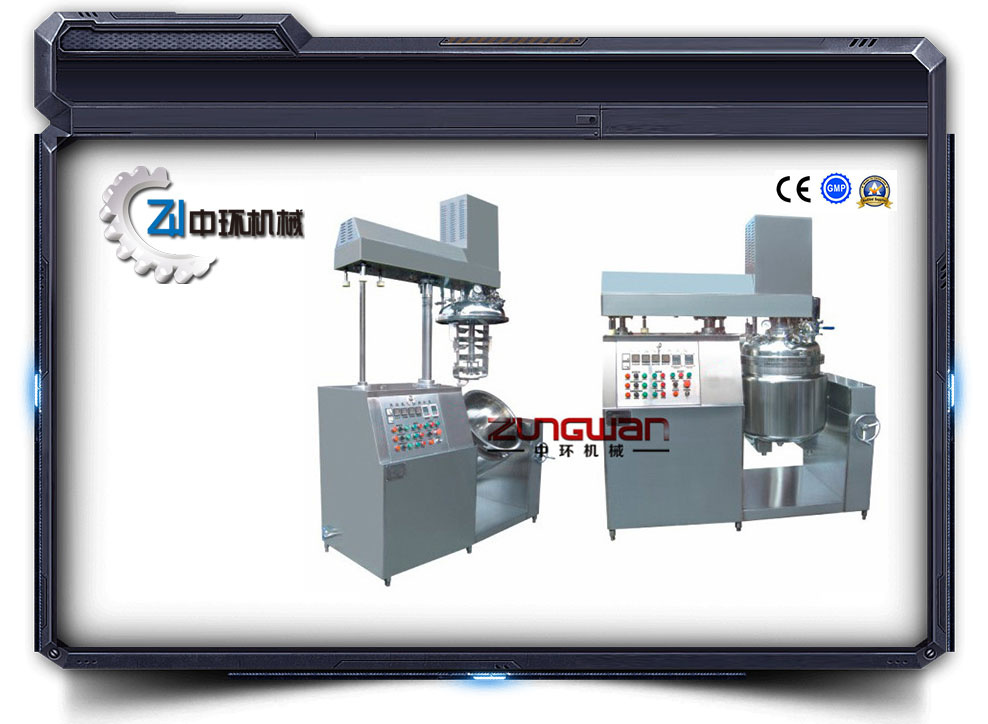

Model: ZRJ-100L Cream Vacuum Emulsification Blender
1. Outer dimension: Main machine: 2950× 2100× 2120MM; The maximum lifting height: 2970.
2. Emulsification Tank: Working volume: 100L; Material: SUS316L; Steam heating, water cooling
3. Structure: Three layer, top and bottom sealing heads, top sealing head connecting with the tank by the flange, bottom sealing head connecting with the tank directly, the material for inner side of the tank is 316L, thickness: 5mm, inner Polish: 300MESH(hygiene grade), jacket material: SUS304, thickness: 4mm, working pressure: 0.3Mpa, heat preservation coat: 304, thickness: 2mm, outer Polish: 300MESH(hygiene grade), weld crack Polish, heat preservation material, adopting on PU bubble liquid working art.
4. There are three sets of mixing system in the tank:
High speed scissors: Power: 4kw; Turn speed: 0-3300r/min
Overflow frame-shape mixer: Power: 1.5kw; Turn speed: 0-80r/min
Backwards mixer: 1.5kw; Turn speed: 0-80r/min
5. Main parts from the tank: Product inlet filter; Product fitting inlet; Vacuum sucking outlet; Germless breath mouth; Mirror with light and brush; Temperature sensor; CIP cleaner; Product outlet; Safety valve; Pressure meter; Negative pressure sensor, etc.
6. Pre-handle tanks (oil tank and water tank)
Water tank volume: 80L; Oil tank volume: 80L; Electric-heating; Water cooling
Structure: Half-open cap, fixed on the platform, including the mixing scissors, self-controlled temperature meter equipment.
7. Hydraulic pressure system:
Oil box, oil cylinder, electromagnetic valve, overflow control valve.
8. Vacuum system:
Main tank vacuum pump ZBV2060, air drawing volume 32m2/h, motor power: 1.1kw
9. Electric control system:
Electric component is Schneider brand, frequency convertor is Matsushita, press button is Schneider brand. Meter and sensor, temperature is the best quality made in China. Temperature control, data input, automatic control.
10. Seals
Material of seals is silicon rubber seals.
11. Connecting way of Clamping Nut for the connector of wire end
12. The machine has two parts, bottom settlings can be fixed on the platform (the stand for oil tank and water tank)
13. Outer surface for each corner is arc shape, and the touch feeling is soft.

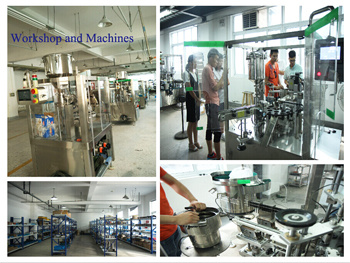

Wenzhou Zhonghuan Packaging Machine Co., Ltd is the professional equipment manufacturer to keep researching and developing the packing machinery for every type of liquid, powder, cream/ointment, fluid and half-fluid etc. Materials. The main products range from ordinary pressure filling machine, computer controlled liquid filling machine to powder serial automatically volume-measuring packing machine and inline capping machine, rotary capping machine and labeling machine, bottle unscrambler, screw capping machine, tube filling and sealing machine, cartoning machine and other Packaging equipments.
So far we have more than 100 domestic customers and more than 400 foreign customers. The quality of our machines and our service as well as our integrity is acclaimed both in China and abroad. We will carry forward the spirit of "integrated innovation, and perseverance, " discipline ourselves to be the first, and provide better and more perfect service for our new and old customers with enthusiasm and a new attitude.
Top-ranking product quality and highly effective and efficient After-Sales Service, refine the excellent product of "ZHONGHUAN". The products have a great demand in domestic and oversea market, and it is our permanent topic and sincere promise to customers to keep improving high, developing and satisfying customer and meeting market's demand.
