Prod Model: |
XTQ-10~100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Stainless Steel |
Used In: |
Laundry, Hotel, Hospital, School, Army, etc |
Style: |
Integrated Style |
Physical Machine Type: |
Water Conservan Cycleaning Method |
Usage: |
Petrochemical Industry |
Machine Type: |
Industrial High Pressure Cleaning Machine |
Fuel: |
Electric |
Clean Type: |
High Pressure Cleaner |
Cleaning Process: |
Solvent Cleaning |
Certification: |
CE |
Brand: |
Tong Yang |
Product Description
Automatic washer, Automatic-fully washer extractor, Automatic-fully washing and dewatering machine, Automatic-fully washing and extracting machine, Automatic-fully washer, Automatic washing machine, Washer extractor, Laundry washing machine, Laundry washer extractor, Laundry equipment, Marine washer extractor
Main features:
1. Laundry washer extractor Fully automatic, microcomputer-controlled.
2. Industrial washer extractor has high quality stainless steel, good appearance, long life.

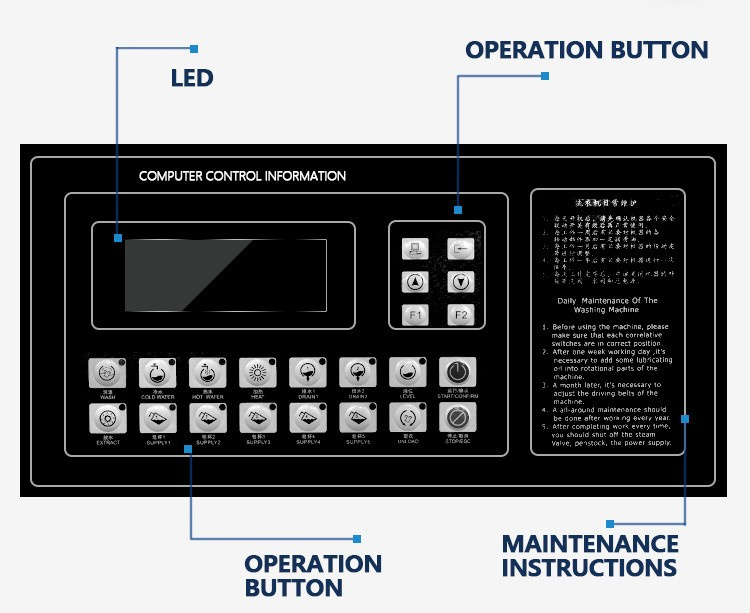

3. Microprocessor, freely programmable, 5 standard programmes, 25 possible programmes.
4. Full suspension shock sructure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. Laundry washer extractor has high quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
8, Built-out bearing lubrication, simple operation, convenient maintenance.

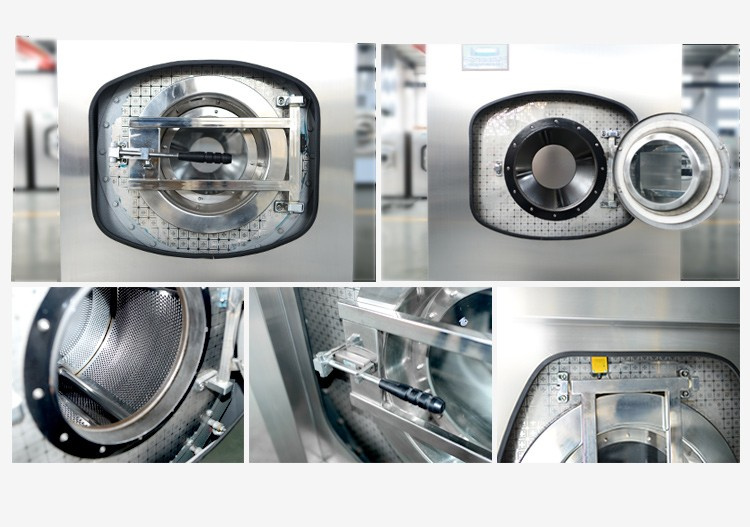

9, Safety door interlock system.
10, Multiple sealing system, oil sealing, water sealing, stainless steel sealing.
Specification:
Type | XTQ-15 | XTQ-20 | XTQ-30 | XTQ-50 | XTQ-70 | XTQ-100 |
Rated capacity |
Min. Kg | 10 | 15 | 20 | 35 | 50 | 70 |
Max. kg | 15 | 20 | 30 | 50 | 70 | 100 |
Drum |
Diameter. mm | 636 | 700 | 900 | 1080 | 1080 | 1200 |
Diameter deepness. mm | 470 | 500 | 500 | 575 | 730 | 856 |
Overall dimension |
Hight. mm | 1300 | 1400 | 1635 | 1800 | 1800 | 2030 |
Length mm | 1240 | 1260 | 1460 | 1610 | 1760 | 1990 |
Width mm | 1000 | 1050 | 1400 | 1550 | 1550 | 1690 |
Drum speed |
Wshing rotate speed. r/min | 45 | 45 | 36 | 35 | 33 | 31 |
Uniformity speed. r/min | 90 | 85 | 80 | 75 | 70 | 65 |
Mid speed. r/min | 450 | 450 | 420 | 380 | 350 | 310 |
High speed. r/min | 890 | 890 | 780 | 380 | 350 | 310 |
Motor Power. Kw | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
Draining valve |
Draining valve. mm | 70 | 70 | 100 | 100 | 100 | 140 |
Filling with water |
Hot water pipe | 3/4" | 3/4" | 3/2" | 3/2" | 3/2" | 3/2" |
Cold water pipe | 3/4" | 3/4" | 3/2" | 3/2" | 3/2" | 3/2" |
Steam pipe |
Steam pipe | 3/4" | 3/4" | 1" | 1" | 1" | 1" |
Power supply |
Power supply | Standard: 380+N-3PH-50Hz |






Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 220v, 3phase, 60hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
Taizhou Tongjiang Washing Machinery Factory, founded in 1996, is located in Taizhou Senbei Industrial Park. After twenty years of development, it has become the leading manufacturer in apparel industry of washing equipment in domestic. We have attained strict CE and ISO9001 Quality Management System Certification and own import and export license.
We have total factory space of approximately 26, 666 square meters with over 120 workers. We have complete processing devices including milling, shaping, boring, slotting, drilling, reaming and polishing, also possessing manufacturing procedures of flame cutting, hole piercing, cutting, pressing, bending and molding and large-scale spray painting equipment. All of these make Tongyang products rank the first class in regard of overall technology and manufacturing equipment.
In order to meet the needs of market expansion, we have focused on importance in technological innovation, upgrading and absorbing high quality experts with full efforts, so as to increasing R&D, and introduce new products which fill up domestic margin instead of importing.
Tongjiang Washing Machinery Factory mainly produces entire suspension type washing machine, industrial washer, hydro extractor, tumble dryer, flatwork ironer, washer extractor, folding machine, transport type carpet cleaning machine and finishing equipment and so on. The products are not only popular in hotels and restaurants, but also in hospitals, railways, troops, universities and colleges and some washing & dyeing industrials as well as in more than 30 countries in Southeast Asia, Americas, Europeans and South Africa. With beautiful features, durable performance and diverse varieties, our products has wined a leading status in the industry and received good reputation from oversea market,
Our factory has recently researched chlorine washing machine and foam washing machine, which filled up domestic spacing, instead of importing from America and Japanese. This settles the problems of importing in higher price and difficulty in finding spare parts for domestic latex products manufactures and printing factories.
"Technology innovation, works with realistic" is our manifesto, "Customer first and pursuing the best quality" is our pursuit. Tongjiang people are expecting all friends come and visit our factory.
Taizhou Tongyang Washing Machinery Co., Ltd. is specializing in producing industrial and commercial washing machines with various specifications available.
Our main products include fully-automatic washers and extractors, carpet washing machines, extracting machines, drying machines and ironing machines. These products are new in type and low in power consumption. They are widely used in various trades, such as textile, printing, dyeing, silk, garments and chemical industries, hotels, restaurants and hospitals.
Recently, our factory successfully developed a chlorine washing machine and a foam washing machine which filled up domestic blank. They can replace the ones we had always imported from the USA.
Our products have a ready market not only in China but also in Southeast Asia. We ensure superb quality and reasonable price. We take full responsibility of repair, replacement or refund if serious quality problems happen. All our products enjoy life-long service and all the spare parts for them are available.
You are welcome to visit our factory and order our products.
