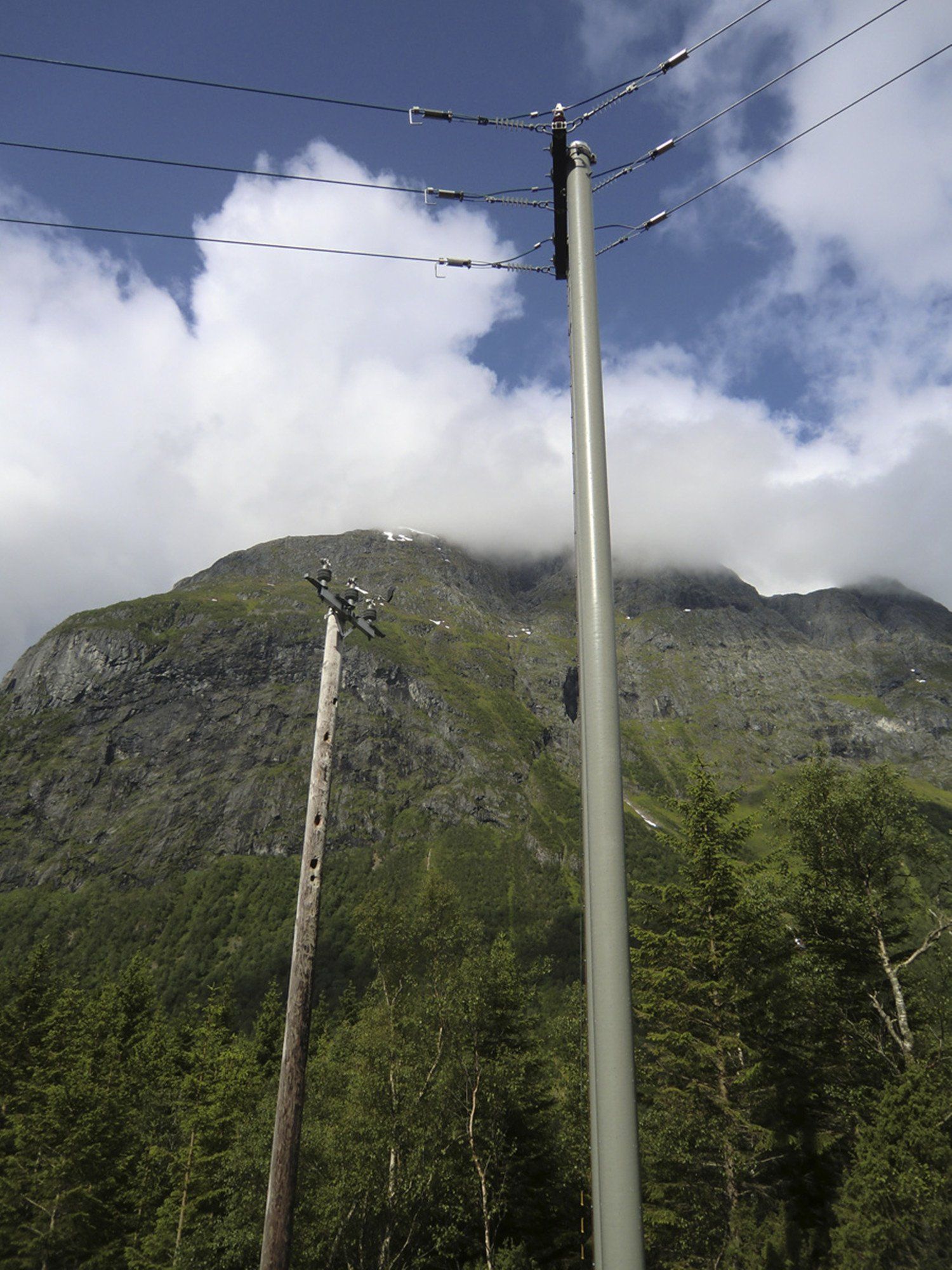

Weft Unidirectional Fibre Glass Knitted Fabric for Composite Utility Pole
| Price: |
US $ 1.8-1.916 |
| Min Order: |
10016 |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UD670-300 |
| Min Width: |
5cm |
| Roving In 90 Orientation: |
670GSM |
| Chopped Strand Per Square Meter: |
300GSM |
| Roll Width: |
1270mm |
| Roll Weight: |
88kg |
| Loading Qty In 20FCL: |
15840kg, 180cartons |
| Shape: |
Fiberglass Mat |
| Fiber Characteristics: |
E-Glass |
| Fiber Appearance: |
Continous Fiber |
| Glass Composition: |
E-Glass |
| Diameter Of Filaments: |
13um |
Product Description

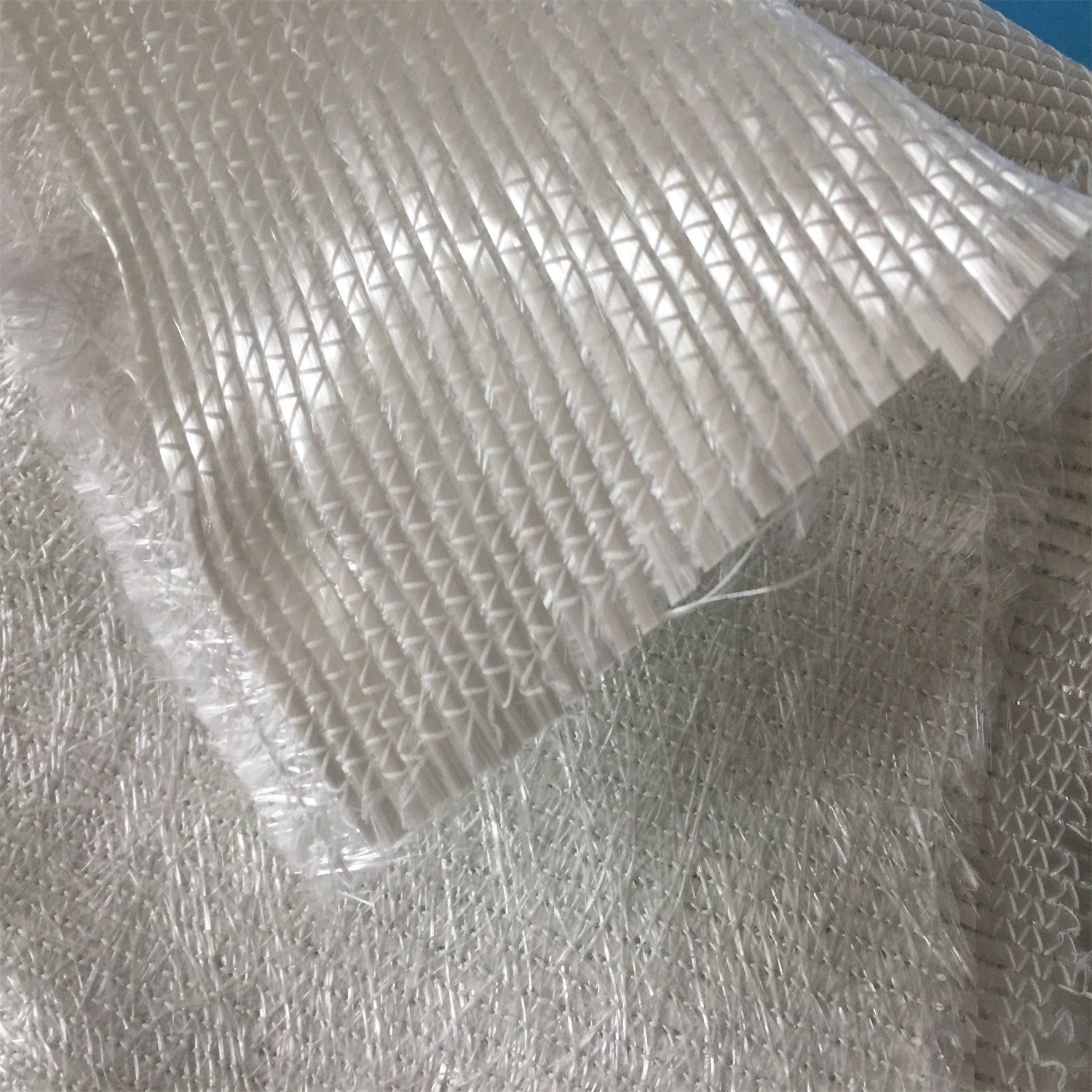

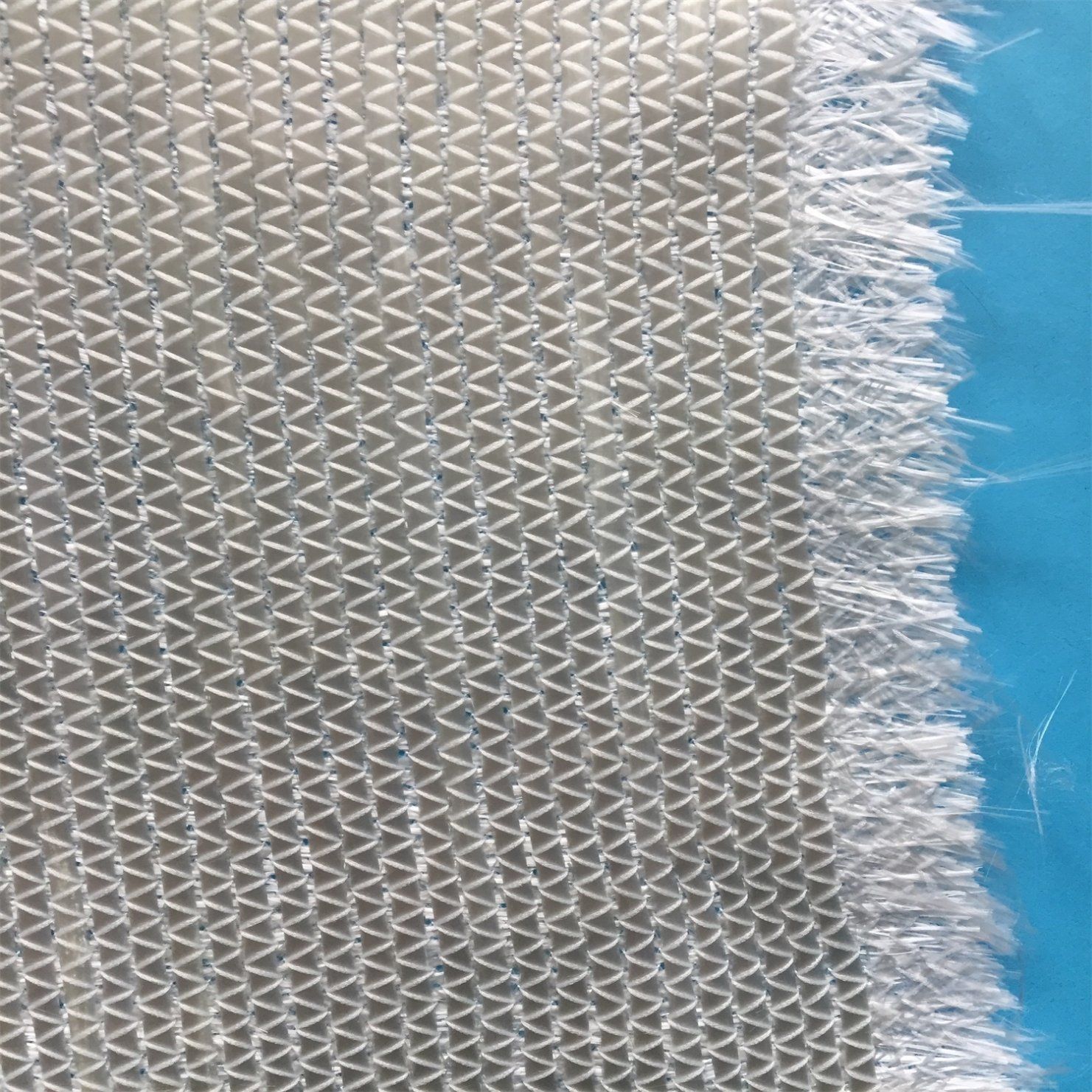

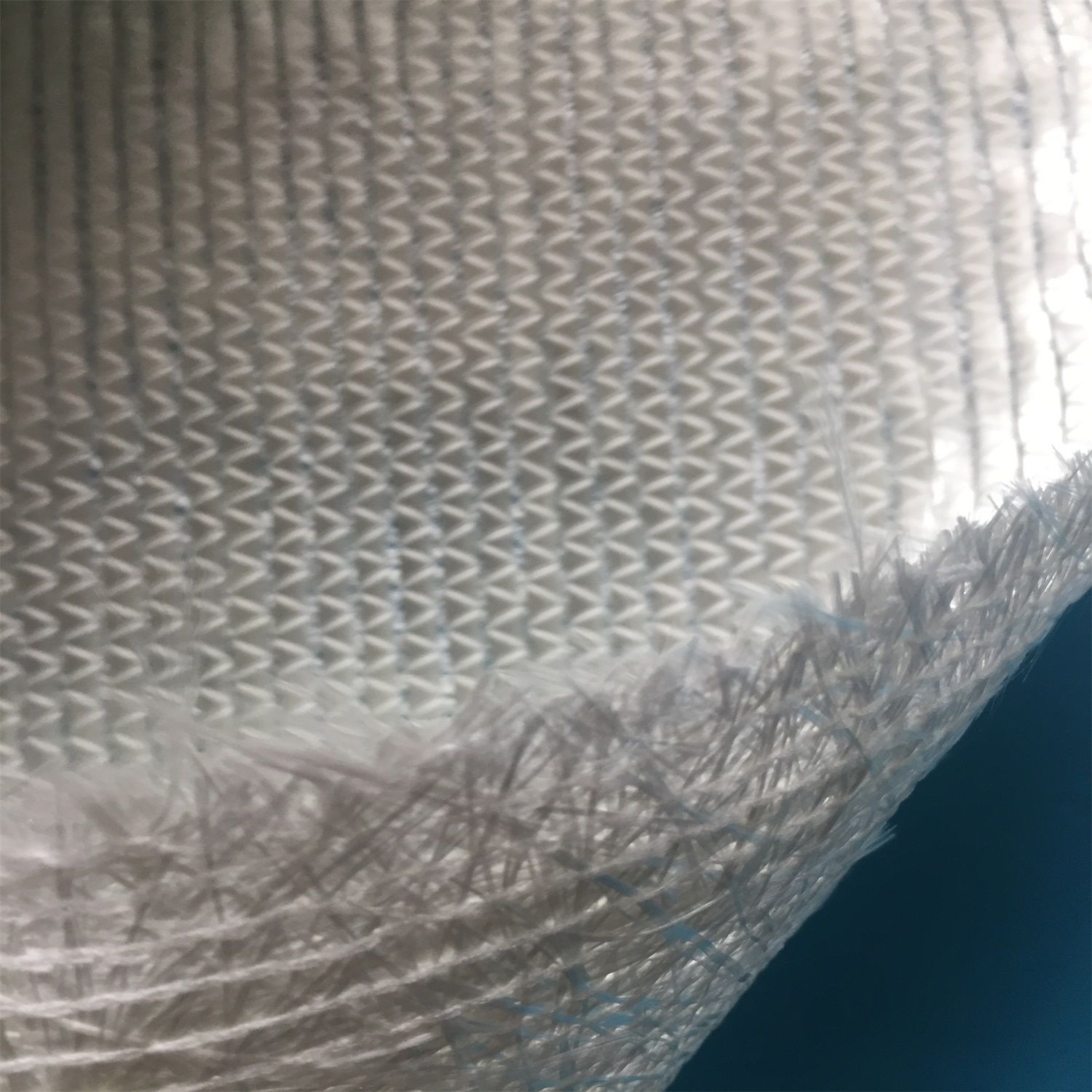

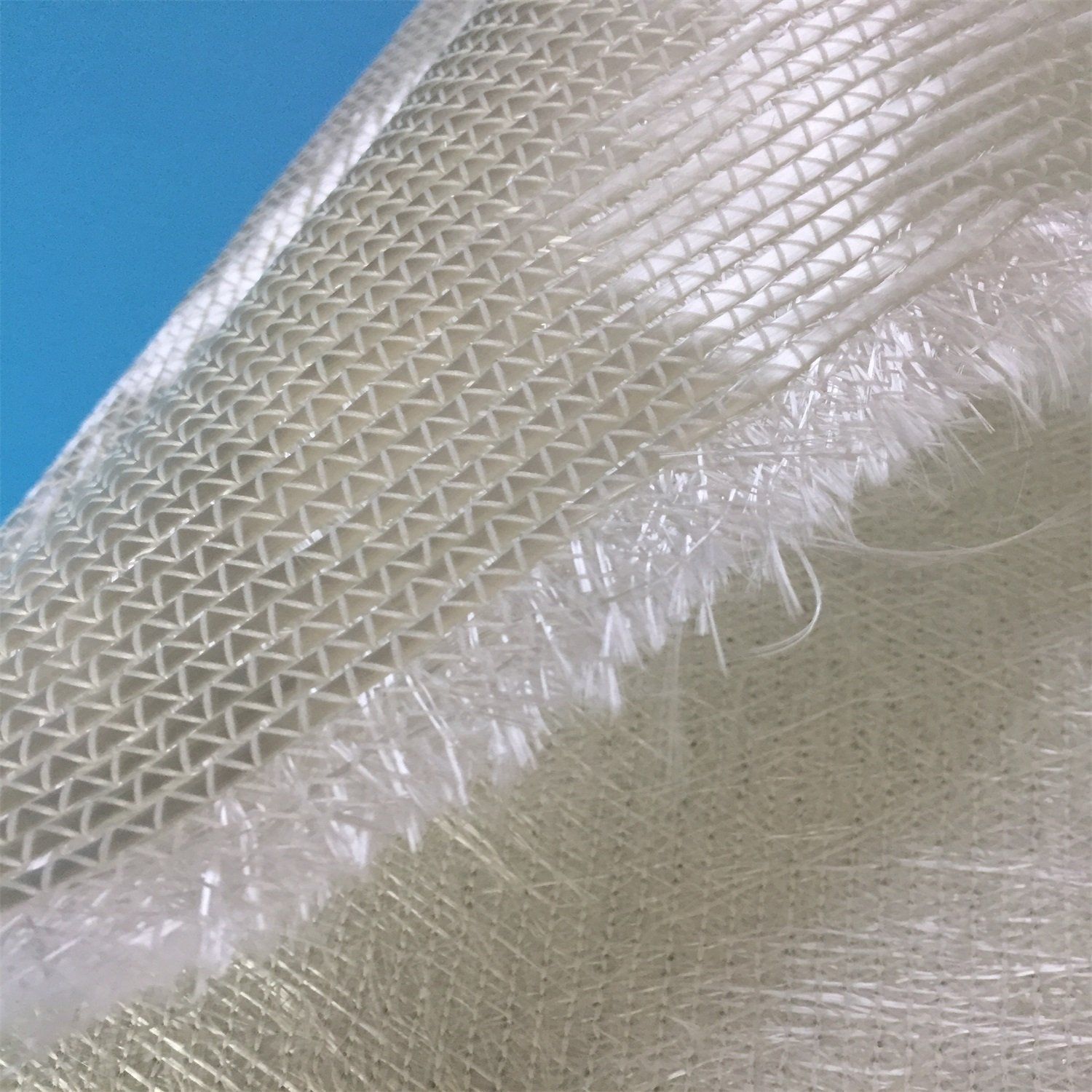

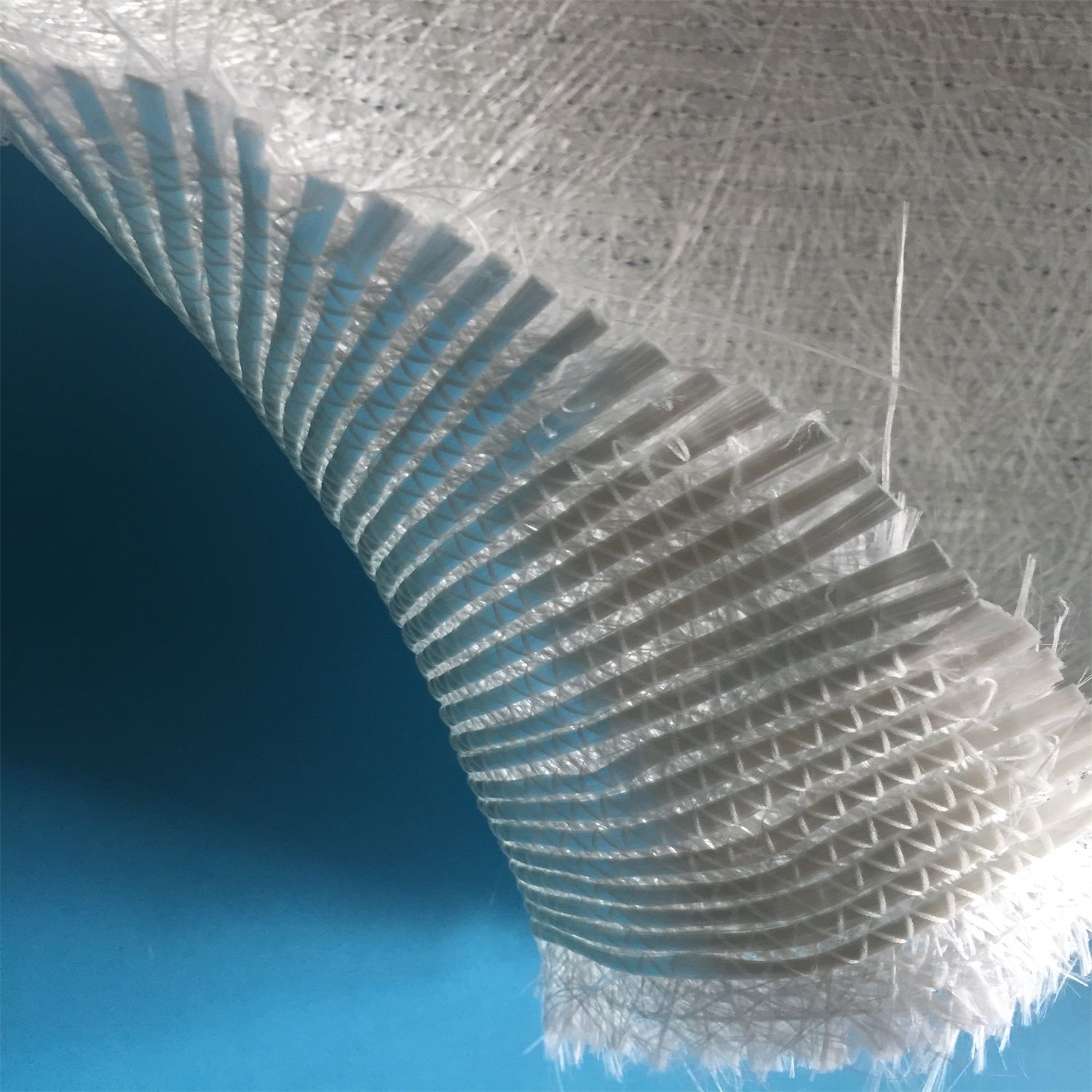

Unidirectional fiberglass knit fabric is produced by stitching roving in 90 direction and chopped strand together. So it gives good reinforcement in transversal direction, which can reduce cracks of pultruded products. Minimum width can be 5cm.
A layer of PET veil can be added, which helps to achieve beautiful surface and aging resistant.Application:
It's commonly used for pultruded products shaped in line and sheets, such as pultruded windows, rails, big size C-channels, I-beams...
Technical Data:
| Item | Weight( Roving in 90°)
g/m2 | Weight(mat)
g/m2 | Weight (PET nonwoven)
g/m2 | Total weight
g/m2 |
| ETM450 | 200 | 250 | | 450 |
| ETM650 | 400 | 250 | | 650 |
| ETM900 | 600 | 300 | | 900 |
| ETM450N45 | 200 | 250 | 45 | 495 |
| ETM650N45 | 400 | 250 | 45 | 695 |
| ETM900N45 | 600 | 300 | 45 | 945 |
| CHANGZHOU UTEK COMPOSITE COMPANY CO.,LTD |
|
| COMPANY INTRODUCTION: |
| Company Name | CHANGZHOU UTEK COMPOSITE CO.,LTD |
| Address | Fuhanyuan 1-814,Taihu Road,Changzhou,Jiangsu,China |
| Contact Person | Name | Tel | |
| Manger | Gong Xiaojun | 0086 13357899376 | |
| Manger | Irene Xi | 0086 13961156380 | |
| Business Condition | Manufacture | Trading |
| Consititution of company | Pvt.Ltd |
| Annual turnover | USD10,000,000 |
| Company Occupy Areas(M2) | 3000M2 |
| Shower room Occupy Areas(M2) | 200M2 |
| website | www.utekcomposite.com |
| http://utekcomposites.en.made-in-china.com/ |
| Mainly Customer & Marketing | Europe,Asia,America,Middle East |
| Mainly Product | Fiberglass chopped strand mat (powder and emulsion), stitch mat, combo mat, uni-direction and biaxial fabric, RTM core mat, woven roving, special products like Ar-glass roving, chopped strand, thin fiberglass fabric, SMC(sheet molding compound), fiberglass/polyester geogrid and geocomposite. fiberglass mica fabric for insulation. |
|
|
|
| Sales Team | 15(University Graduates) | Product Team | 150 |
| Research & Development Team | 12 | QC Team | 8 |
| Certificate | ISO 9001 ,ISO 14001 ,SGS |
Give us a chance, and we' ll return you with satisfaction.
Changzhou Utek Composite Co. Is committed to provide tailor-made service to customers with various requirements. We pay attention to needs of customers who adopt different production technologies like hand lay up, pultrusion, winding, close molding… Changzhou Utek is customer-oriented, from sales to production, in each step.
With many years of experiences in composite industry, we utilize our good working knowledge to develop, manufacture and distribute materials for:
Composite Reinforcement
1. Fiberglass cloth for surfboard: Standard and warp enhanced, have a lot of export to Australia, Indonesia, Brazil, Argentina…
2. Sandwich mat with PP core for RTM process: Exported to Russia, Malaysia, Spain, used to make big size road plate, cooling tower…
3. Fiberglass chopped strand mat: Big roll and wide width available, good quality of light weight mat for auto headliner such as 100g, 120g, 150g
4. Other reinforcement material such as stitch mat, combo mat, uni-direction and biaxial fabric, woven roving, Ar-glass roving, chopped strand
Chemicals:
1. SMC/BMC: Experienced in SMC for water tank, electric meter box, manhole cover. Have a lot of export to Saudi Arabia, South Africa, Malaysia
2. UP resin: Exported to Thailand, Chile, Nigeria
GRC: Ar-glass spray up roving, Ar-glass chopped strand, exported to Saudi Arabia, Egypt, Indonesia…
Geosynthetics: Fiberglass/polyester geogrid, paving grid, drainage geonet for landfill
We' Re one step source for composite reinforcements. Give us a chance, and we' Ll return you with satisfaction.
