| Prod Model: |
WY906C |
| Working Area: |
400*450mm |
| Cap Hoop: |
16 Pieces |
| Frames: |
81 PCS |
| Motor: |
Japanese Panasonic Servo Motor |
| Rail: |
Linear Rail |
| Rotary Hook: |
Koban |
| Computer: |
Topwisdom |
| Screen: |
8 Inches Touch Screen |
| Languages: |
13 Kinds |
| Warranty: |
1 Year |
Product Description

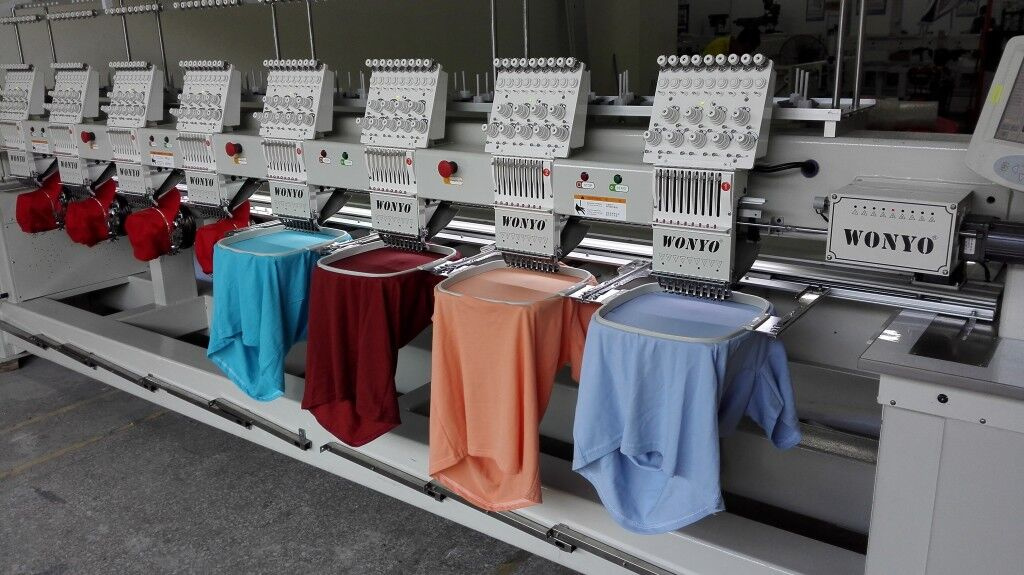

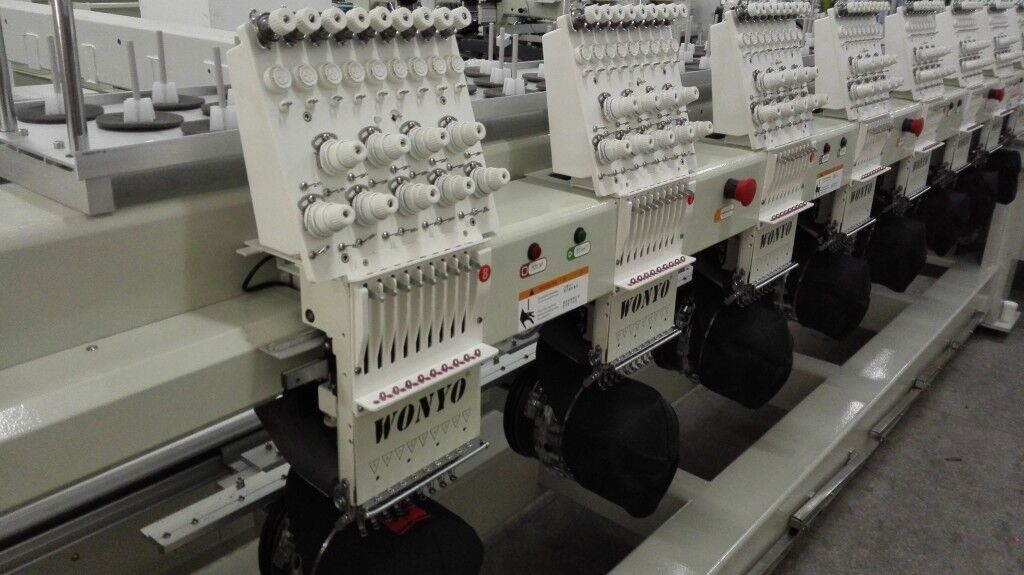

WONYO Big Screen 6 head Computerized Embroidery machine for T shirt WY906C
10. Mutli languages available
9. DOT Key to return to 100 degrees
8. Embroidery Method
7. Embroidery Status
6. Manual Color Change
5. Manual Trimming
4. Frame-moving keys
3. Numeric keys for selection of needles
Input, Parameter Settings, Clear, ESC, Enter, etc.
Down (also Page Up and Page Down), Help, USB-
2. Function keys including Menu, Speed up and slow
1. 8" High Definition color LCD display showing real time stitching
II. Full coler control panel
14. On-board lettering
13. Start, Stop, and Emergency Stop
12. Electricity: 110V/60Hz or 220V/50Hz available
11. Memory size: 1, 000, 000 stitches
10. Pre-Sew Design Trace capable
9. Thread break detection
8. Auto color change
7. USB port ready
6. 8" color LCD display showing real time stitching
5. 270° Wide cap frame unit
4. Maximum speed 850 SPM
3. Automatic thread trimmer
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
Embroidery and finished garments embroidery
1. 9 needles, 6 heads, suitable for flat bed embroidery, cap

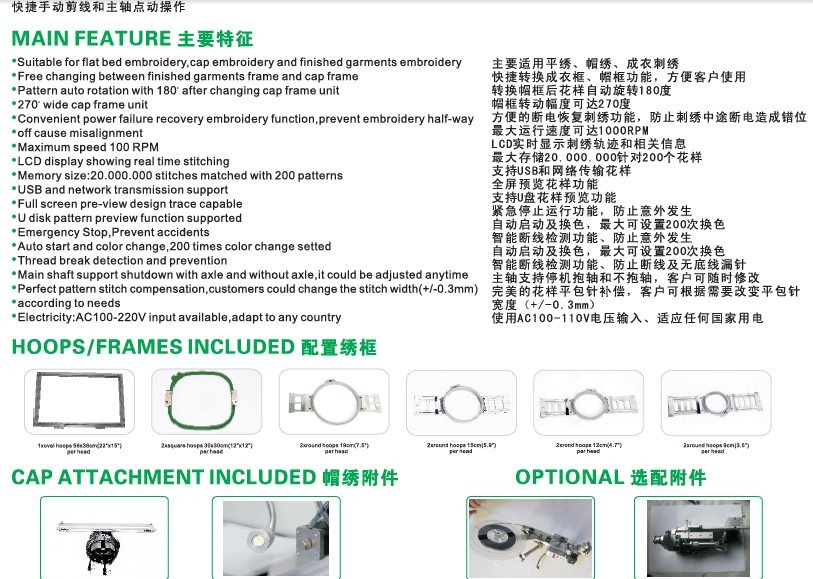

I. Main features of the embroidery machine
III. Frames/hoops
1 Sash Frame: 40.5cm x 48cm (16" x 19") for single head, 81cm x 48cm (32" x 19") for 2 head
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
IV. Accessories
Table top
Operation Manual
Tool Kit
Bobbin Winder
NEEDLES
| HEAD
| EMBROIDERY SPACE(L*W)
| HEAD INTERVAL(mm)
| LENGTH(mm)
| WIDTH(mm)
| HEIGHT(mm)
| WEIGHT(kg)
|
6\9\12
| 2
| 400*450
| 400
| 1520
| 900
| 1530
| 350
|
6\9\12
| 4
| 400*450
| 400
| 2620
| 900
| 1500
| 600
|
6\9\12
| 6
| 400*450
| 400
| 4250
| 900
| 1500
| 950
|
6\9\12
| 8
| 400*450
| 400
| 5050
| 900
| 1500
| 1200
|
(Contact: Ms Ellen
Multi-head cap embroidery machine, with 2/4/6/8 head & 9/12 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery.
