| Prod Model: |
1201C/1501C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
24 Months |
| Memory Size: |
20million Stitch with 200 Patterns |
| Trimming: |
Auto Trimming |
| Thread Broken Checking: |
Auto |
| Computer Screen: |
8"/10" Touch Screen(Optional 10") |
| Language: |
12 Languages |
| Main Motor: |
Panasonic Servo Motor |
| Embroidery Area: |
400*450mm/360*510mm |
| Power: |
100V/60Hz - 240V/50Hz |
| Speed: |
1200 Rpm |
Product Description

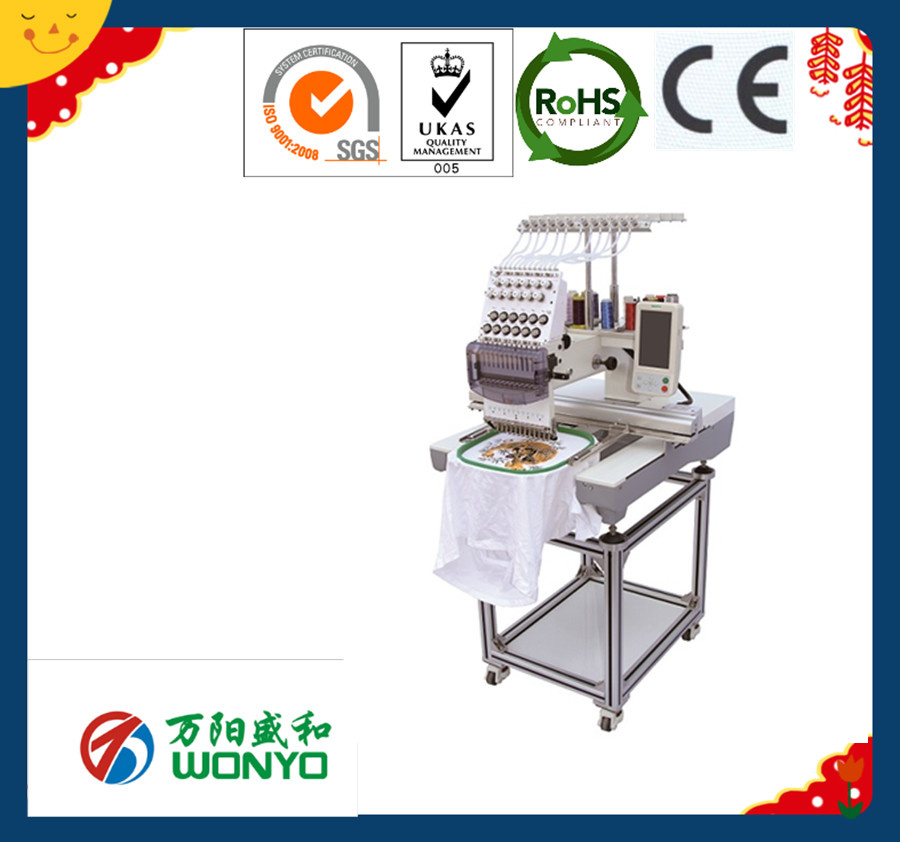

WONYO Best Selling 9/12 Needles 6 Heads High Speed Computerized Most Durable Embroidery Machine
Much Better Than Second-hand Barudan Machine!
Suitable for cap, finished garments, jeans, belt, shoes, socks, insoles, bead, sequin, cording, boring, 3D, flat embroidery.
Looking for Agents/ Distributors from all over the world !
| Model | Needle | Head | N.w
G.w | Emb.area | Meas
Outer
CBM |
| WY1201CS/WY1501CS | 12/15 | 1 | 120kg
138kg | 360*510mm | 750*740*850mm
840*830*930mm
0.648CBM |

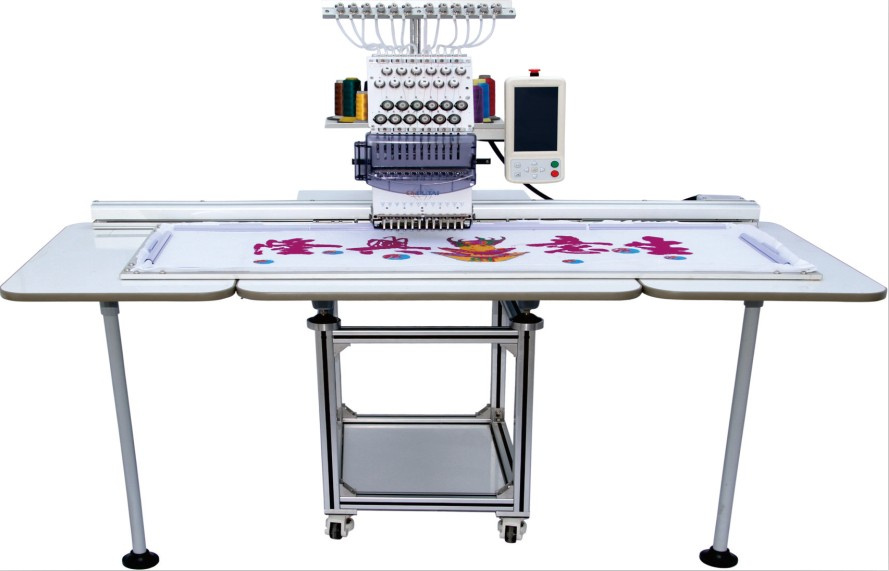

| WY1201CL/WY1501CL | 12/15 | 1 | 201kg
238kg | 360*1200mm | 1490*980*1000mm
1580*1030*1090mm
1.774CBM |
| WY1202CS/WY902CS | 12/9 | 2 | 390KG
429KG | 400*450MM | 1520*970*1400mm
1710*1060*1470mm
2.665CBM |
| WY1204CS/WY904CS | 12/9 | 4 | 720KG
900KG | 400*450MM | 2638*1090*1500mm
2700*1140*1660mm
5.110CBM |
| WY1206CS/WY906CS | 12/9 | 6 | 1100KG
1210KG | 400*450MM | 3438*1160*1500mm
3460*1200*1670mm
6.934CBM |
| WY1208CS/WY908CS | 12/9 | 8 |
1200KG
1335KG
| 400*450MM | 4238*1090*1500mm
4510*1130*1670mm
8.511CBM |
| WY1212CS/WY912CS | 12/9 | 12 | 1800KG
1960KG | 400*450MM | 5838*1490*1610MM
6000*1500*1680MM
15.120CBM |
Product Description:
I. Main features
1. Suitable for flat embroidery, cap embroidery and finished garments embroidery
2. Automatic thread trimmer
3. Maximum speed 1200 SPM
4.270° Wide cap frame unit
5. Color LCD display showing real time stitching
6. USB input port
7. Automatic color change
8. Thread break detection
9. Pre-sew design trace capable
10. Memory size 2, 000, 000 stitches
11. Emergency stop
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Built-in bobbin winder
II. New Features
1.110V or 220V self-adaptable power supply. No more external power box needed.
2. Only 150W power consumption.
3. Mainboard is built into the control panel, which reduces the possibility of damage by dust or external force.
4. Support large capacity of USB flash drive from 2GS and upwith faster data transmission and more compatibility
5. Proper shut-down function powers off only moving parts such as X&Y axis and needle bar, but still keeps the data on screen when the emergency button is pushed.
6. Precise digital degree on stop point: Main shaft can be turned to any angle digitally with the number of degrees shown on the screen.
7. Cap to flat (or vise versa) embroidery mode switch eliminating the possibility of hitting the frame.
8. Keeping original file names in memory makes it easy to manage designs.
9. Lay-out of keys on panel is more user-friendly.
10. Real time and date is showing on screen.
11. High speed up to 1200 SPM.
12. Memory size up to 2 million stitches and 200 designs

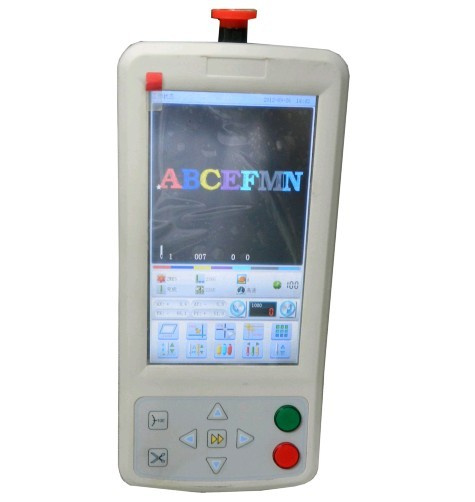

III. Compact control panal
1. Color LCD display showing real time stitching
2. Manual Color Change
3. Function keys including Menu, Speed up and Slow down (PageUp and PageDown), USB Input, Parameter Settings, Clear, ESC, Enter, etc.
4. Multi languages available
5. Frame-moving keys
6. Manual Trimming
7. Start, Stop, and emergency Stop
8. Embroidery Status 9. DOT key to return to 100 degrees,
9. DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
10. On-board lettering
11. Numeric keys for selection of needles

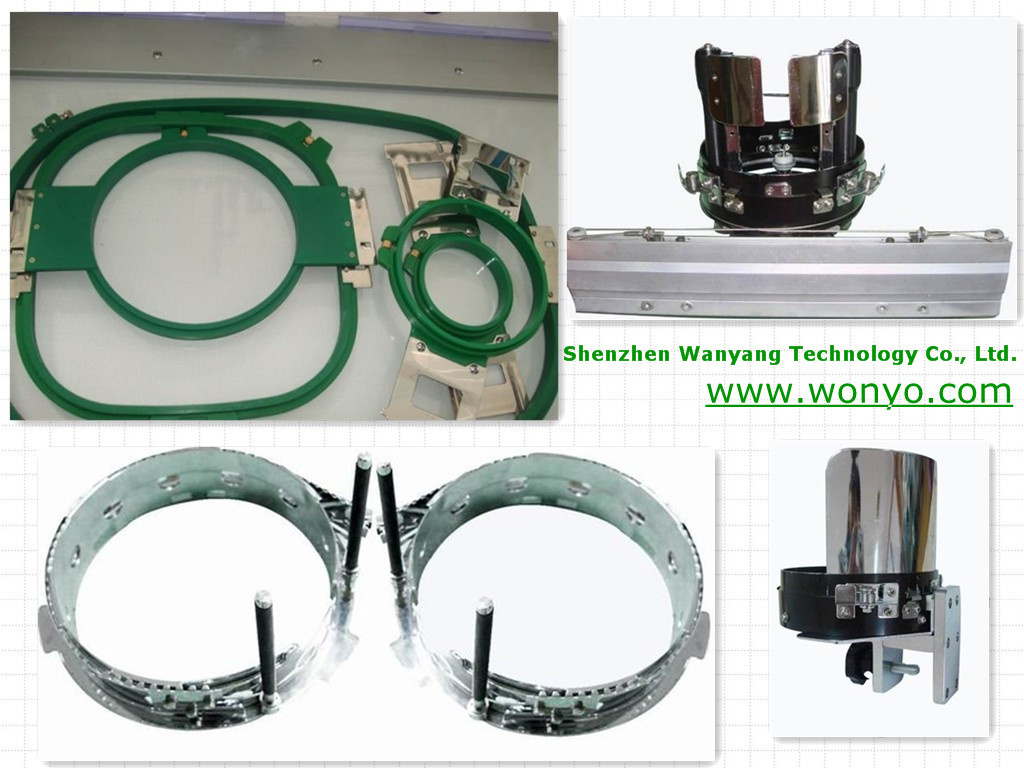

IV. Hoops/frames inclued
A. 2 x Shirt Front Round Hoop 9 cm (3.5")
B. 2 x Shirt Front Round Hoop 23 cm (9")
C. 2 x Shirt Front Round Hoop 12 cm (4.7")
D. 2 x Jacket Back Square Hoop 30 x 30 cm (12" x 12")
E. 2 x Shirt Front Round Hoop 15 cm (5.9")
F. 1 x Sash Frame 56 x 38 cm (22" x 15")
Other attachment
1)Table and stand with wheels for easy moving around, 70 x 70 x 78 cm or 27.50" x 27.50" x 30.50" with the net weight of 38 kilograms
2)Operation Manual
3) Tool Kit
V. Built-in Network
You can control several one head embroidery machines by one computer.
Main Outfit:

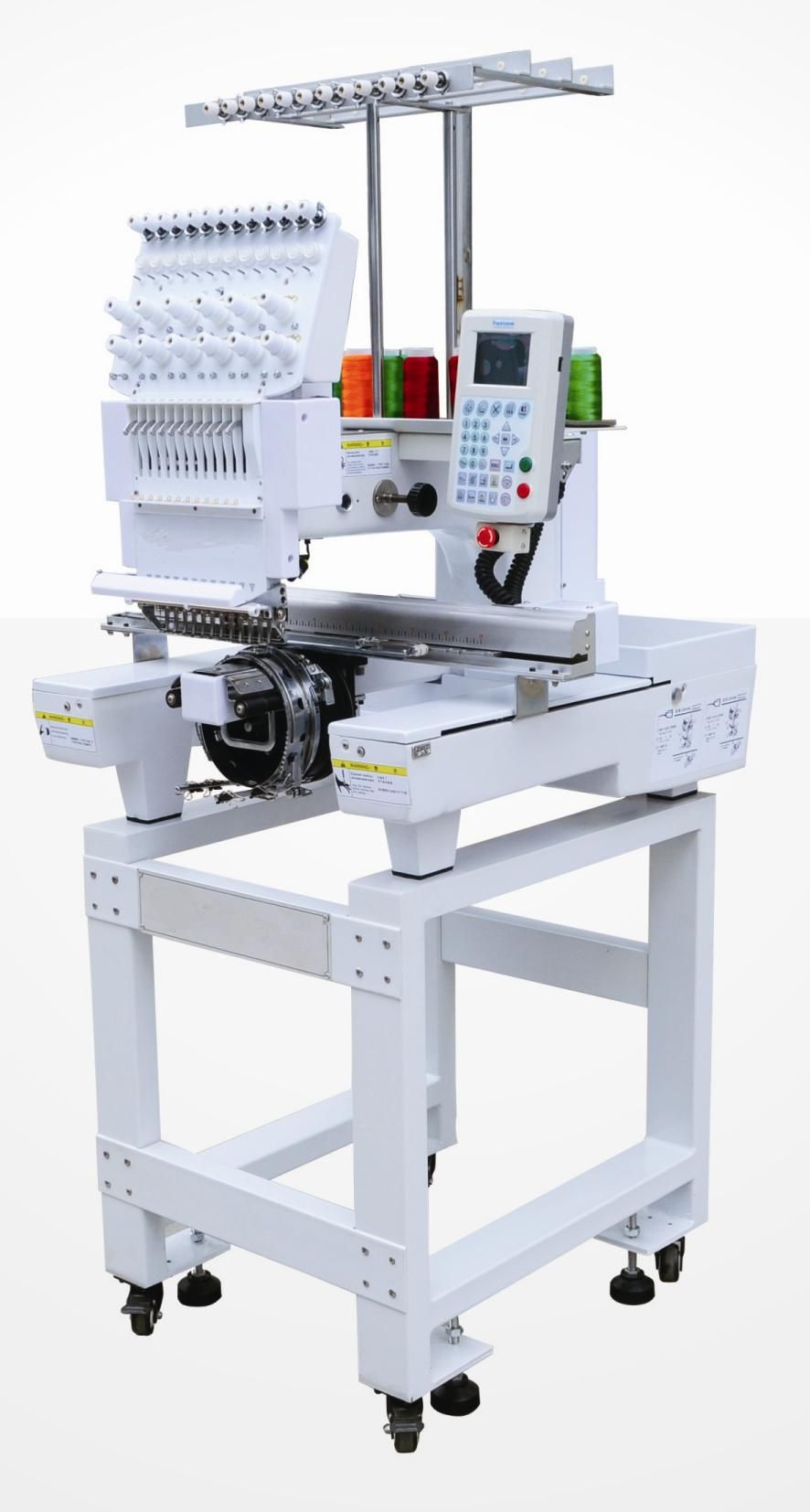

1. New type single head embroidery machine
2. Dahao new type high-tech color computer, BMW painting, Japan Hirose hook, Organ needle, Italy belt, Auto-trimmer
3. Arm-type tubular/cylindrical frame machine, big wheel for movement, with inside drawer
Optional Function:
1. Single sequin embroidery and double sequin embroidery function
2. Boring embroidery function
3. Simple cording embroidery function
4. Simple coiling embroidery function
| Needles | Head | Emb. Area(mm) | Length | Width | Height | Weight(kg) |
| 12 or 15 | 1 | 360*510 | 800mm | 800mm | 1600mm | 120 |
